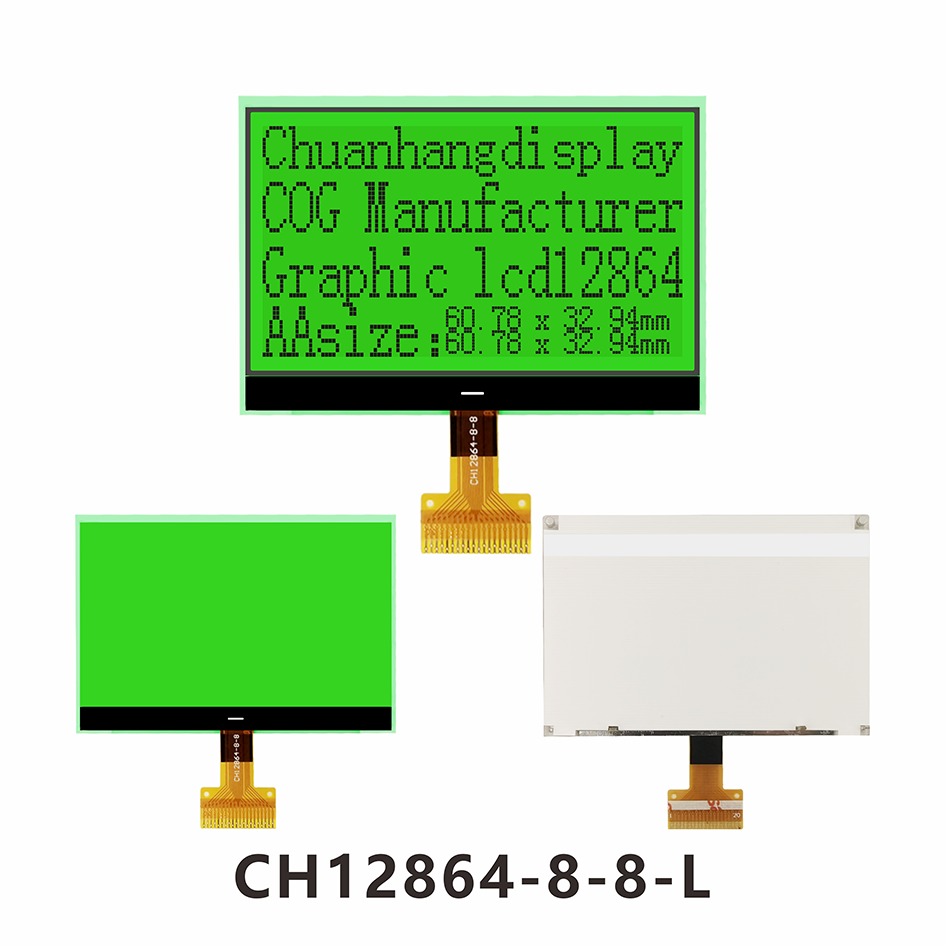

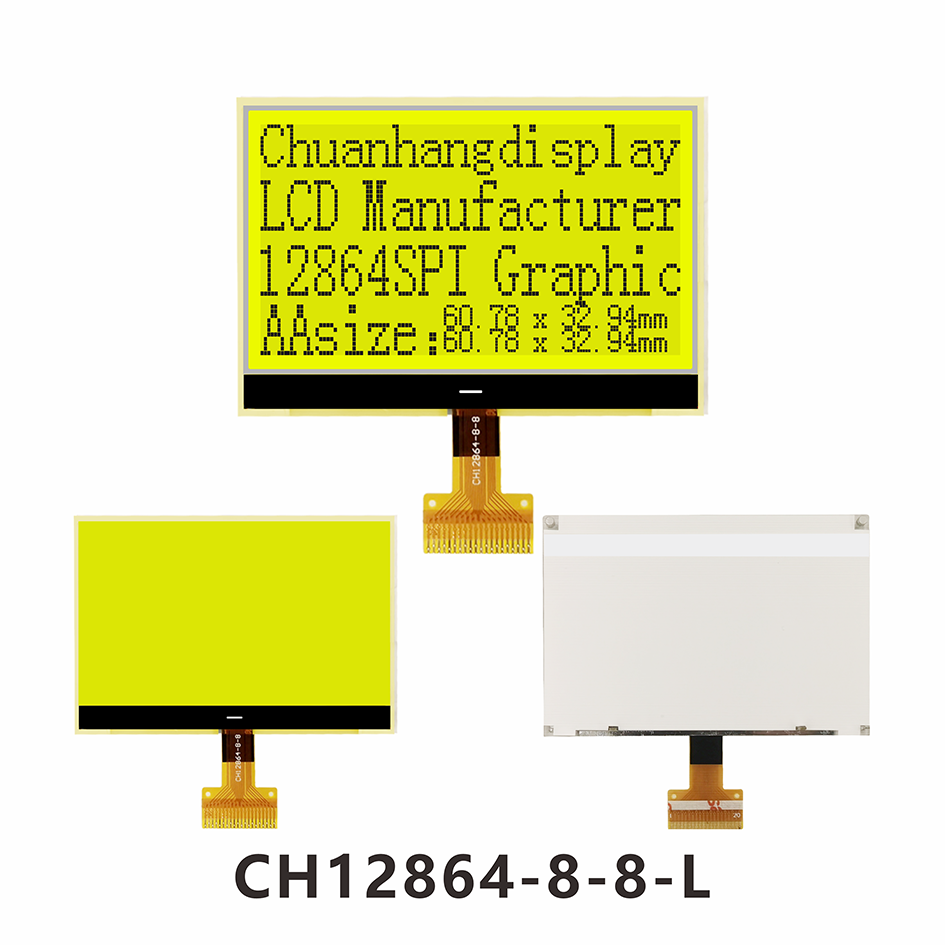

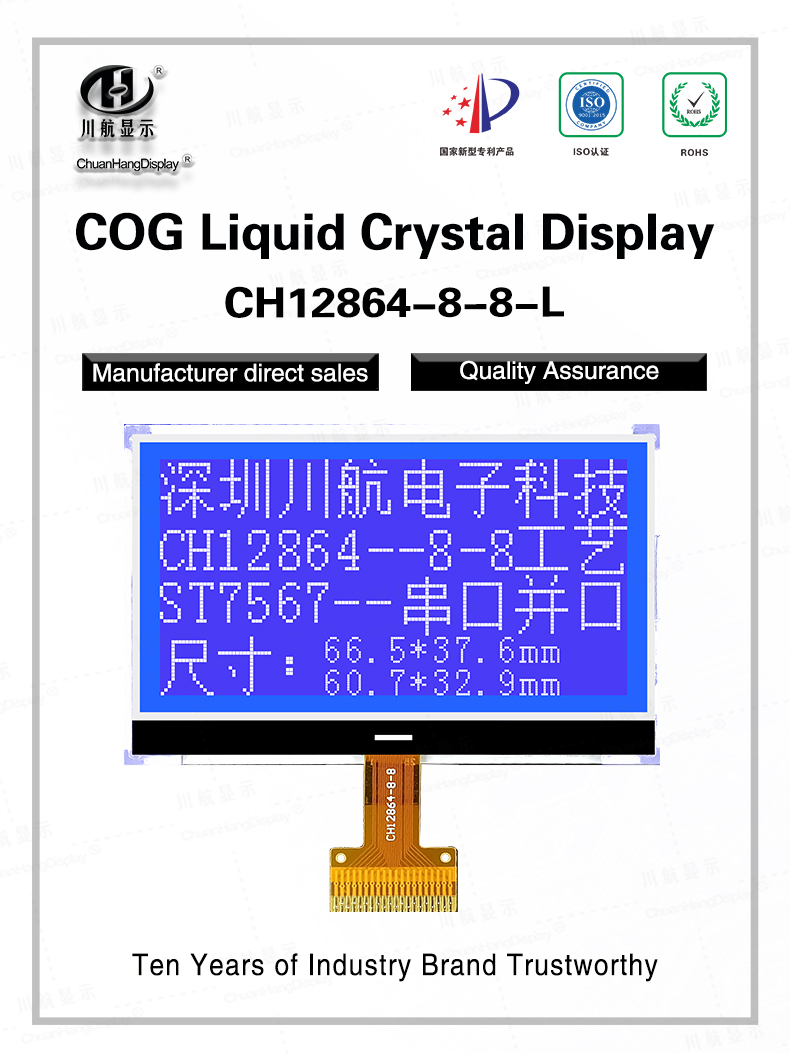

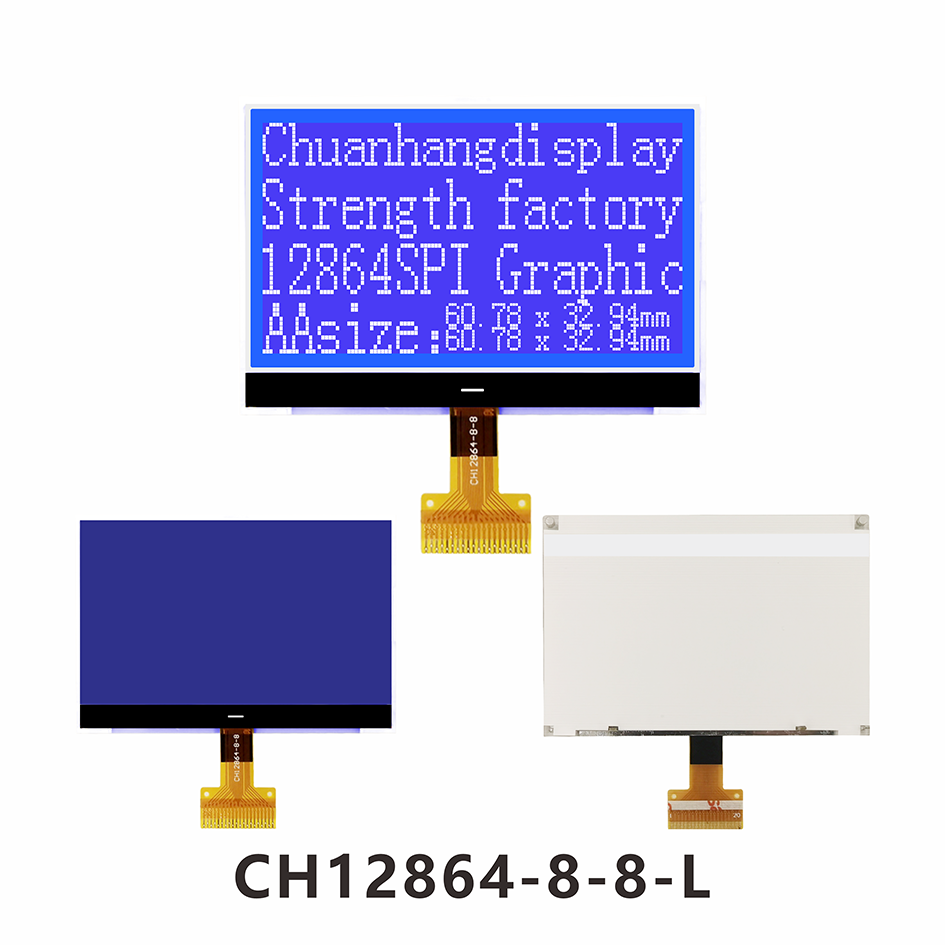

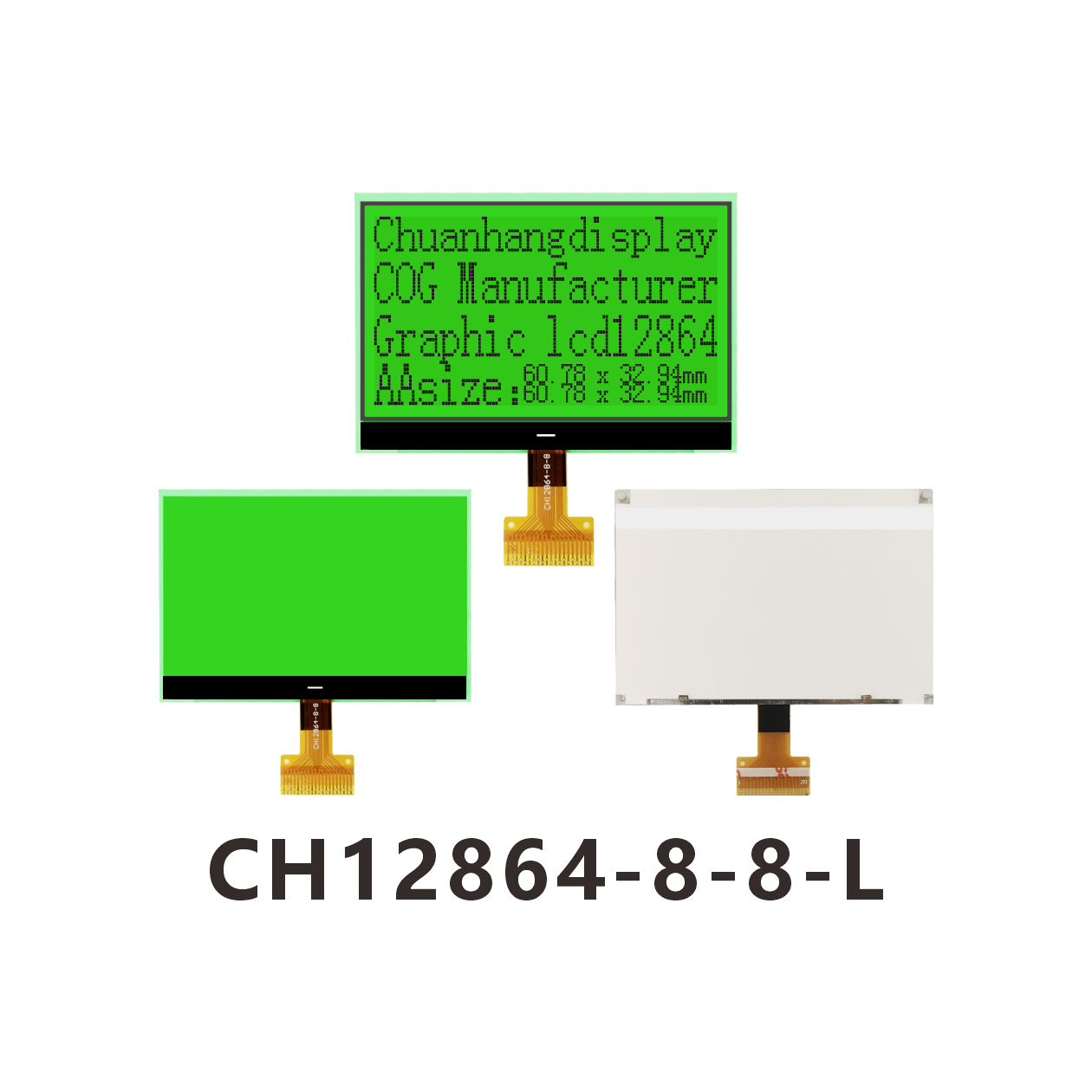

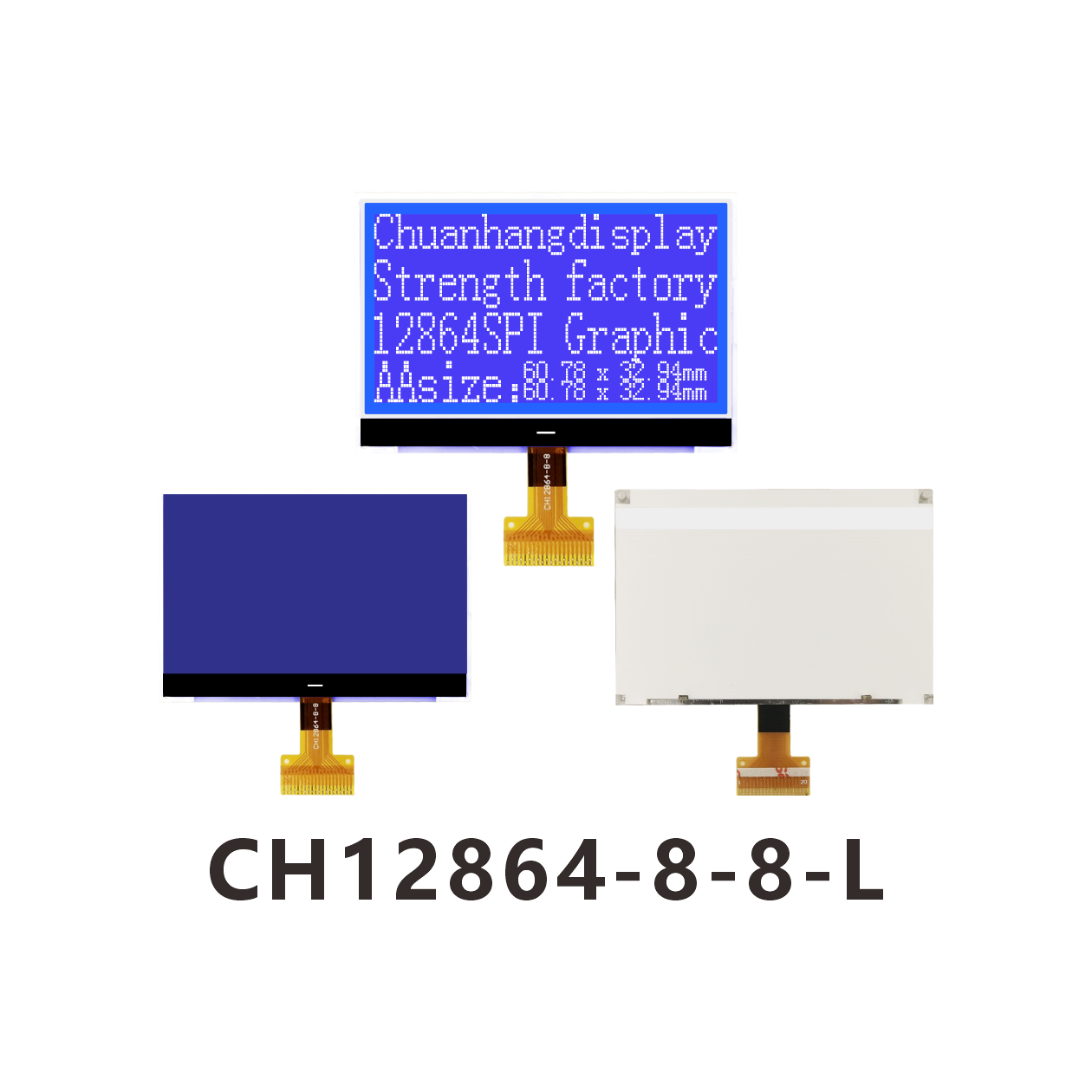

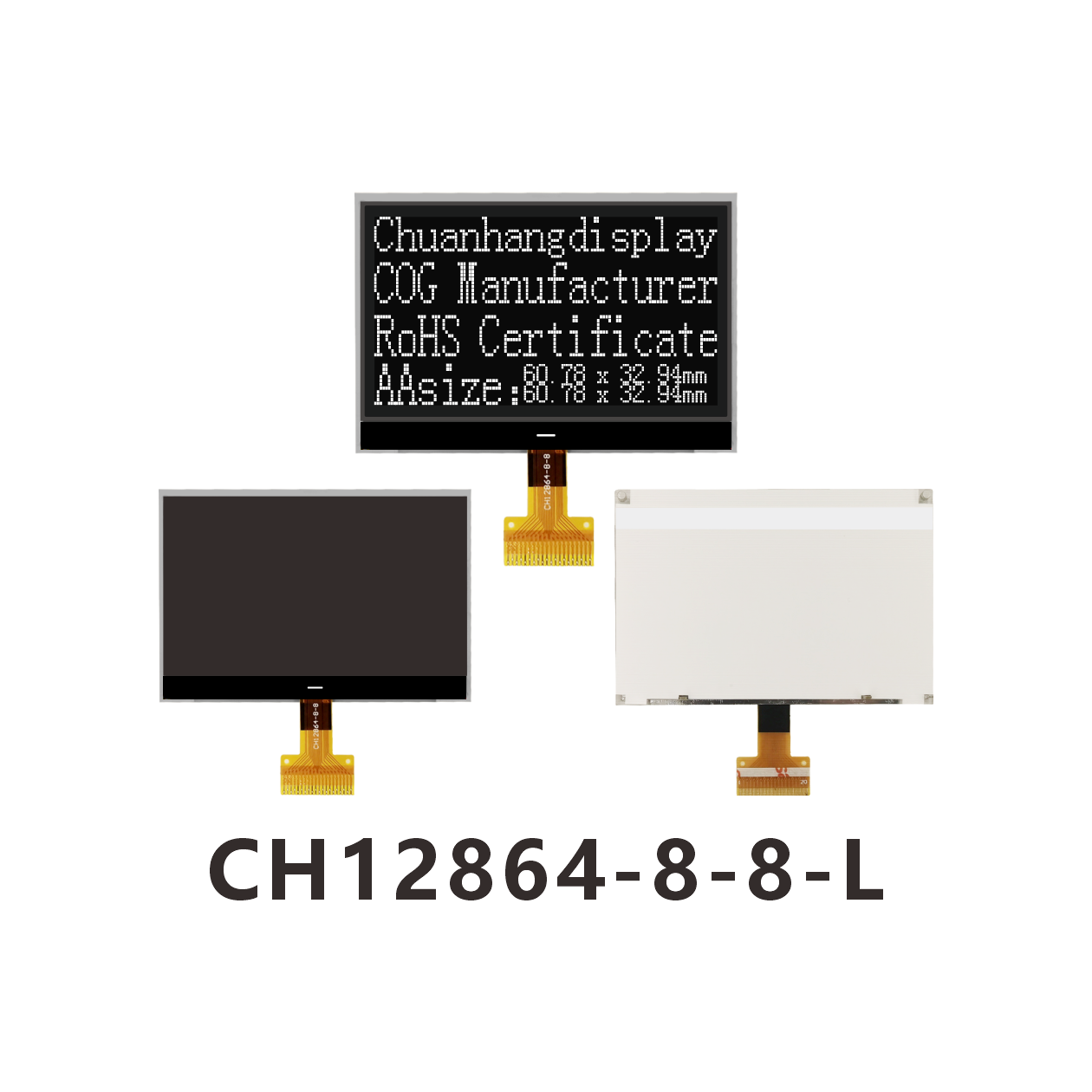

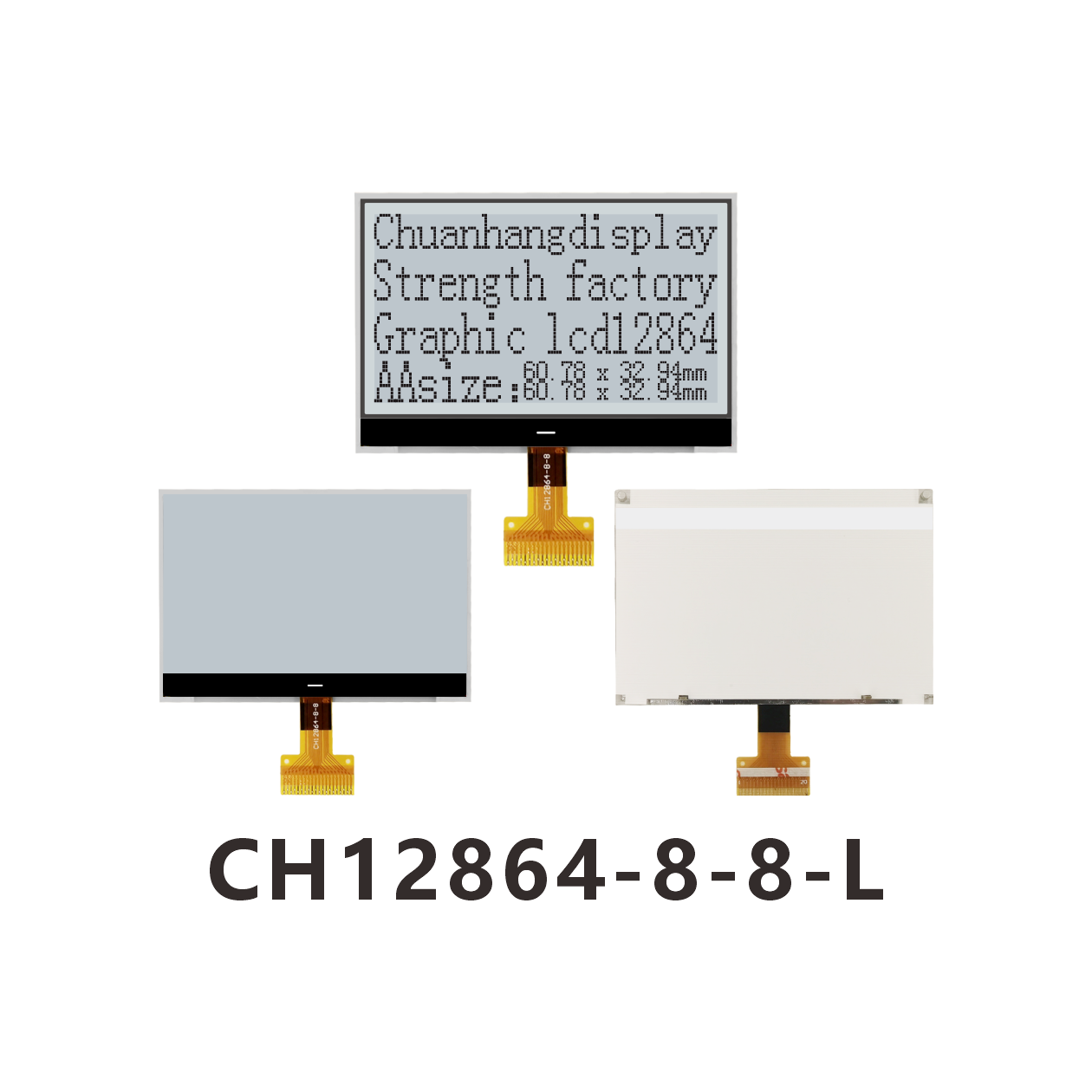

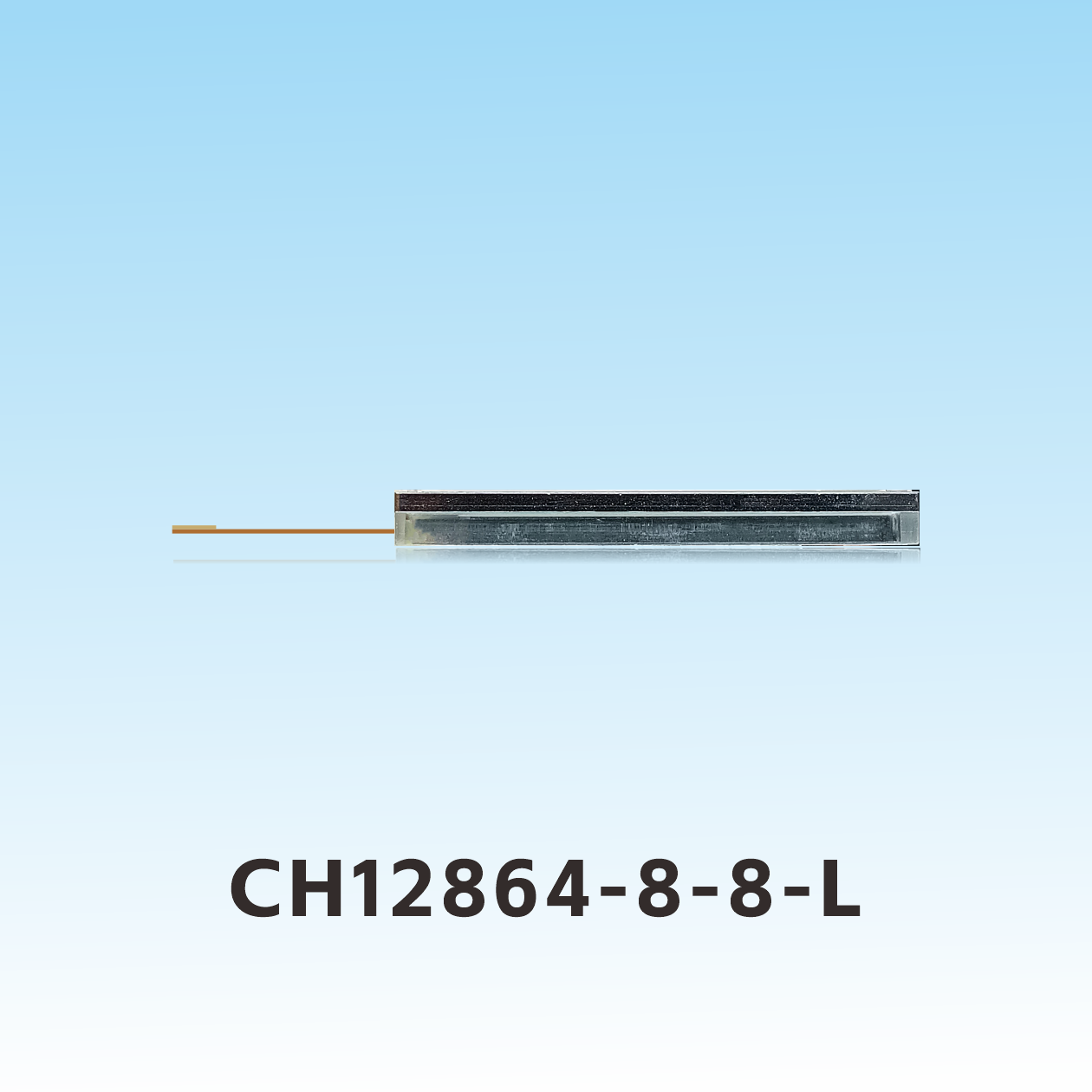

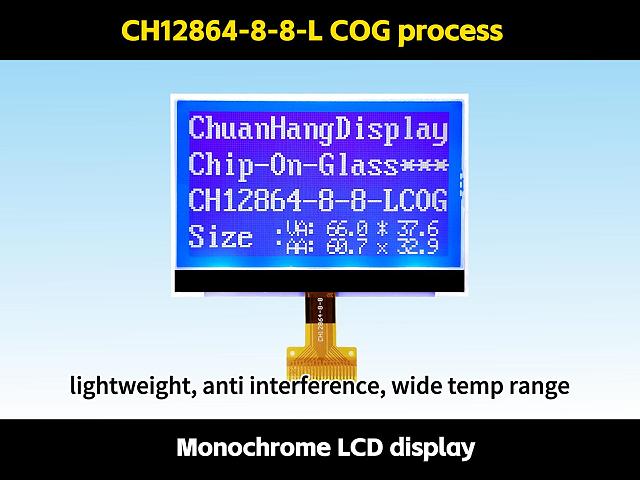

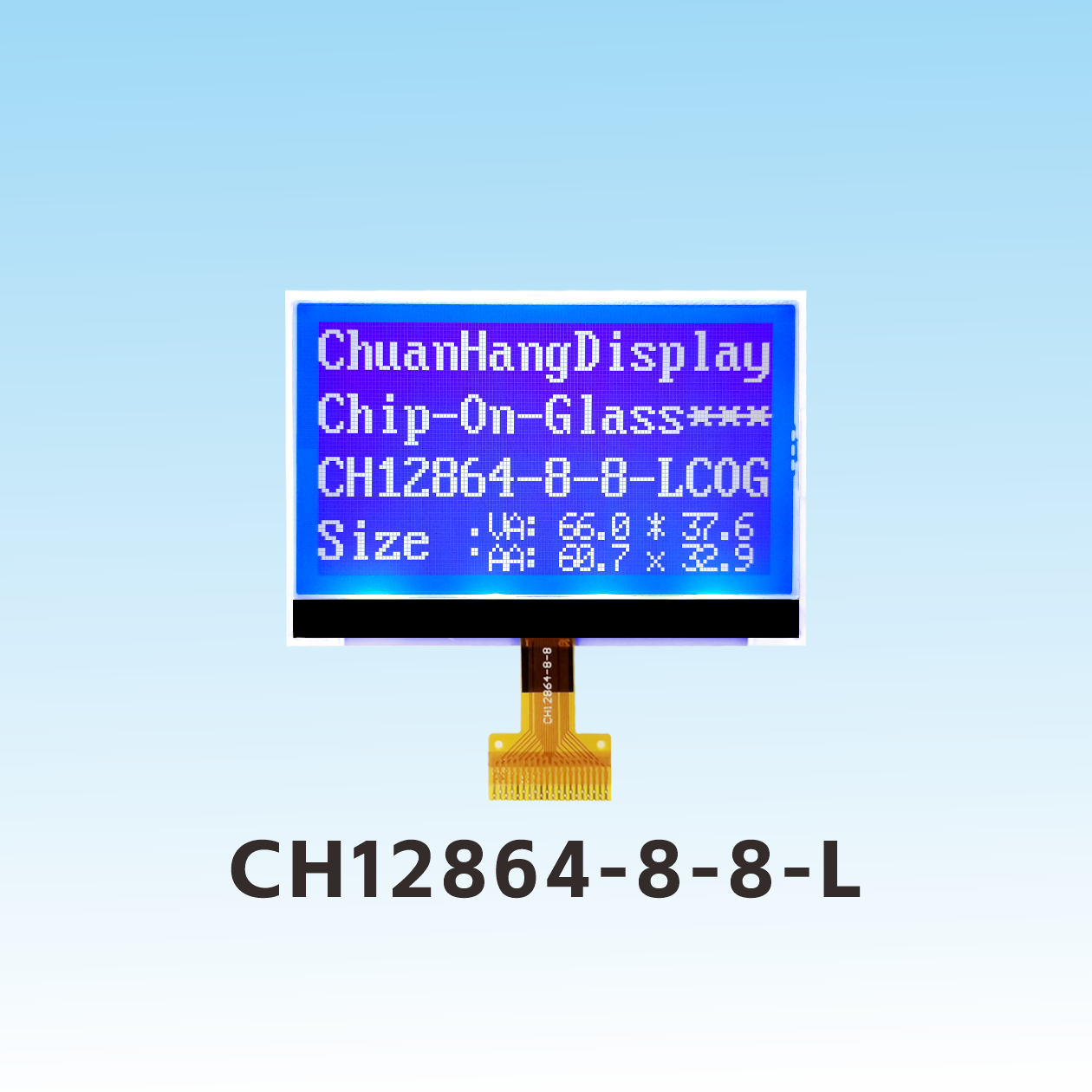

CH12864-8-8-L

Product Description

PDF Download Demo code

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-8-8-L
Resolution	128x64	screen size
Outline Dimension(LWH)	37.90x29.90x5.7mm	Visible Area(L*W)	32.00x19.50mm
Active Area(L*W)	30.70x16.62mm	Character Size(L*W)
Type	COG	Connection Method	FPC
Supply Voltage	DC 5V/3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/16Duty,1/5Bias
Display Type		Driver IC	AIP31066
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	DC 5V/3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO

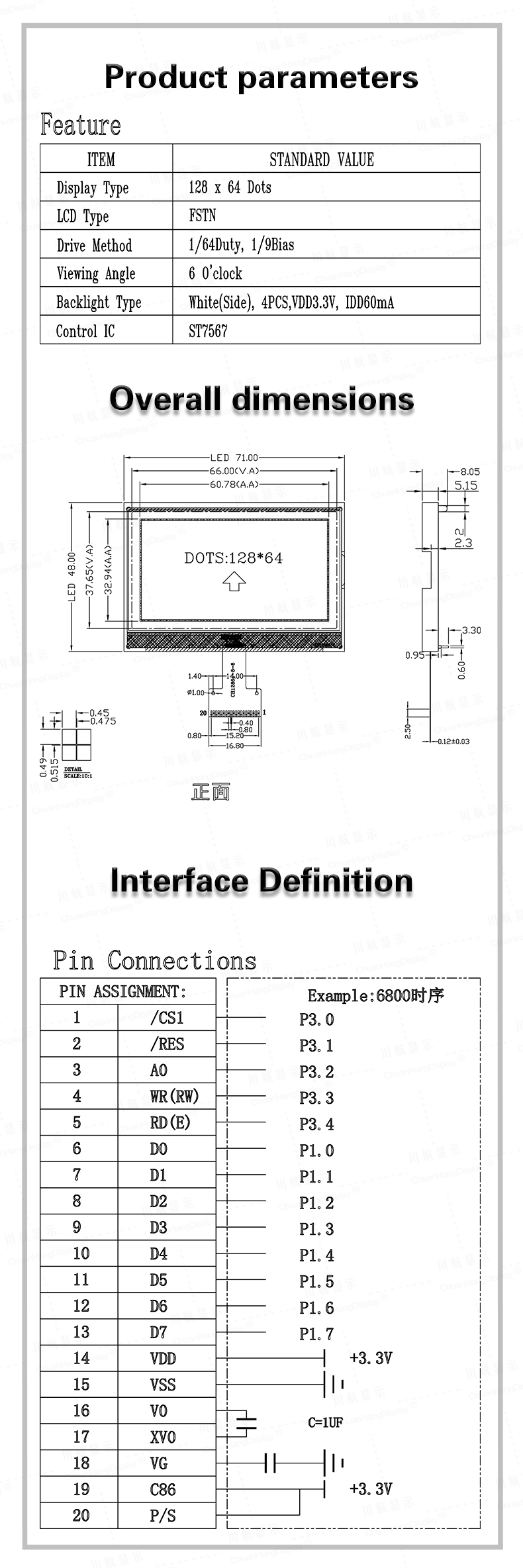

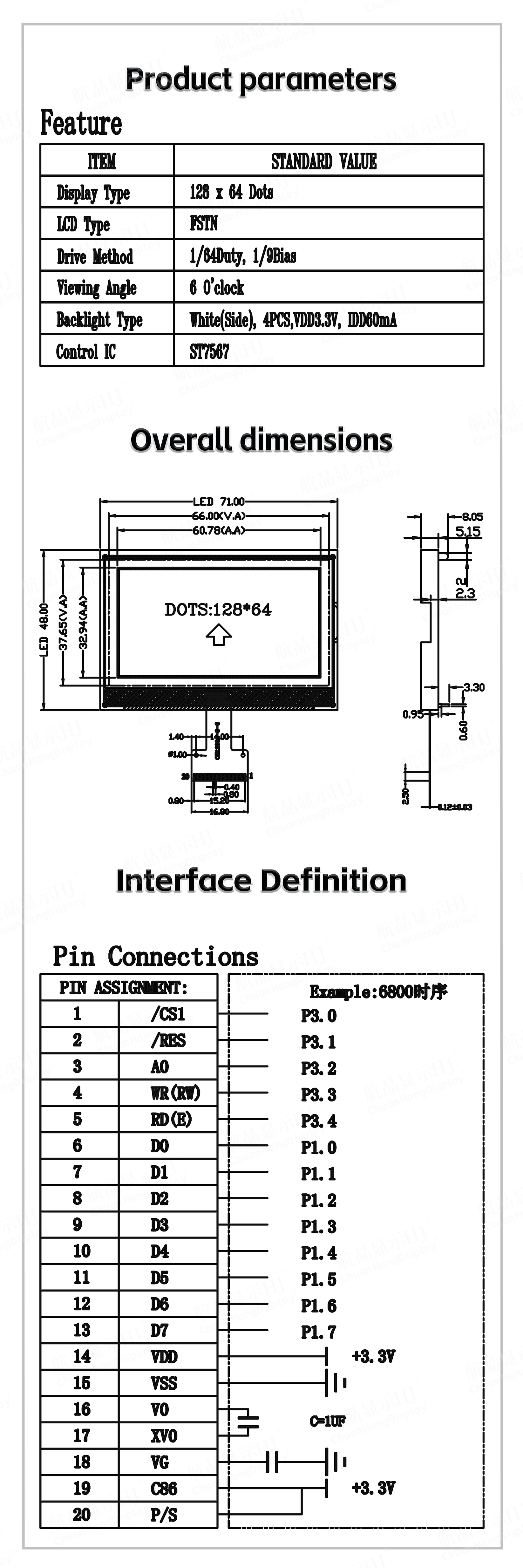

Product Datasheet

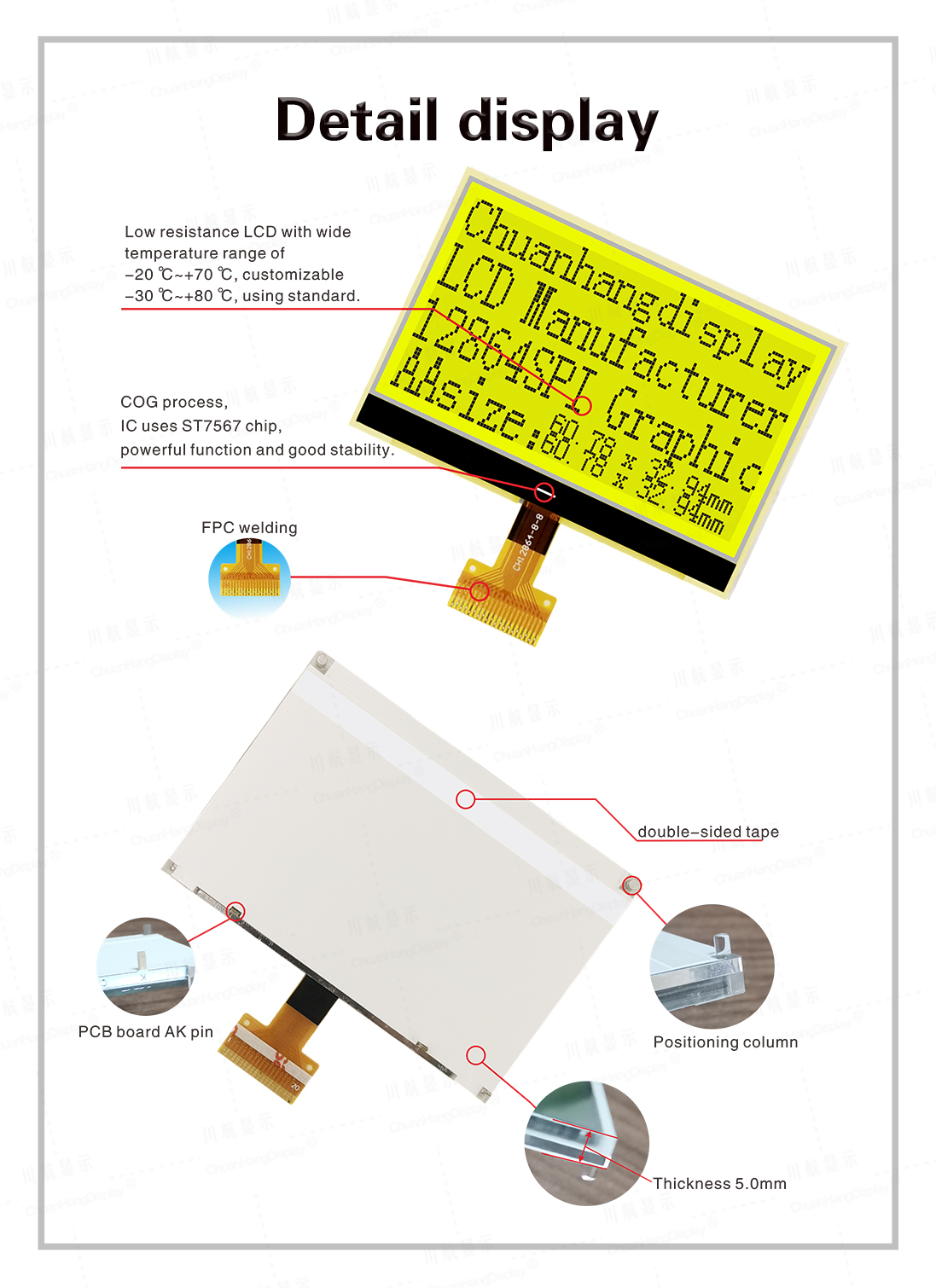

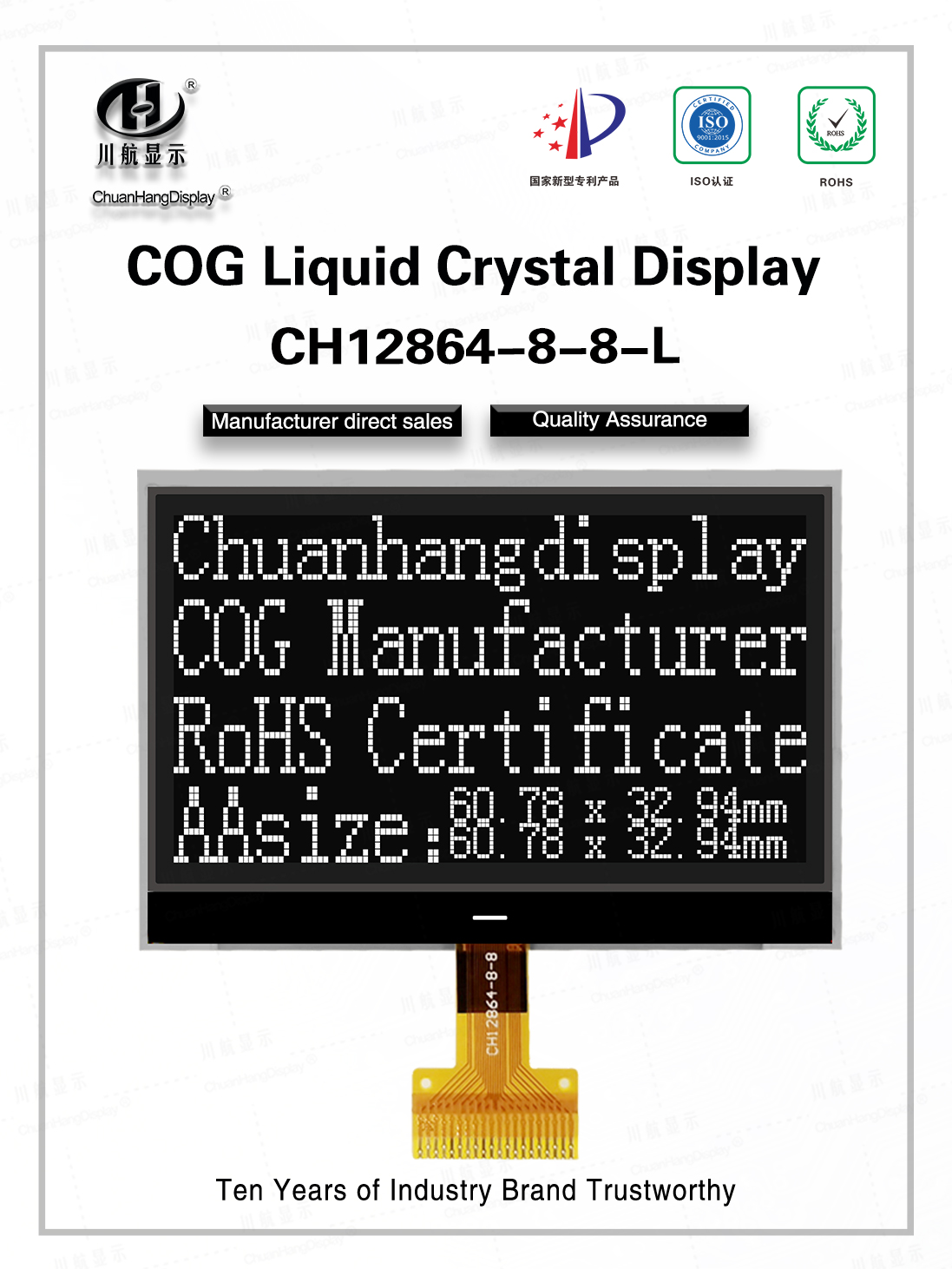

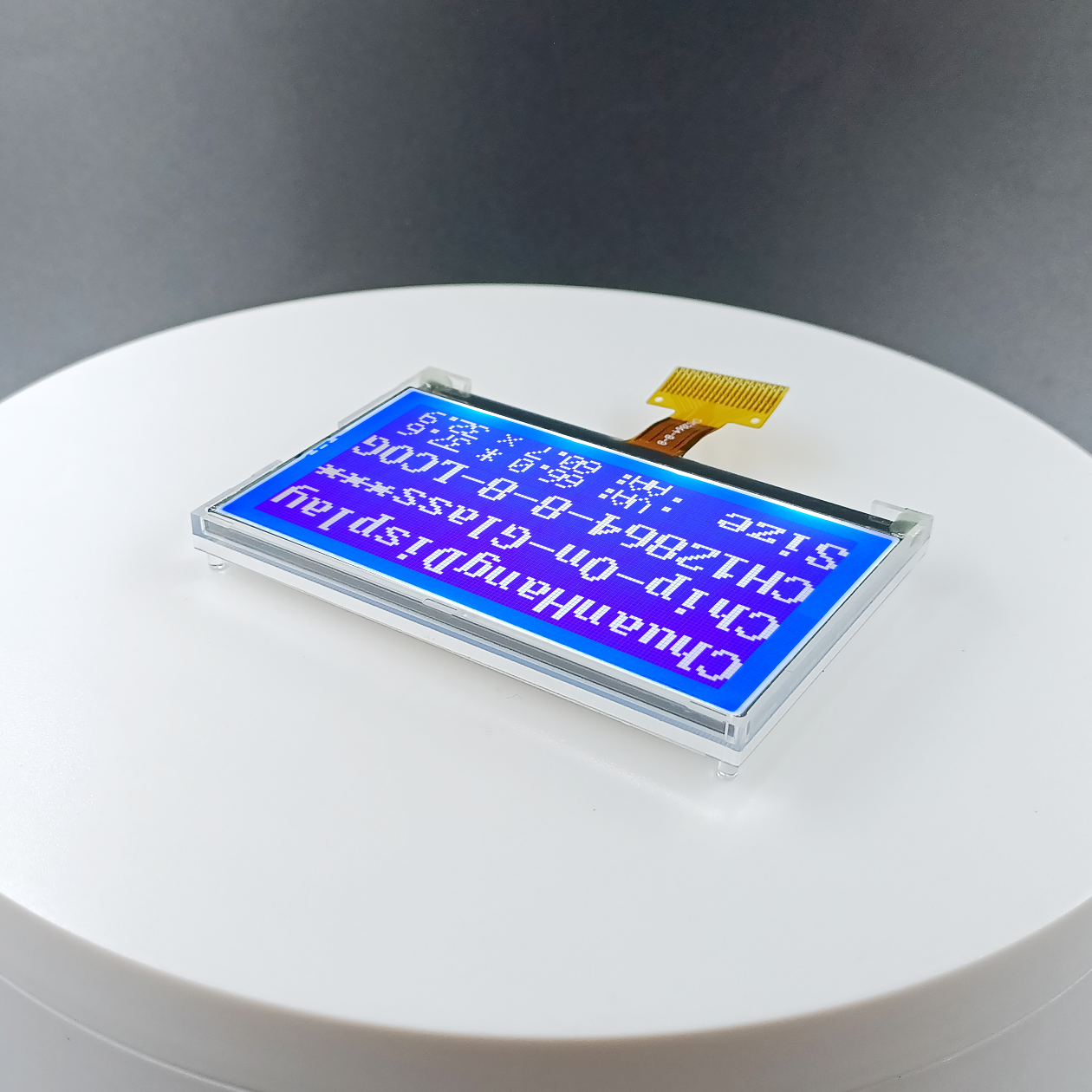

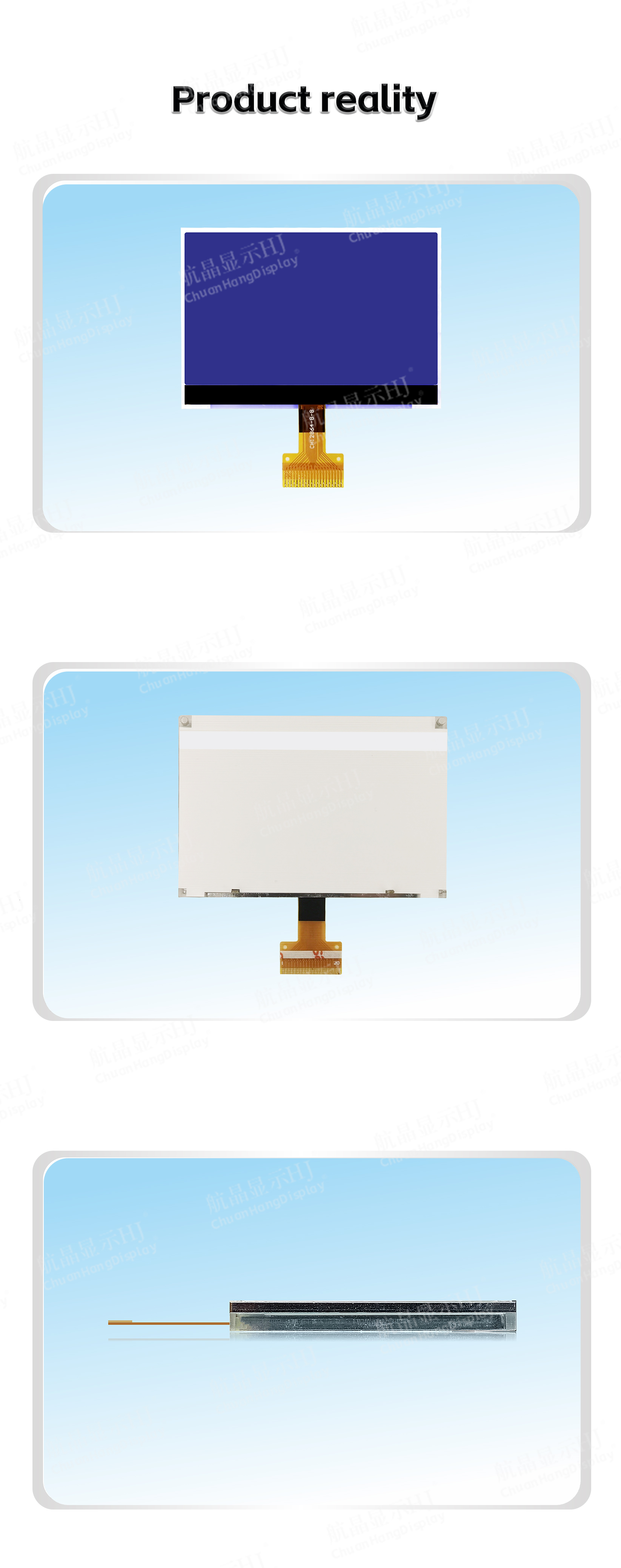

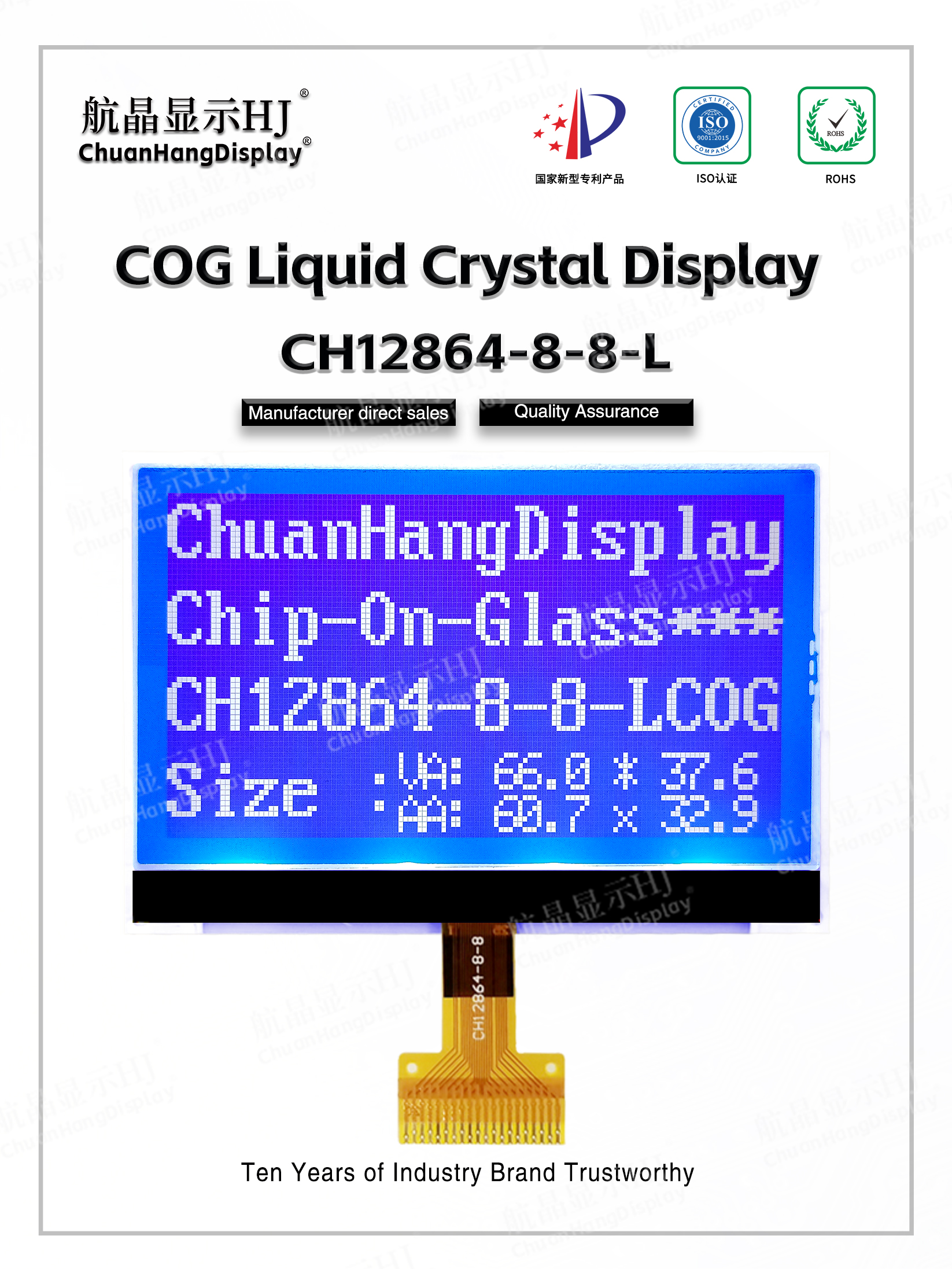

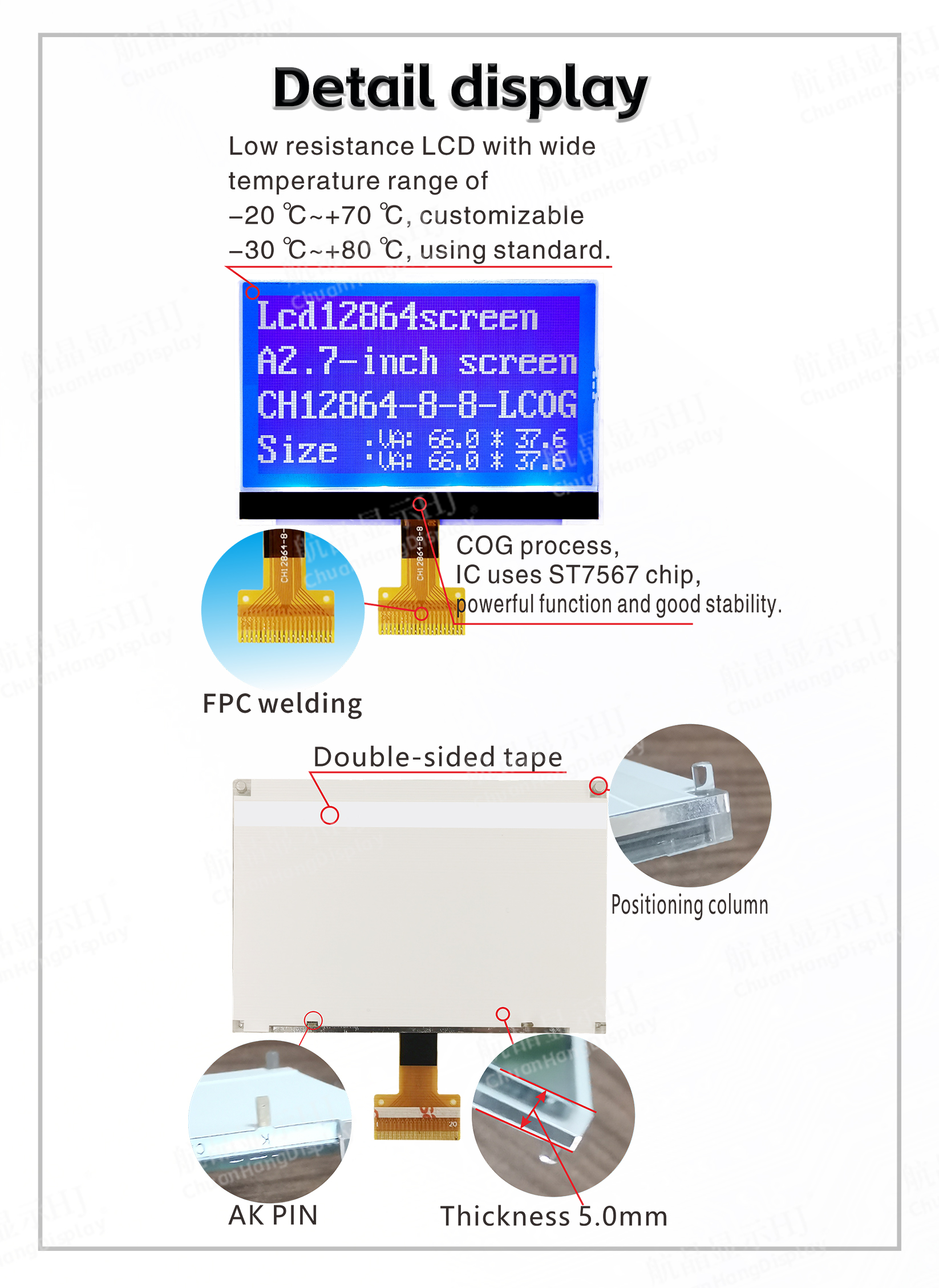

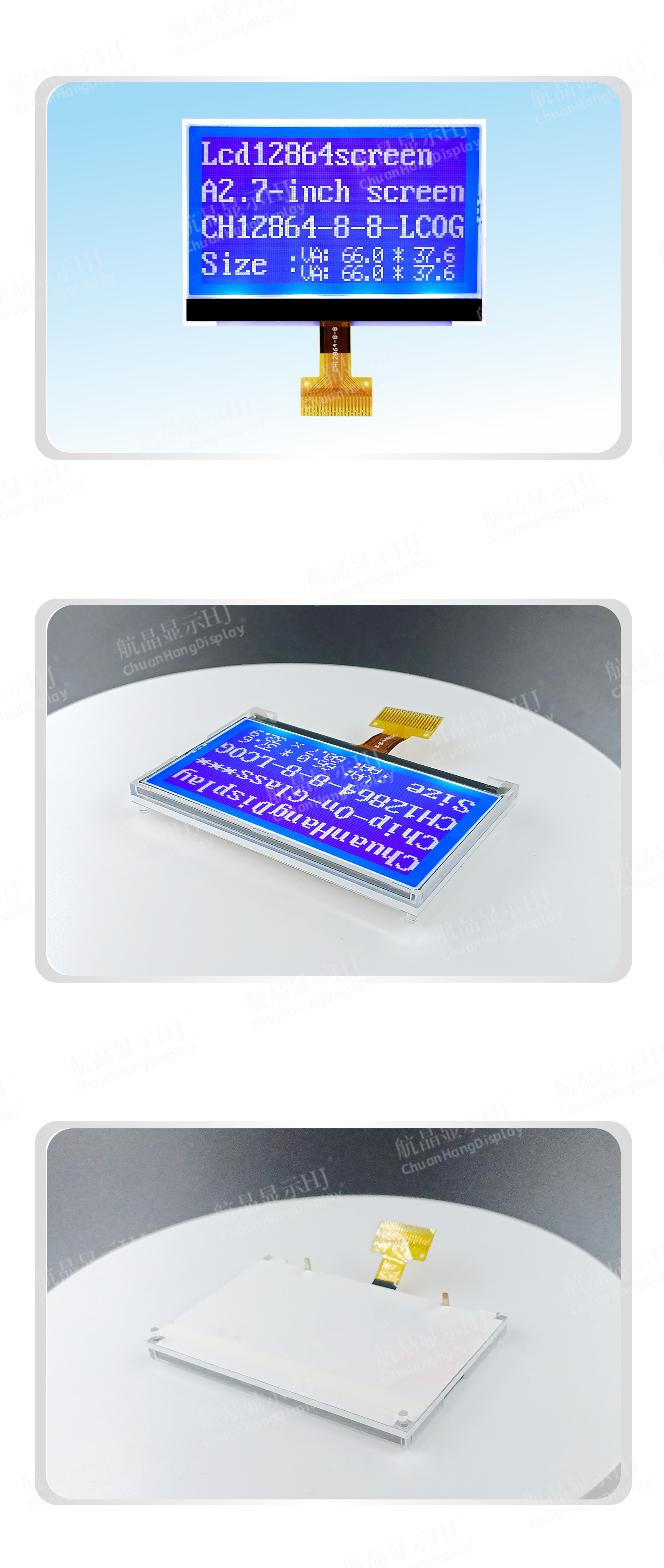

Product Display
