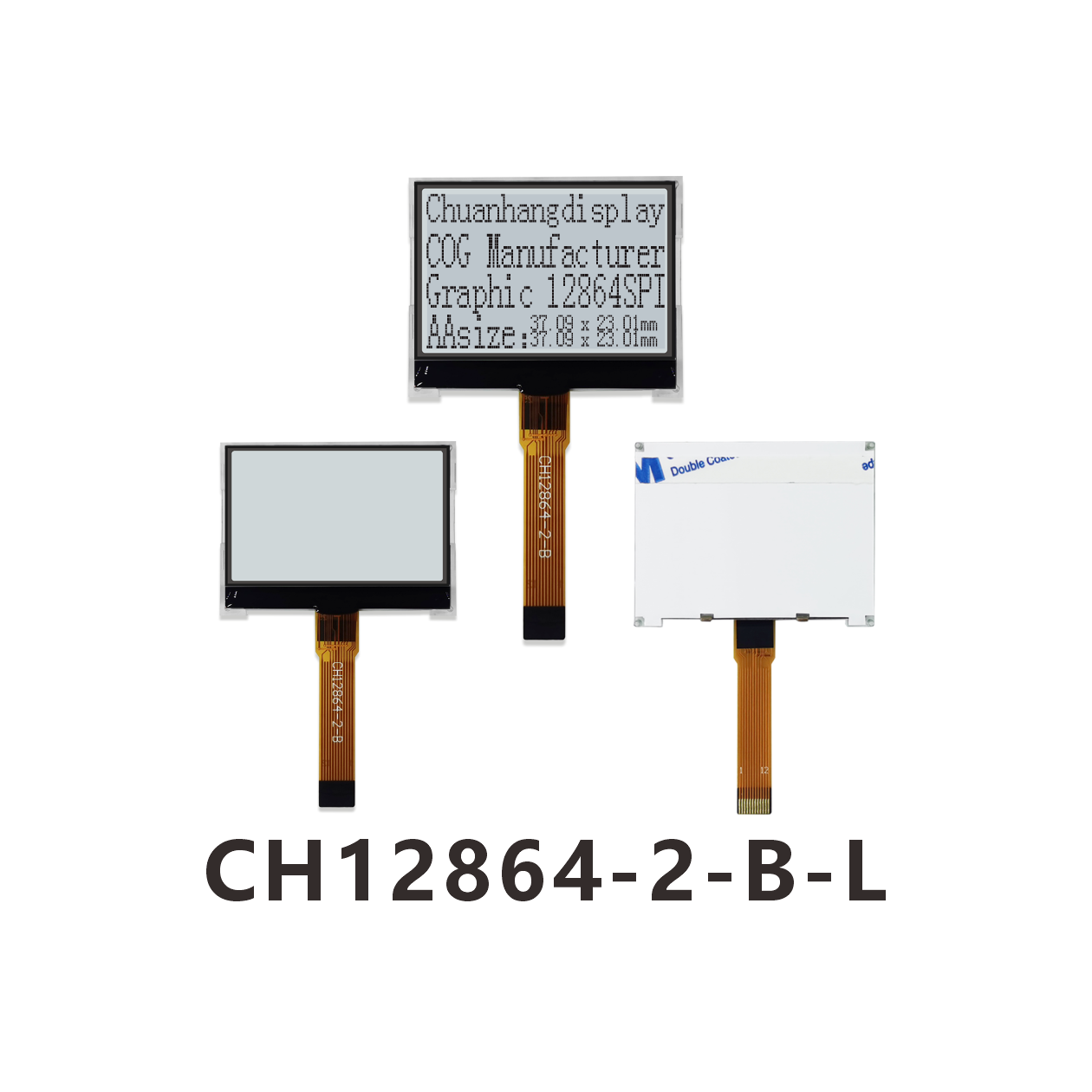

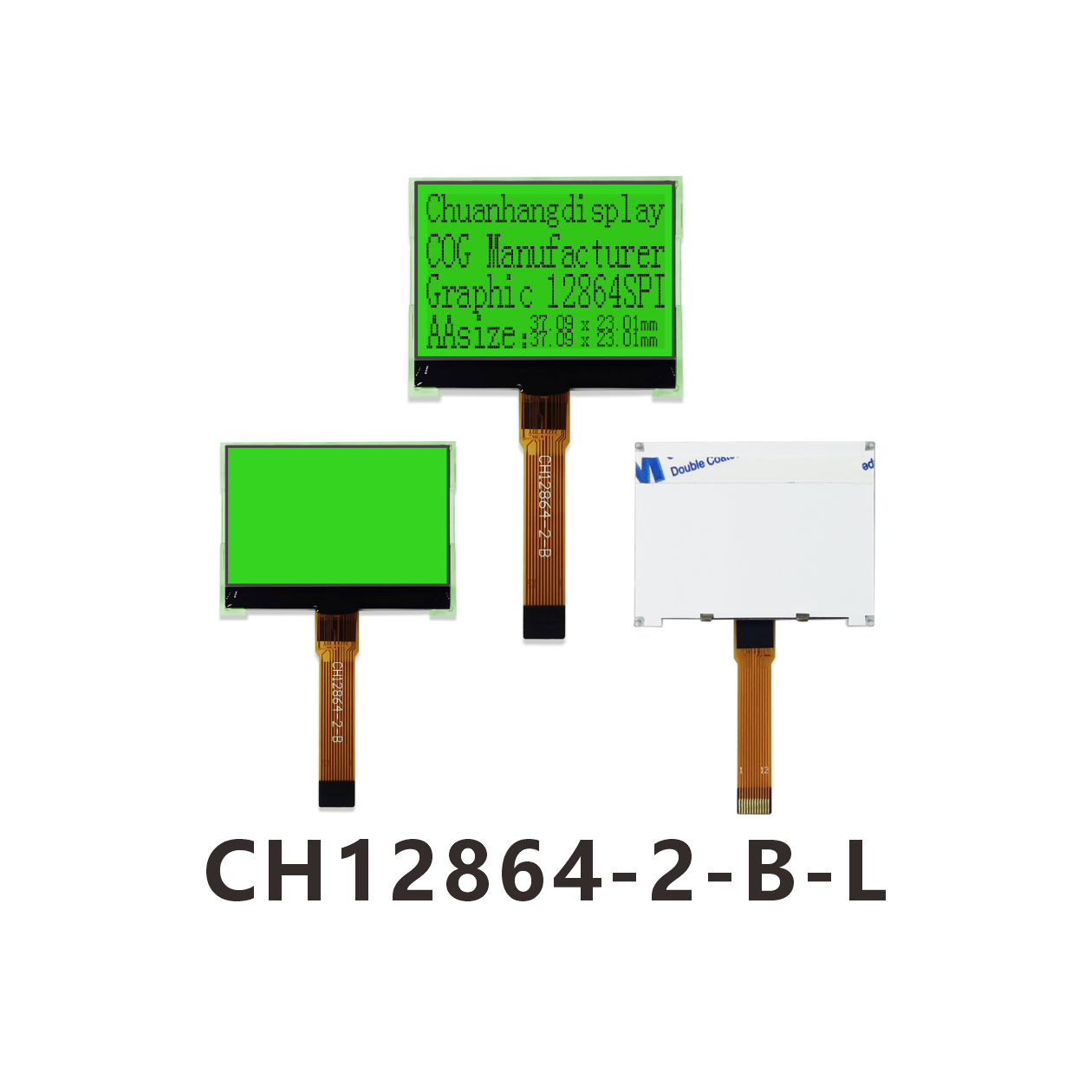

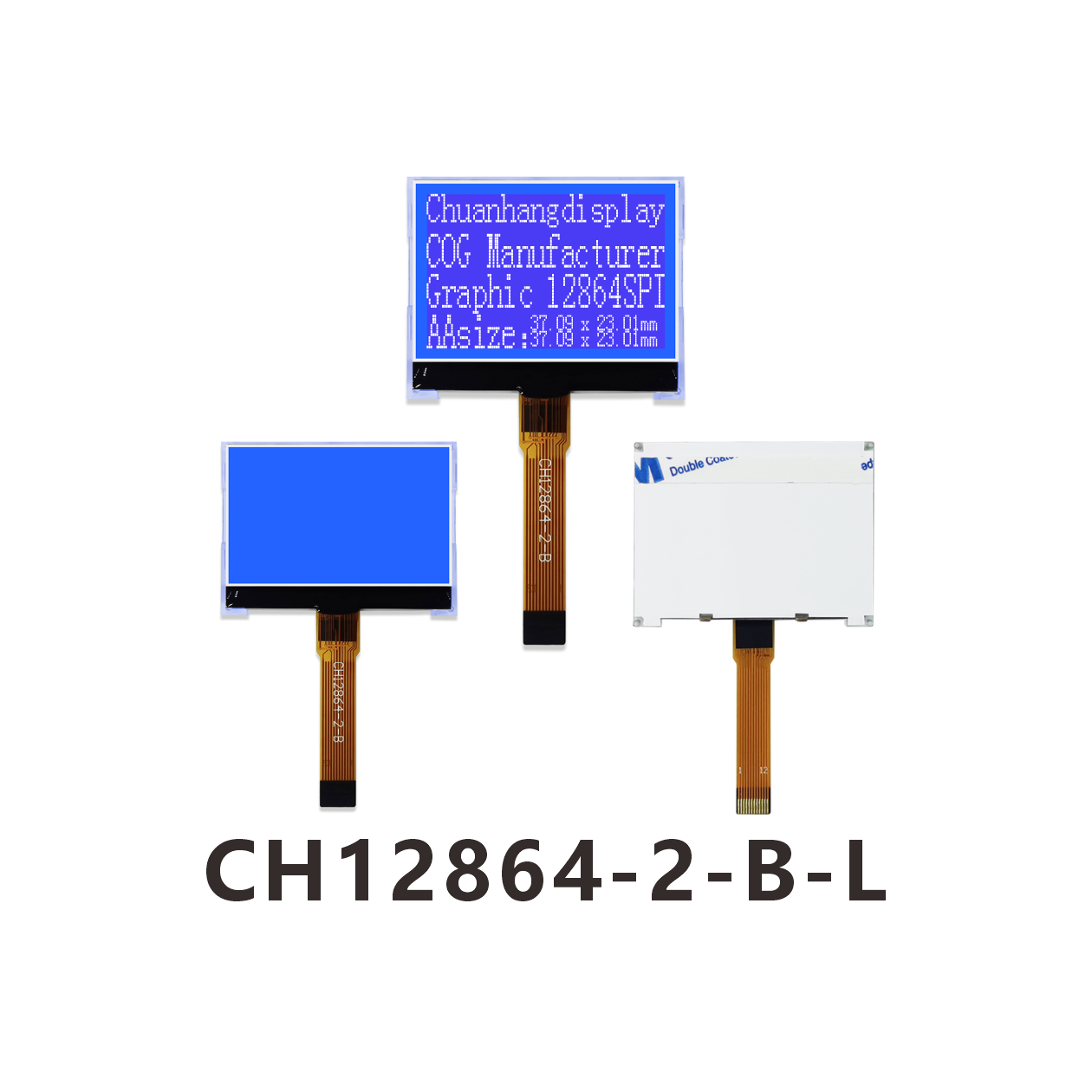

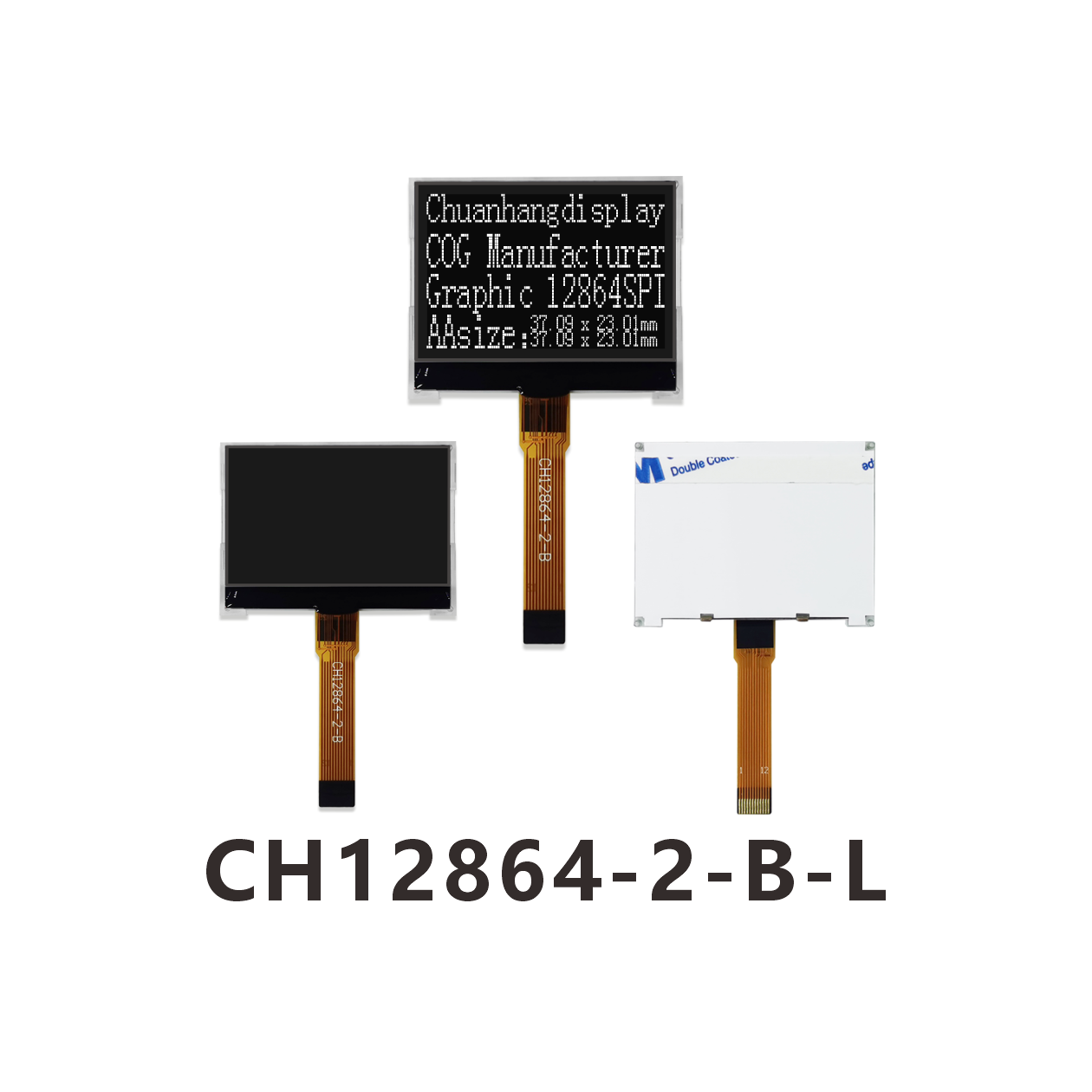

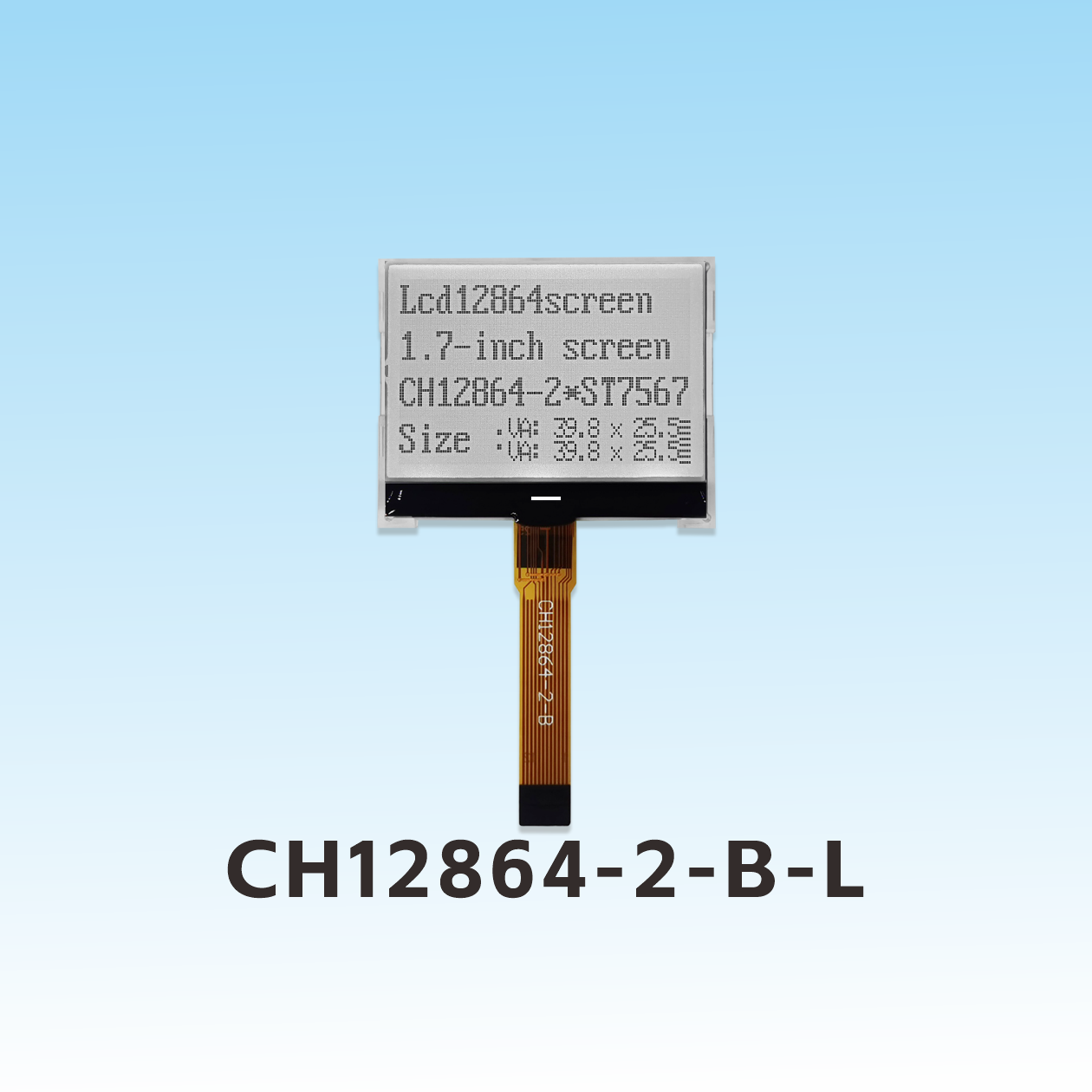

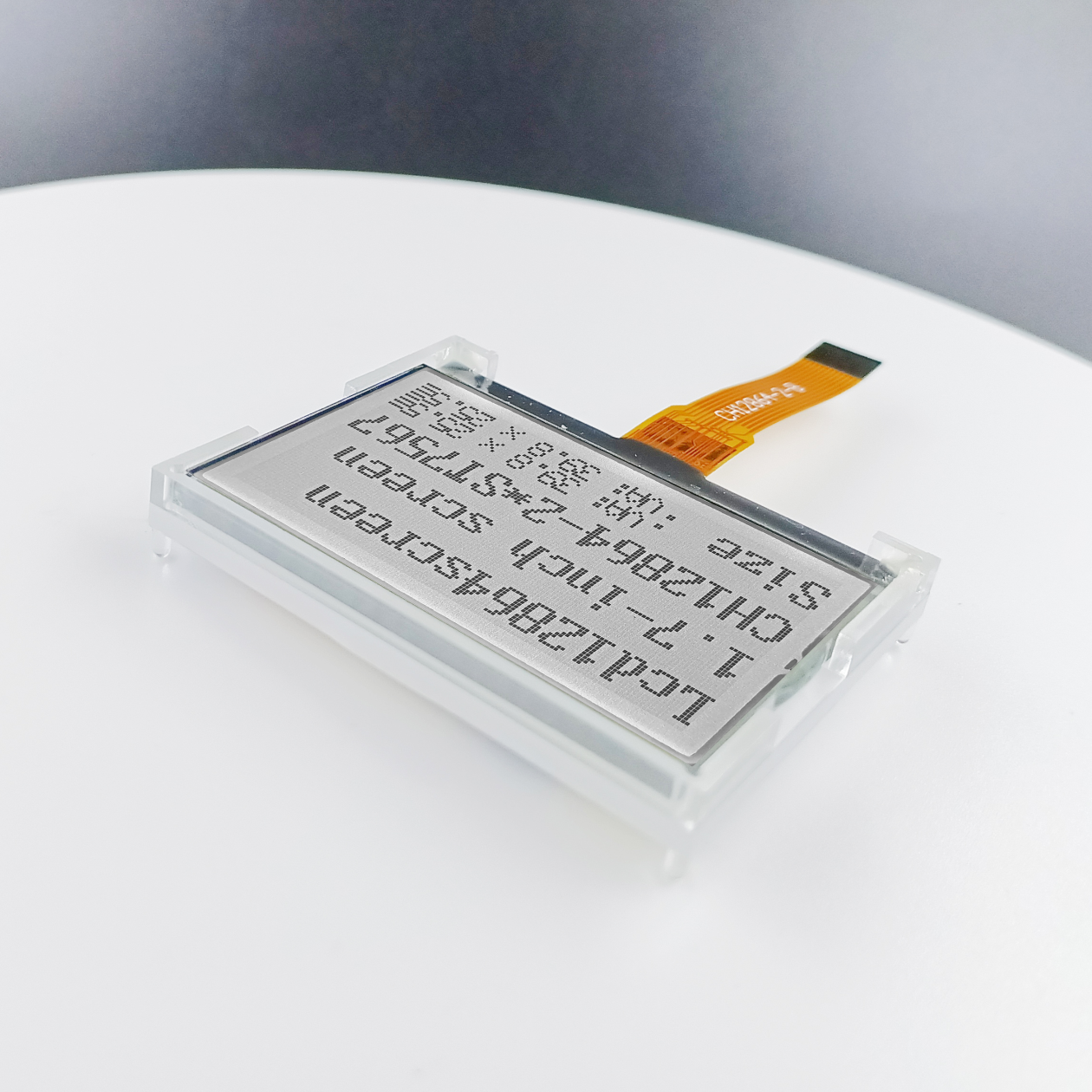

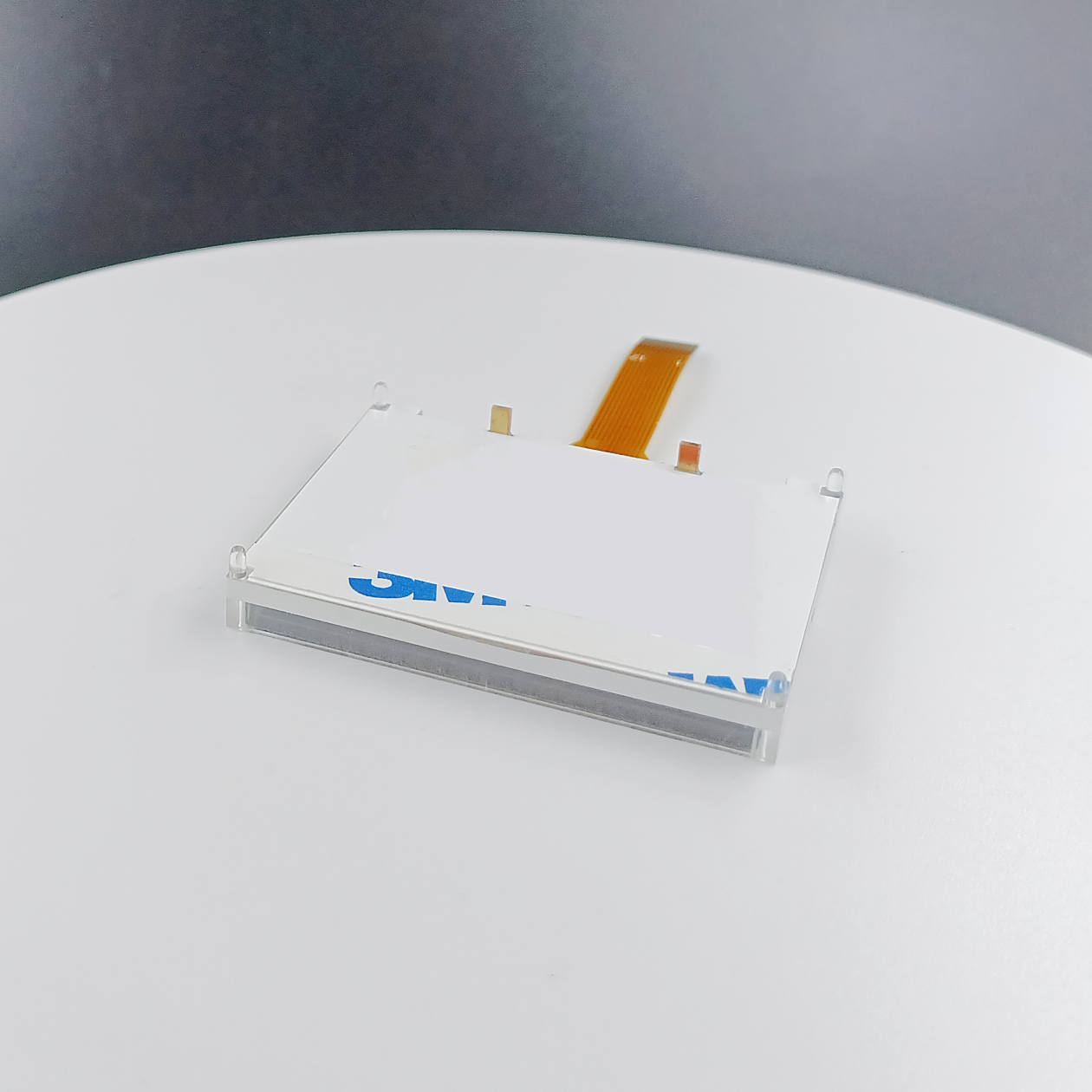

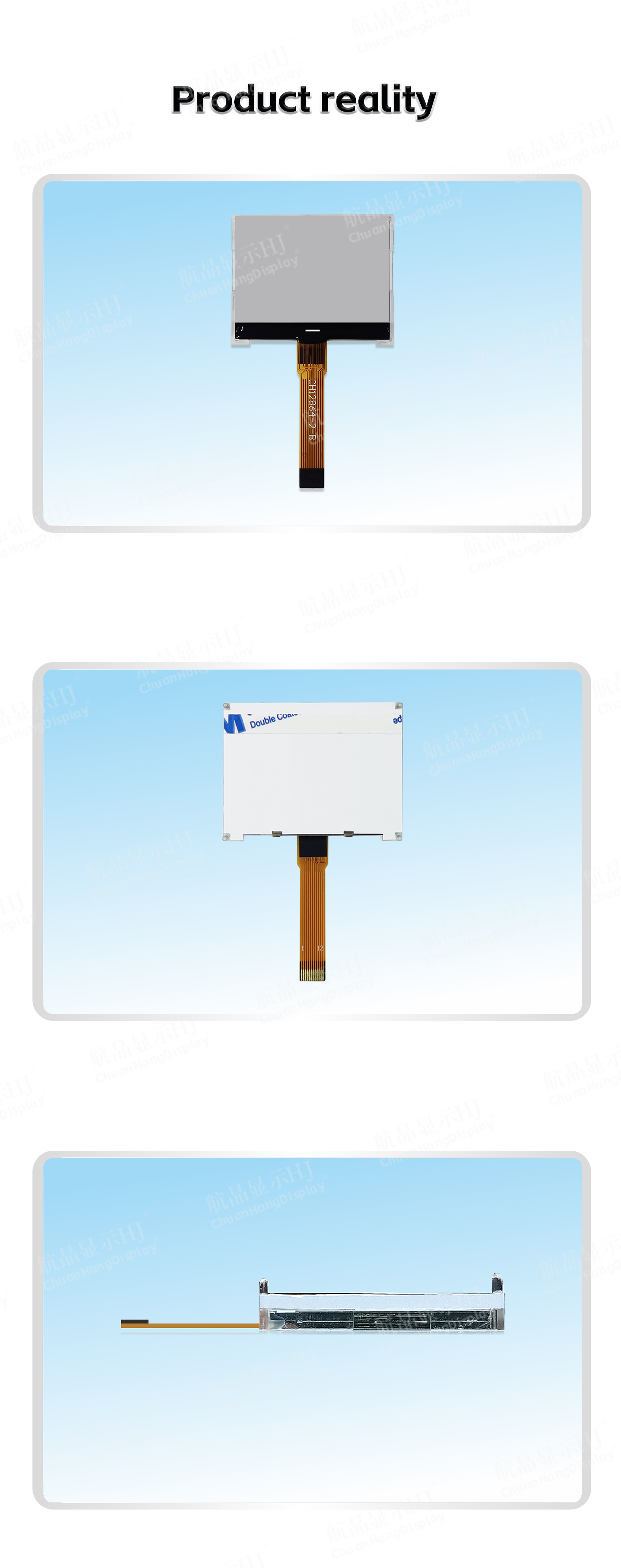

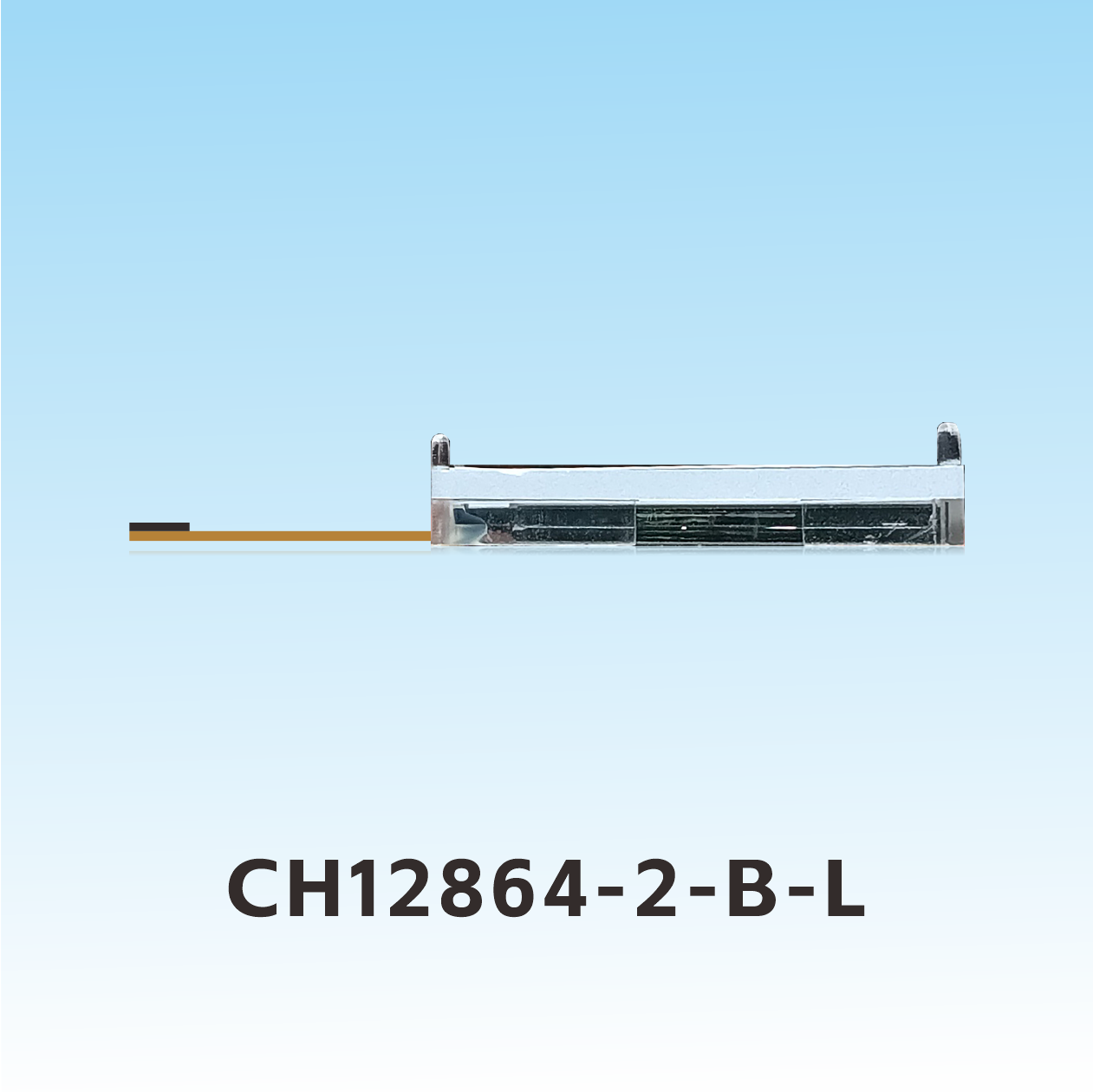

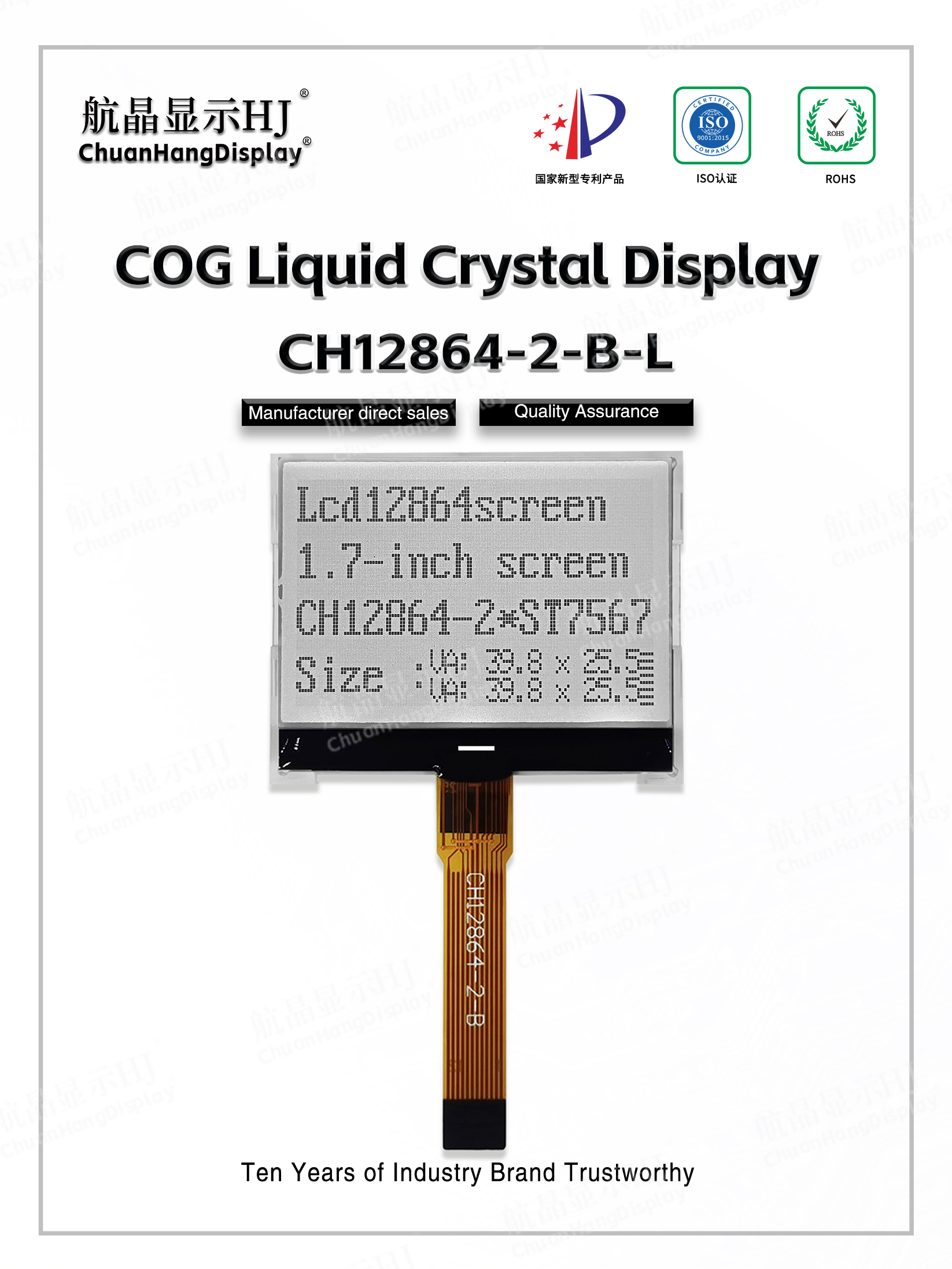

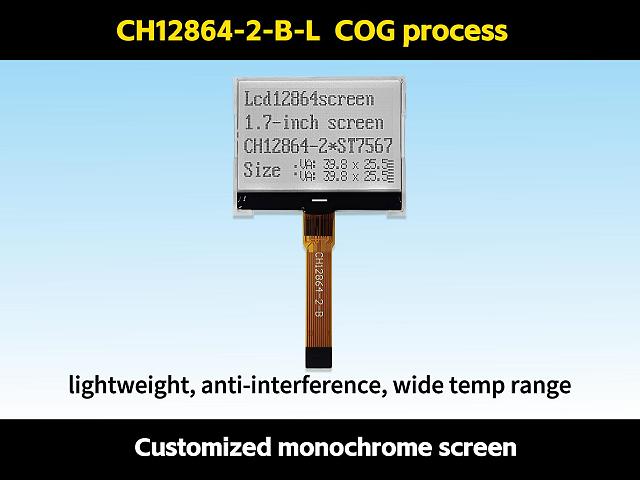

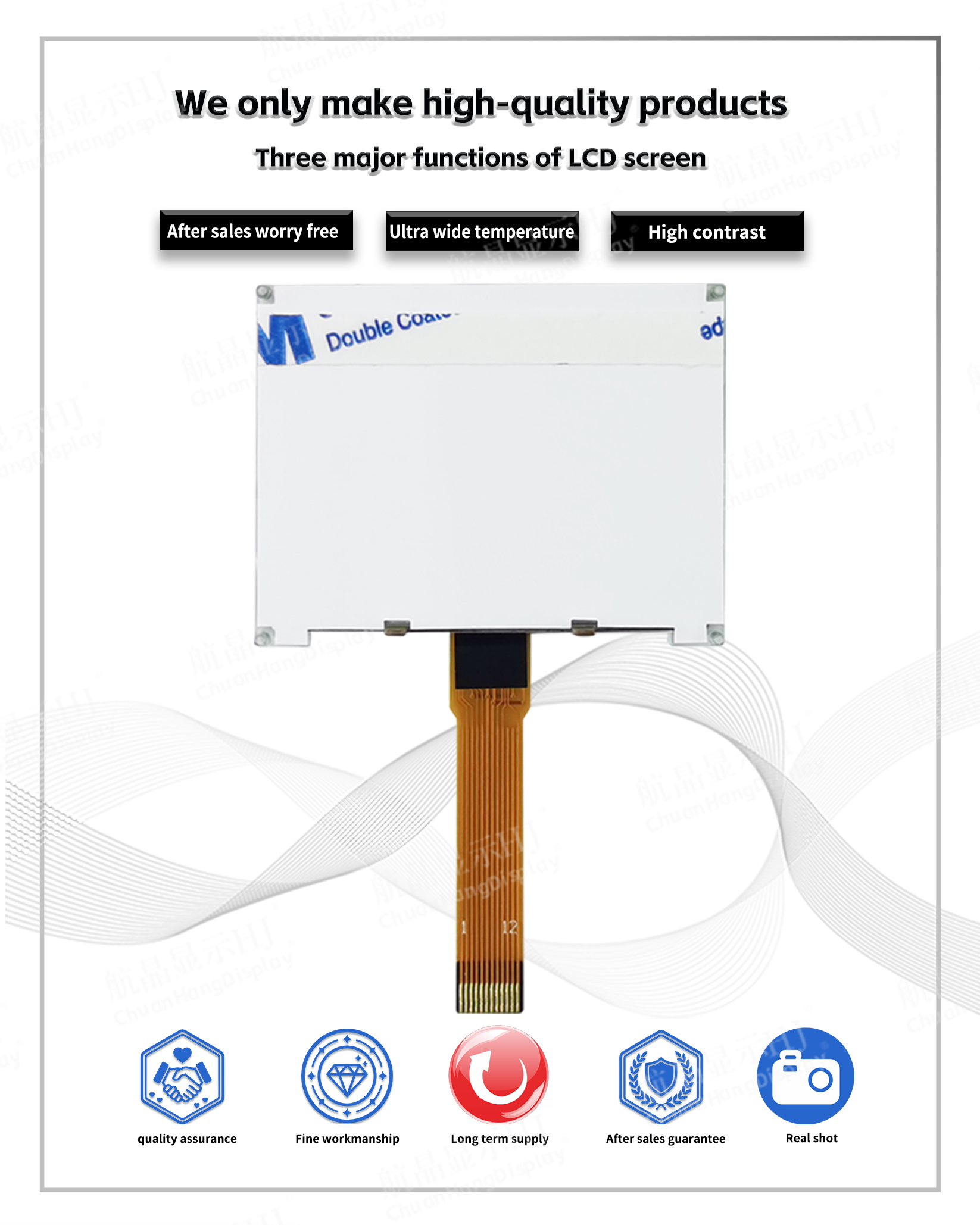

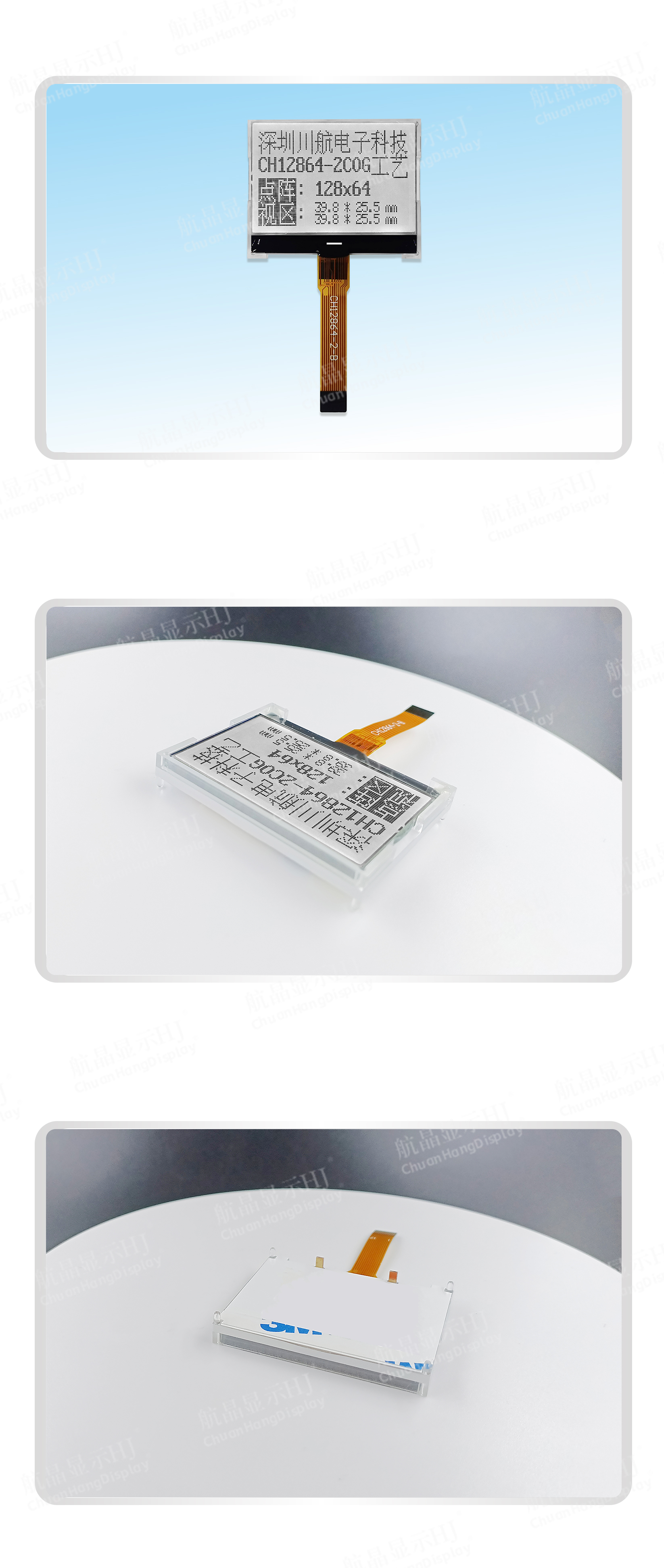

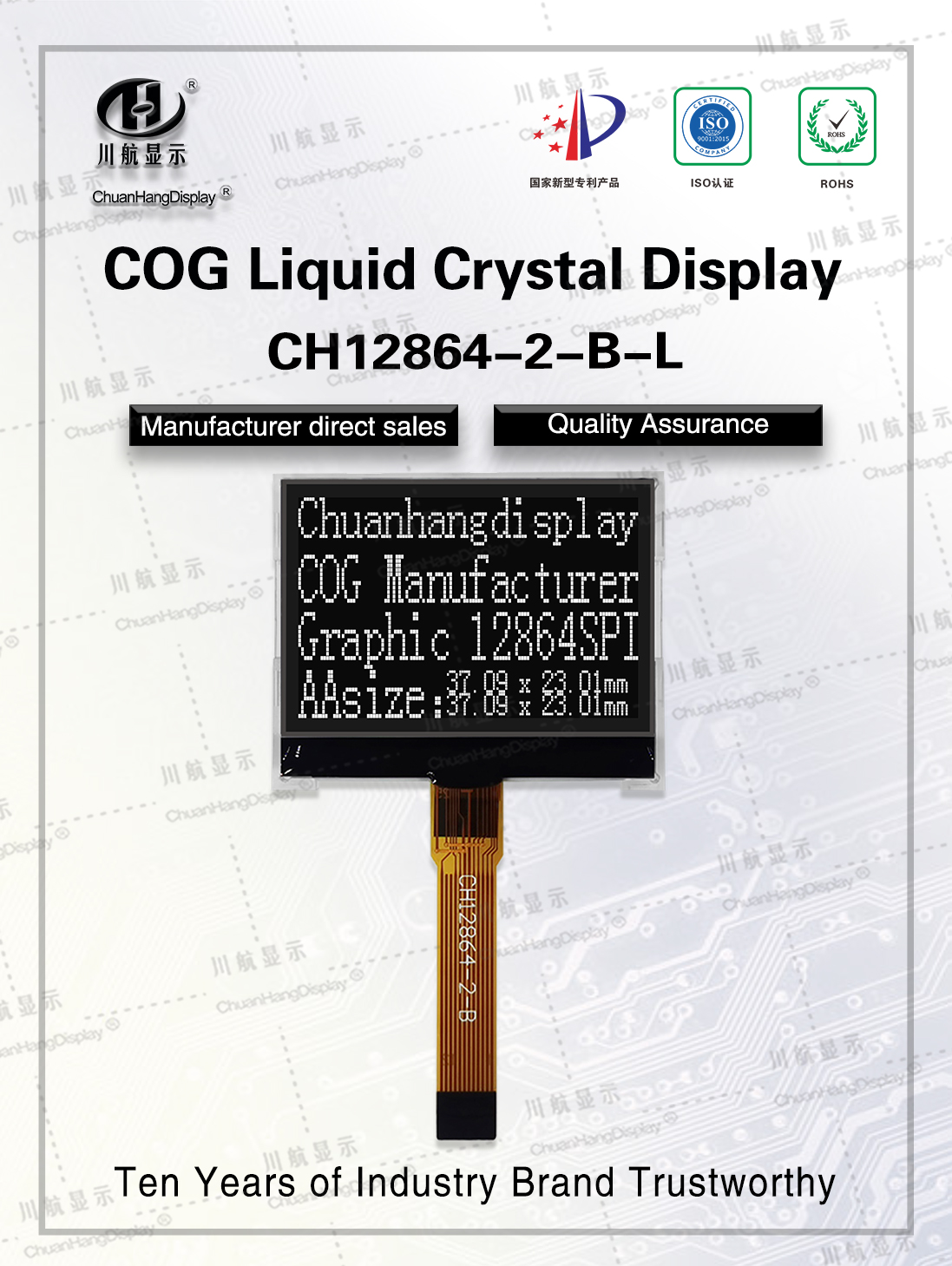

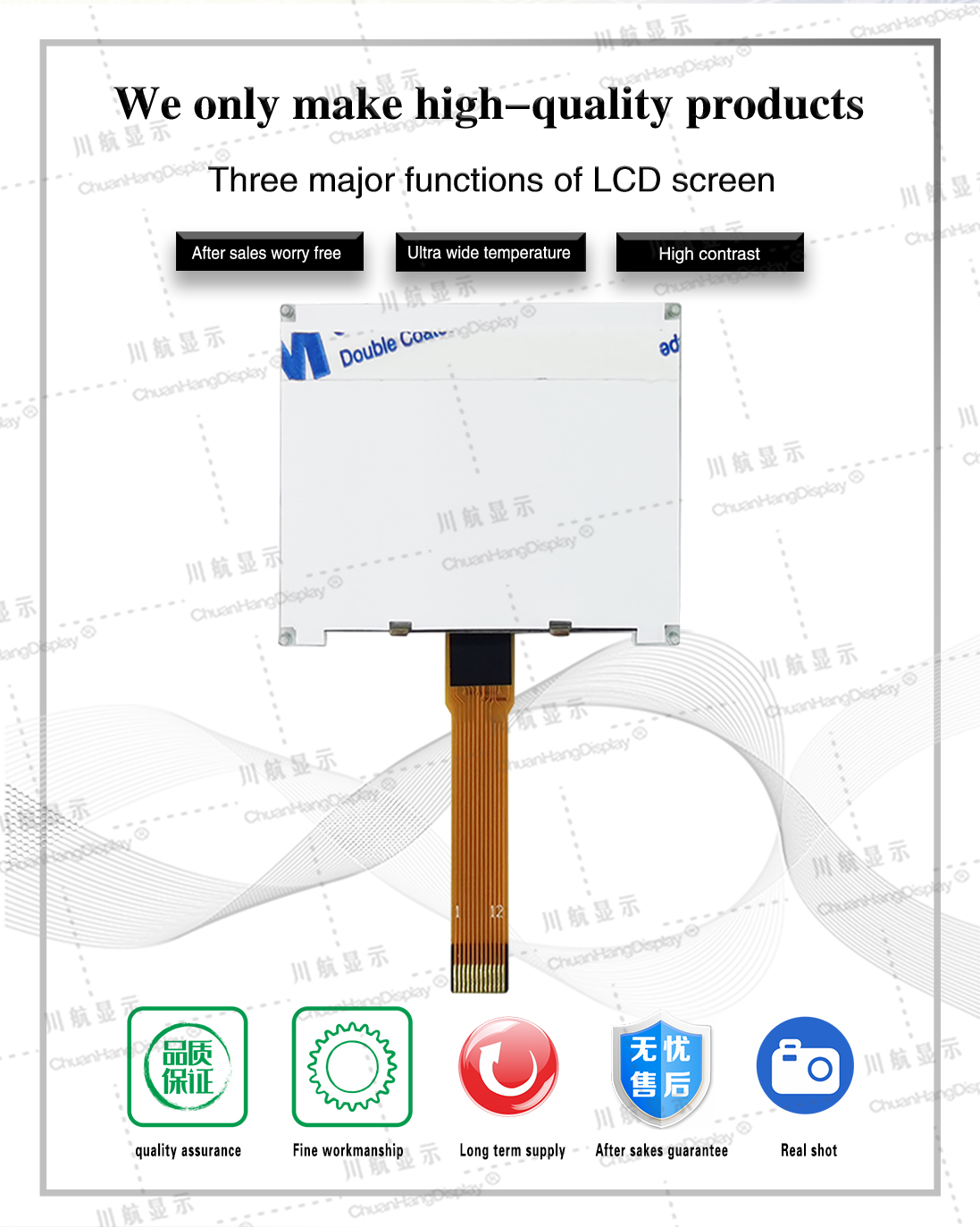

CH12864-2-B-L cog display 128x64

Product Description

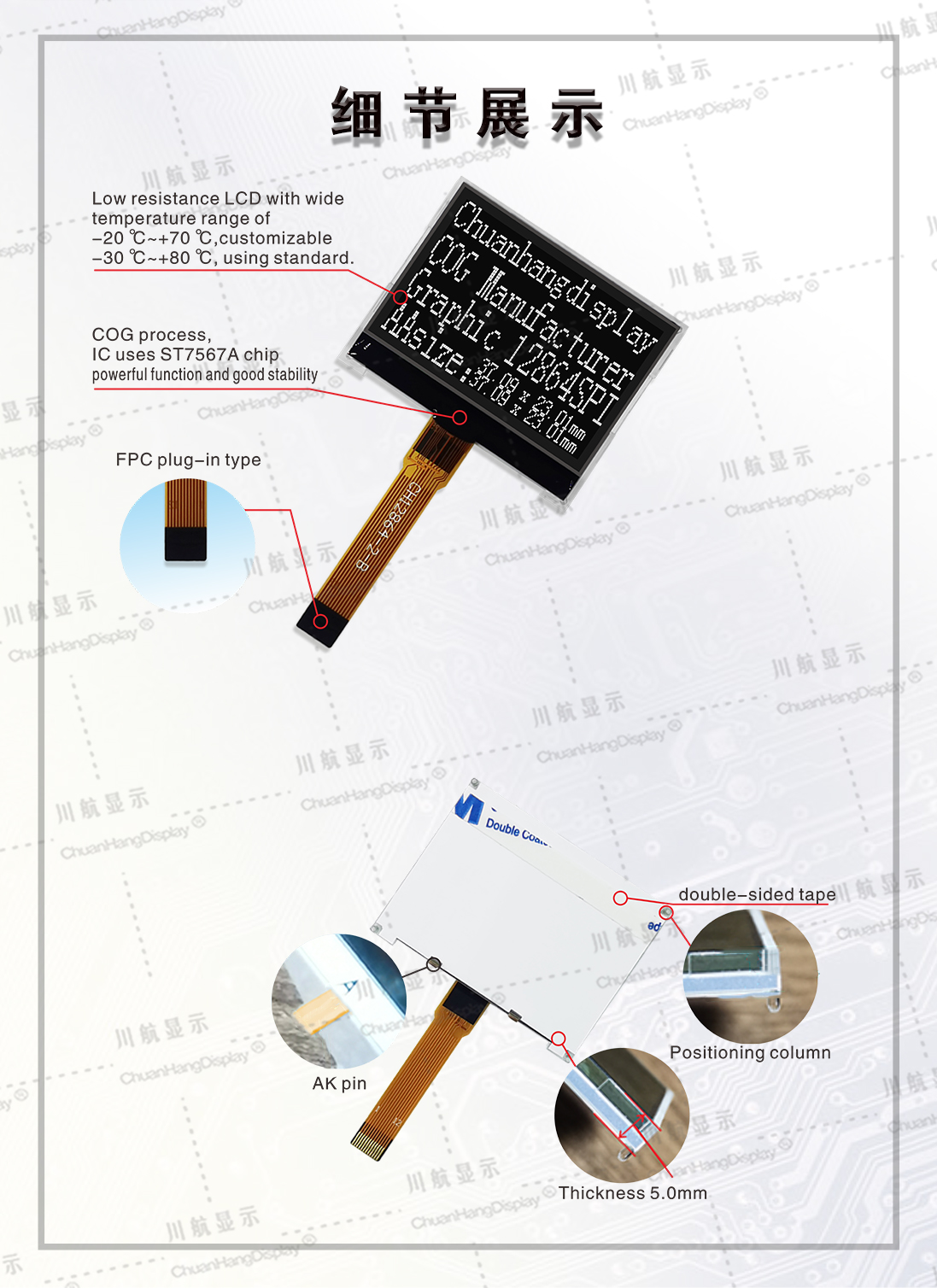

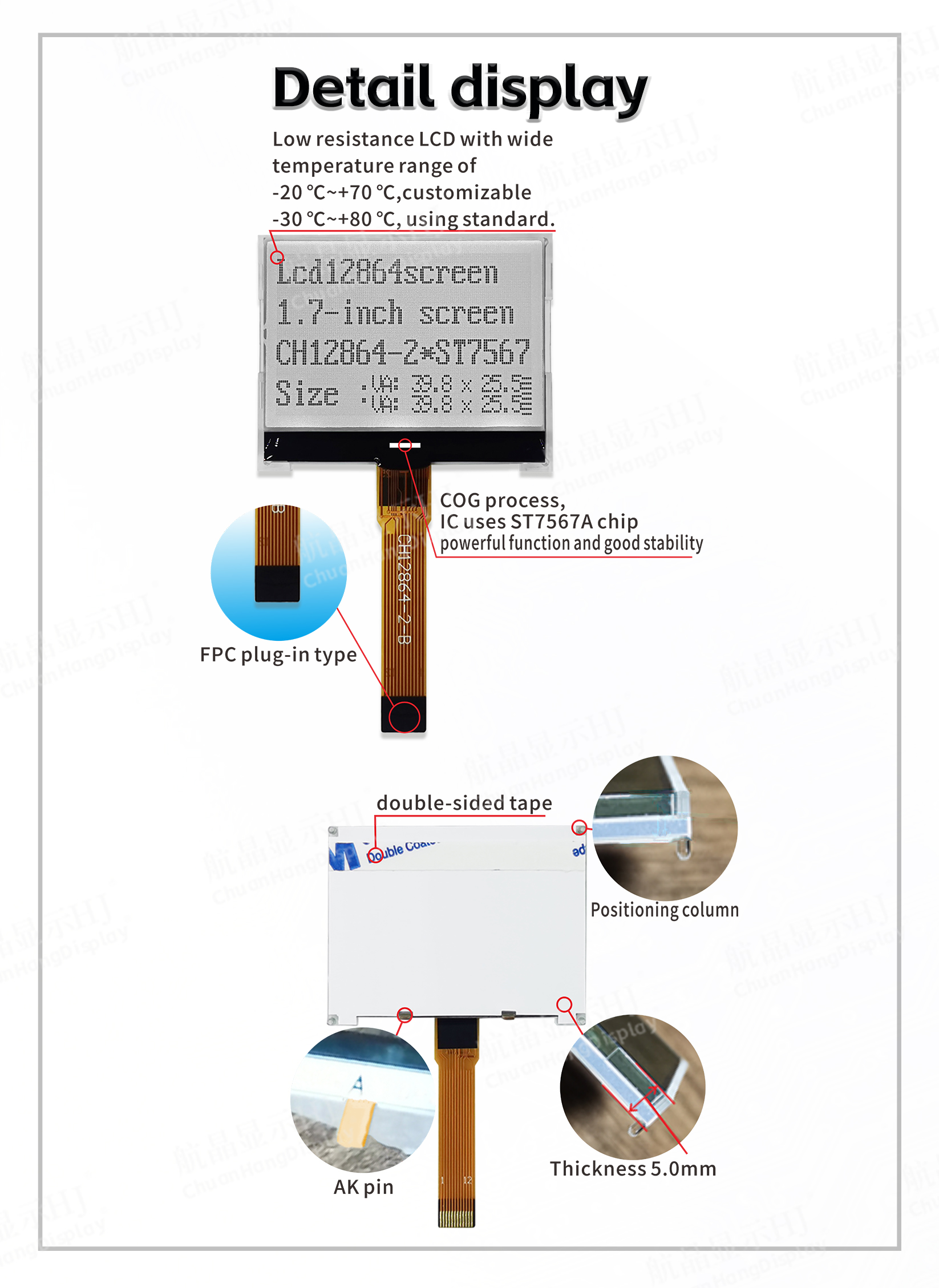

1.1 COG process, FPC soft wire is plug-in interface, product with backlight, assembled, thin thickness and stable structure.
1.2 IC uses ST7567. There is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, 3.3V power mode, no backlight current within 1mA and backlight current within 60mA.
1.4 LED backlights A and K are PCB boards, and A and K need to be powered separately by 2.9V~3.0V.
1.5 Product Features:
The built-in display data RAM is 64x128 bits. It only takes 2 capacitors to generate boost. The contrast ratio is deeply to shallow by the software. One screen displays 8 characters x 4 lines (16x16 dot matrix). Single picture ≦128x64 dot matrix. 4-wire SPI interface communication. Rich functions: The interface shows on/off, positive/inverted.

PDF Download Demo code

Video Presentation

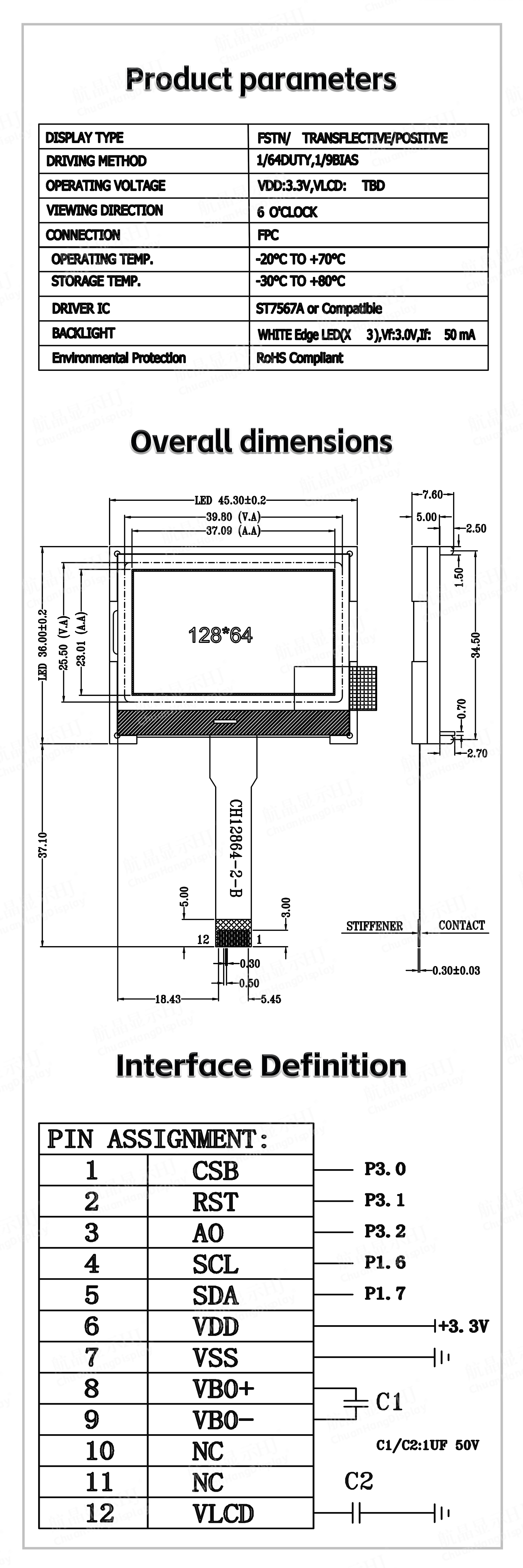

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12864-2-B-L
Resolution	128x64	screen size
Outline Dimension(LWH)	45.30x36.00x7.60 mm	Visible Area(L*W)	39.80x25.50mm
Active Area(L*W)	37.09x23.01mm	Character Size(L*W)
Type	COG	Connection Method	FPC
Supply Voltage	DC 5V/3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/16Duty,1/5Bias
Display Type		Driver IC	AIP31066
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	DC 5V/3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	Yes
