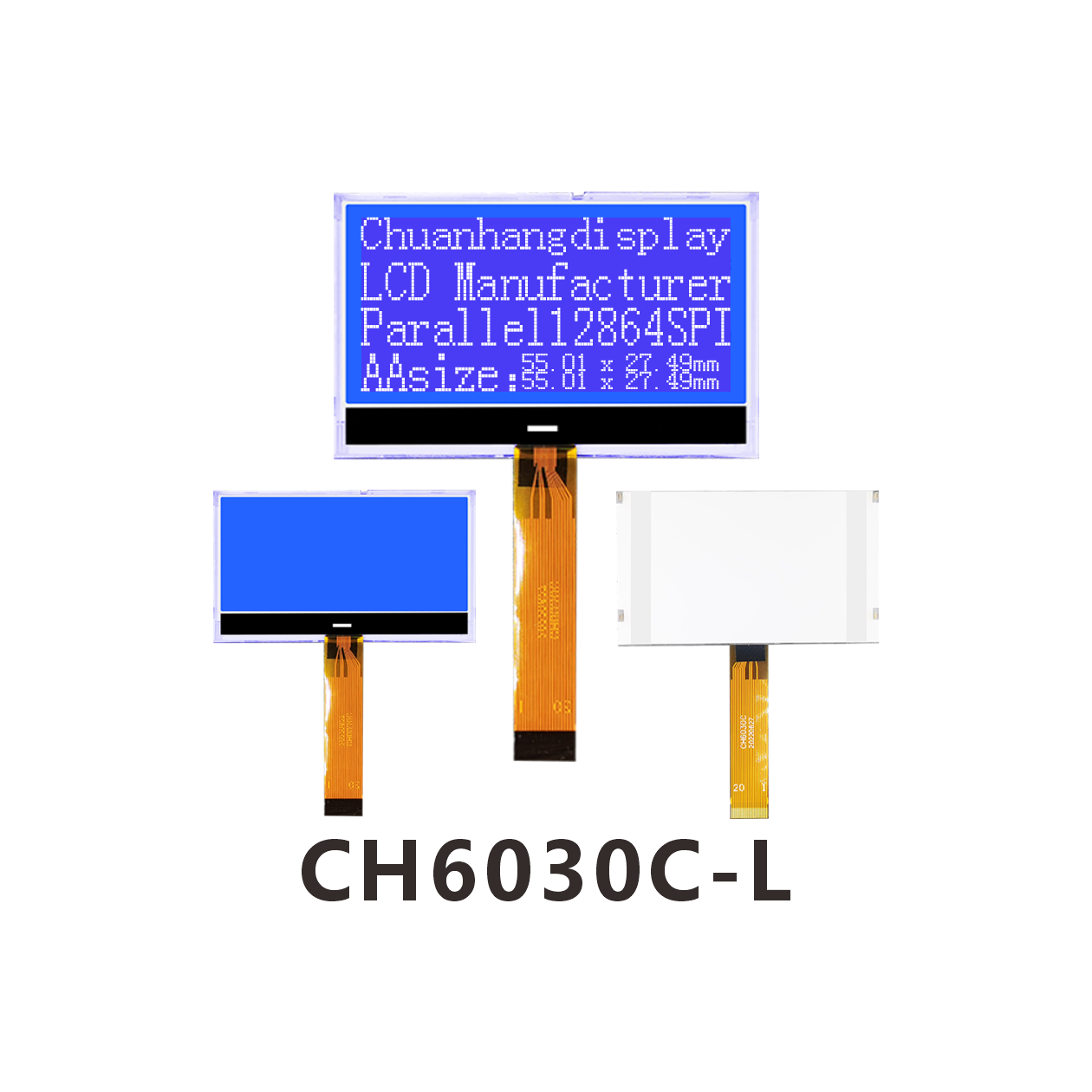

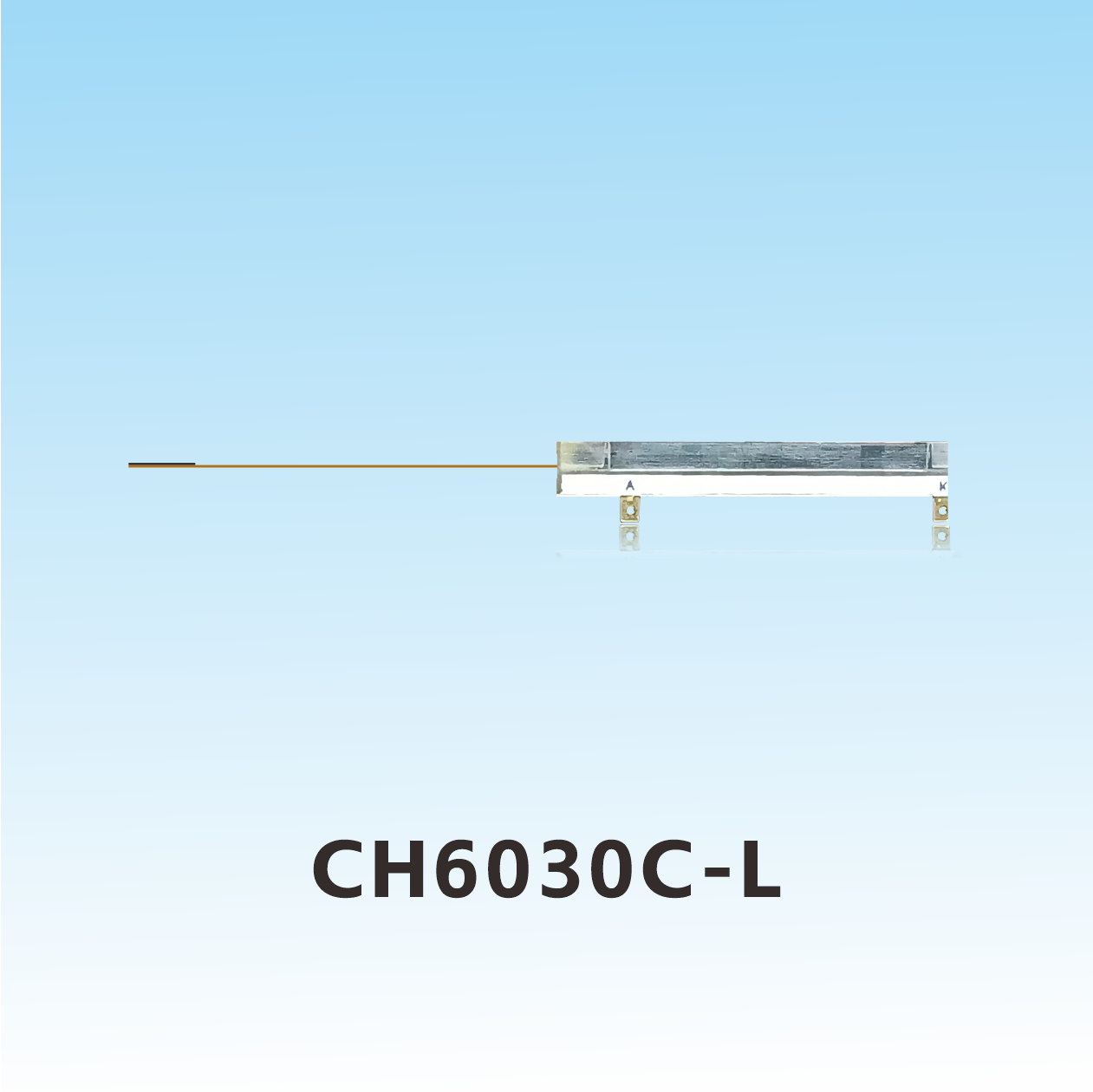

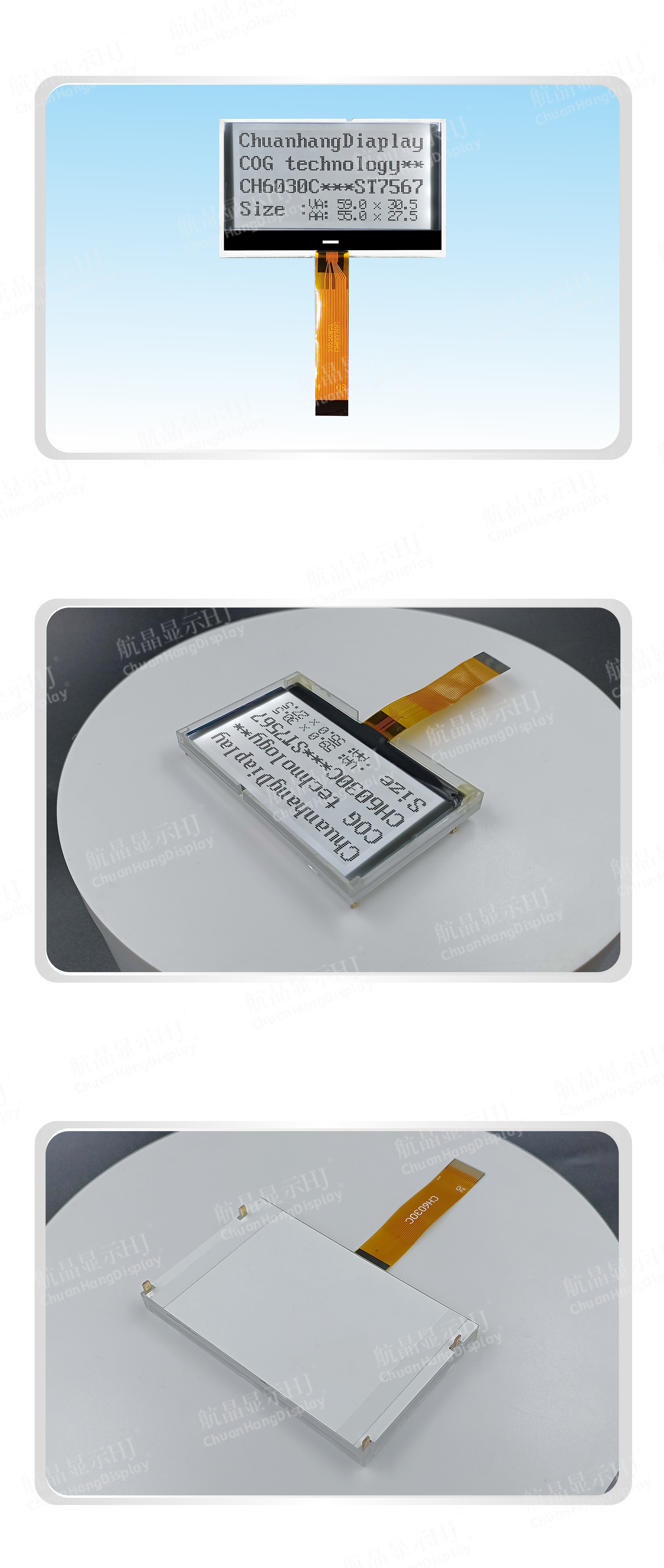

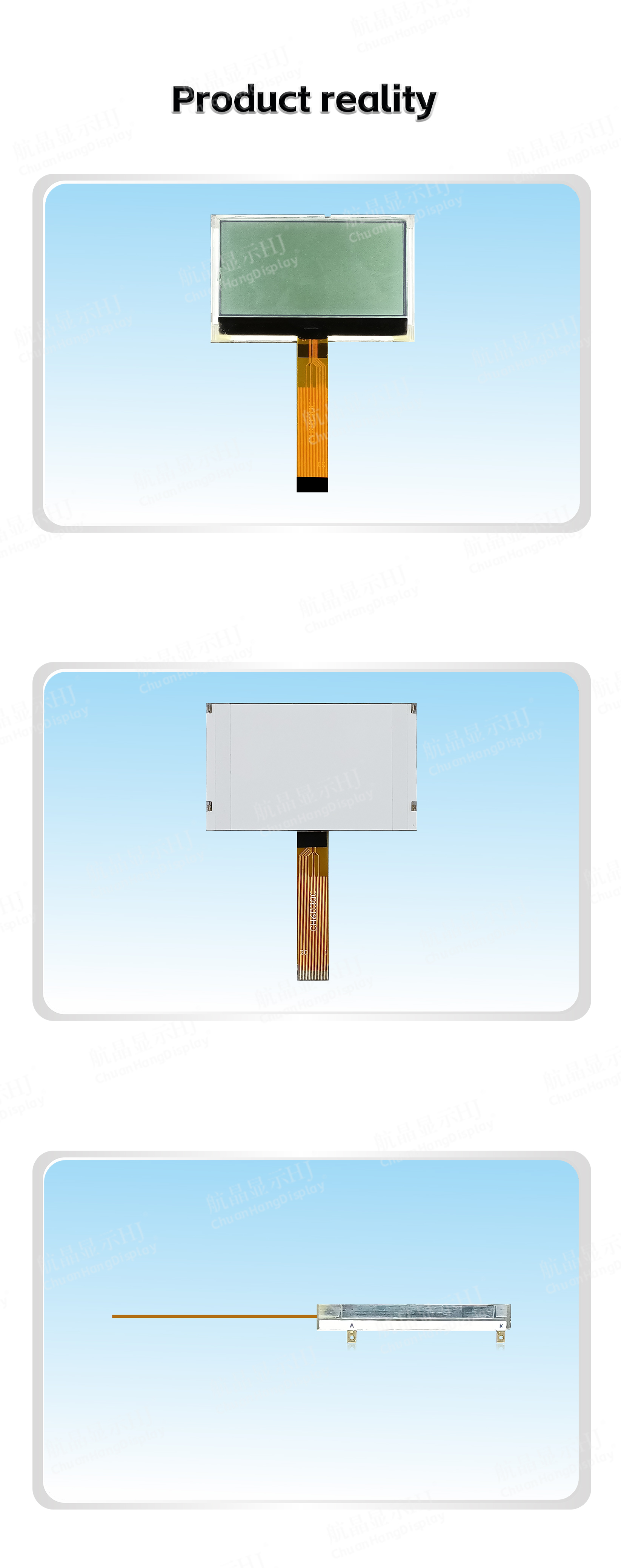

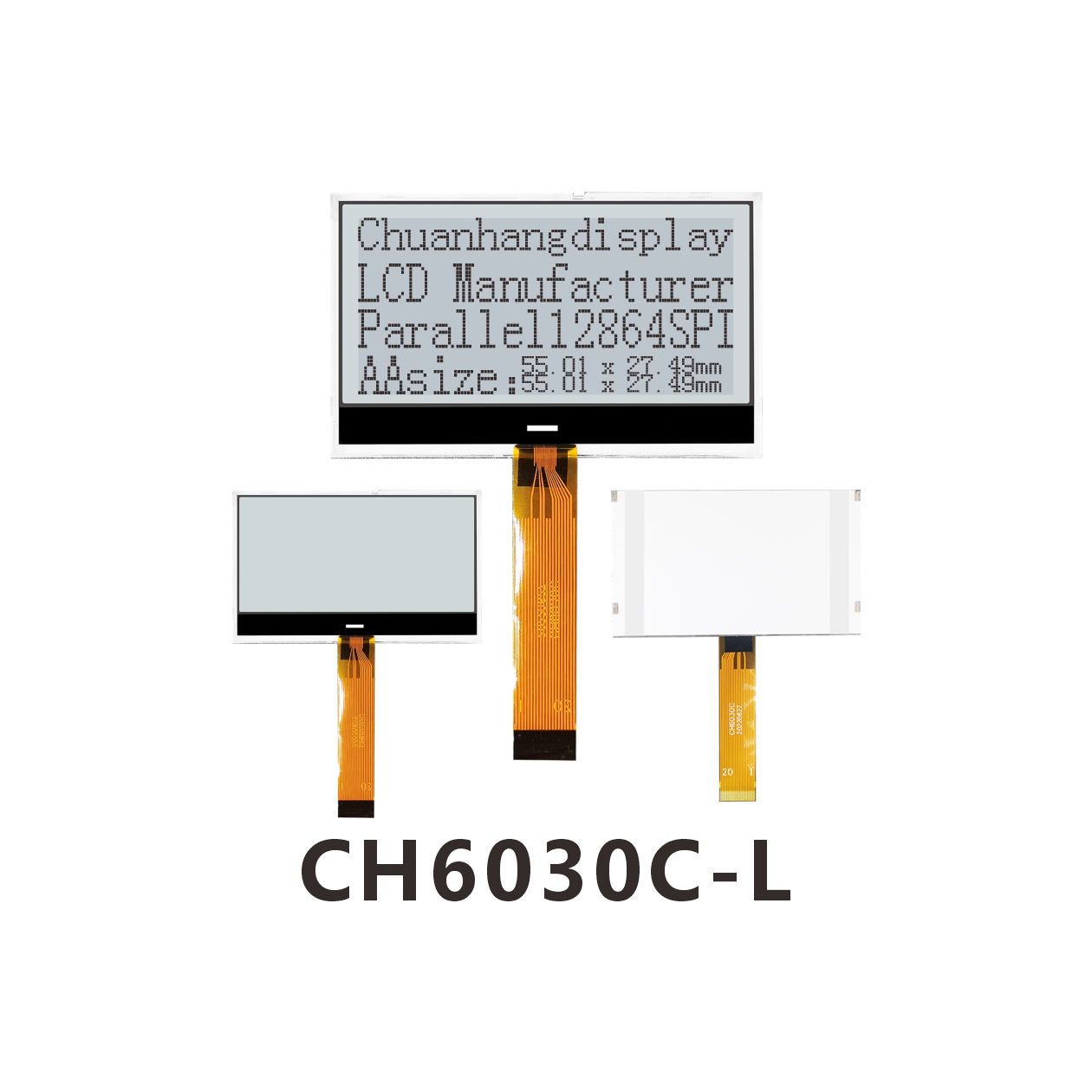

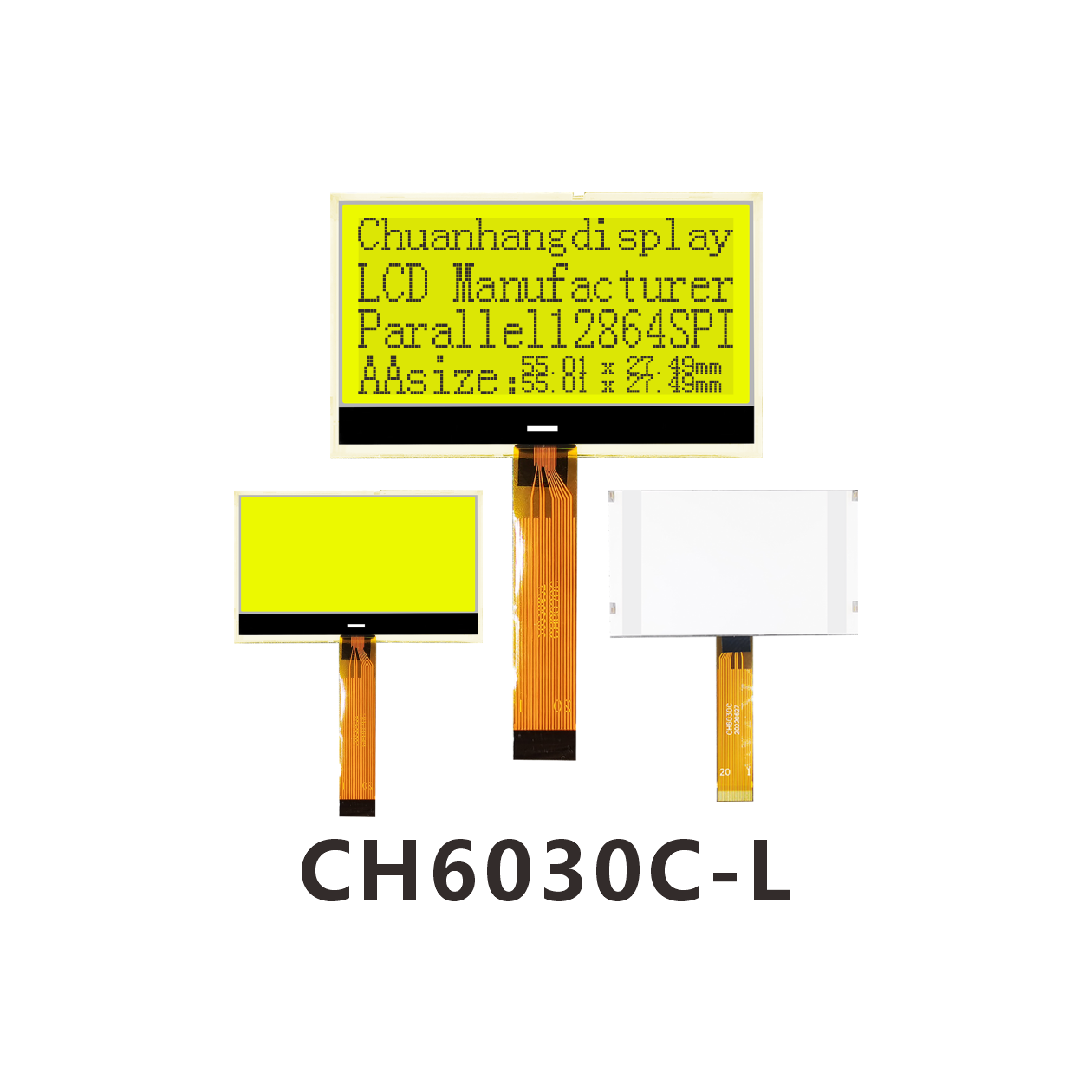

CH6030C-L cog lcd 12864
Product Description

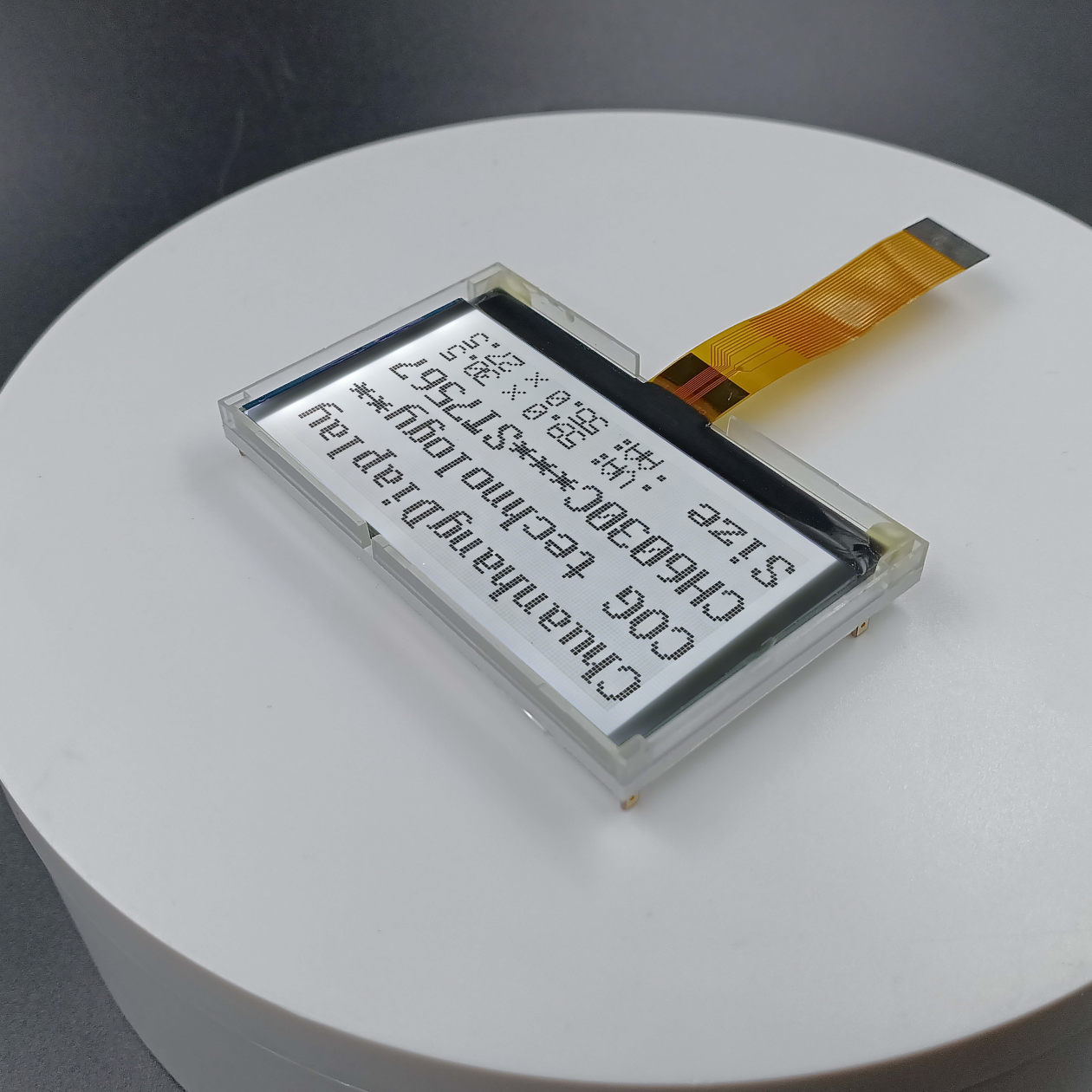

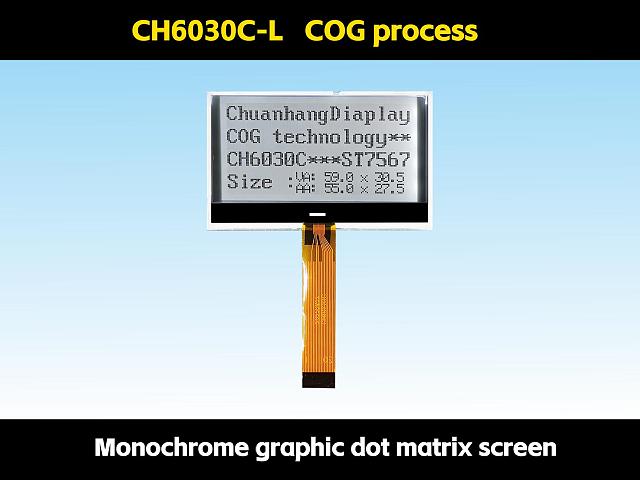

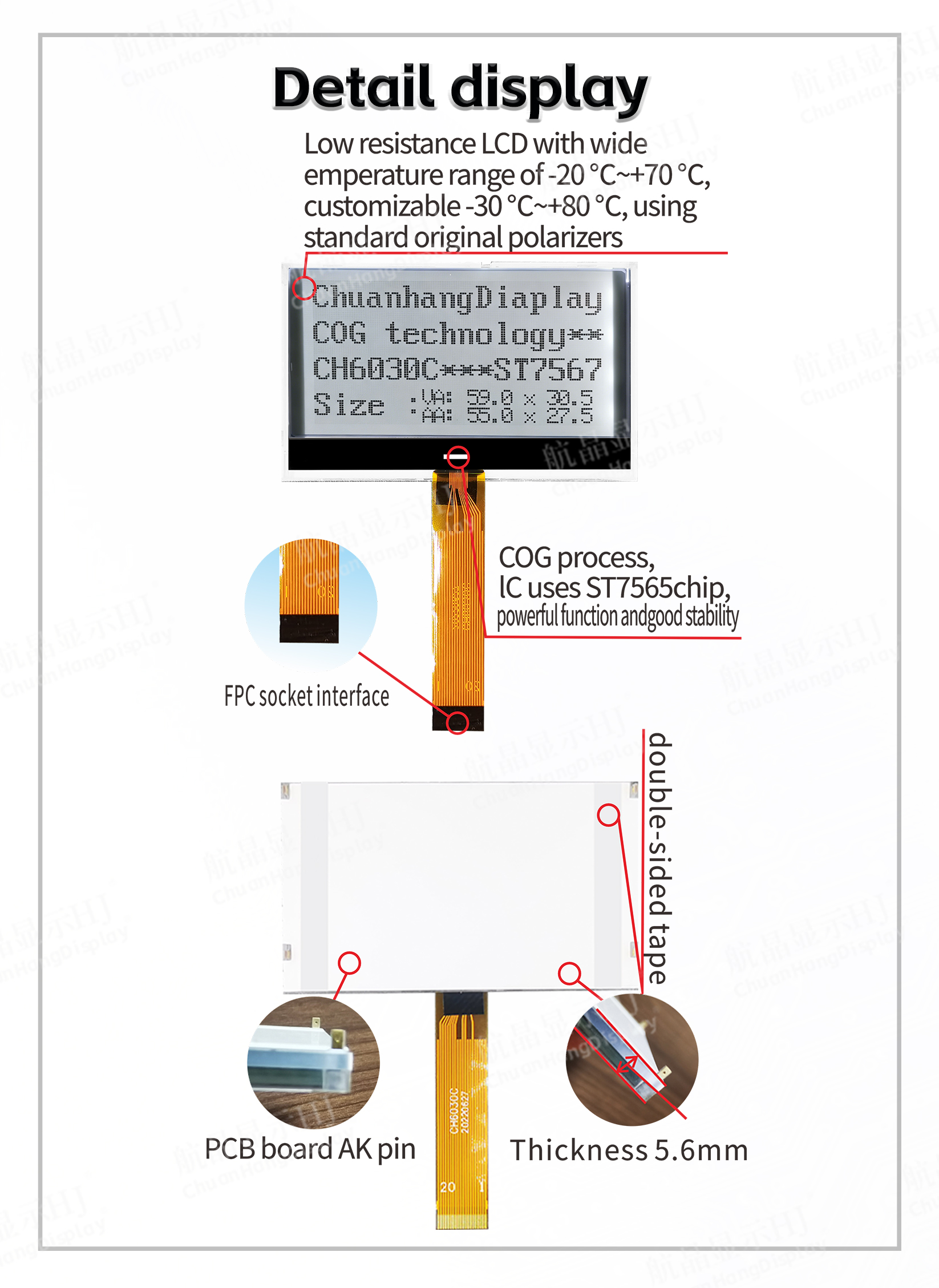

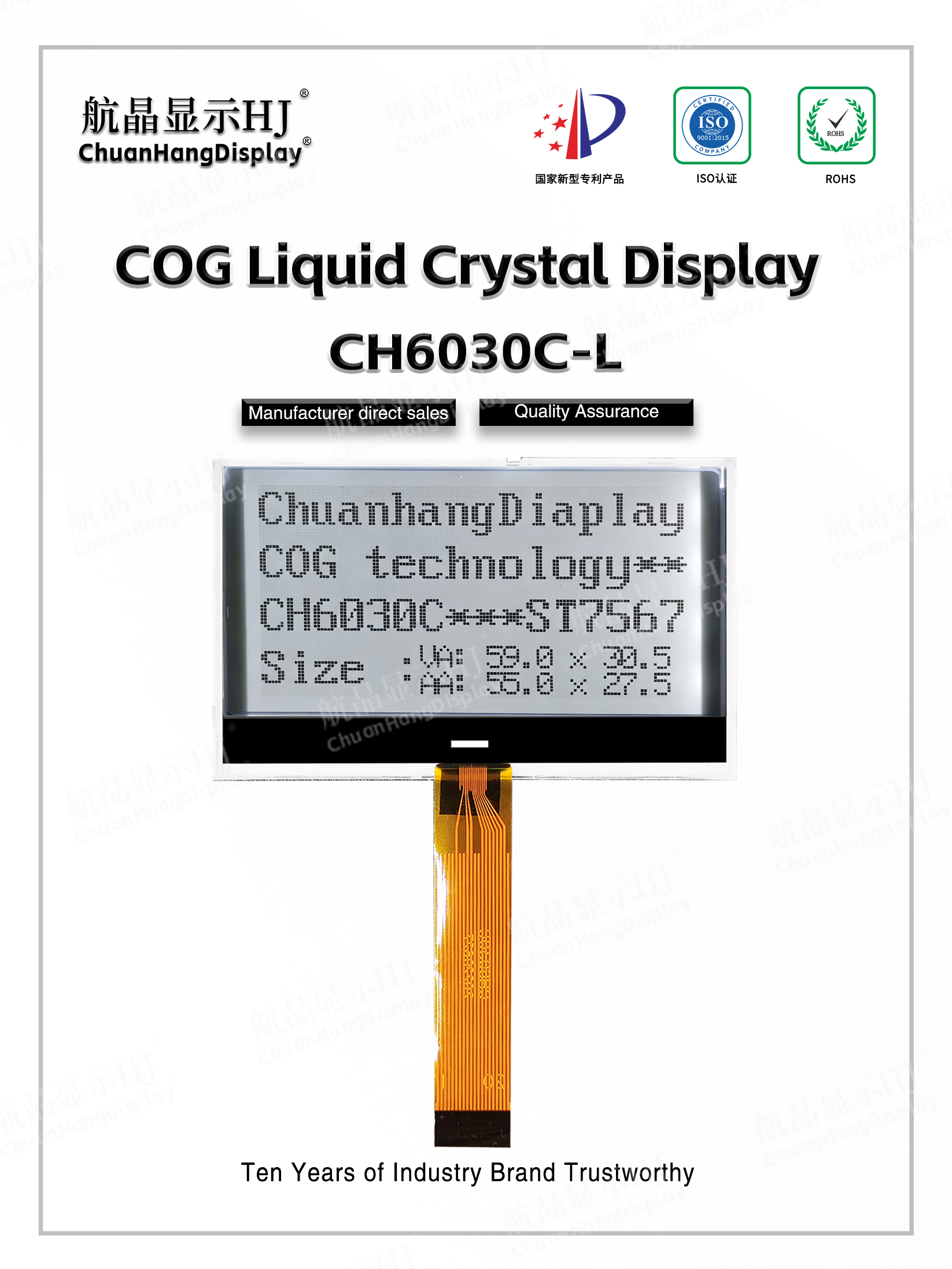

1.1 COG process, FPC soft wiring is a plug-in interface, the product has a backlight, thin thickness and stable structure.
1.2 IC uses ST7567, there is no font library in the chip, and the programmer compiles its own font library.
1.3 Low power consumption, 3.3V power supply mode, no backlight current within 1mA, backlight current within 80mA.
1.4 LED backlight A and K are PCB boards. A and K need a separate power supply of 2.9V~3.0V. One side of AK is only positioned. Function.
1.5 Product features:

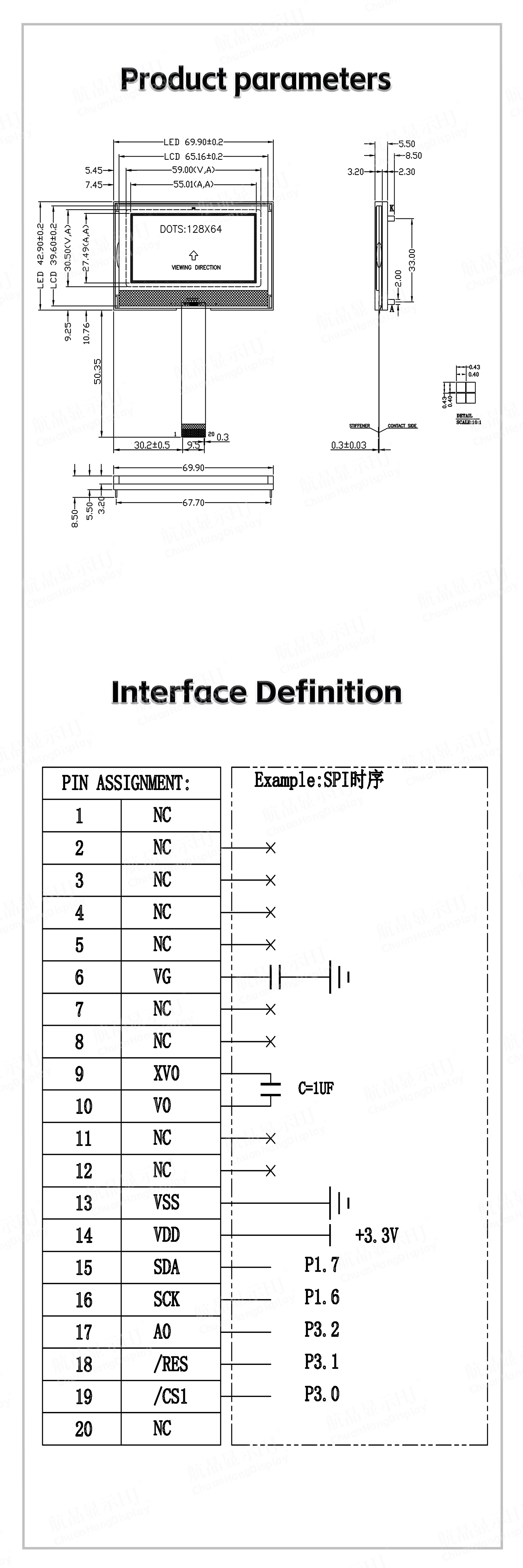

The built-in display data RAM is 64x128 bits. Two external capacitors generate a boost. The contrast ratio is adjusted by the software. One screen shows 8 characters x 4 lines (16x16 dots). Single picture ≦128x64 dot matrix. 4-wire SPI interface. Rich functions: The interface display is on/off, positive/reverse.
