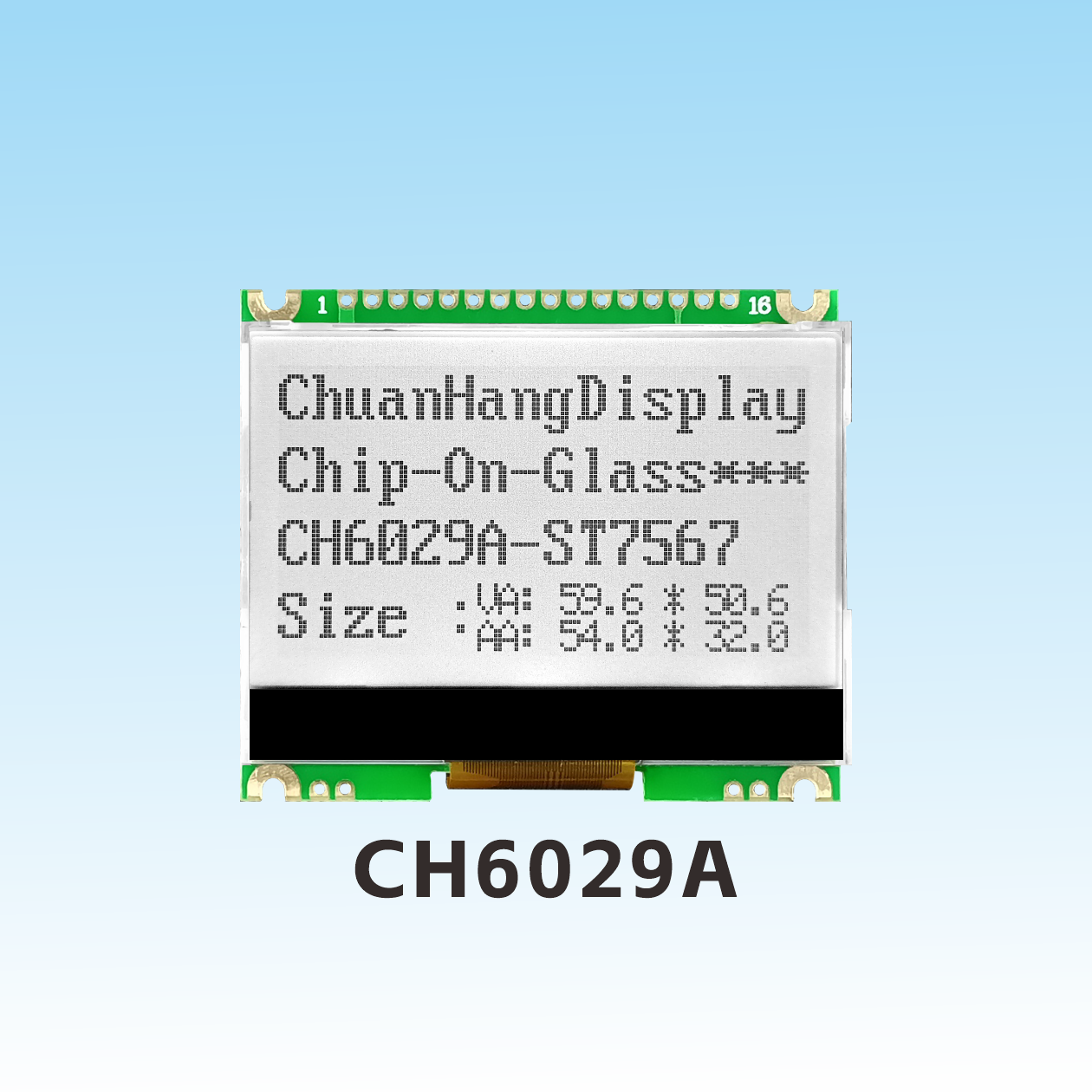

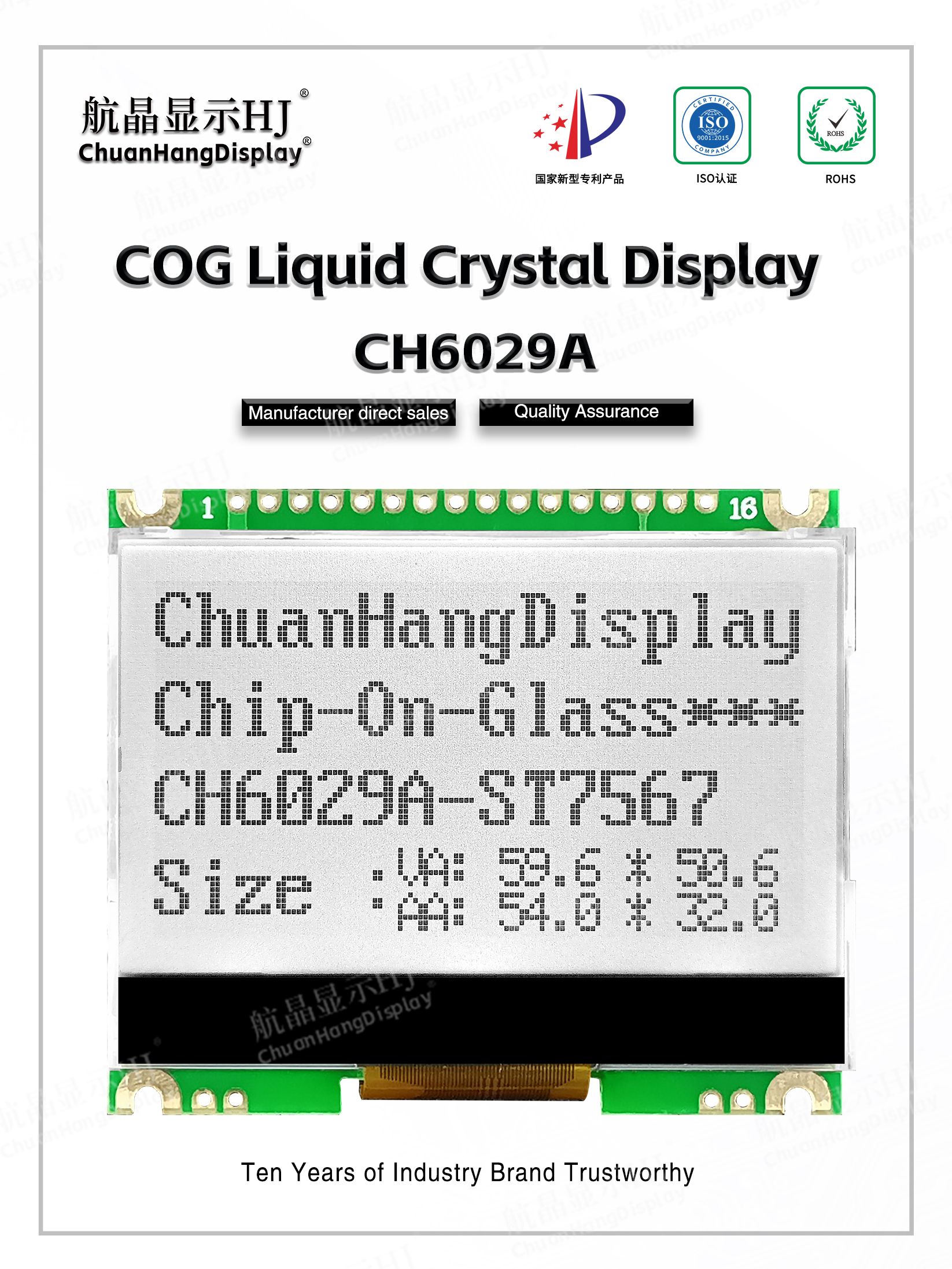

CH6029A-V6.0 COG Graphic LCD Module
Product Description

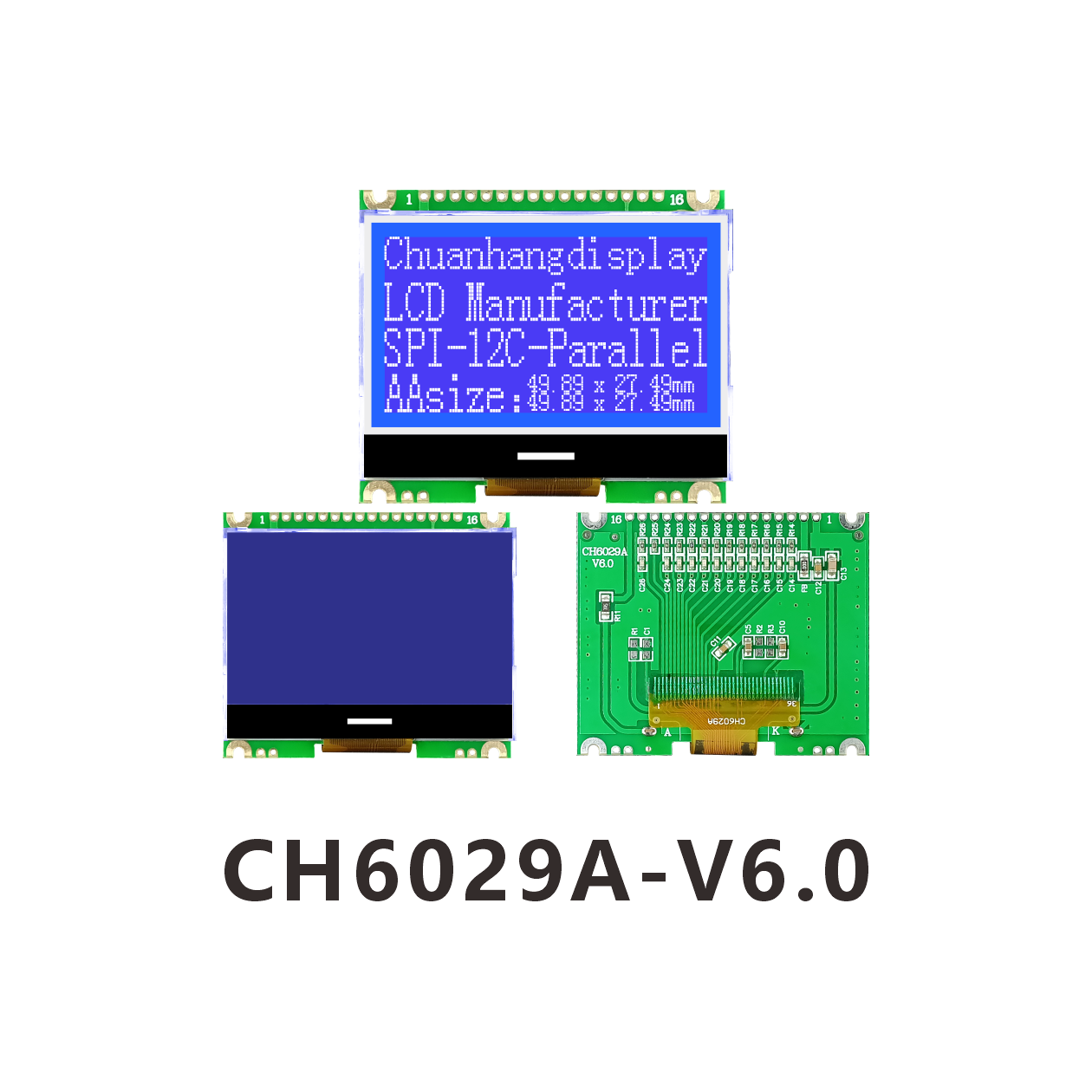

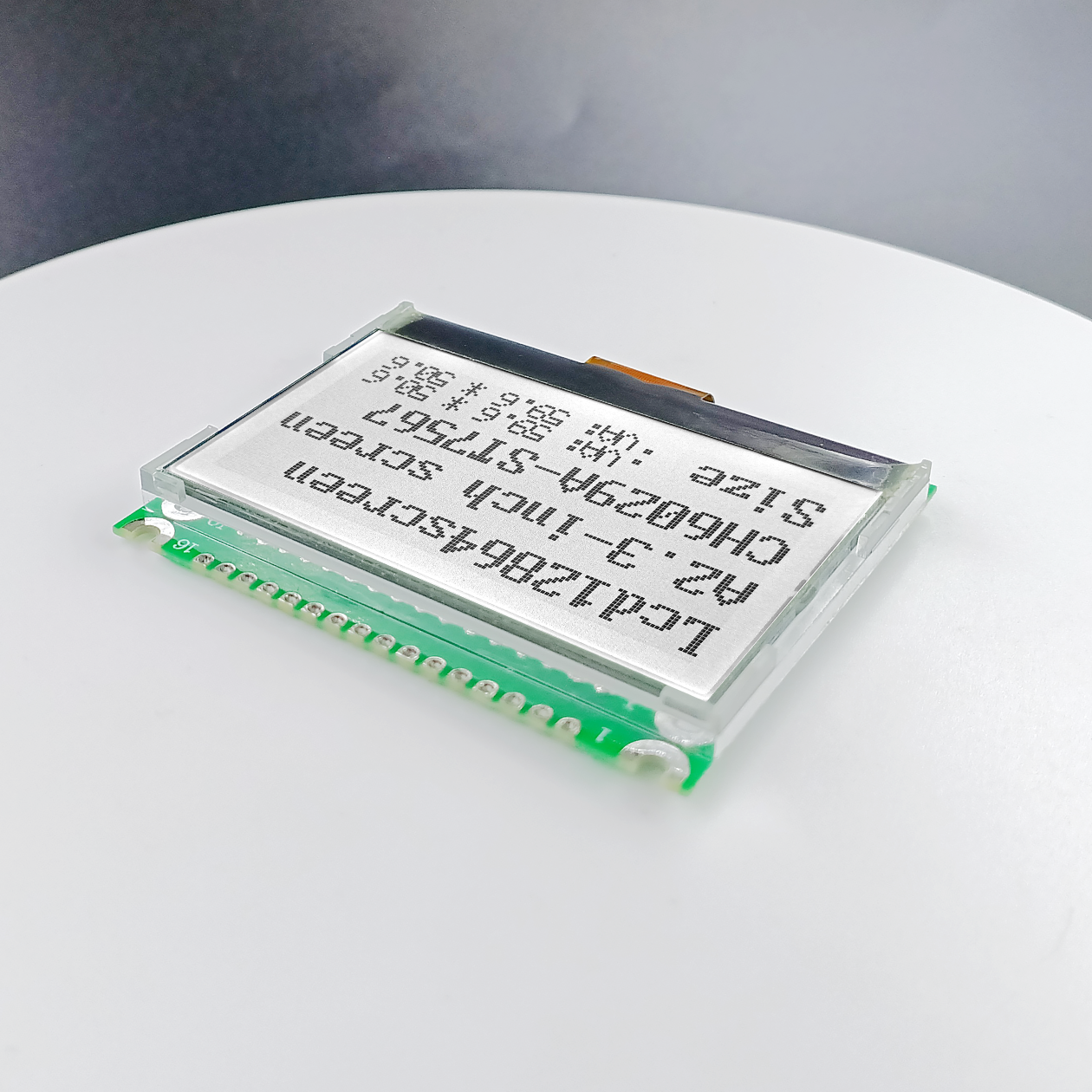

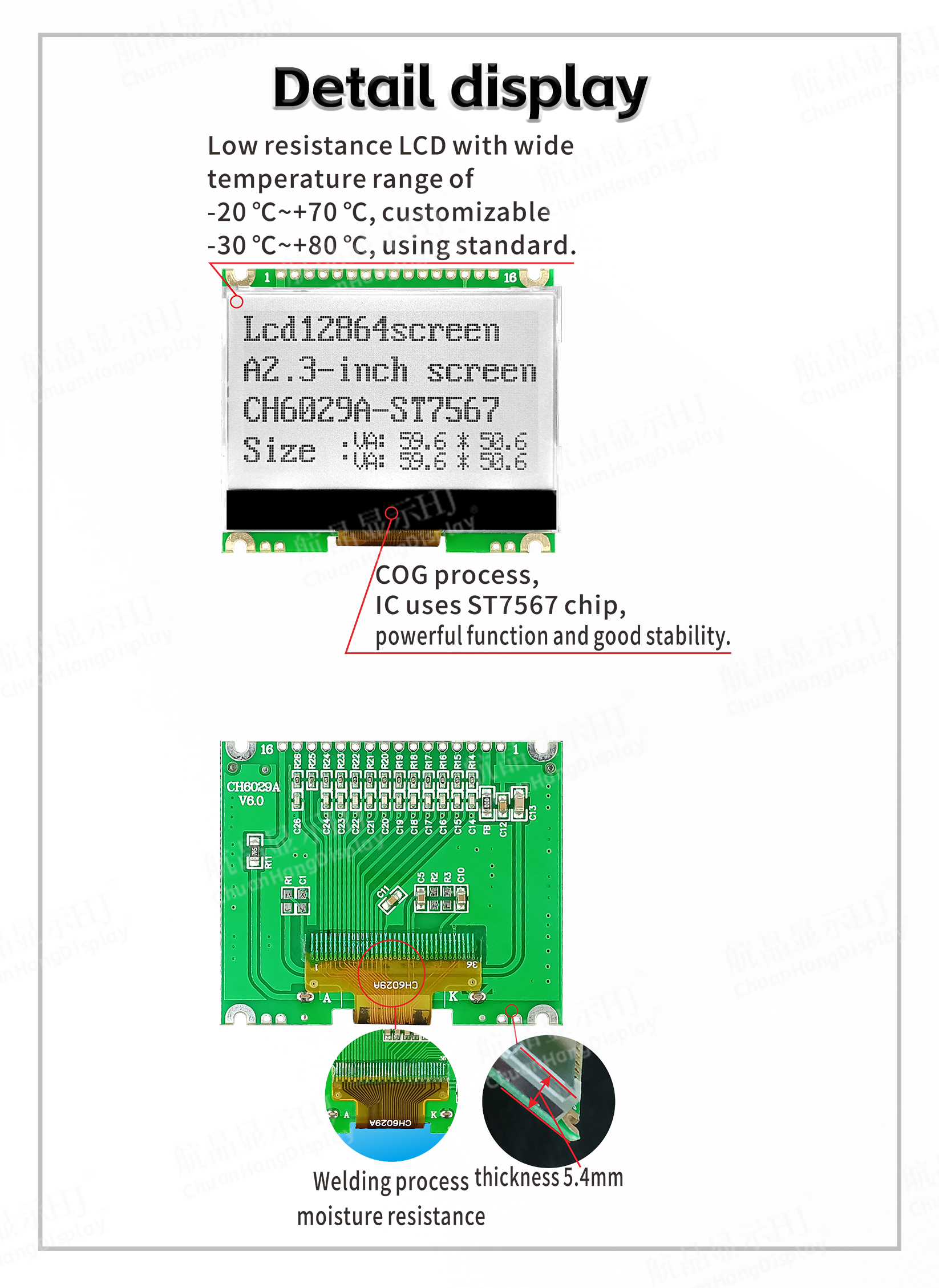

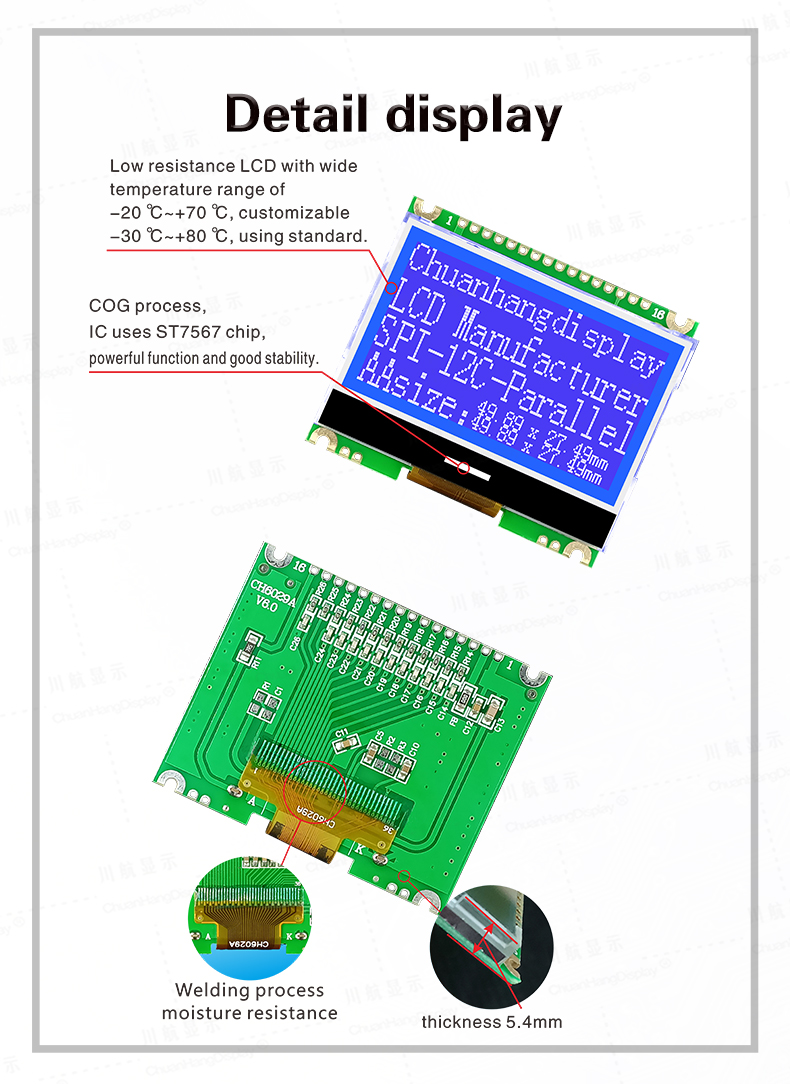

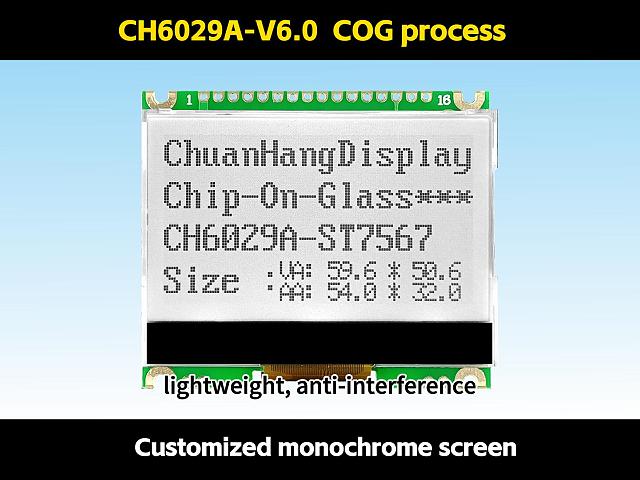

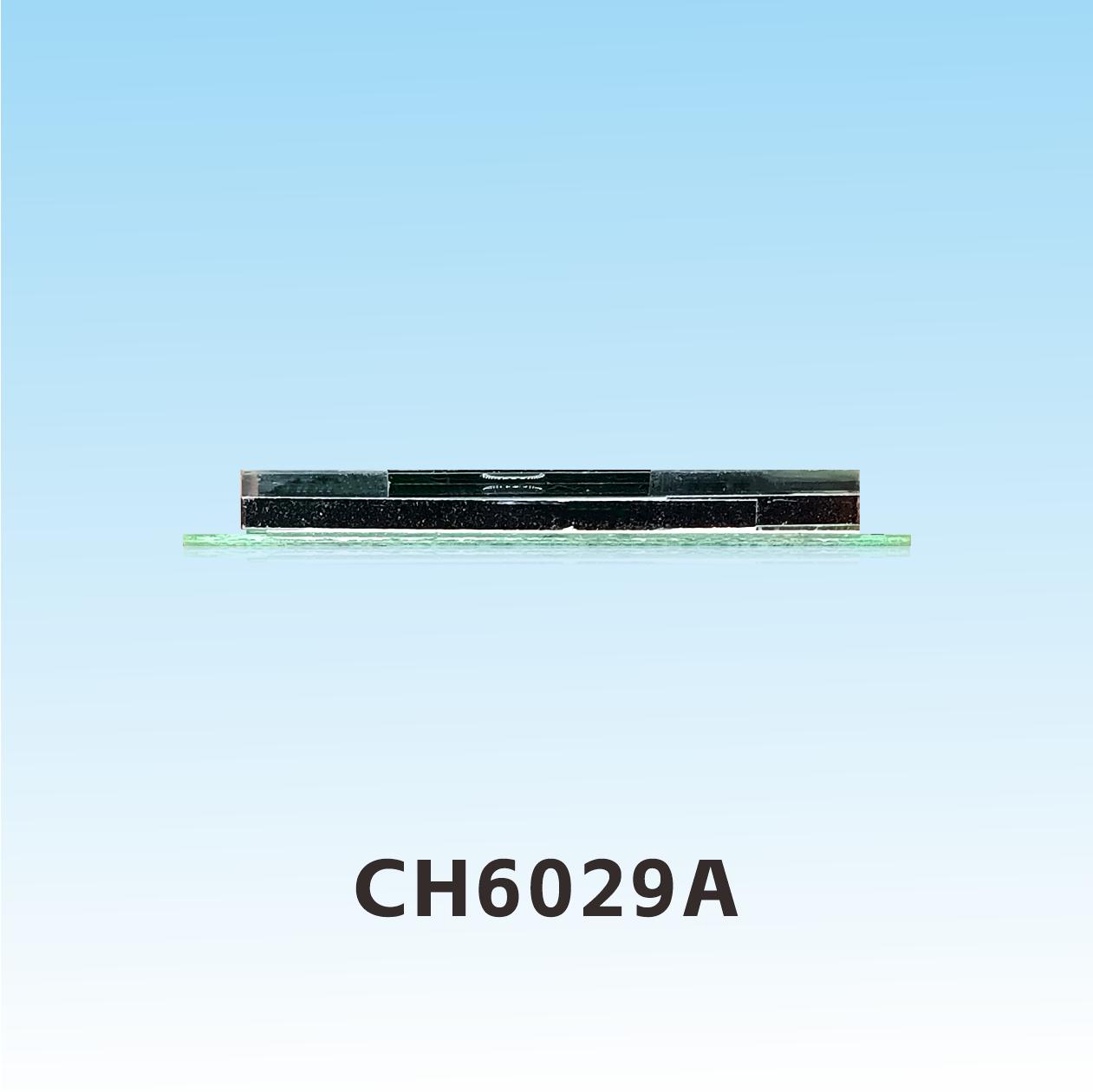

1.1 COG process, FPC welding process, product with PCB board, backlight, thin thickness and stable structure.
1.2 IC uses ST7567. There is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, only 3.3V power mode, no backlight current within 1mA, backlight current within 80mA Inside.

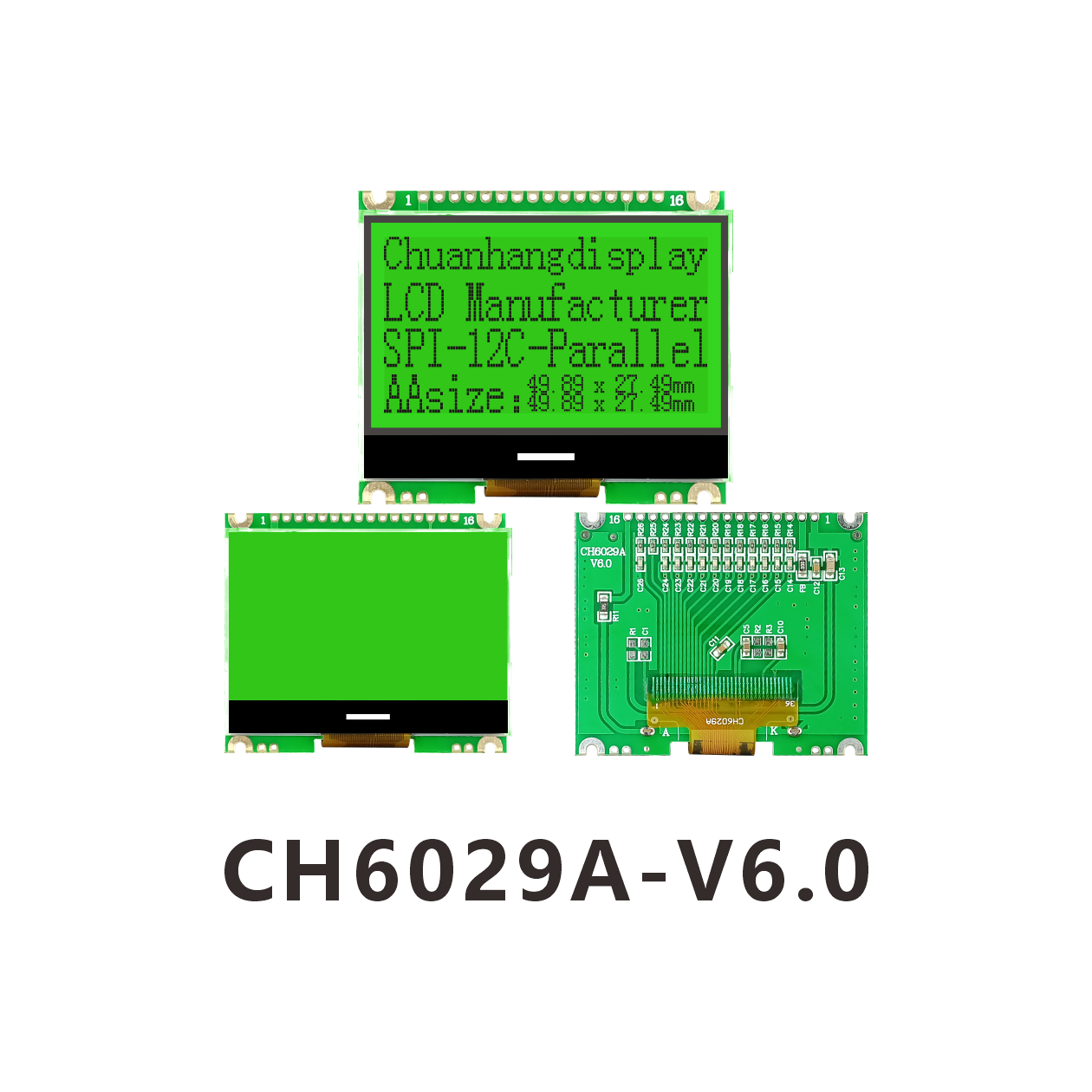

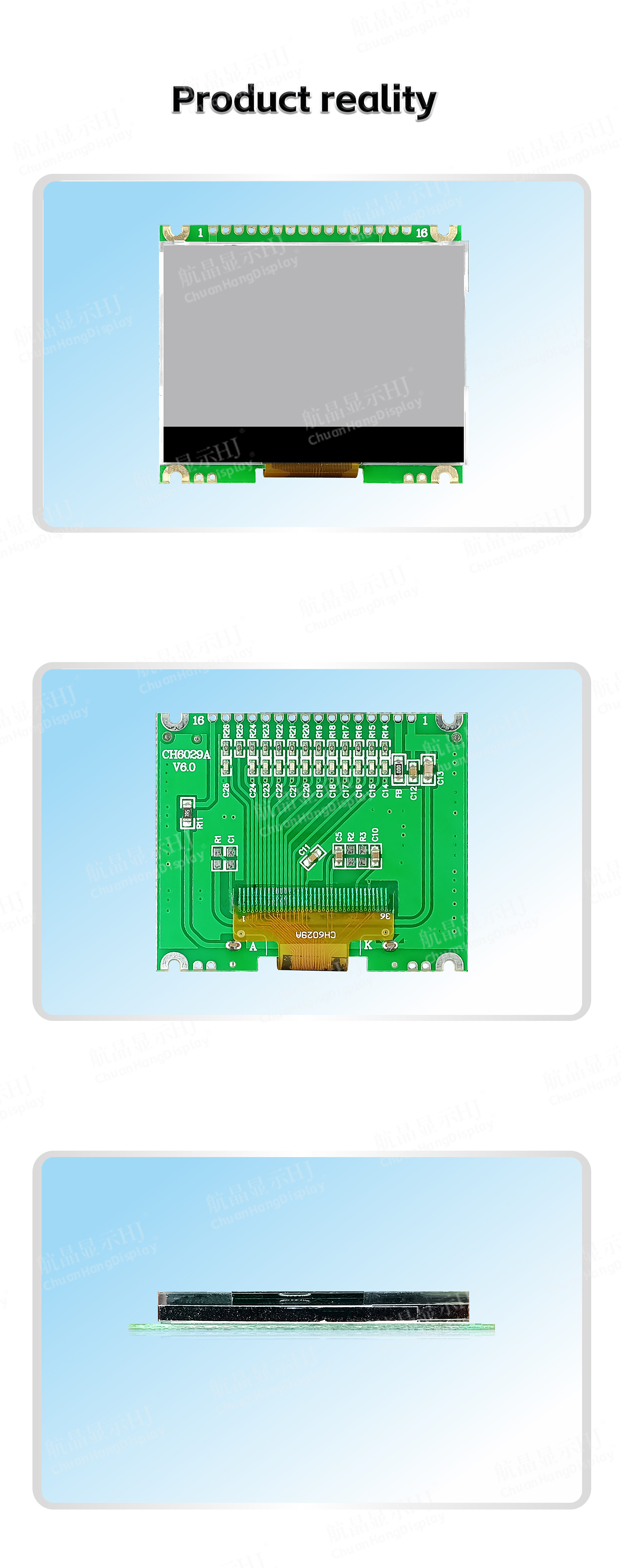

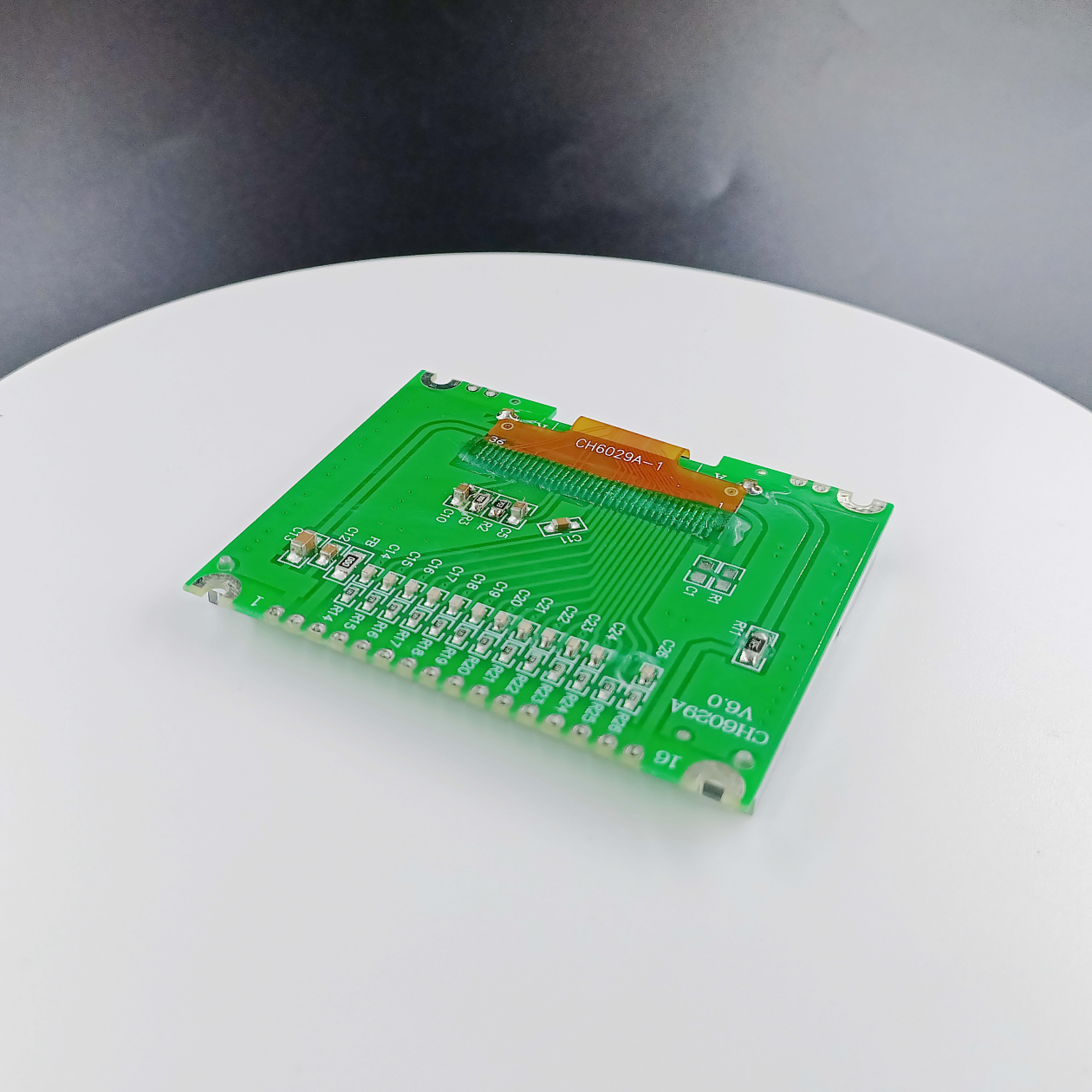

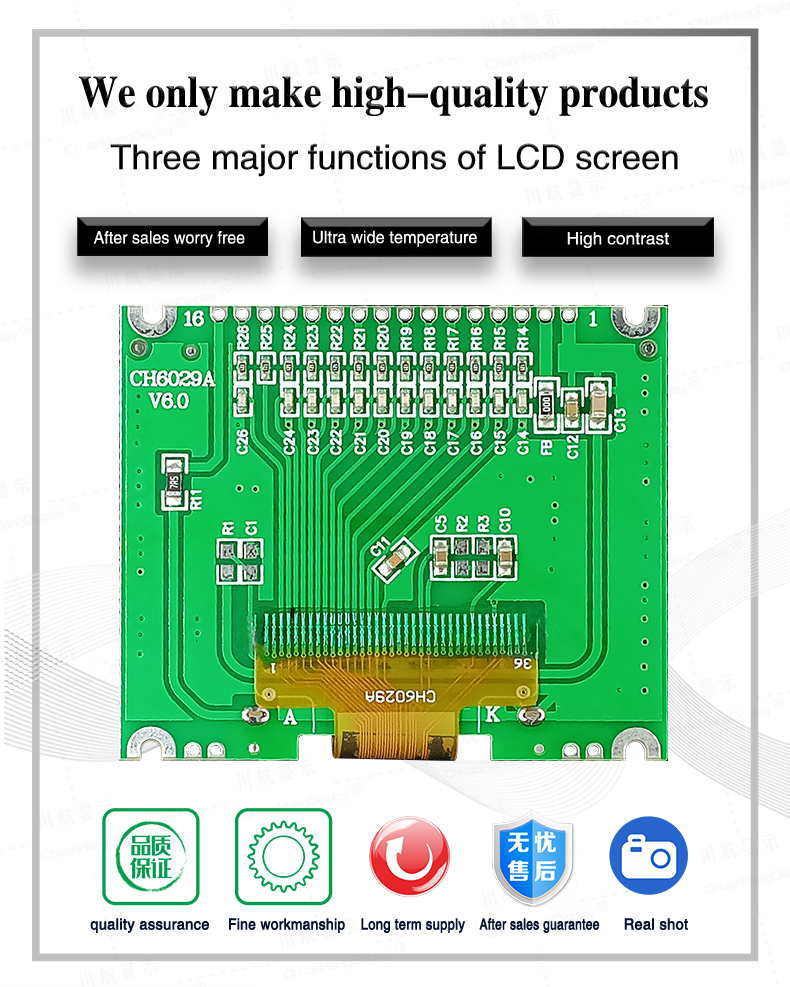

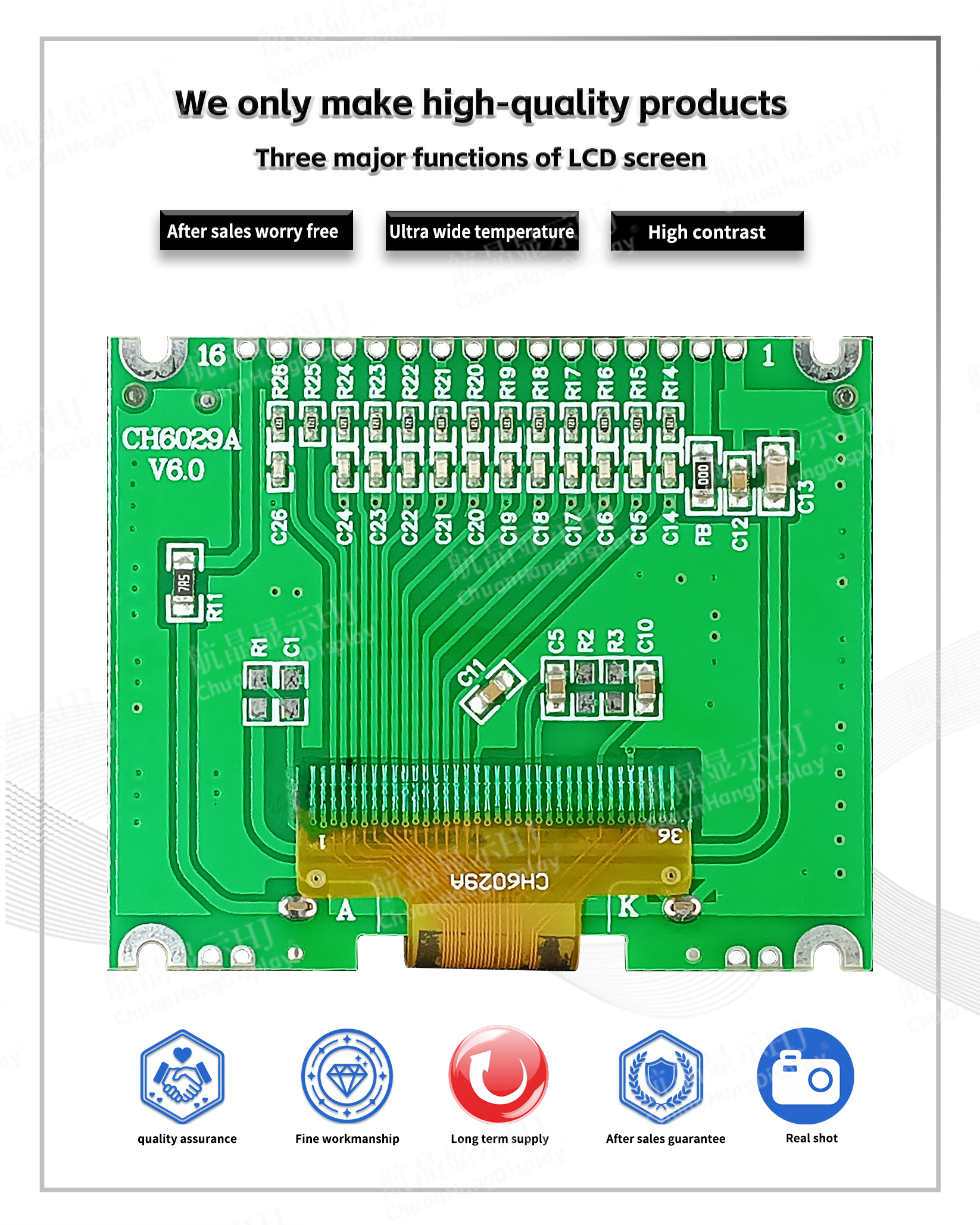

1.4 LED backlights A and K are PCB boards that have been welded to PCB boards. LEDs can be driven by PIN1, PIN2 and PIN16.
1.5 Product Features:

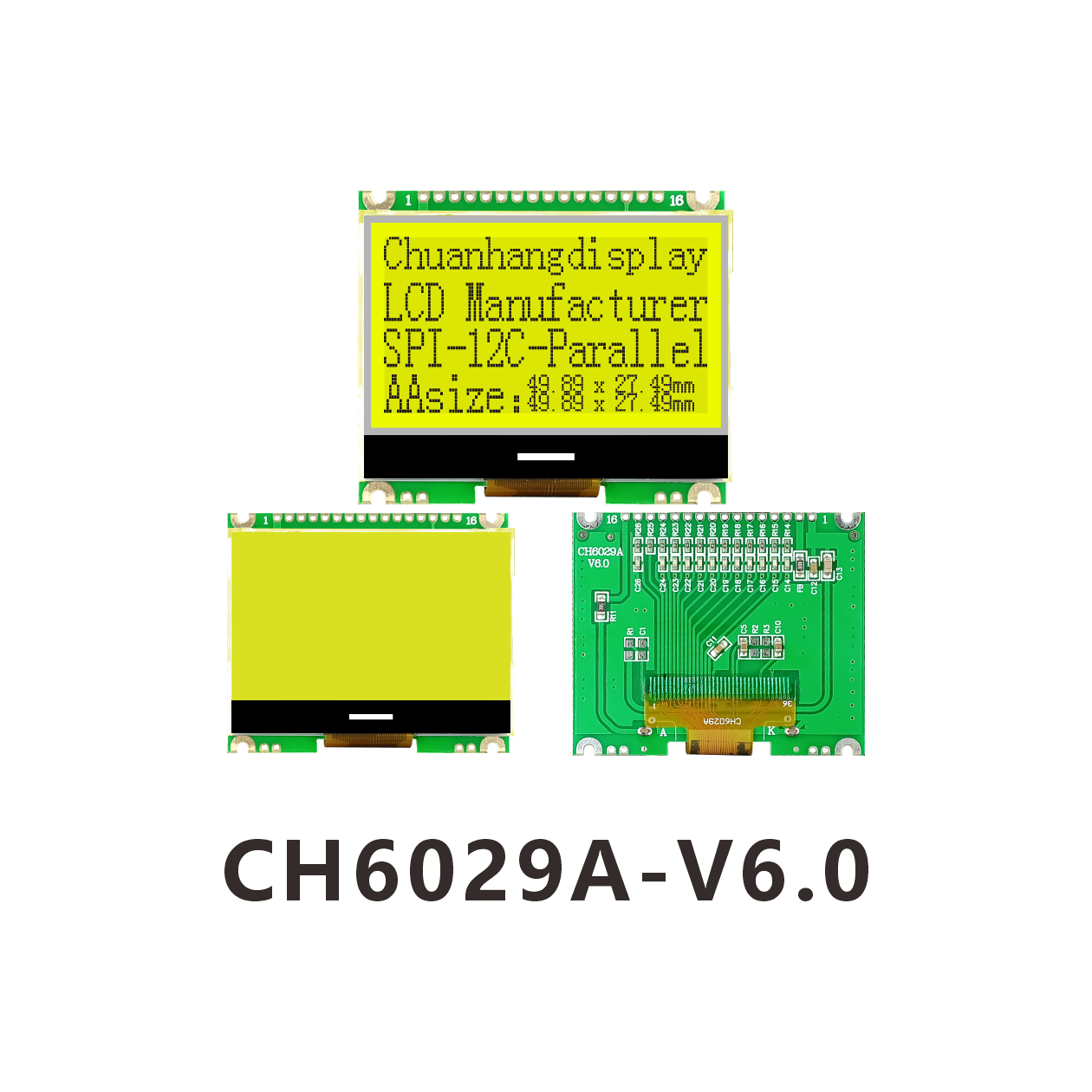

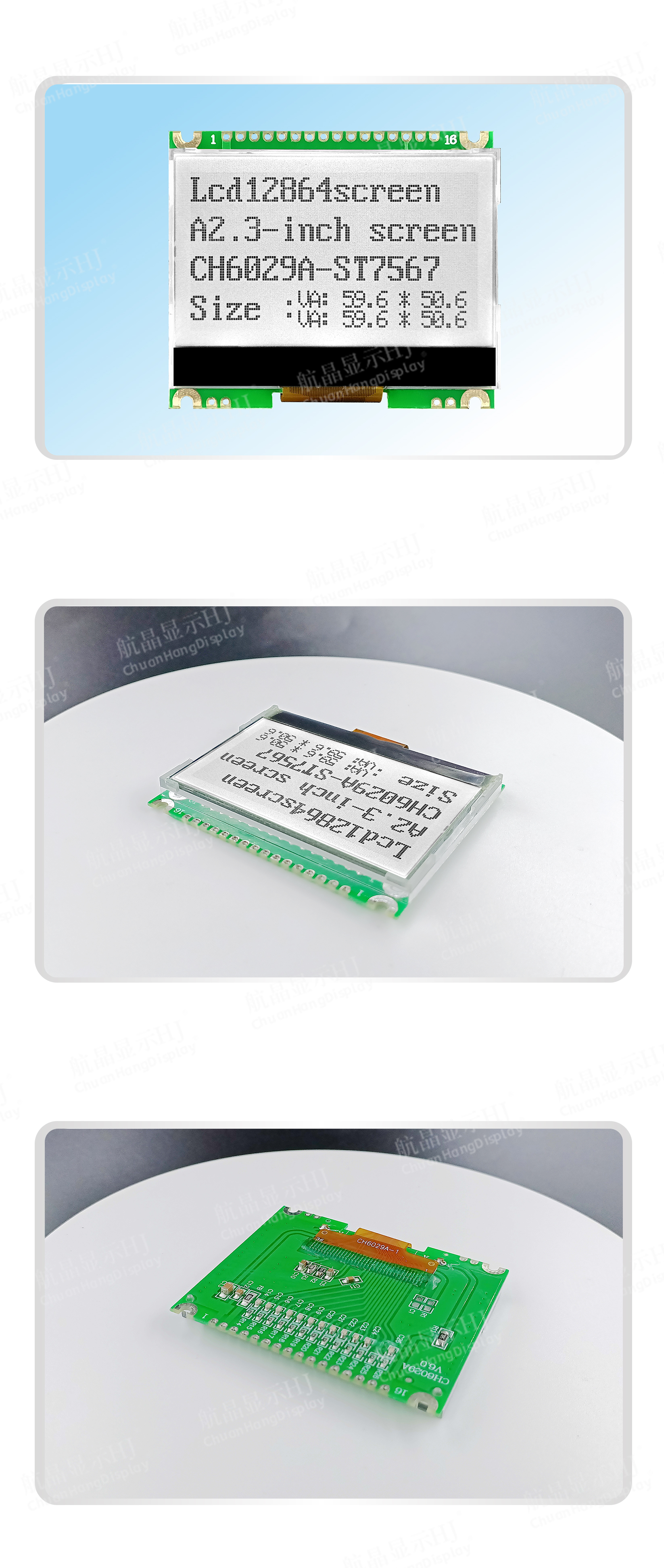

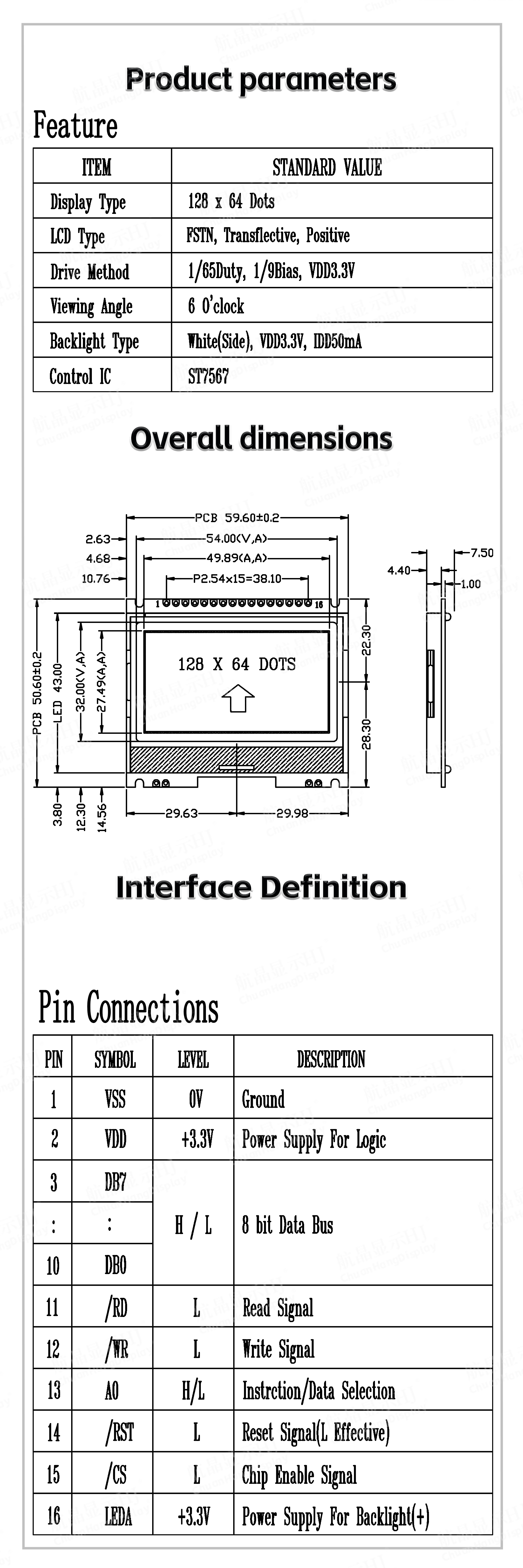

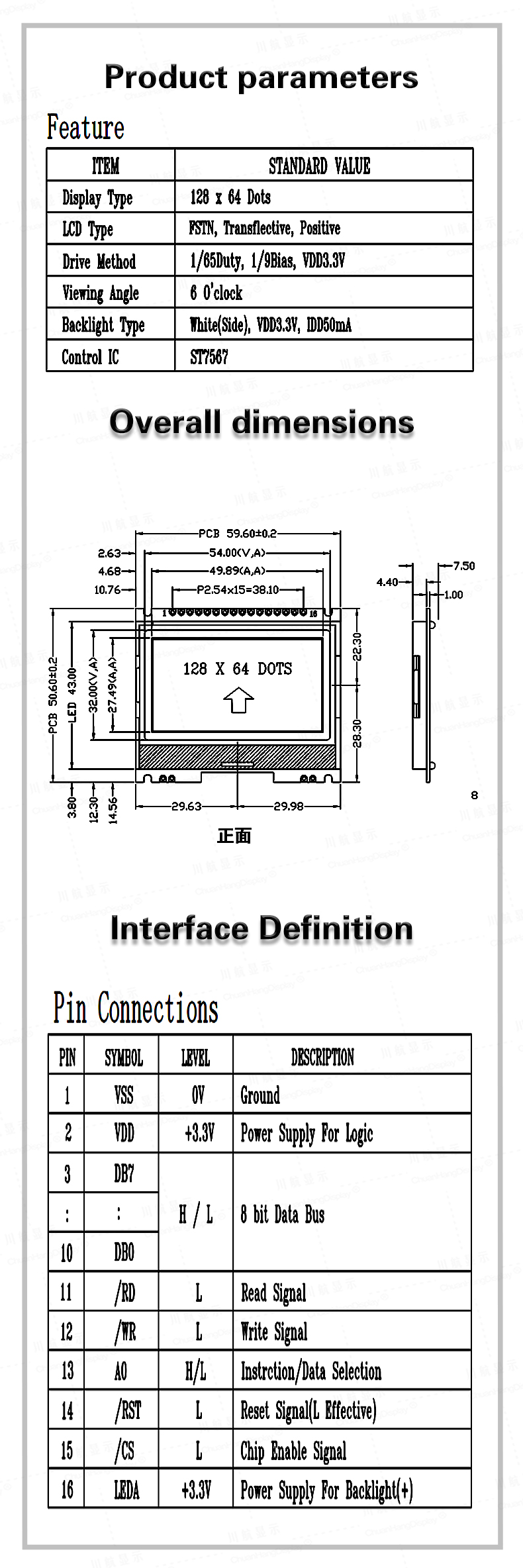

The built-in display data RAM is 64x128 bits. The boost circuit only needs 2 1uf capacitors. The contrast ratio is deeply to shallow by the software. One screen displays 8 characters x 4 lines (16x16 dot matrix). Single picture ≦128x64 dot matrix. 8-bit parallel communication. Rich functions: The interface shows on/off, forward/reverse display, read/modify/write.
1.2 IC uses ST7567. There is no font library in the chip, and the programmer compiles his own font library.
1.3 Low power consumption, only 3.3V power mode, no backlight current within 1mA, backlight current within 80mA Inside.
1.4 LED backlights A and K are PCB boards that have been welded to PCB boards. LEDs can be driven by PIN1, PIN2 and PIN16.
1.5 Product Features:
The built-in display data RAM is 64x128 bits. The boost circuit only needs 2 1uf capacitors. The contrast ratio is deeply to shallow by the software. One screen displays 8 characters x 4 lines (16x16 dot matrix). Single picture ≦128x64 dot matrix. 8-bit parallel communication. Rich functions: The interface shows on/off, forward/reverse display, read/modify/write.
