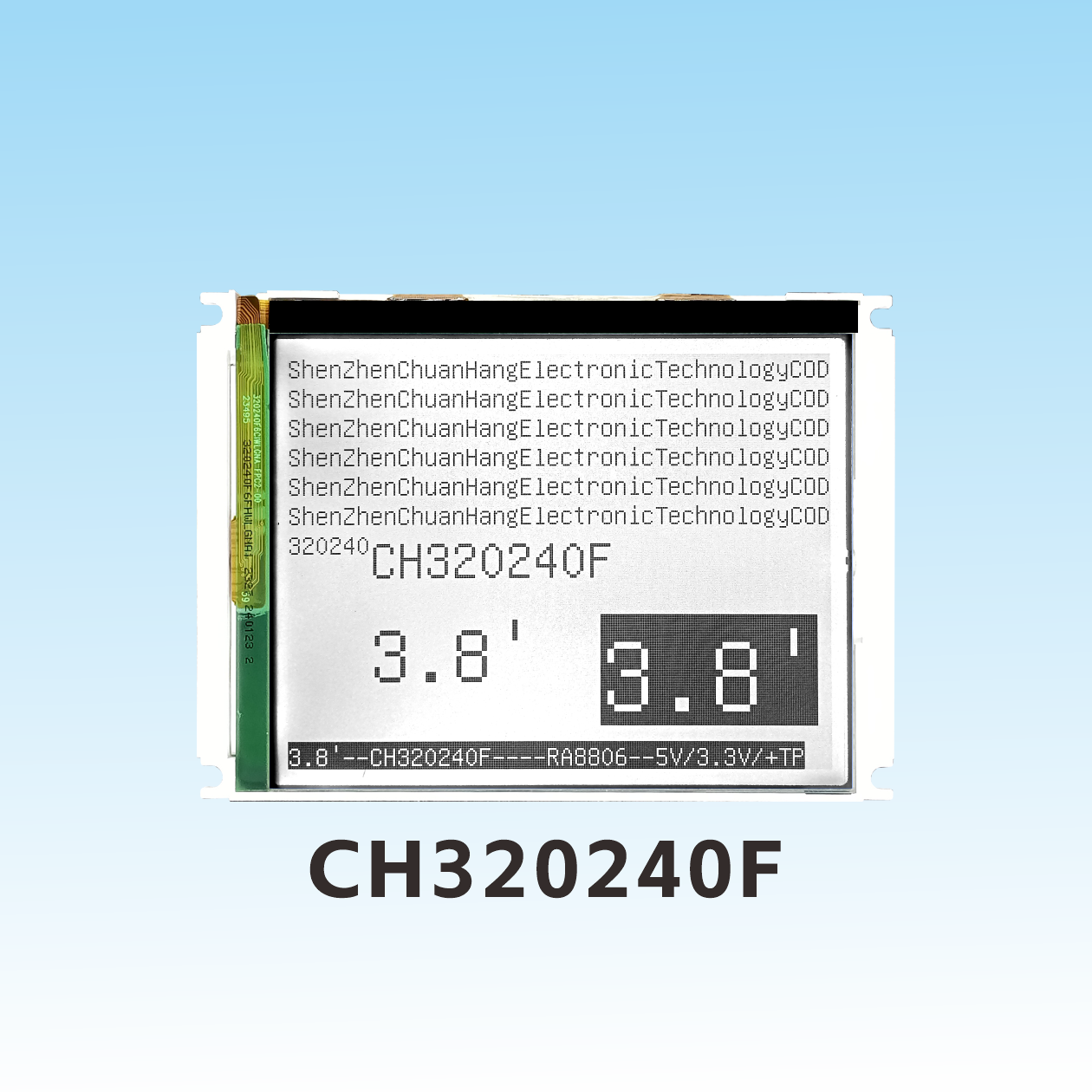

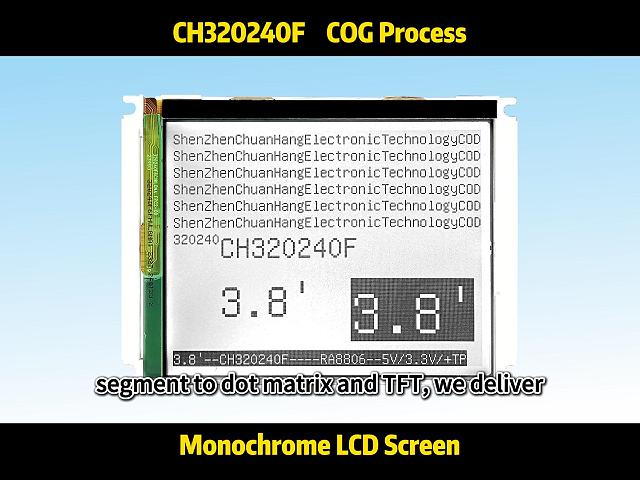

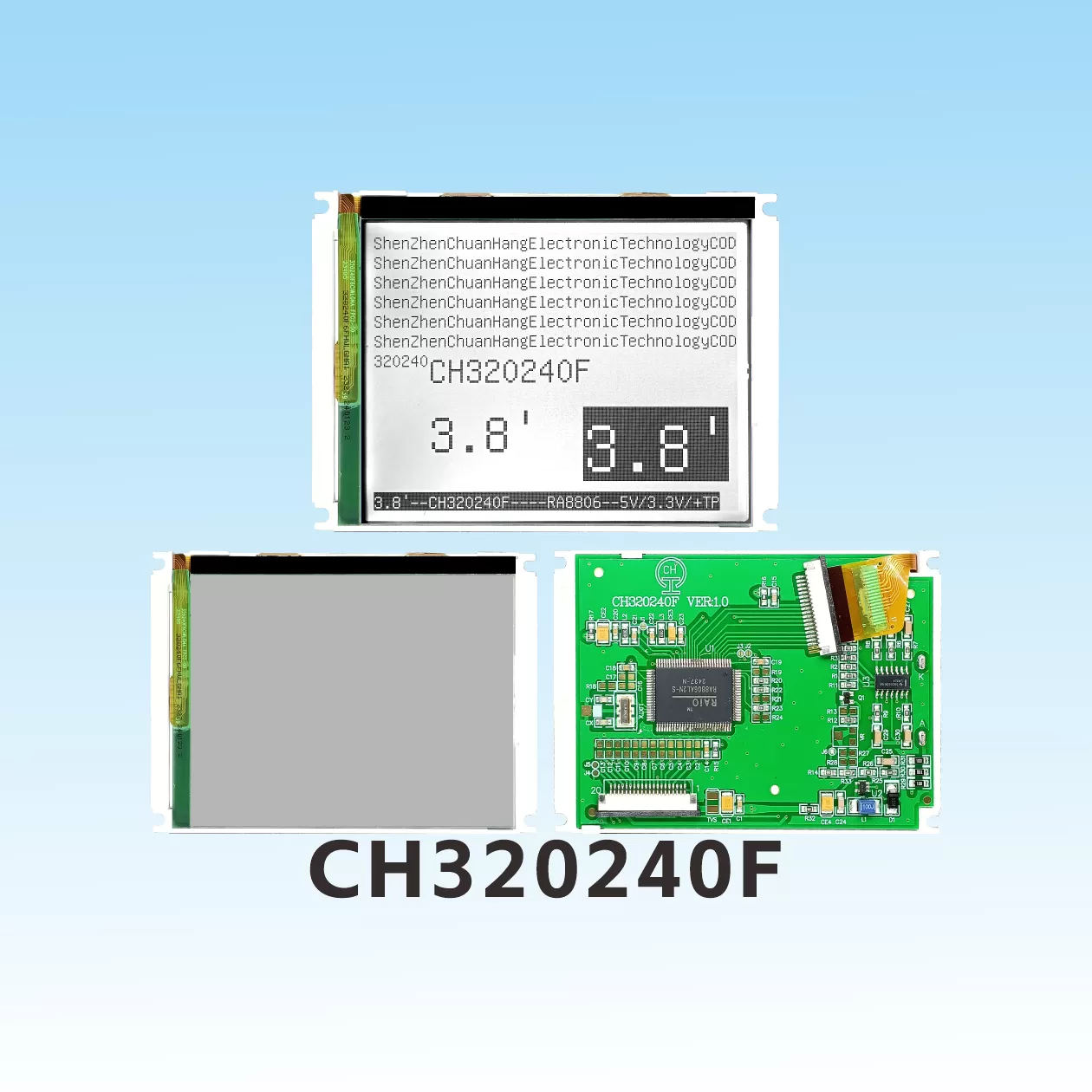

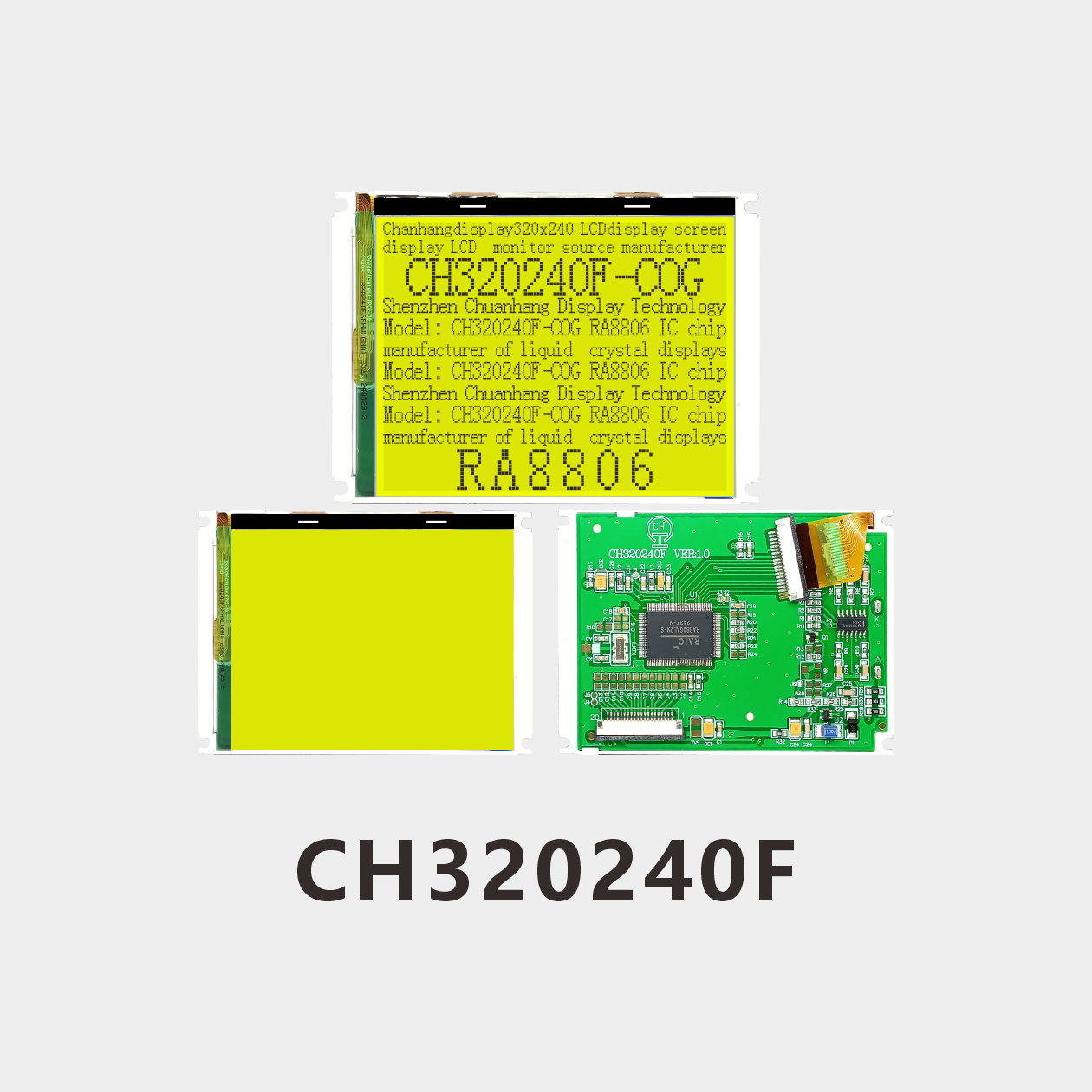

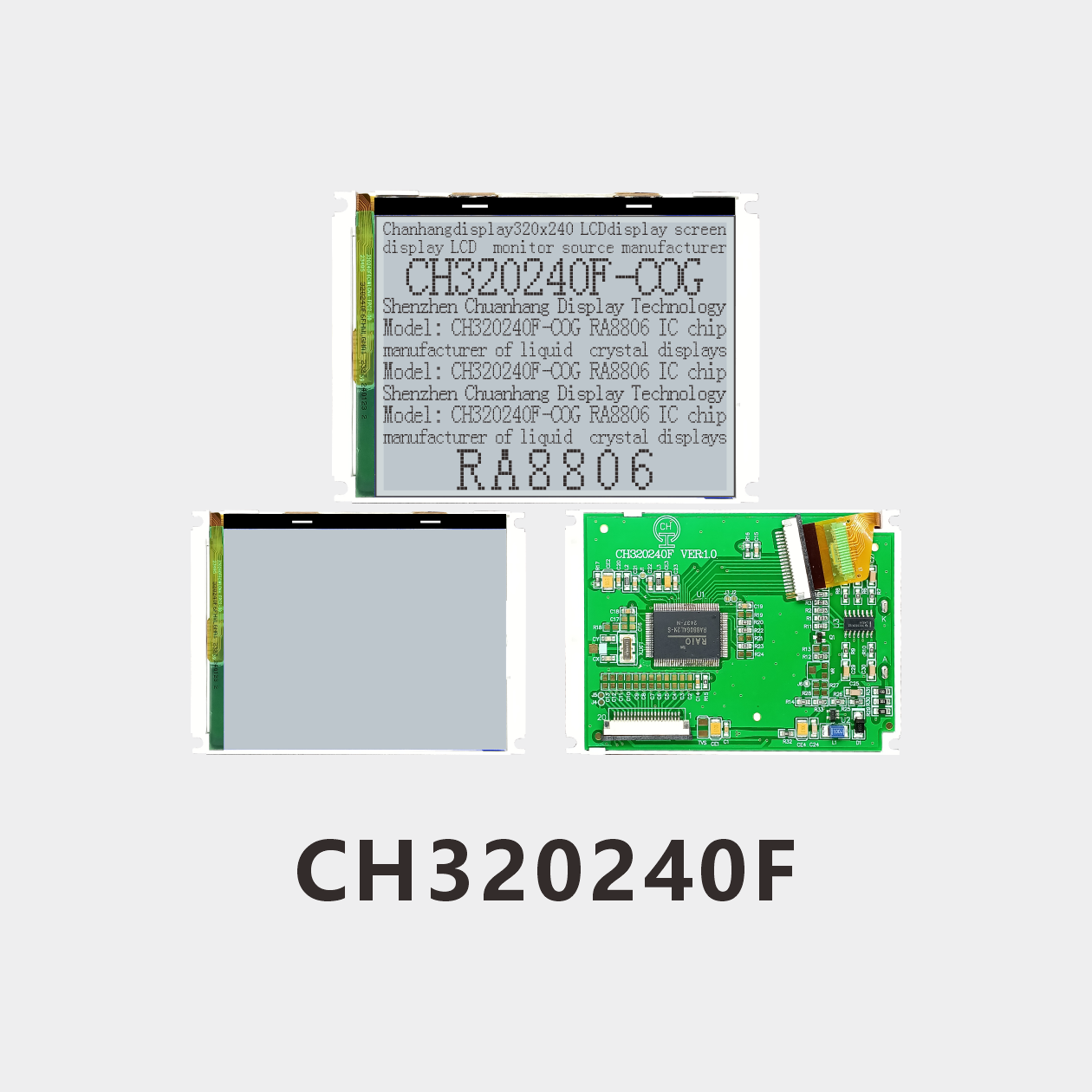

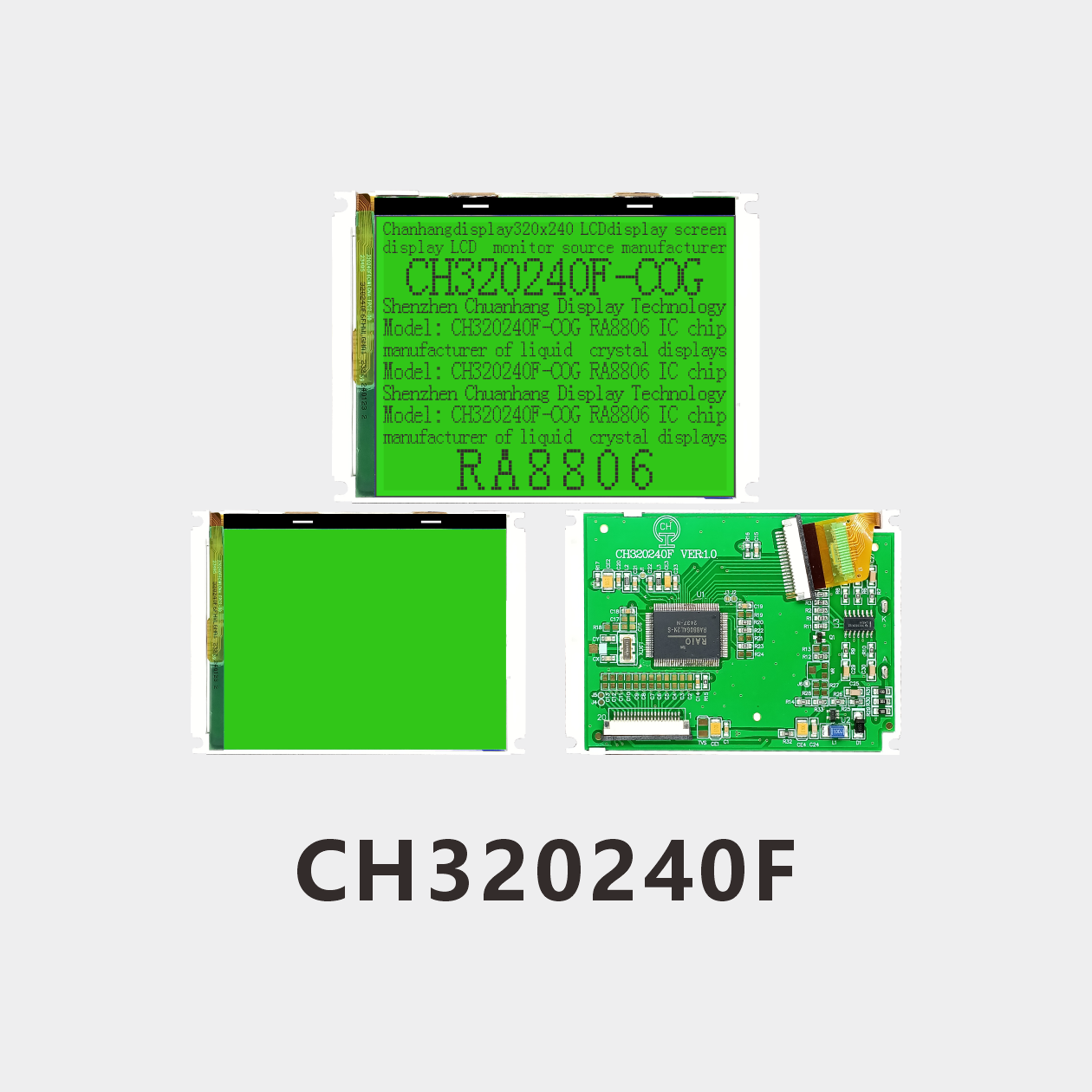

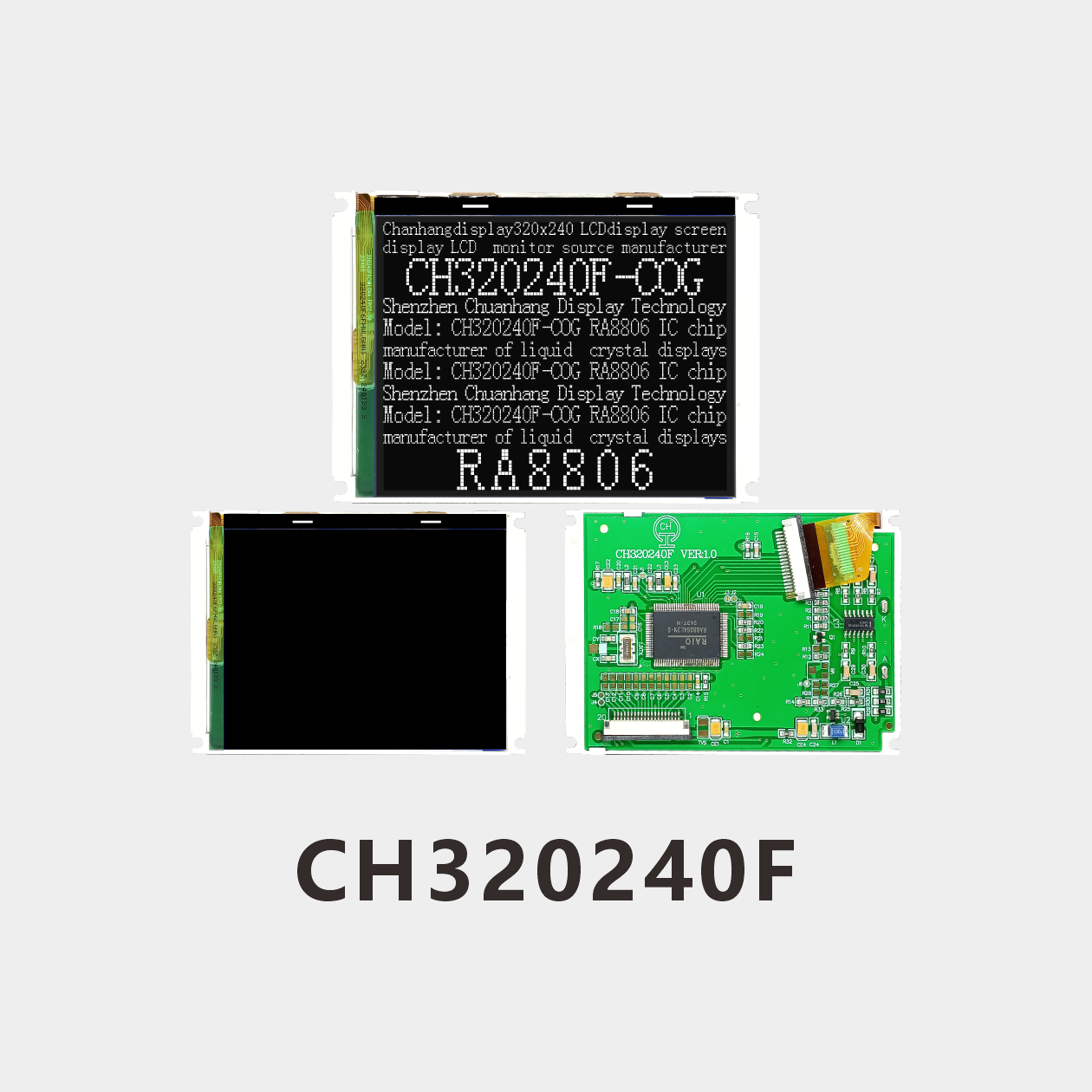

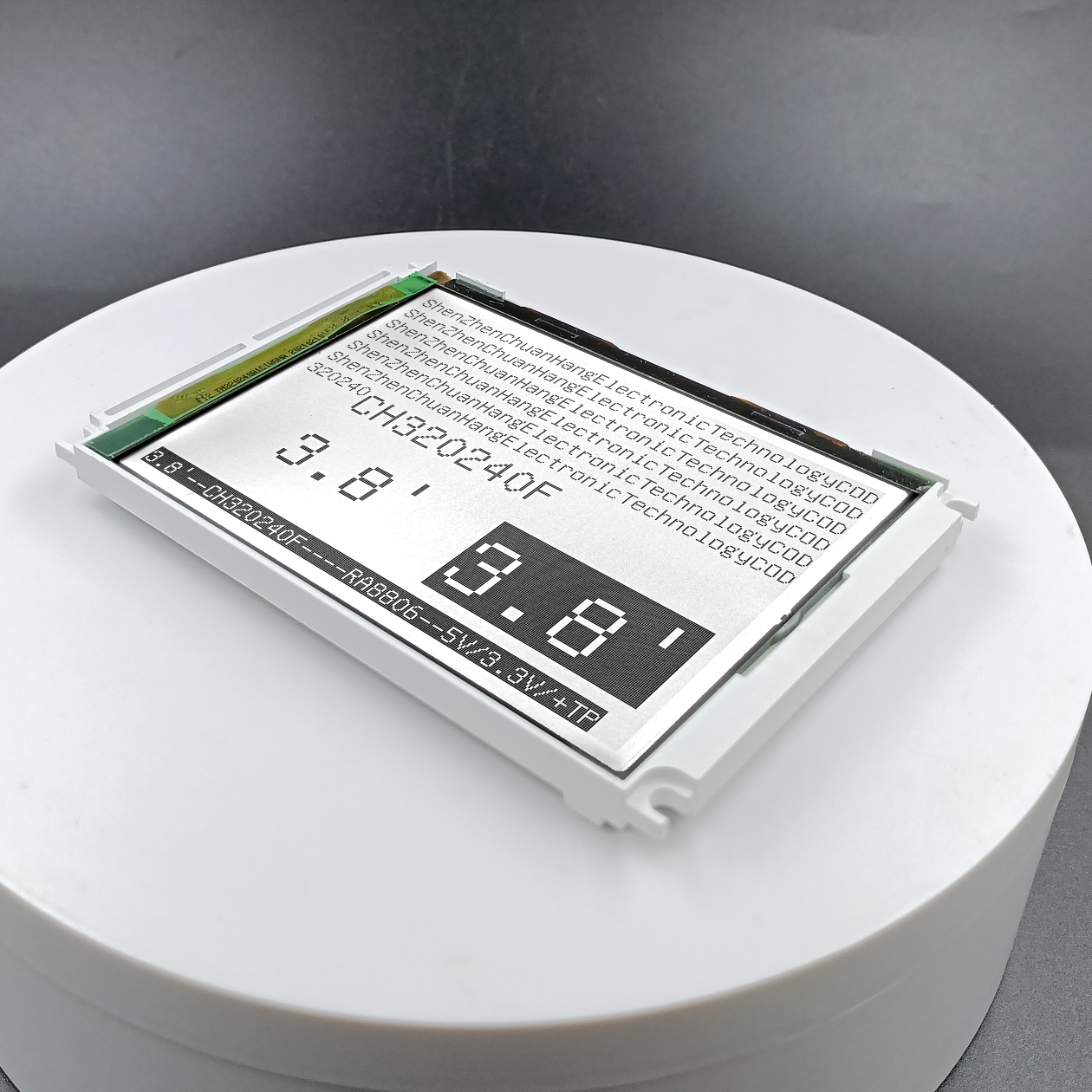

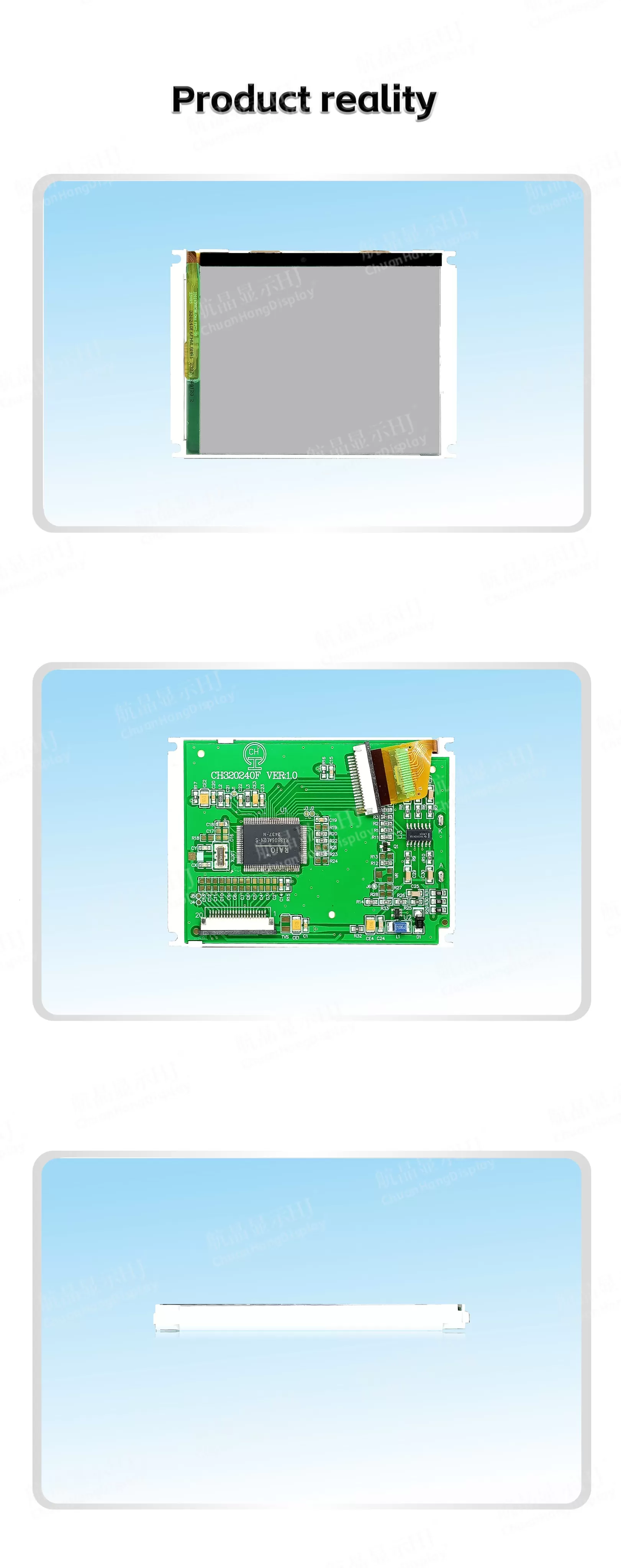

CH320240F 320x240 LCD Module
Product Description

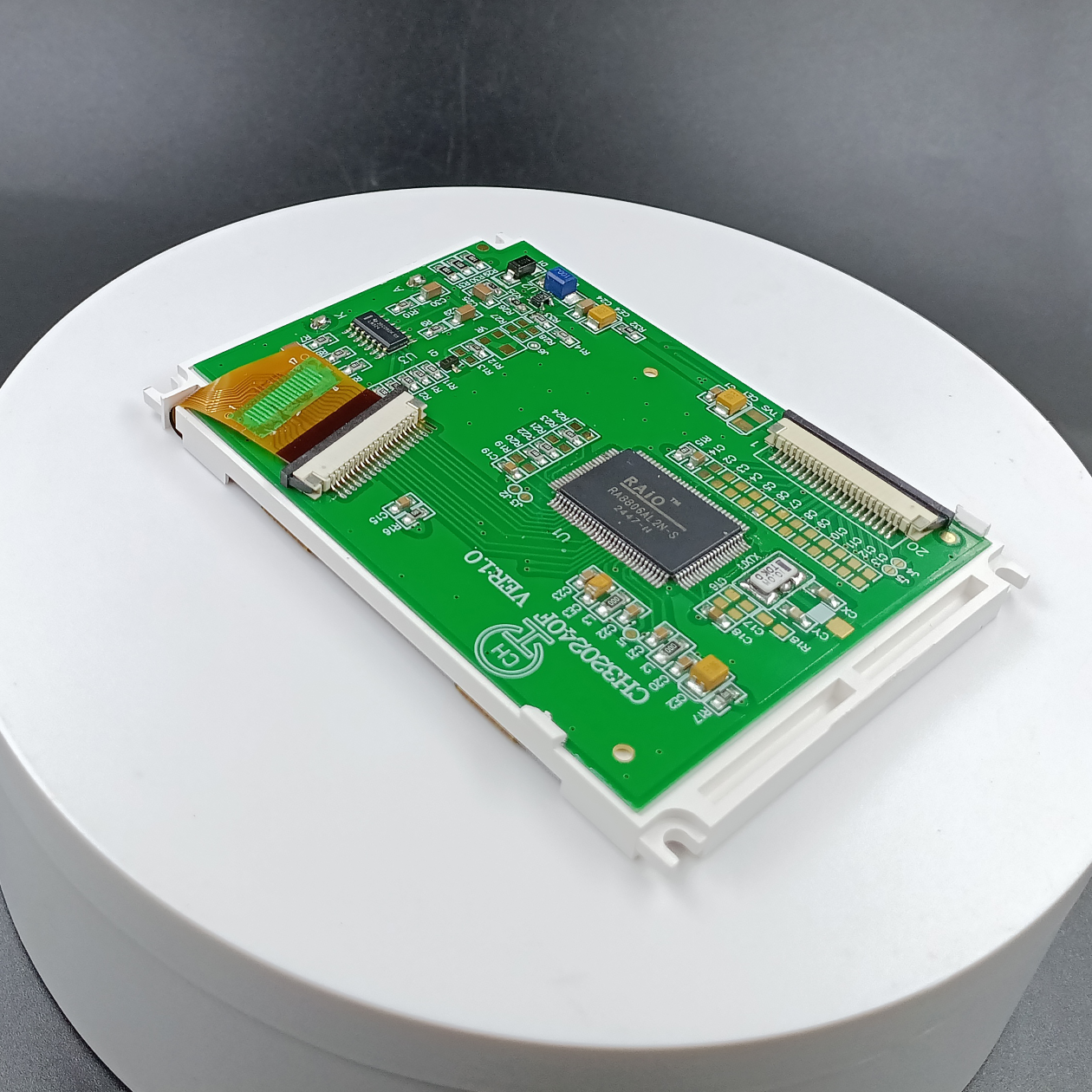

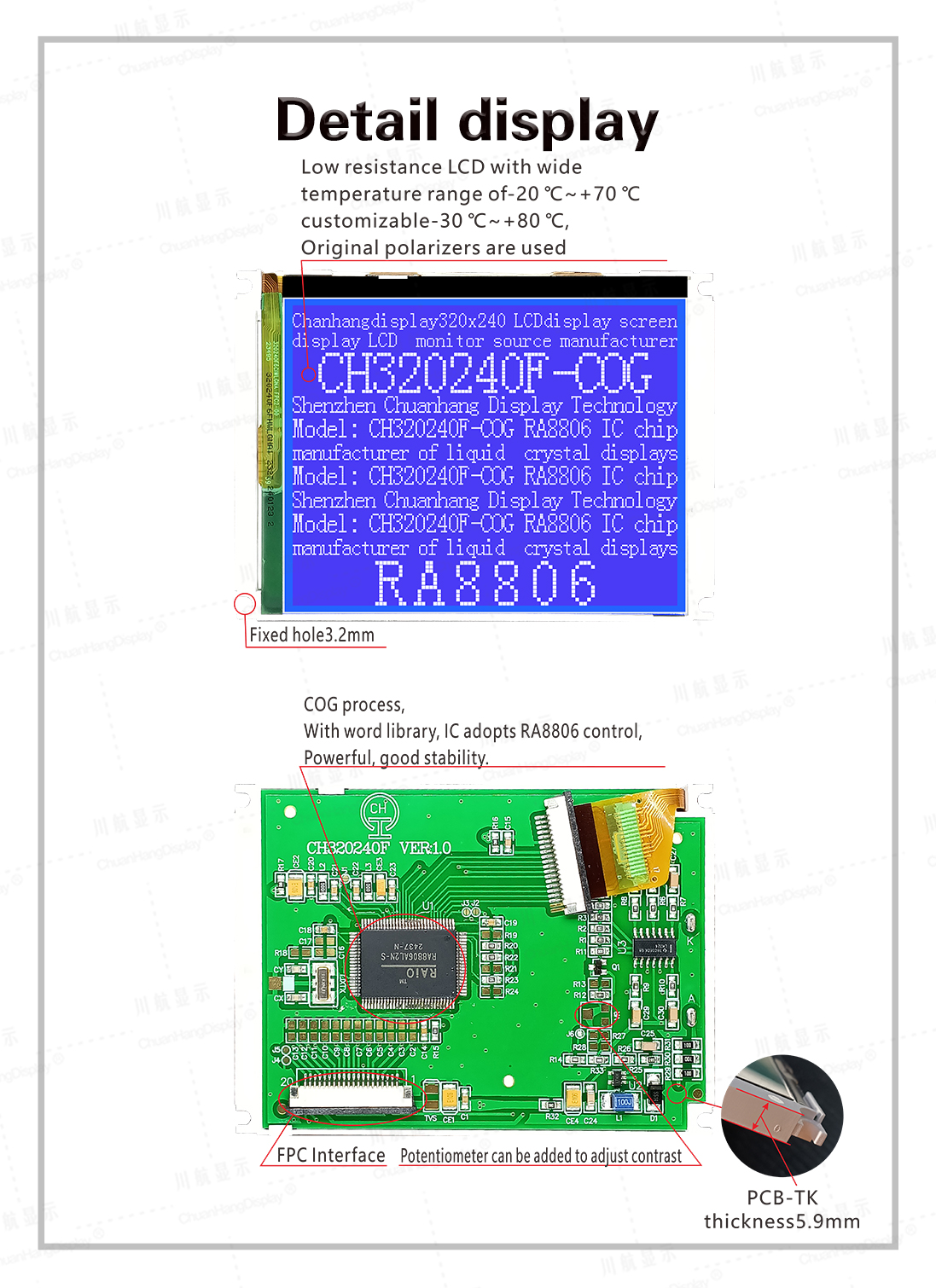

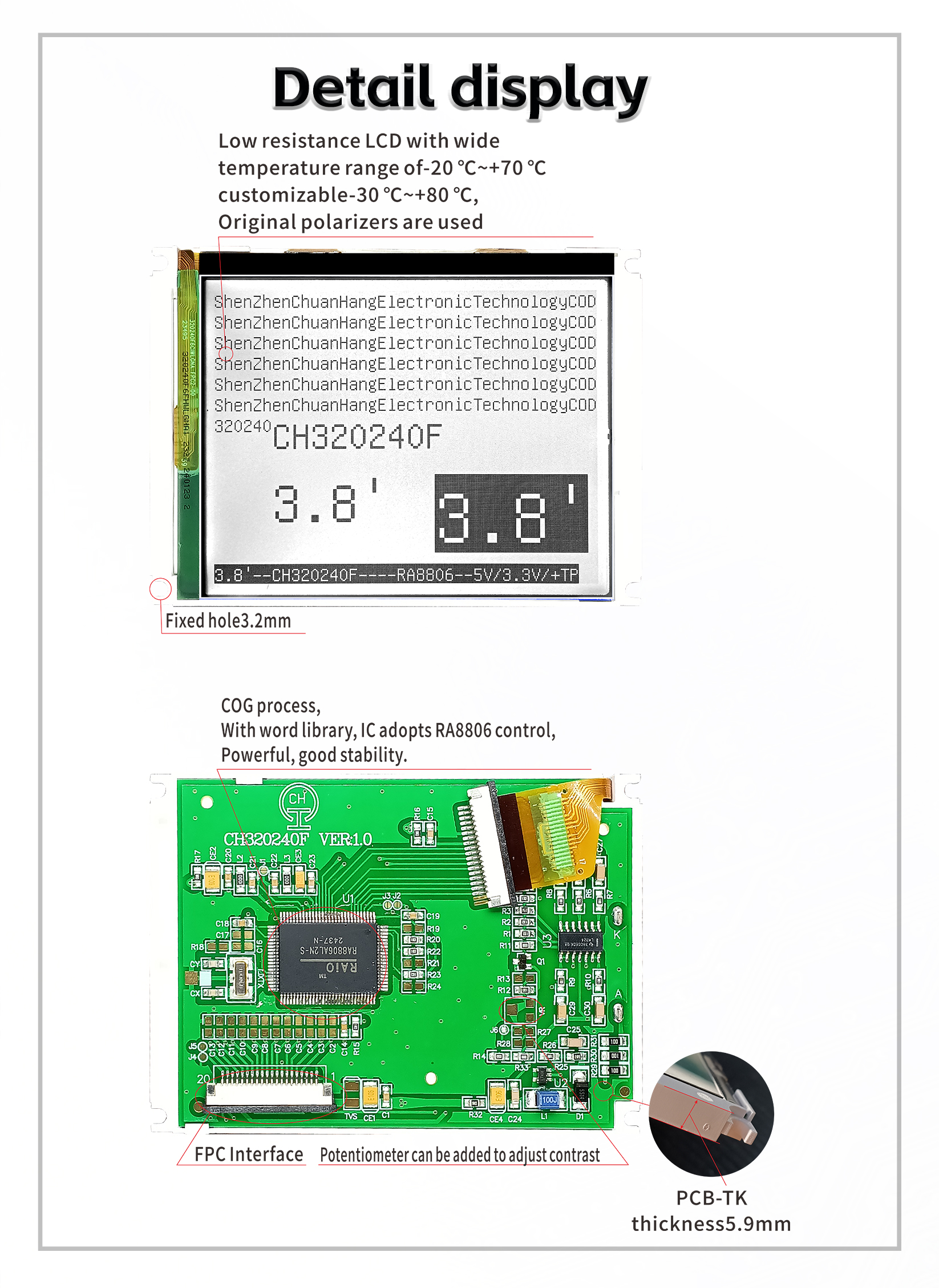

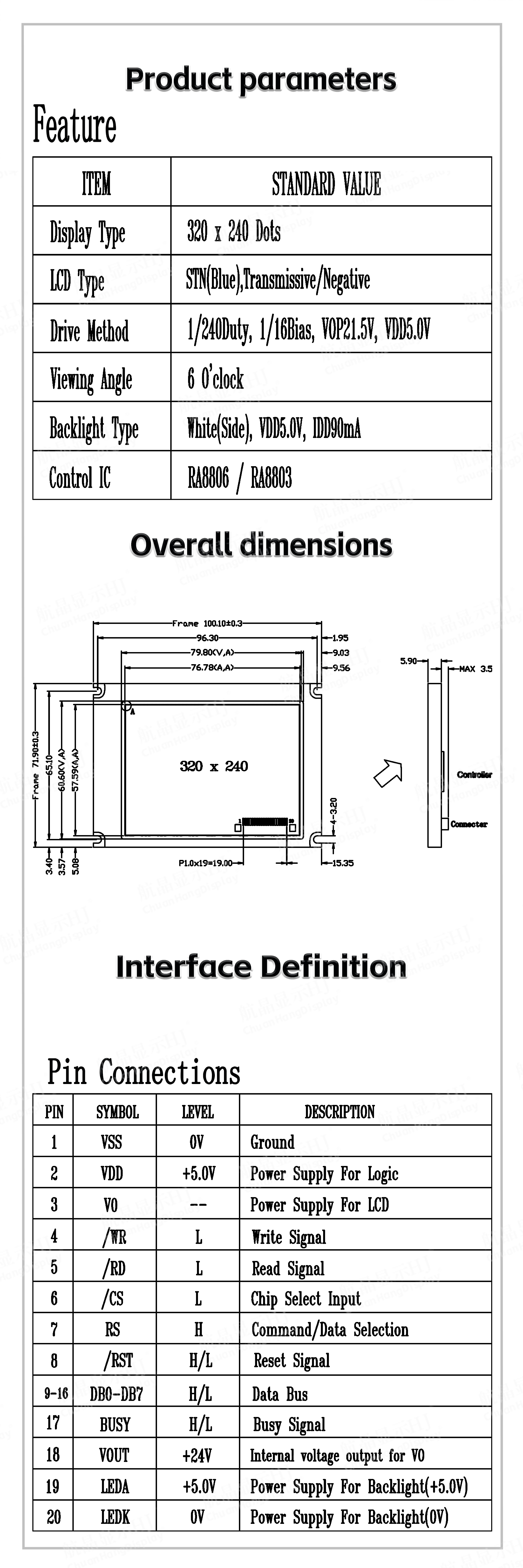

1.1 320*240 resolution, C0G process dot matrix LCD module, product with PCB board, LED backlight, FPC connection, stable structure.

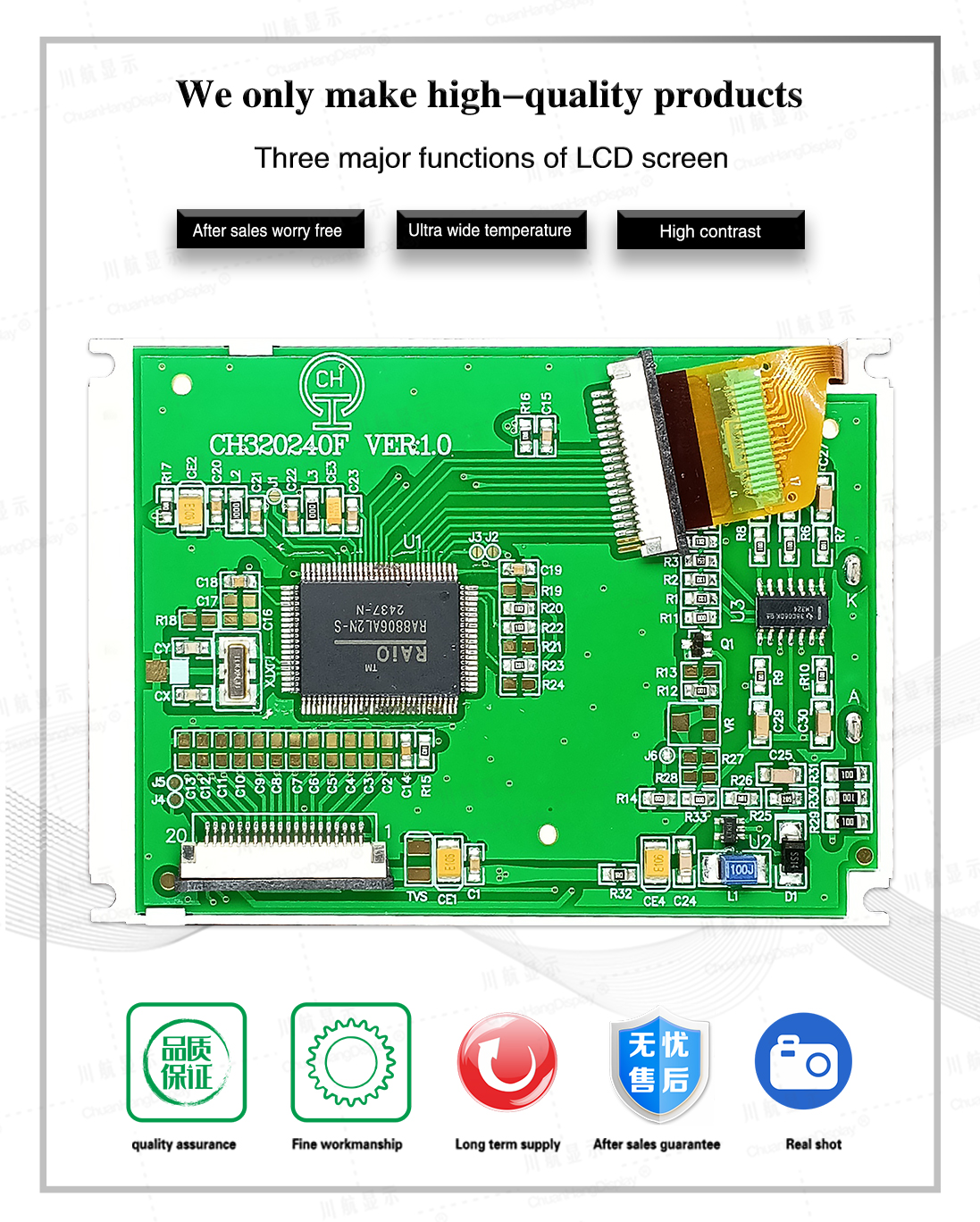

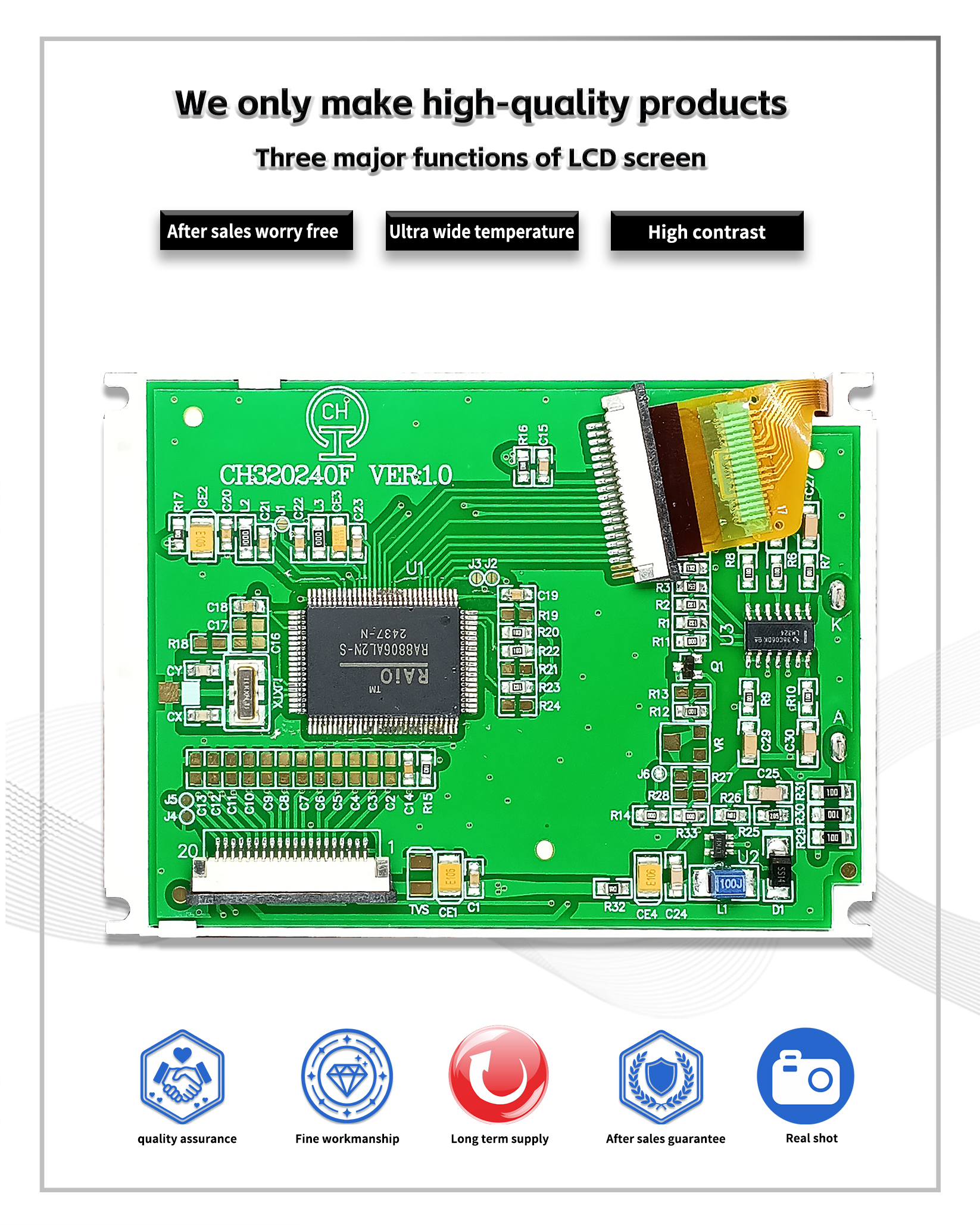

1.2 IC uses RA8806, chip built-in 512 bytes character library ROM (CGROM), simplified or traditional Chinese character library and ASCI font ROM chip selection.
1.3 Low power consumption, there are two power supply modes of 5V/3.3V, no backlight current within 15mA, backlight current within 180mA.
1.4 LED can be driven by PIN1, PIN2, PIN19, PIN20.
1.5 Product features:
Built-in character library ROM (CGROM): 512 bytes
Two mixed display modes of drawing and text
Dual layer mixed display.
Support 90 degrees, 180 degrees, 270 degrees text rotation display.
Support 4 grayscale display modes, text reverse, bold text, 1x to 4x text magnification.
One screen displays 20 characters x 15 lines (16x16 dot matrix)
Single picture ≦ 320x240 dot matrix.
Built-in VEE positive voltage output, V0 and VEE are disconnected when the module contrast is fixed
8-bit parallel port interface, 8080 timing/6800 timing.
