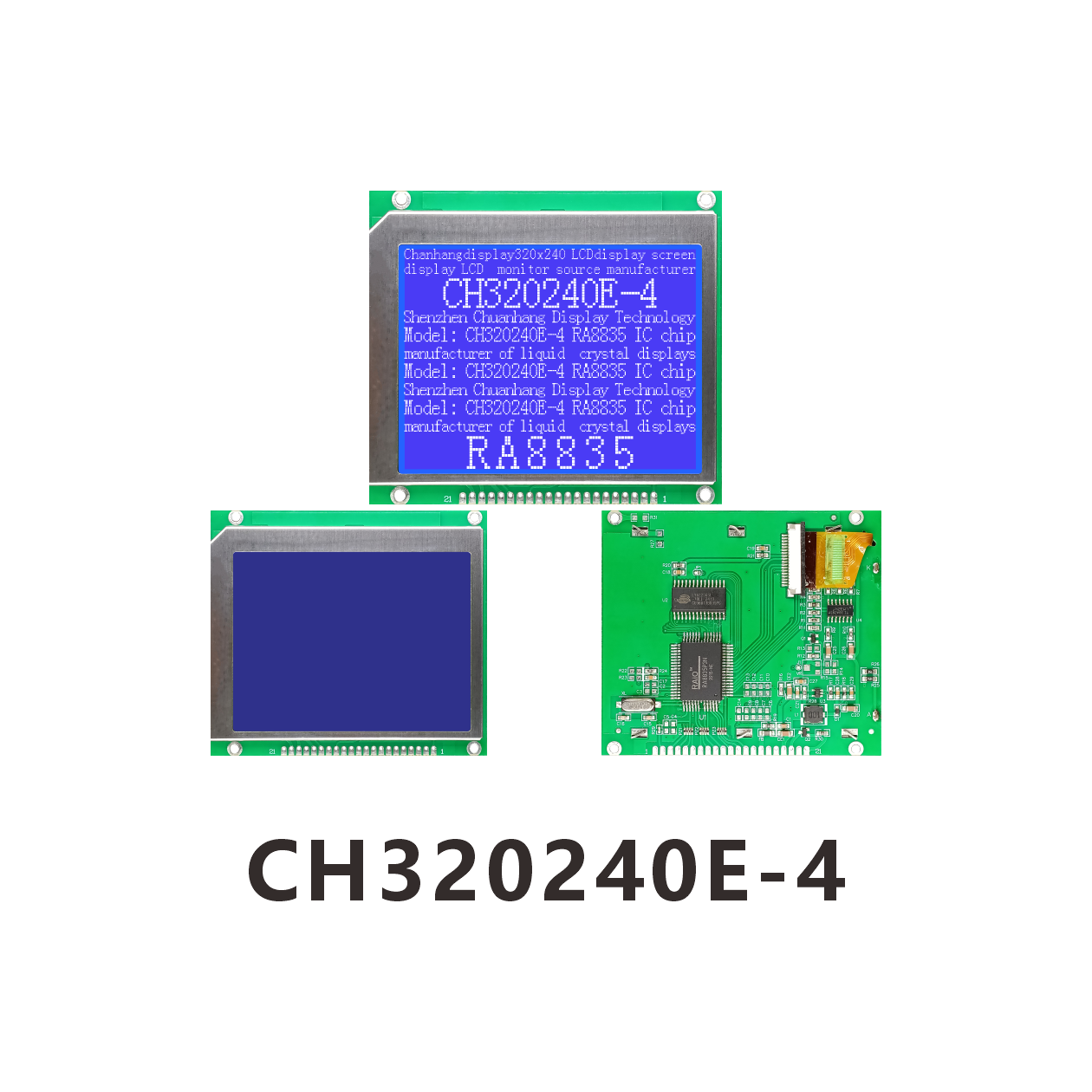

CH320240E Graphic Display LCM 320x240
Product Description
1.1 320*240 resolution, C0G process dot matrix LCD module, product with PCB board, LED backlight, FPC connection, stable structure.
1.2 IC uses ra8835/uc8835, compatible with EPSON's S1D13305 (SED1335), chip built-in character library ROM (CGROM), no Chinese character library, programmers compile Chinese character library.
1.3 Low power consumption, 5V/3.3V two power supply modes, no backlight current within 20mA, backlight current within 200mA.
1.4 LED can be driven by PIN1, PIN2, PIN19, PIN20.
1.5 Product features:
Built-in character library ROM (CGROM): 160 characters (5x7 dot matrix).
Graphics mode, text mode, graphics and text mixed mode.
Text and graphics layered overlapping display, horizontal and vertical scrolling and other dynamic effects.
One screen displays 20 characters x 15 lines (16x16 dot matrix).
Single picture ≦ 320x240 dot matrix.
Built-in VEE positive voltage output, V0 and VEE are disconnected when the module contrast is fixed.
8-bit parallel port 8080 timing or 6800 timing selection.
