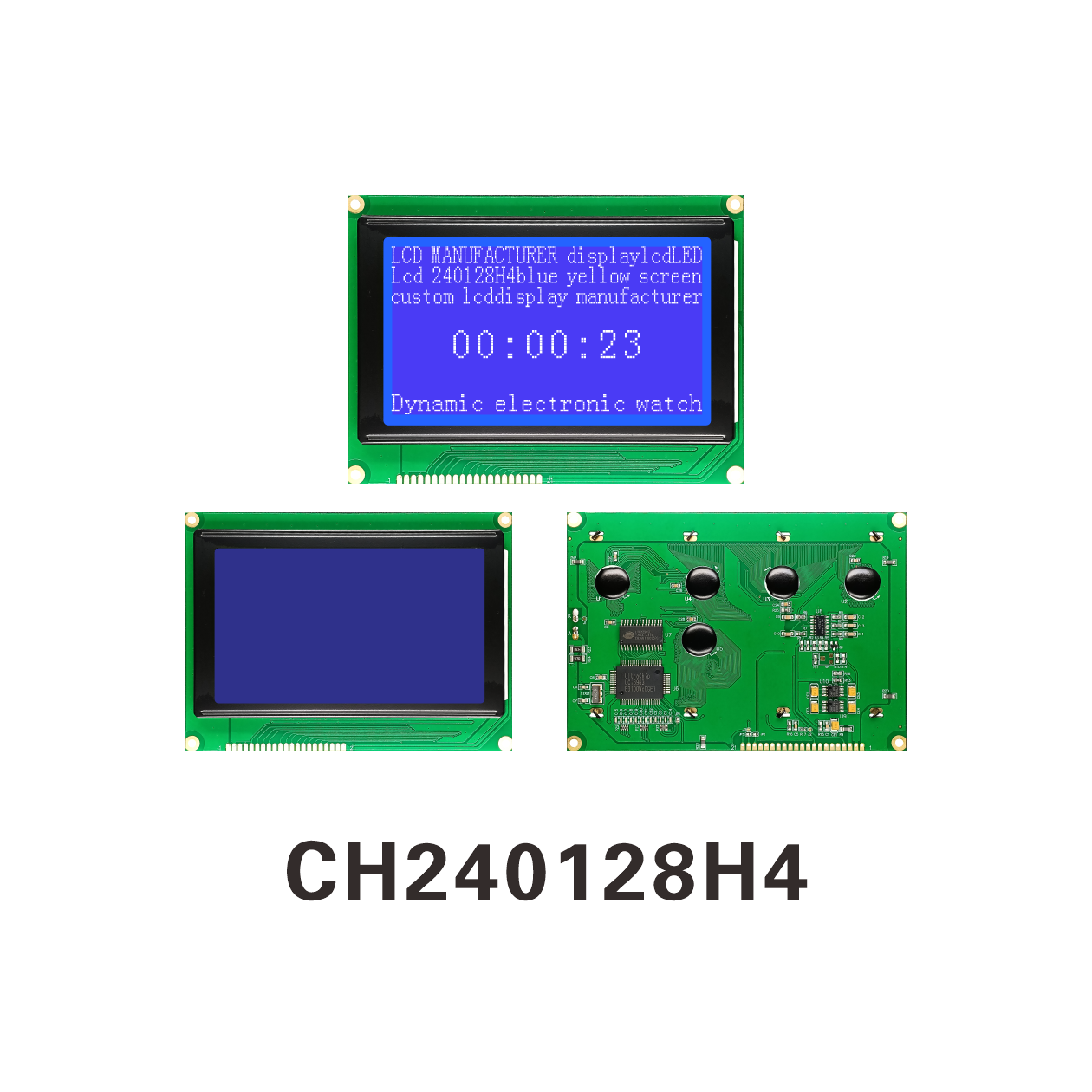

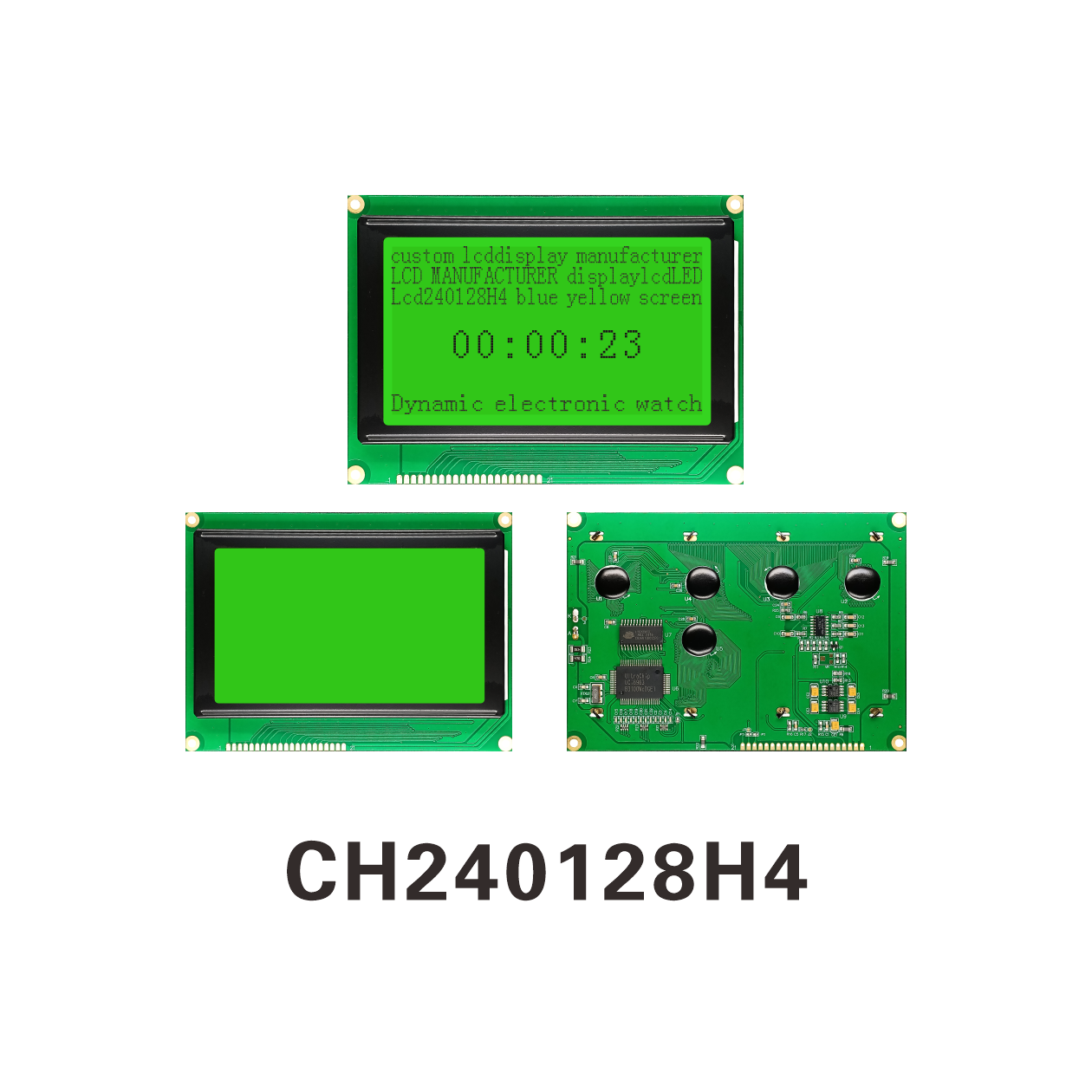

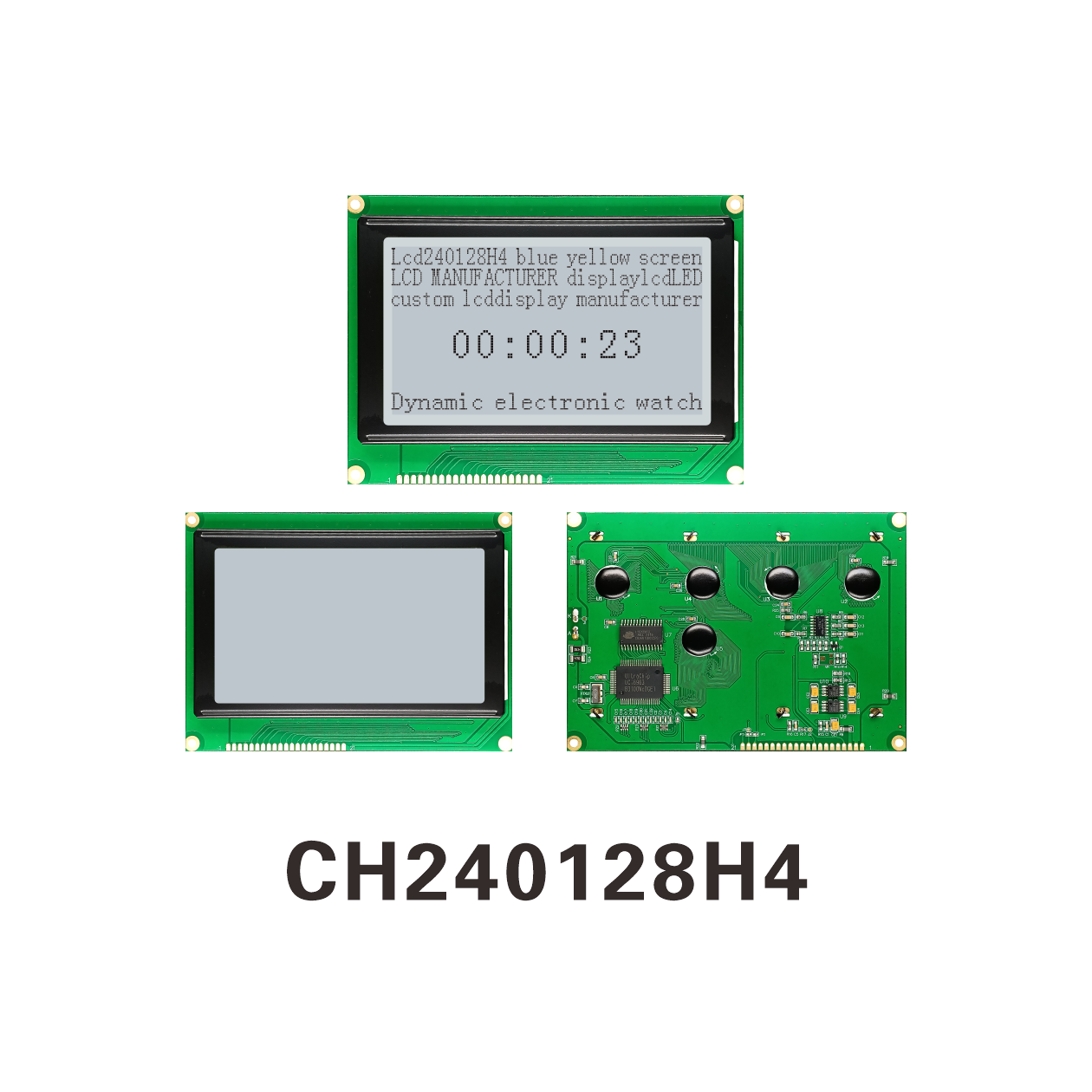

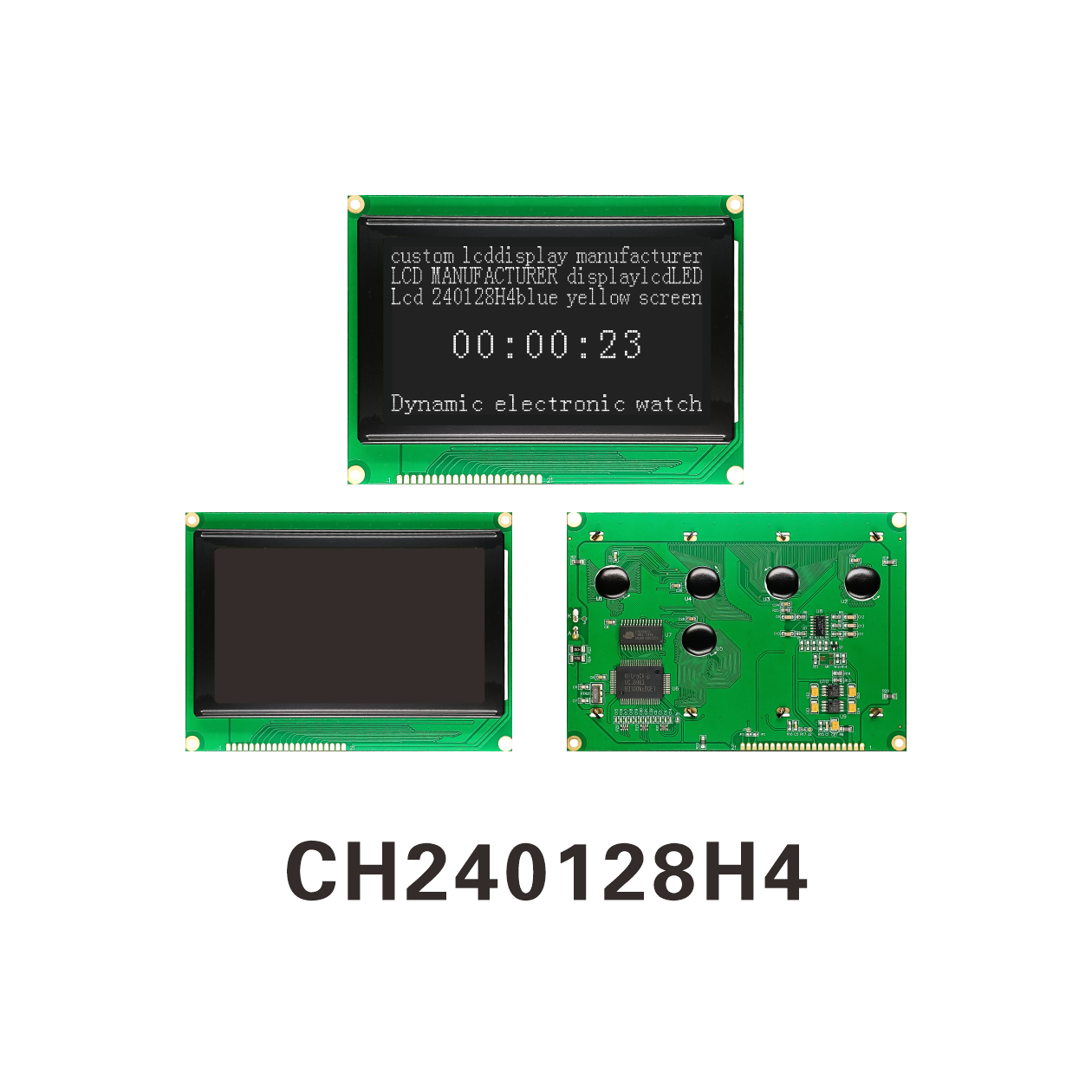

Chip on Board LCD Module 240x128 CH240128H4
Product Description
1.1 C0B bonding process, the product comes with PCB board, backlight, conductive tape connection, stable structure.
1.2 IC uses t6963c/uc6963, the chip has built-in character library ROM (CGROM), no Chinese character library, programmers compile Chinese character library.
1.3 Low power consumption, there are two power supply modes of 5V/3.3V, the current without backlight is within 20mA, and the current with backlight is within 180mA.
1.4 LED can be driven by PIN2, PIN3, PIN20, PIN21.
1.5 Product features:
Built-in display data RAM is 128x240 bits.
Built-in character library ROM (CGROM): 128 characters
Graphic mode, text mode, graphic text mixed mode.
One screen displays 15 characters x 8 lines (16x16 dot matrix).
Single picture ≦240x128 dot matrix.
Built-in negative voltage output (VEE), V0 and VEE are disconnected when the module contrast is fixed.
8-bit parallel port interface, 8080 timing.
1.2 IC uses t6963c/uc6963, the chip has built-in character library ROM (CGROM), no Chinese character library, programmers compile Chinese character library.
1.3 Low power consumption, there are two power supply modes of 5V/3.3V, the current without backlight is within 20mA, and the current with backlight is within 180mA.
1.4 LED can be driven by PIN2, PIN3, PIN20, PIN21.
1.5 Product features:
Built-in display data RAM is 128x240 bits.
Built-in character library ROM (CGROM): 128 characters
Graphic mode, text mode, graphic text mixed mode.
One screen displays 15 characters x 8 lines (16x16 dot matrix).
Single picture ≦240x128 dot matrix.
Built-in negative voltage output (VEE), V0 and VEE are disconnected when the module contrast is fixed.
8-bit parallel port interface, 8080 timing.
