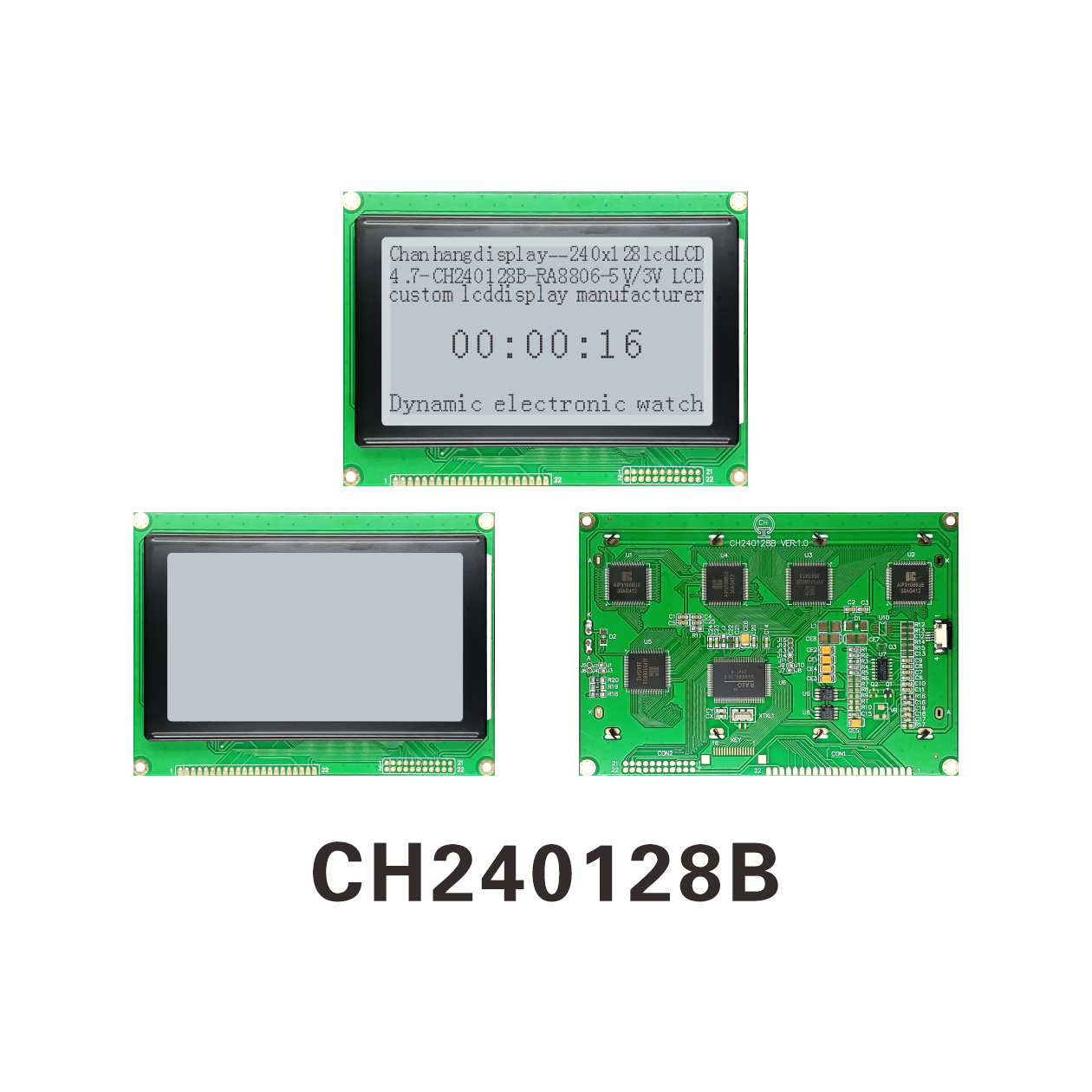

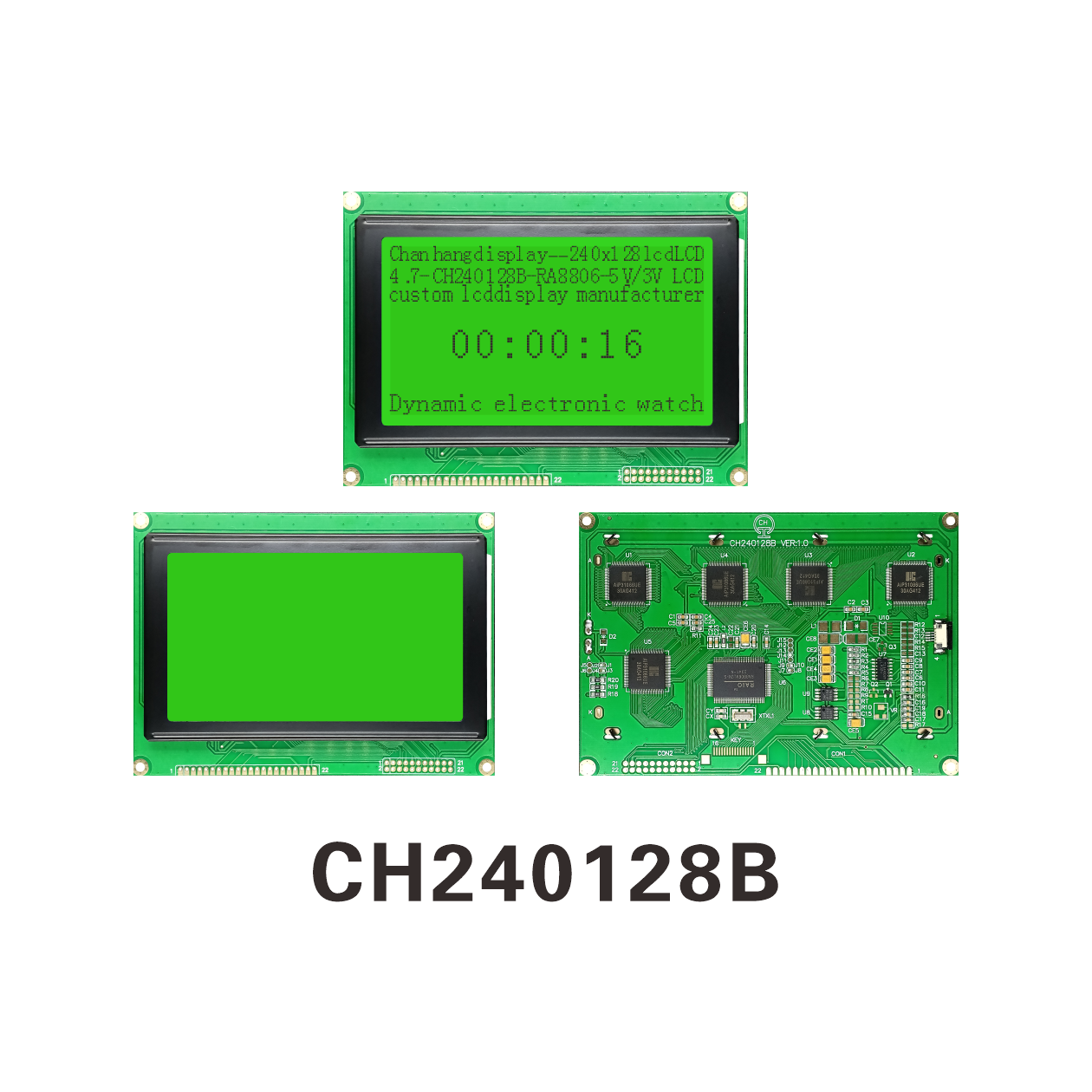

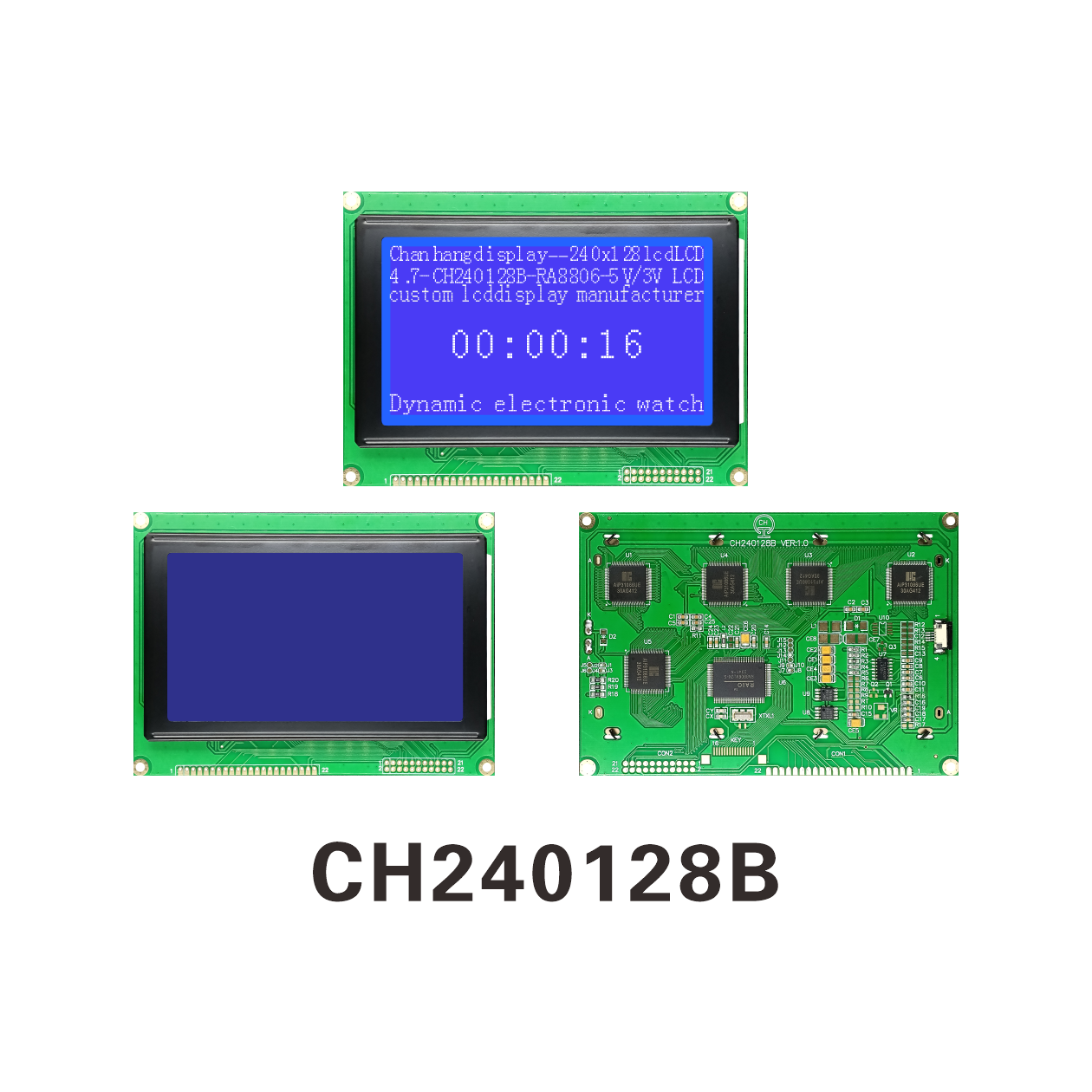

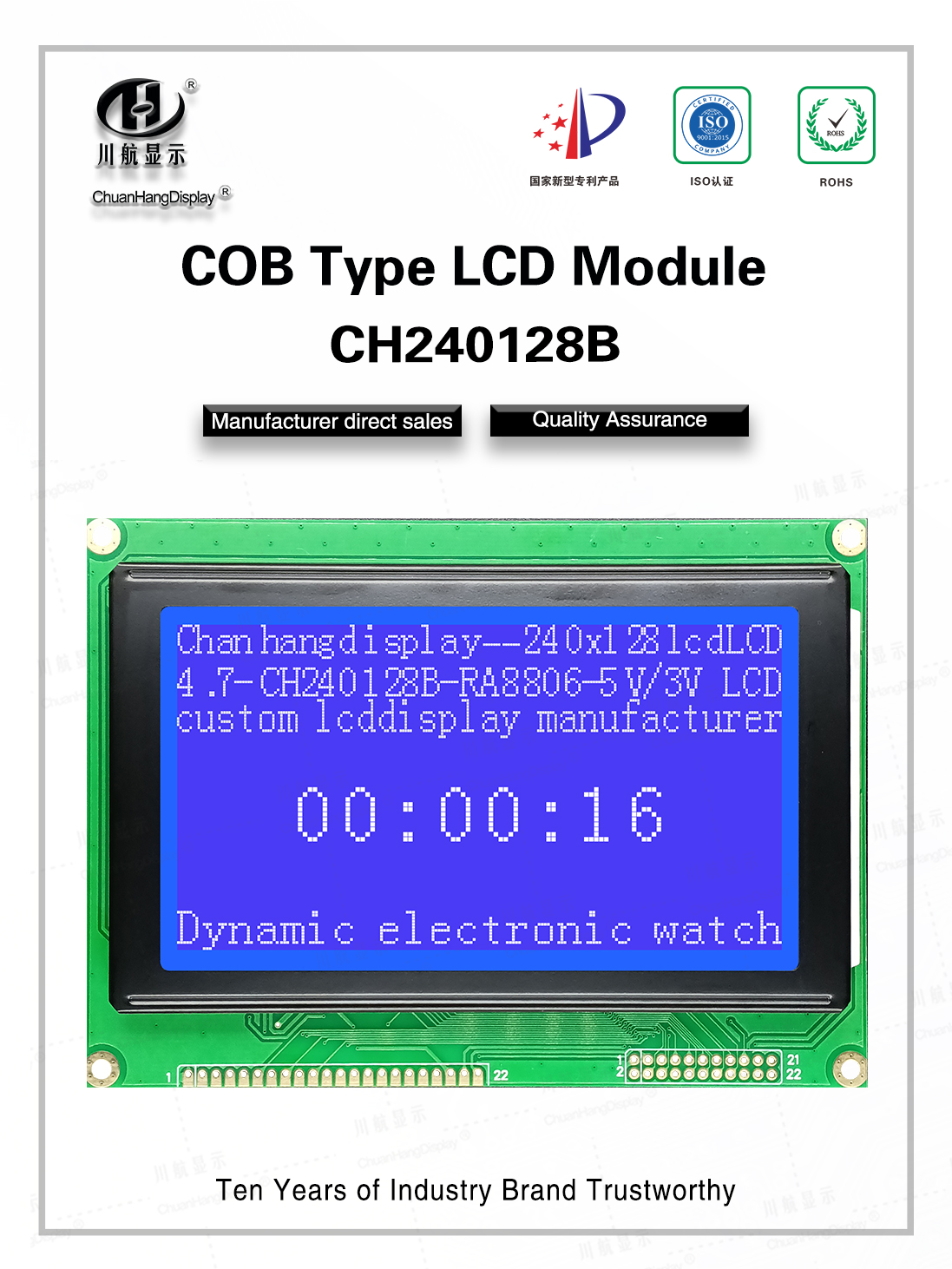

CH240128B COB LCD Display 240x128
Product Description

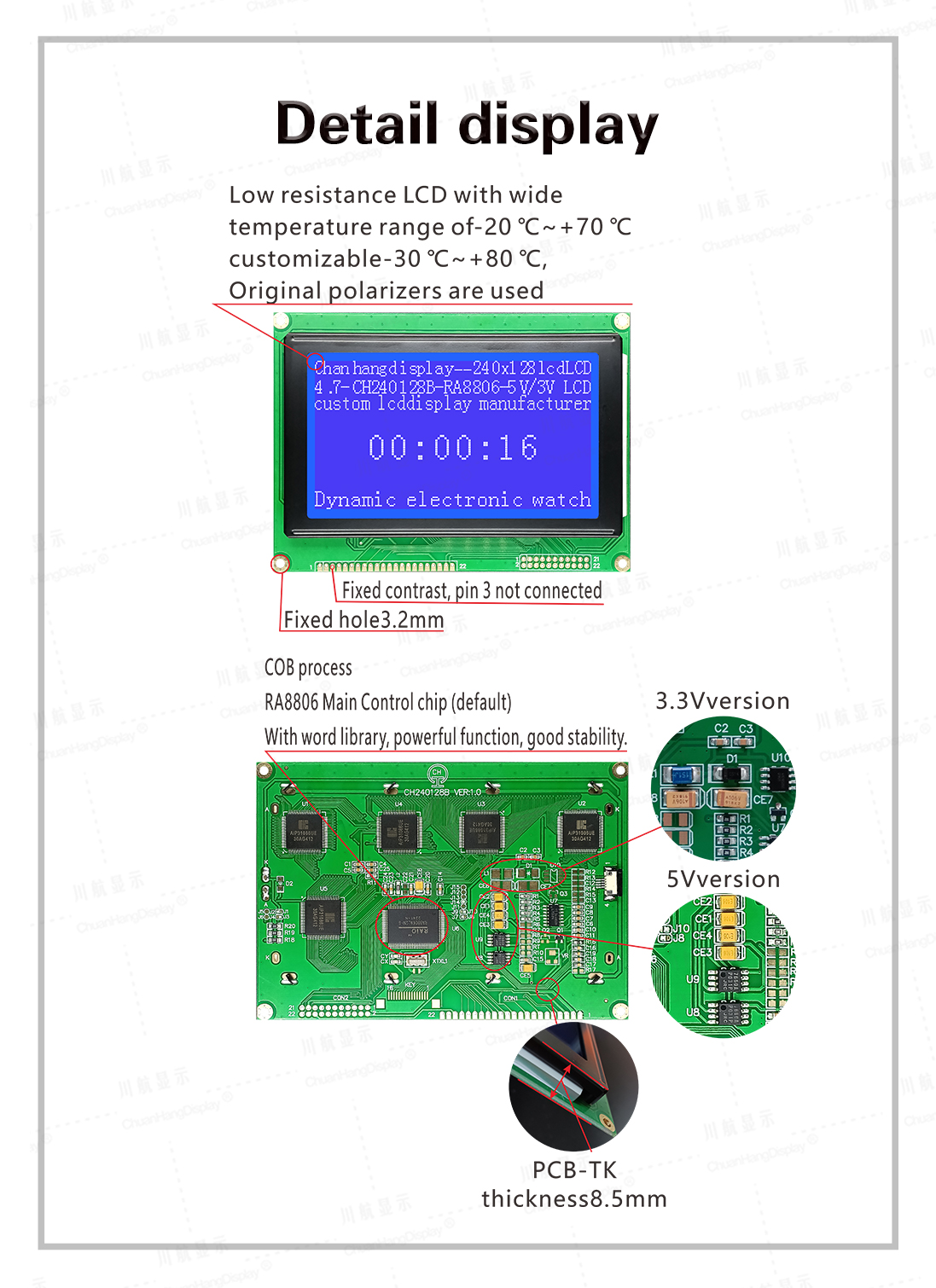

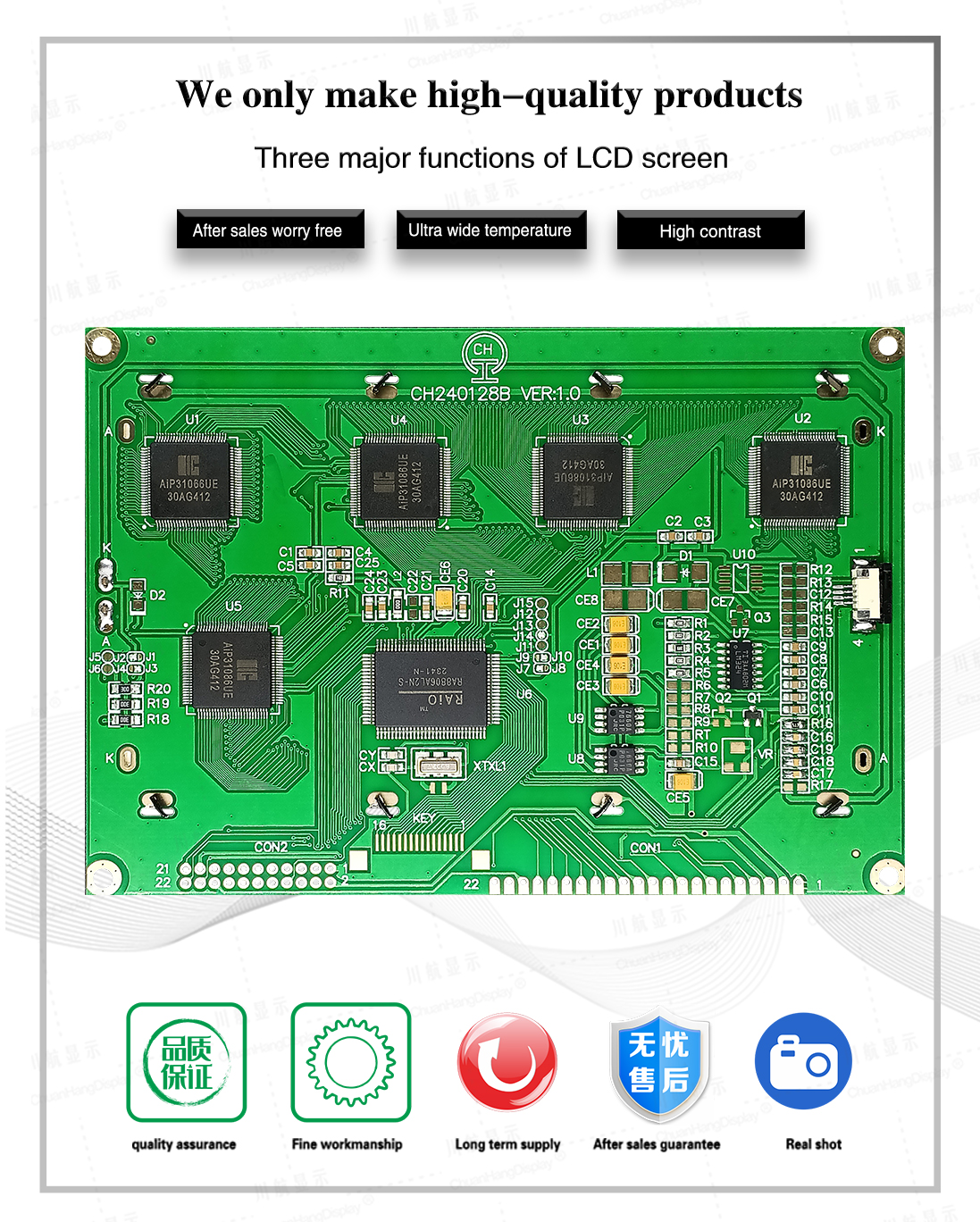

1.1 COB process, the product comes with PCB board, backlight, conductive tape connection, and stable structure.
1.2 IC uses RA8806, the chip has built-in 512-byte character library ROM (CGROM), simplified or traditional Chinese character library and ASCII font ROM chip selection.
1.3 Low power consumption, there are two power supply modes of 5V/3.3V, the current without backlight is within 20mA, and the current with backlight is within 180mA.
1.4 LED can be driven by PIN1, PIN2, PIN21, PIN22.
1.5 Product features:
Built-in character library ROM (CGROM): 512 bytes of drawing and text two mixed display modes.
Dual layer mixed display.
Support 90 degrees, 180 degrees, 270 degrees text rotation display Support 4 grayscale display modes, text reverse, bold text, 1x to 4x text magnification. Built-in resistive touch scanning.
One screen displays 15 characters x 8 lines (16x16 dot matrix).
Single picture ≦240x128 dots.
Built-in negative voltage output (VEE), V0 and VEE are disconnected when the module contrast is fixed
8-bit parallel port interface, 8080 timing/6800 timing.
