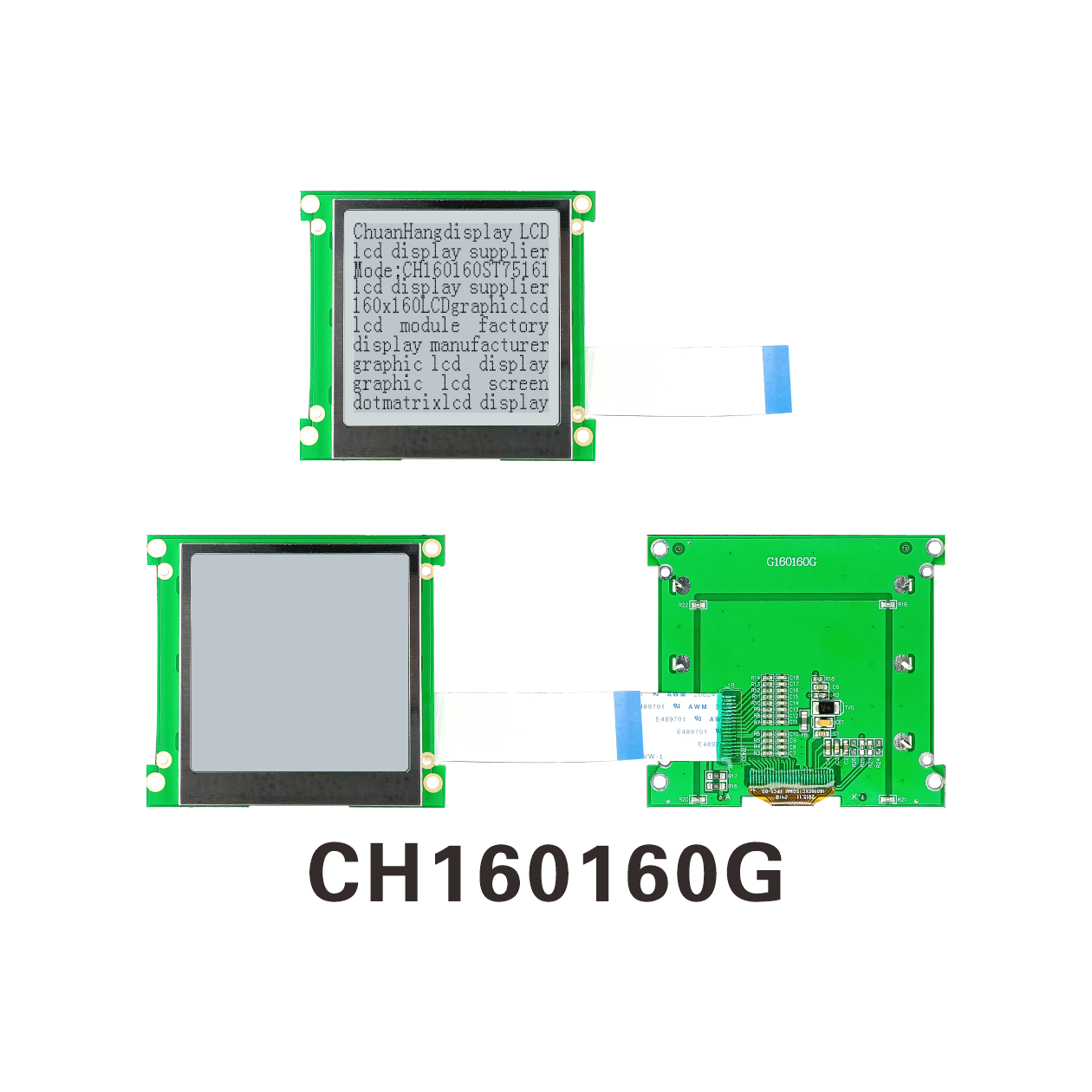

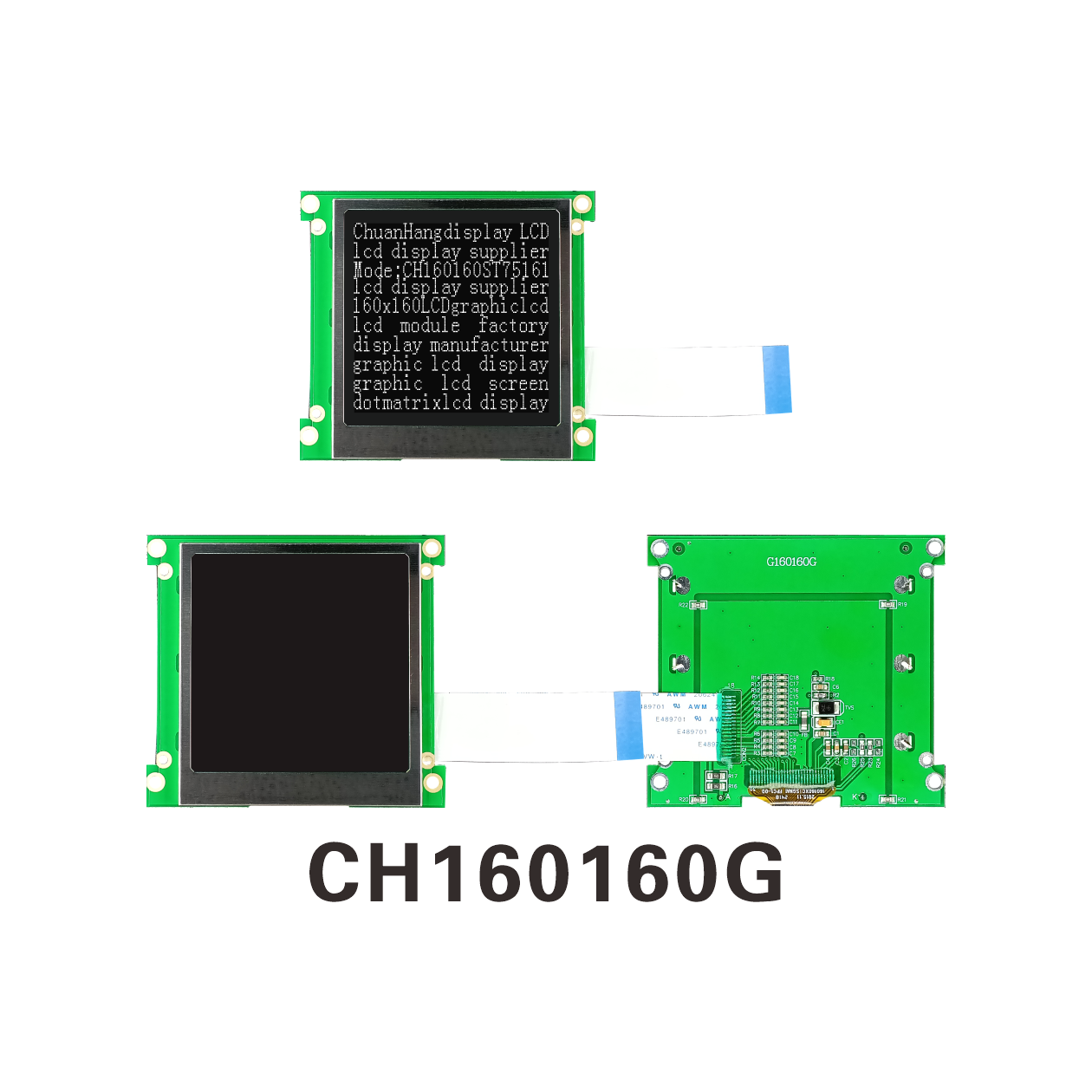

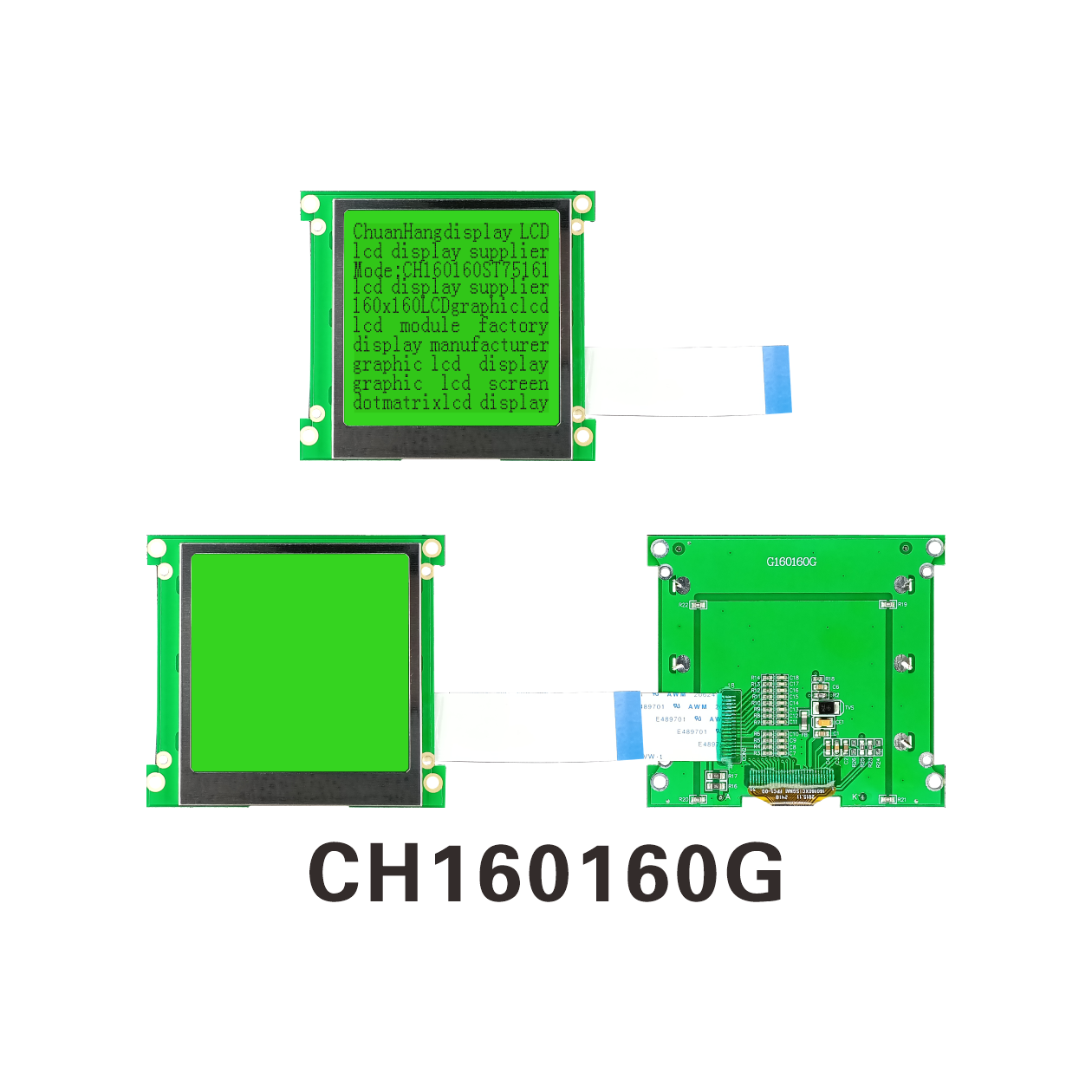

CH160160G(Serial) Graphics Module 160x160
Product Description
1.1 C0G process, FPC is welded on PCB, the product has backlight, thin thickness and stable structure.
1.2 IC uses st75161, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, only 3.3V power mode, no backlight current within 3mA, backlight current within 120mA.
1.4 LED backlight A and K are welded on the PCB board, and the structure is stable. LED can be driven by PIN1, PIN2, PIN17, PIN18.
1.5 Product features
Built-in display data RAM.
The module has built-in boost circuit
The contrast is adjusted by software
One screen displays 10 characters x 10 lines (16x16 dot matrix).
Single picture ≦160x160 dot matrix.
Optional 4-wire SPI interface or 8-bit parallel port 6800 timing or 8080 timing:
Rich functions
1.2 IC uses st75161, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, only 3.3V power mode, no backlight current within 3mA, backlight current within 120mA.
1.4 LED backlight A and K are welded on the PCB board, and the structure is stable. LED can be driven by PIN1, PIN2, PIN17, PIN18.
1.5 Product features
Built-in display data RAM.
The module has built-in boost circuit
The contrast is adjusted by software
One screen displays 10 characters x 10 lines (16x16 dot matrix).
Single picture ≦160x160 dot matrix.
Optional 4-wire SPI interface or 8-bit parallel port 6800 timing or 8080 timing:
Rich functions
