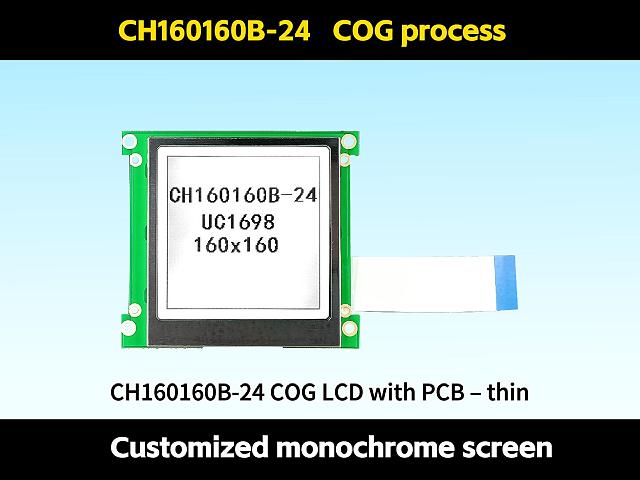

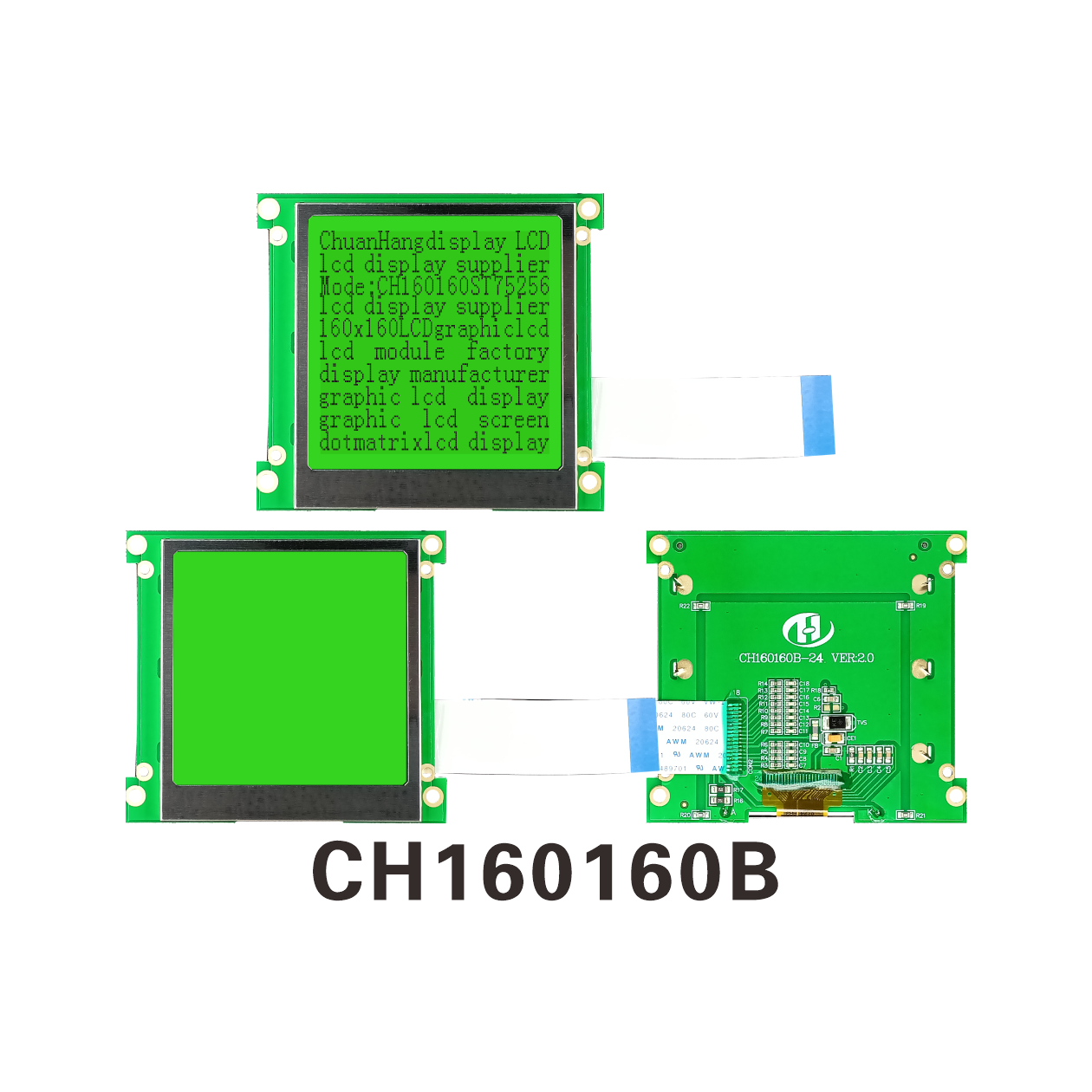

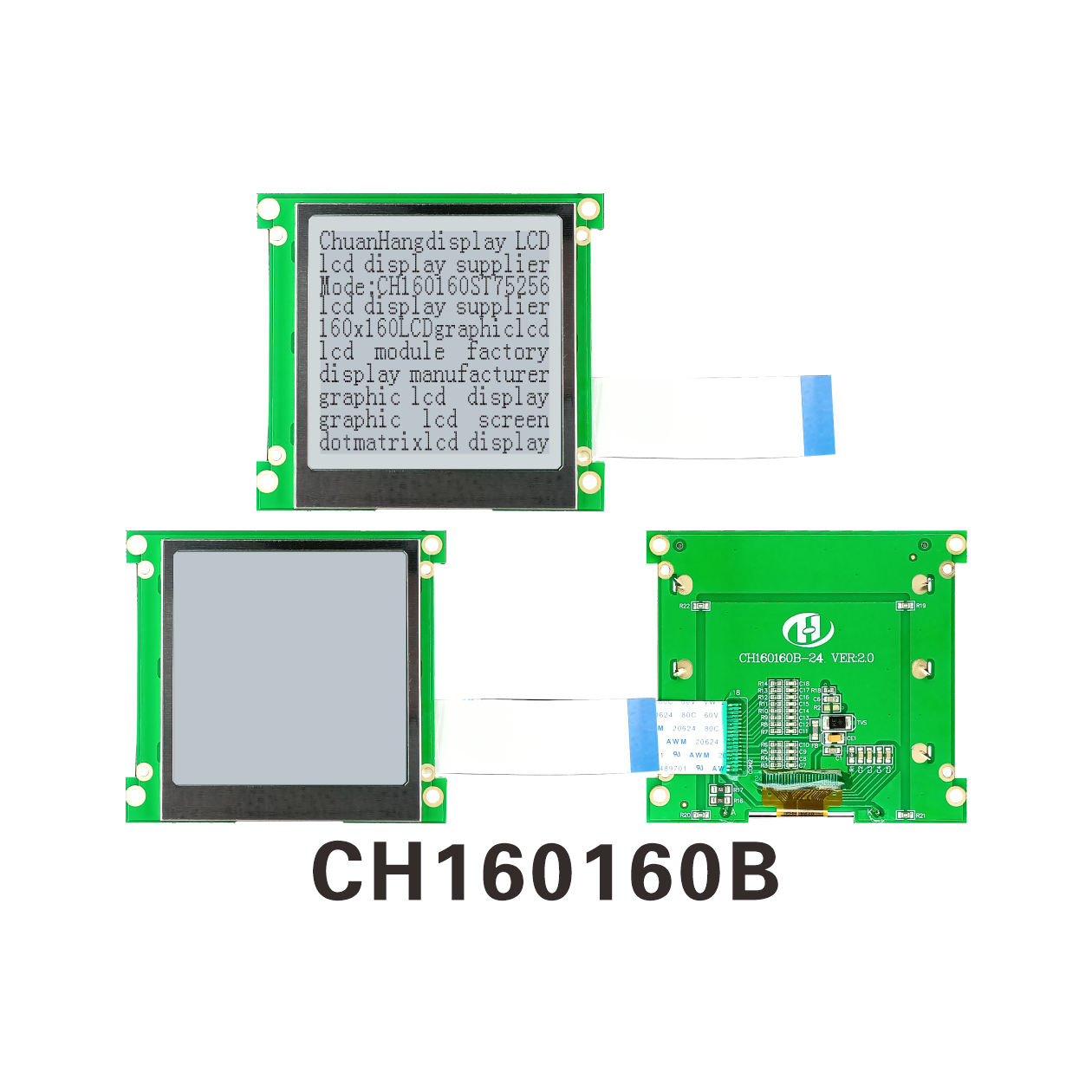

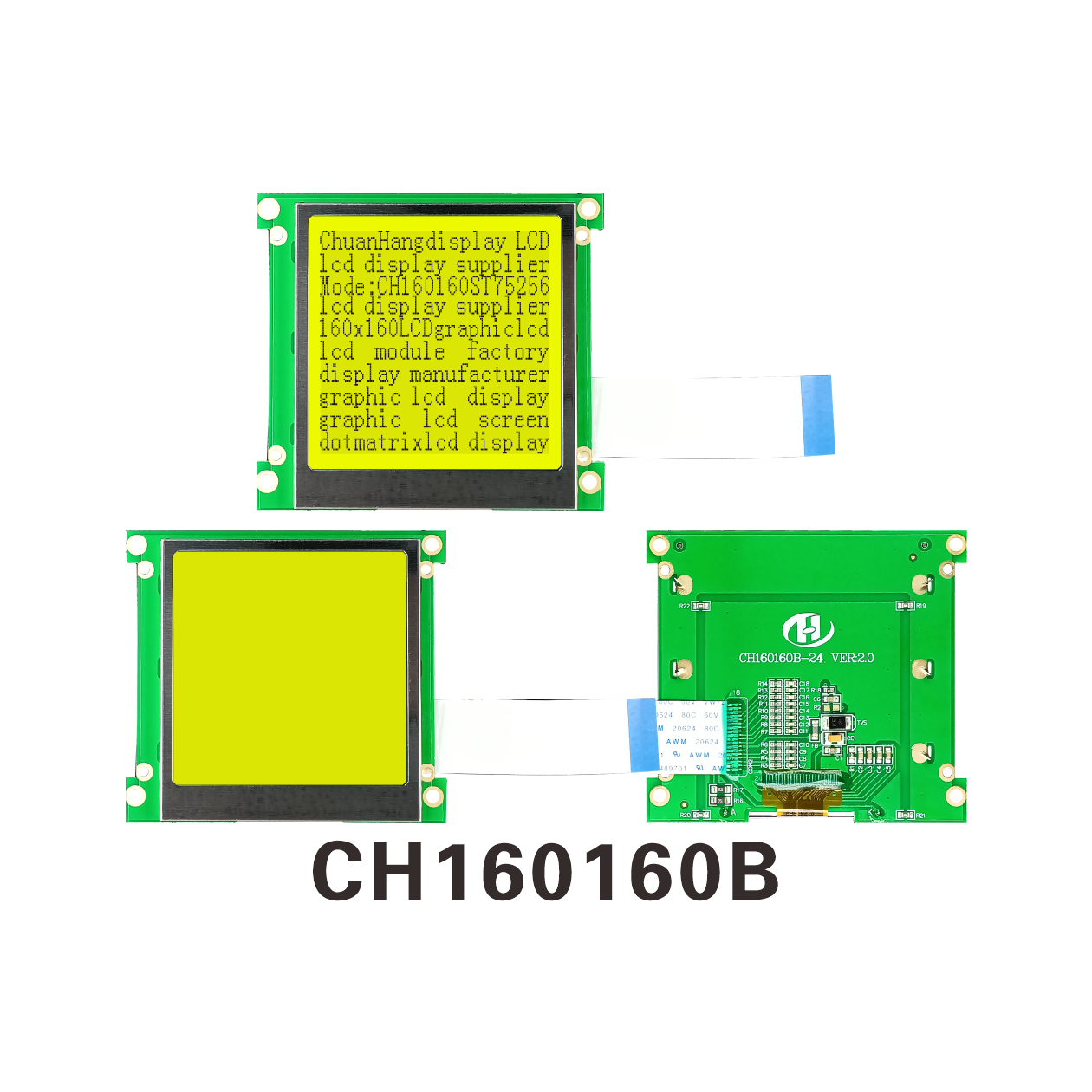

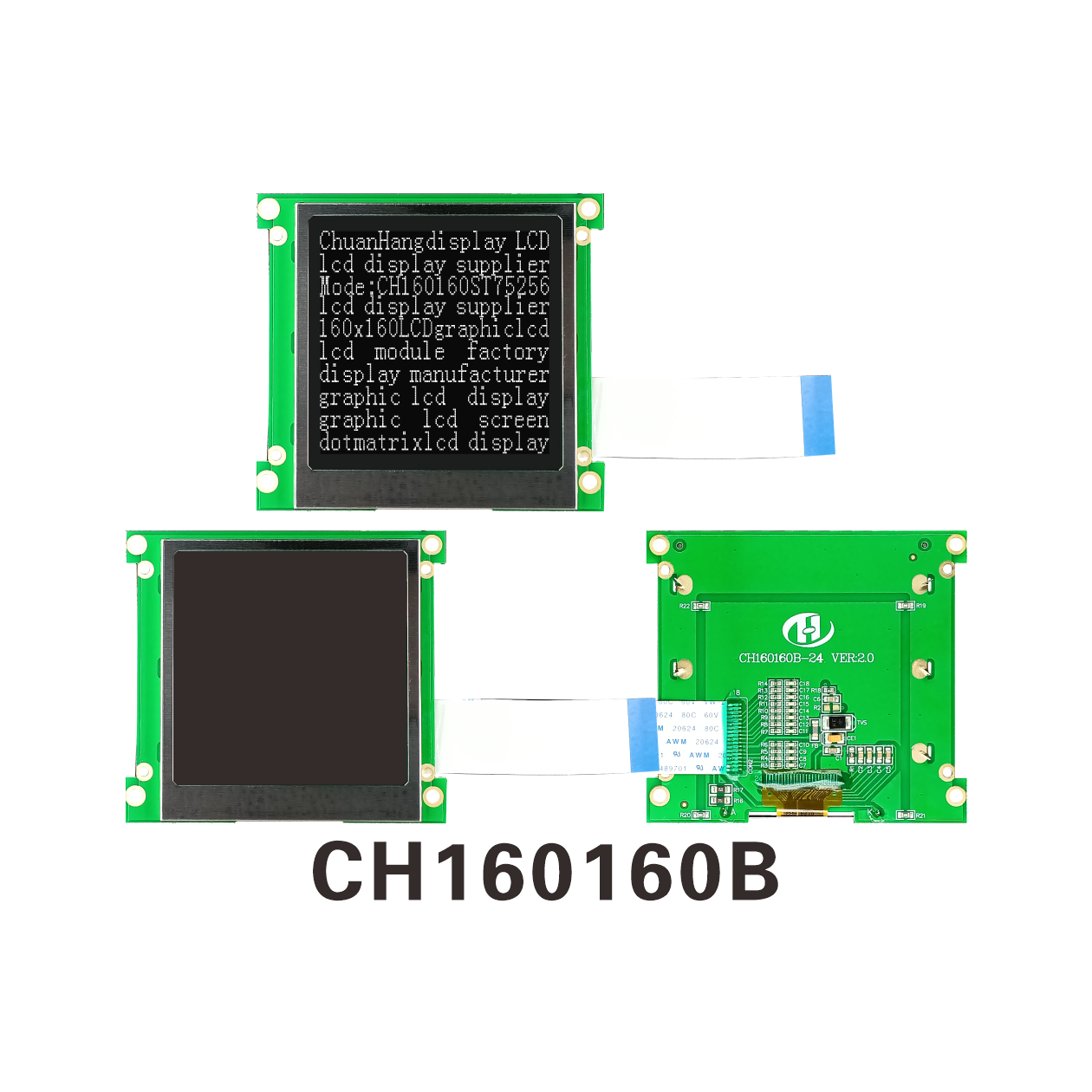

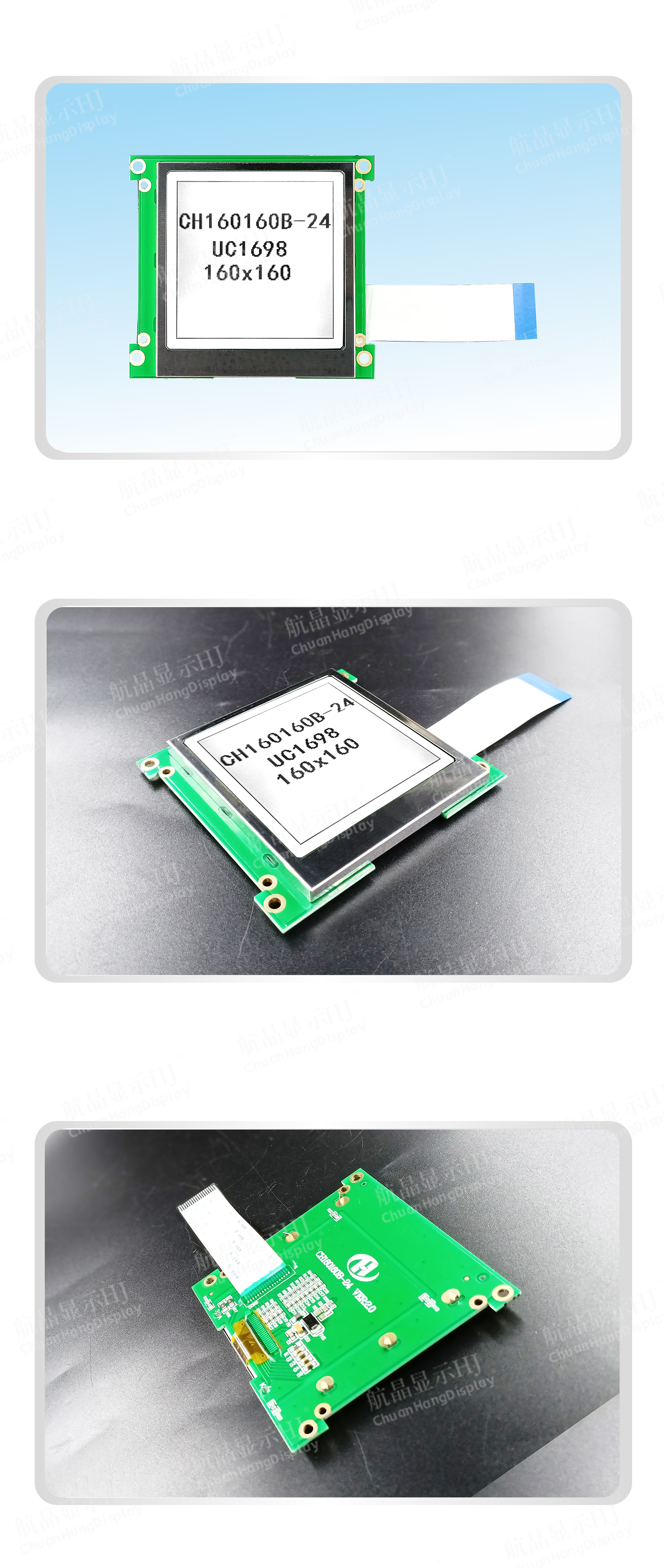

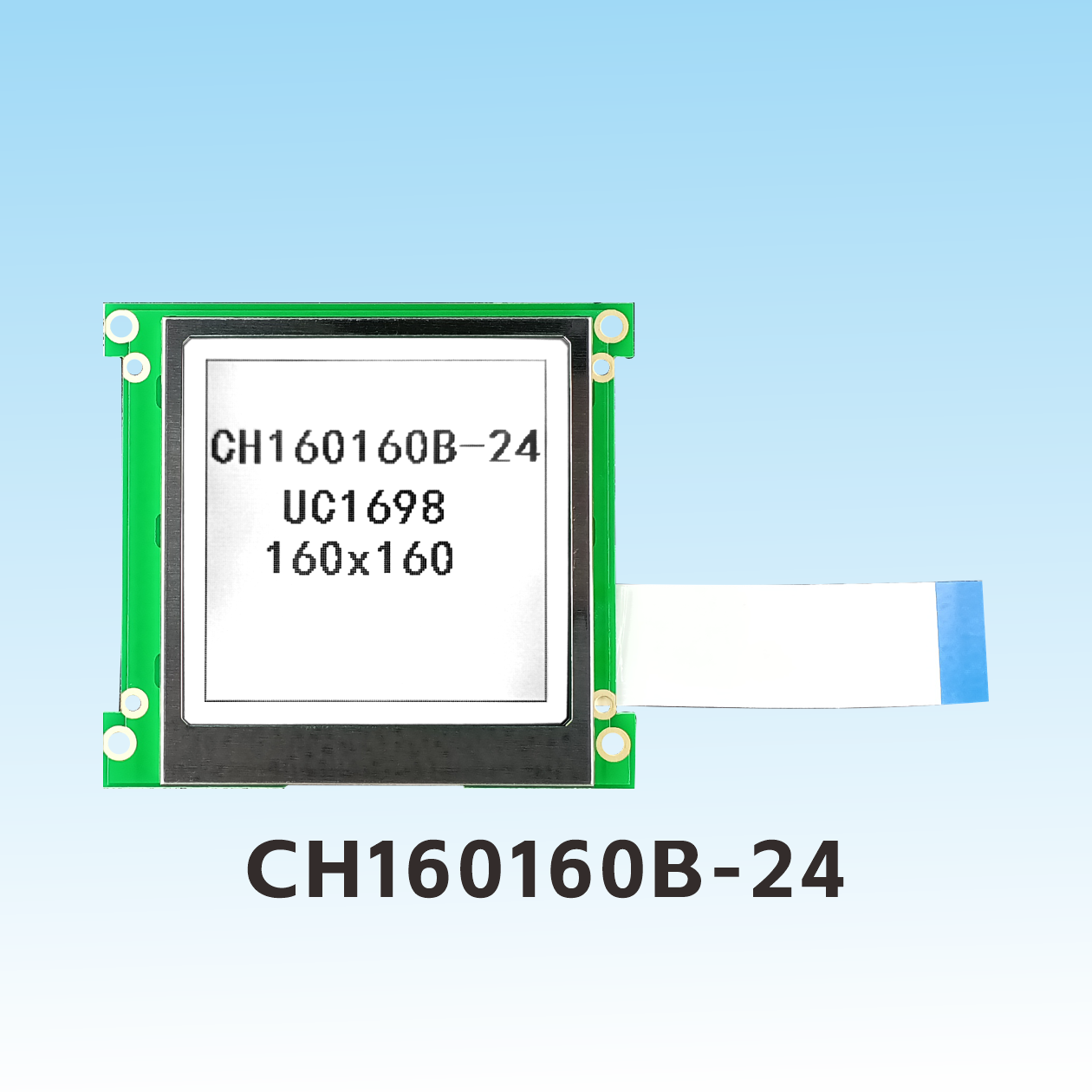

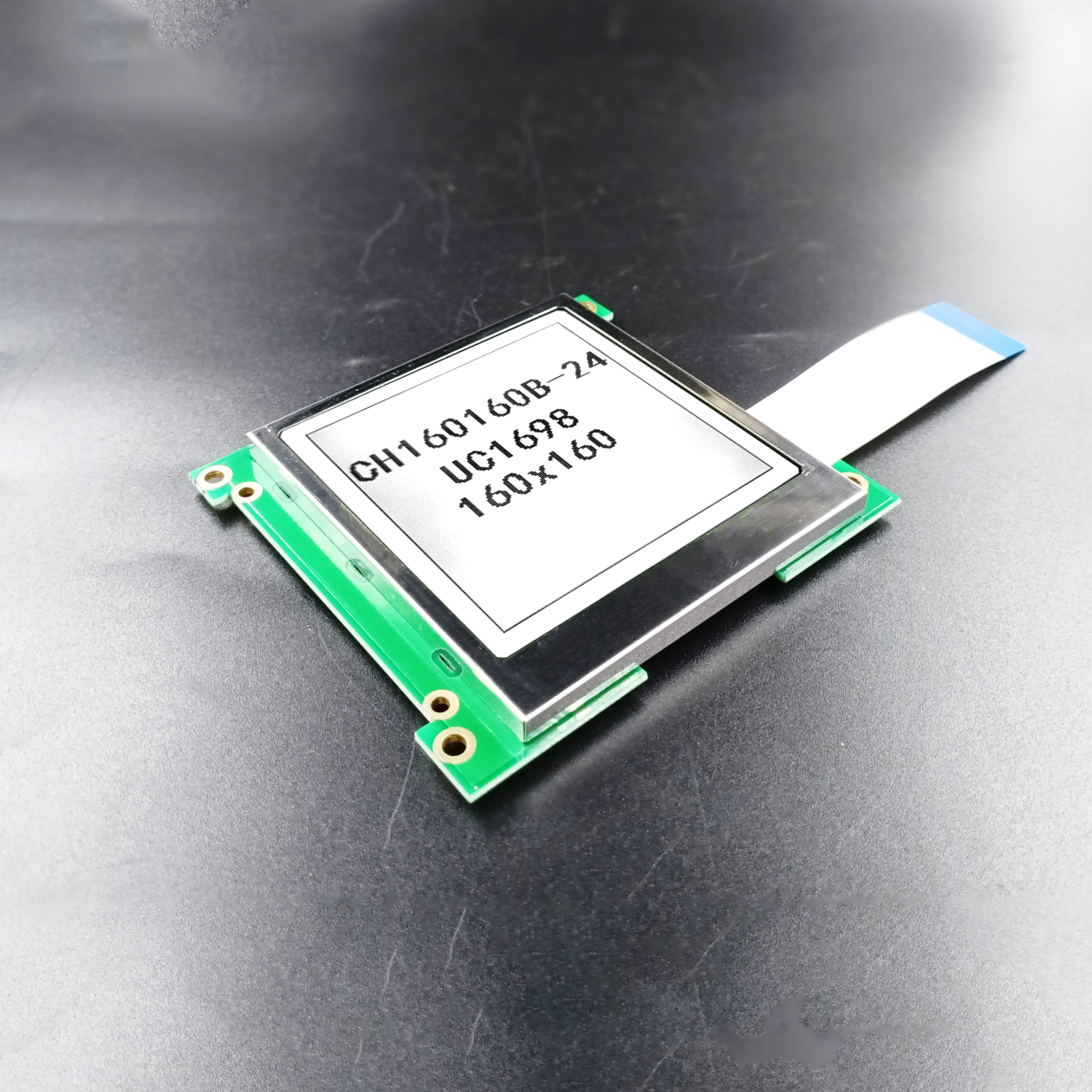

COG LCD Display Module CH160160B-24

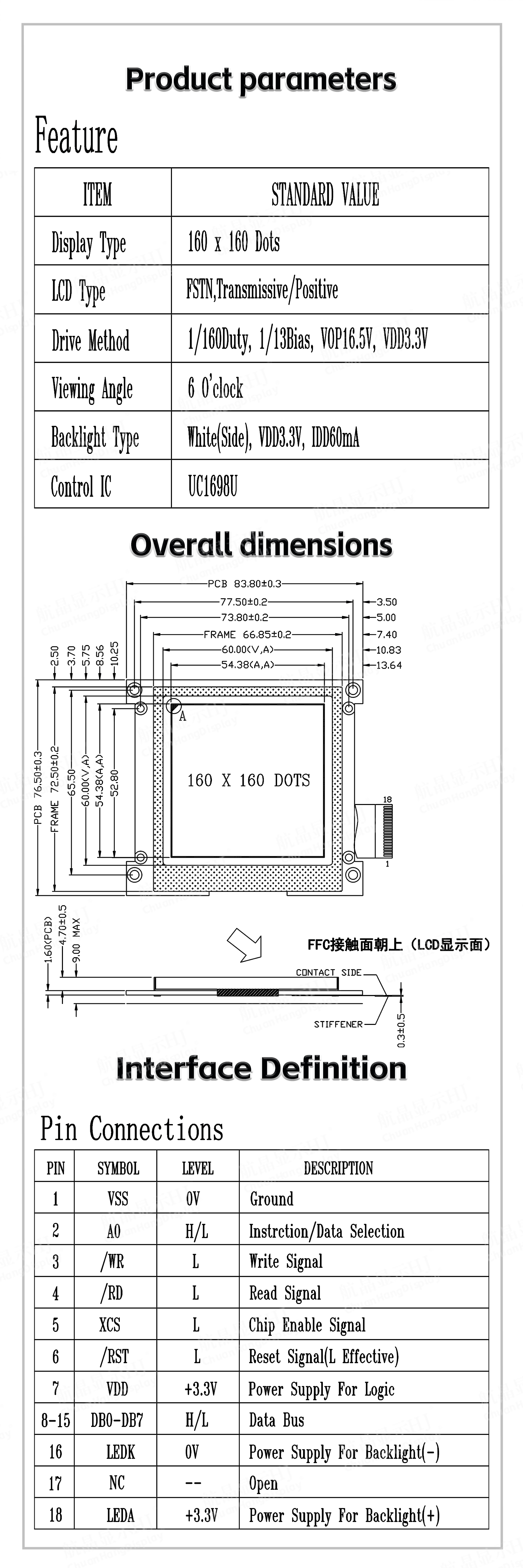

Product Description

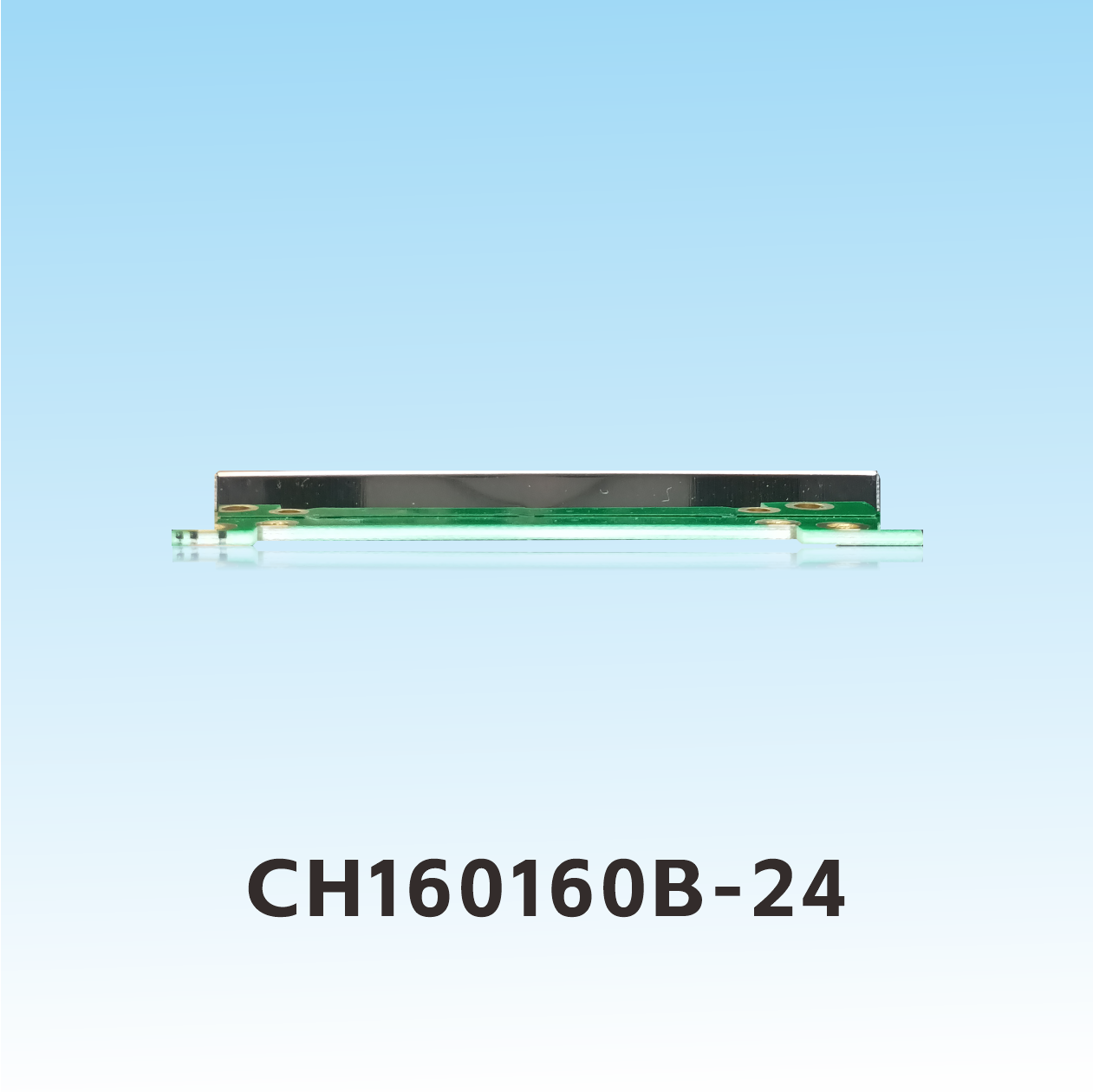

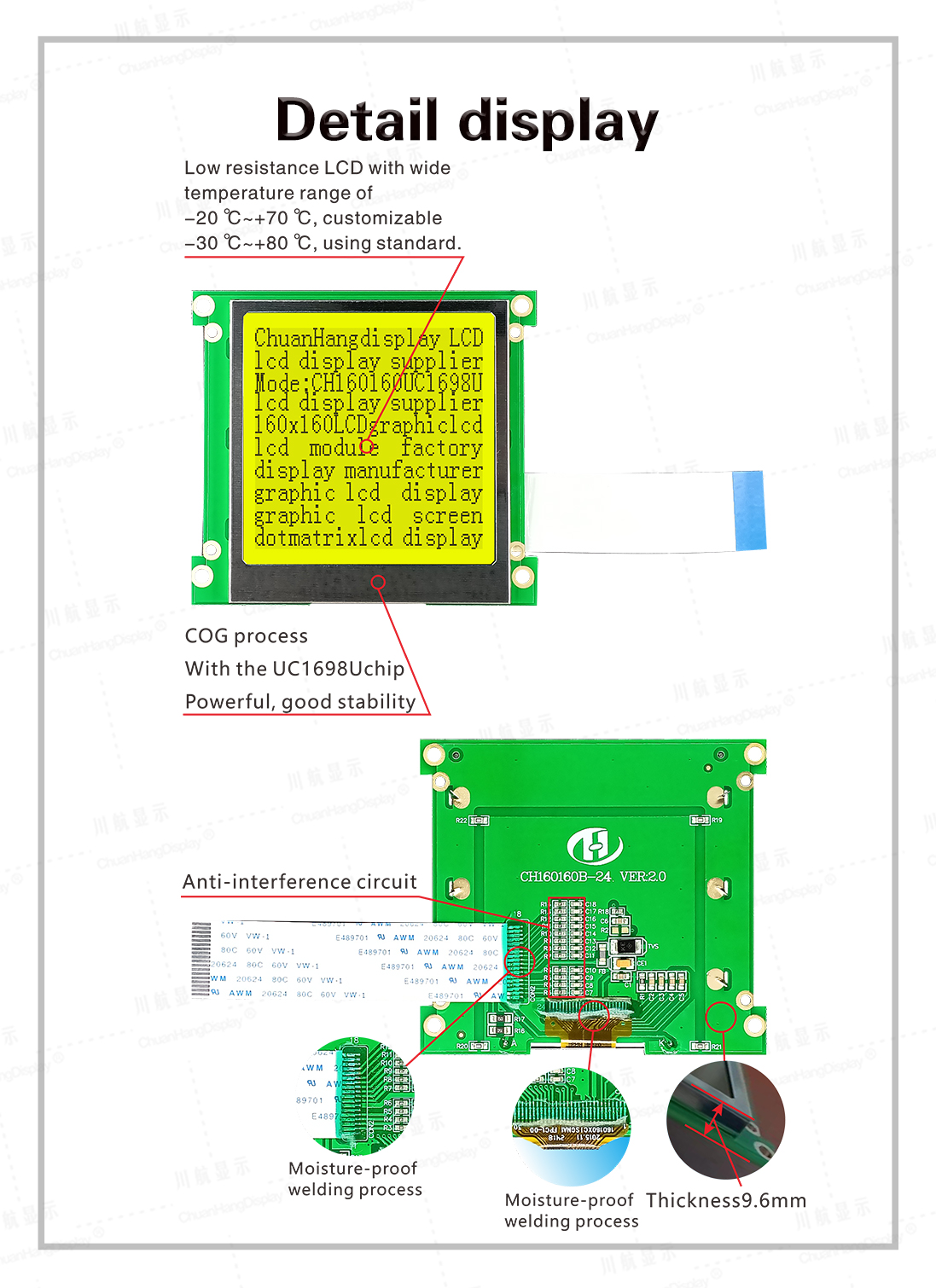

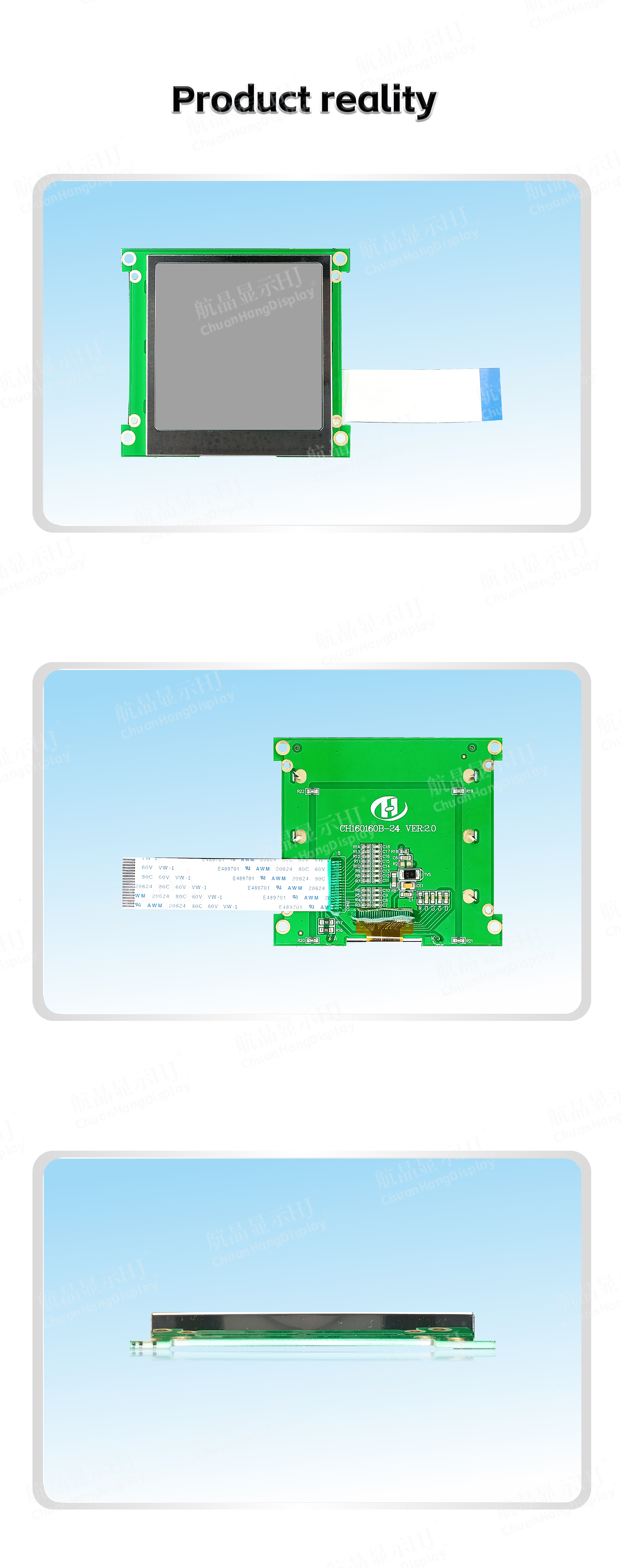

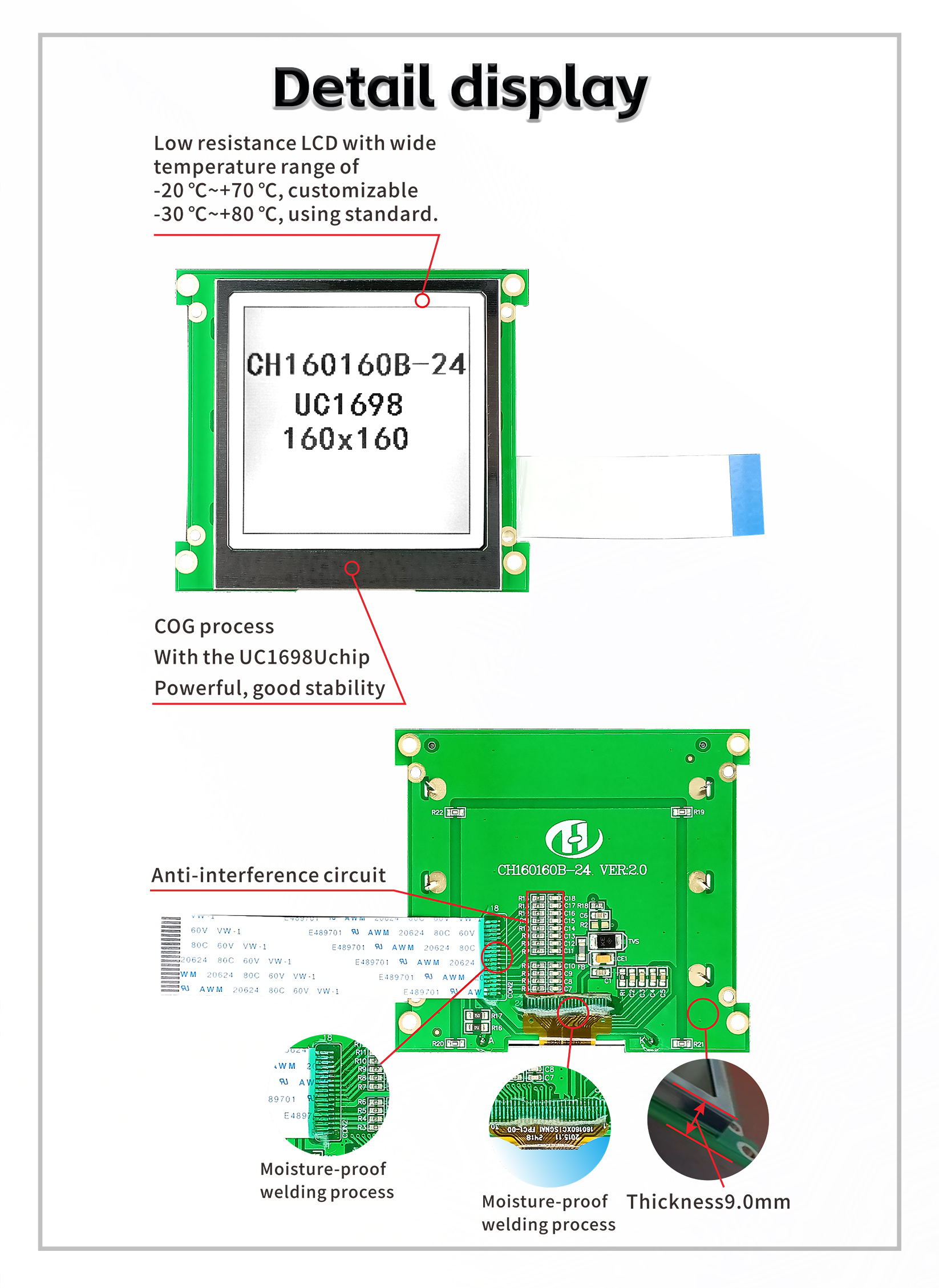

1.1 C0G process, FPC is welded on PCB, the product has backlight, thin thickness and stable structure.
1.2 IC uses UC1698, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, only 3.3V power mode, no backlight current within 3mA, backlight current within 140mA.

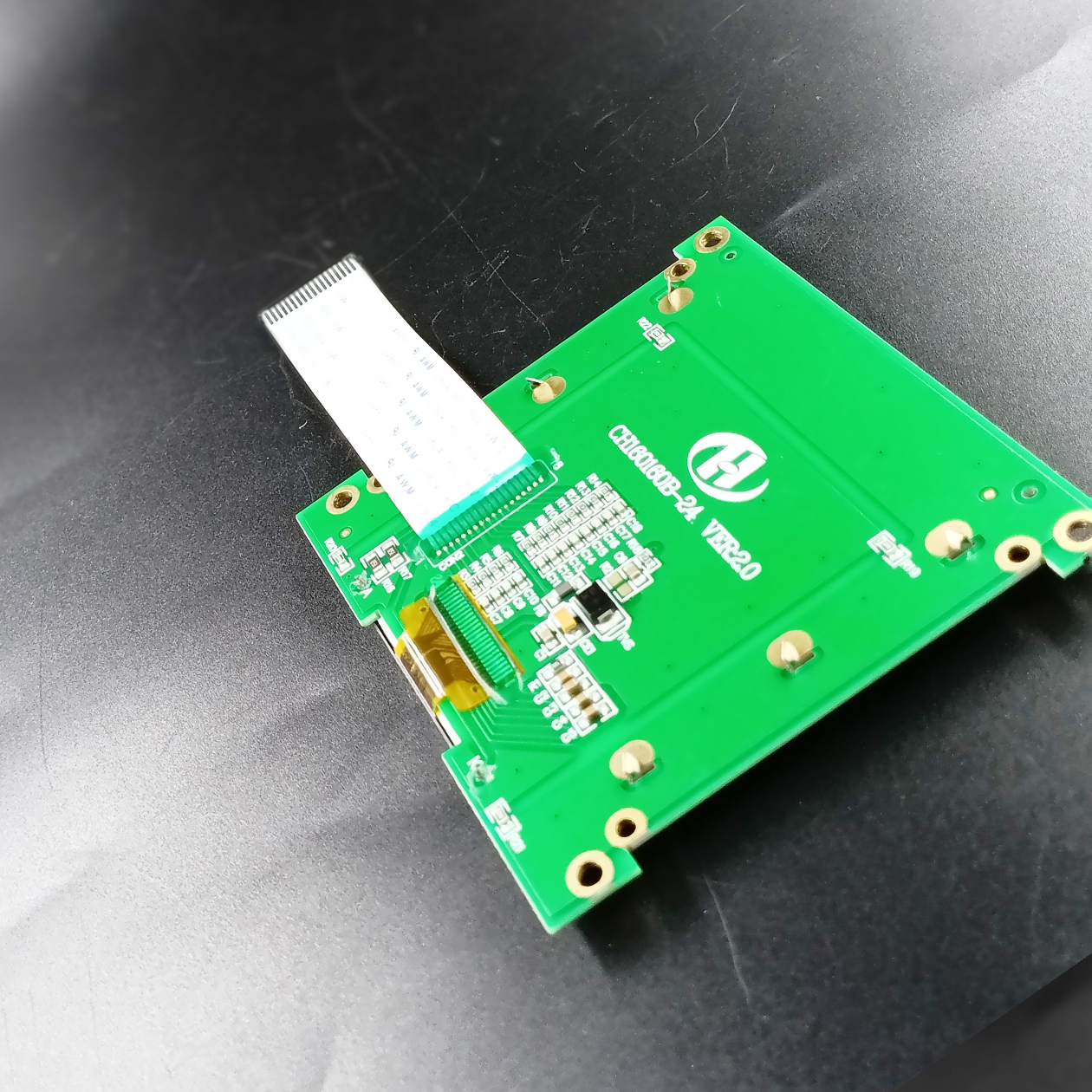

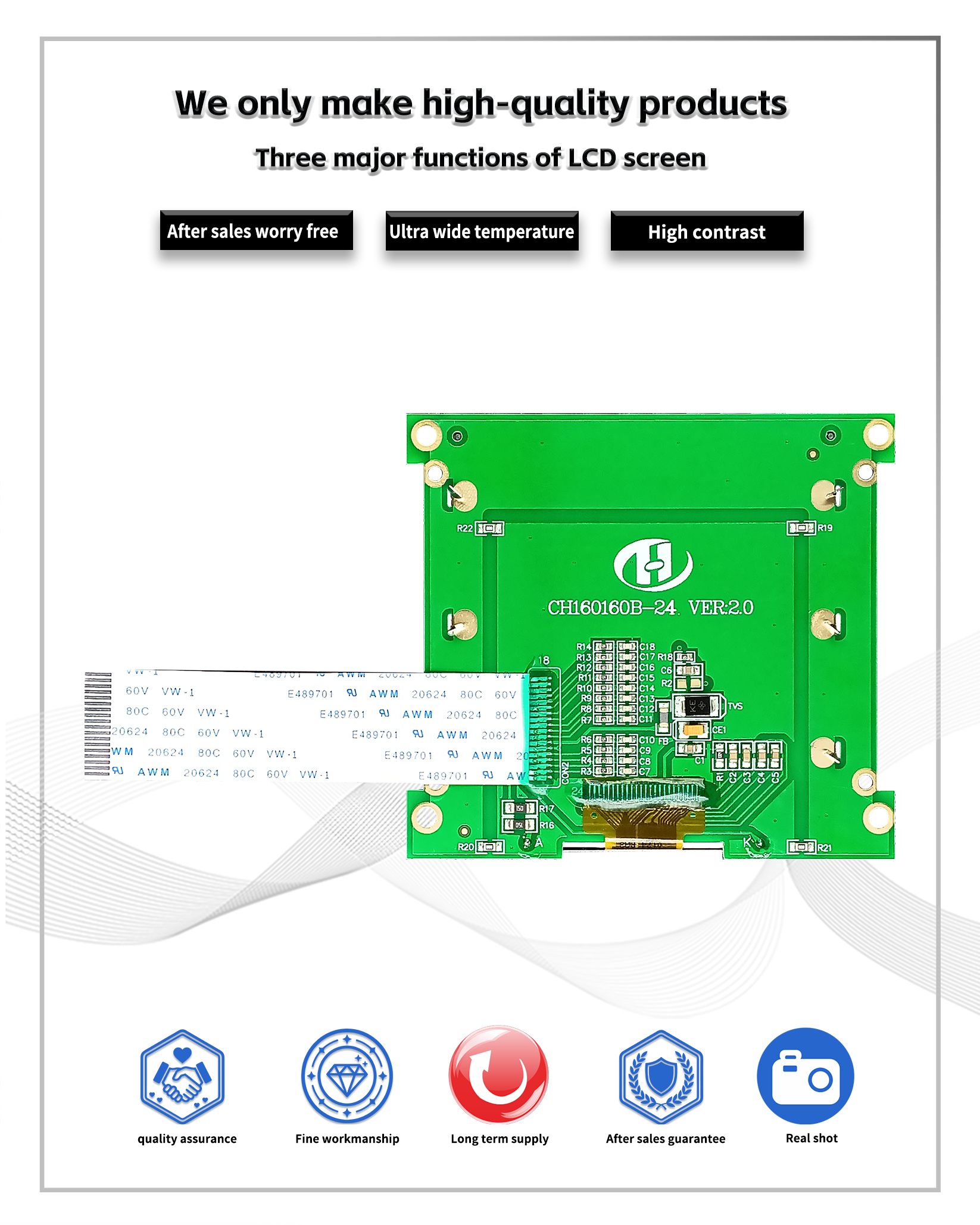

1.4 LED backlight A and K are welded on the PCB board, and the structure is stable. LED can be driven by PIN1, PIN7, PIN16, PIN18.
1.5 Product features:
The chip has built-in software temperature compensation.
The module has built-in boost circuit
The contrast is adjusted by software
One screen displays 10 characters x 10 lines (16x16 dot matrix)
A single picture ≦ 160x160 dot matrix
8-bit parallel port 6800 timing or 8080 timing:
Rich functions
Single display RAM area, local display and scrolling, and 4-bit grayscale modulation display per pixel.
1.2 IC uses UC1698, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, only 3.3V power mode, no backlight current within 3mA, backlight current within 140mA.
1.4 LED backlight A and K are welded on the PCB board, and the structure is stable. LED can be driven by PIN1, PIN7, PIN16, PIN18.
1.5 Product features:
The chip has built-in software temperature compensation.
The module has built-in boost circuit
The contrast is adjusted by software
One screen displays 10 characters x 10 lines (16x16 dot matrix)
A single picture ≦ 160x160 dot matrix
8-bit parallel port 6800 timing or 8080 timing:
Rich functions
Single display RAM area, local display and scrolling, and 4-bit grayscale modulation display per pixel.
