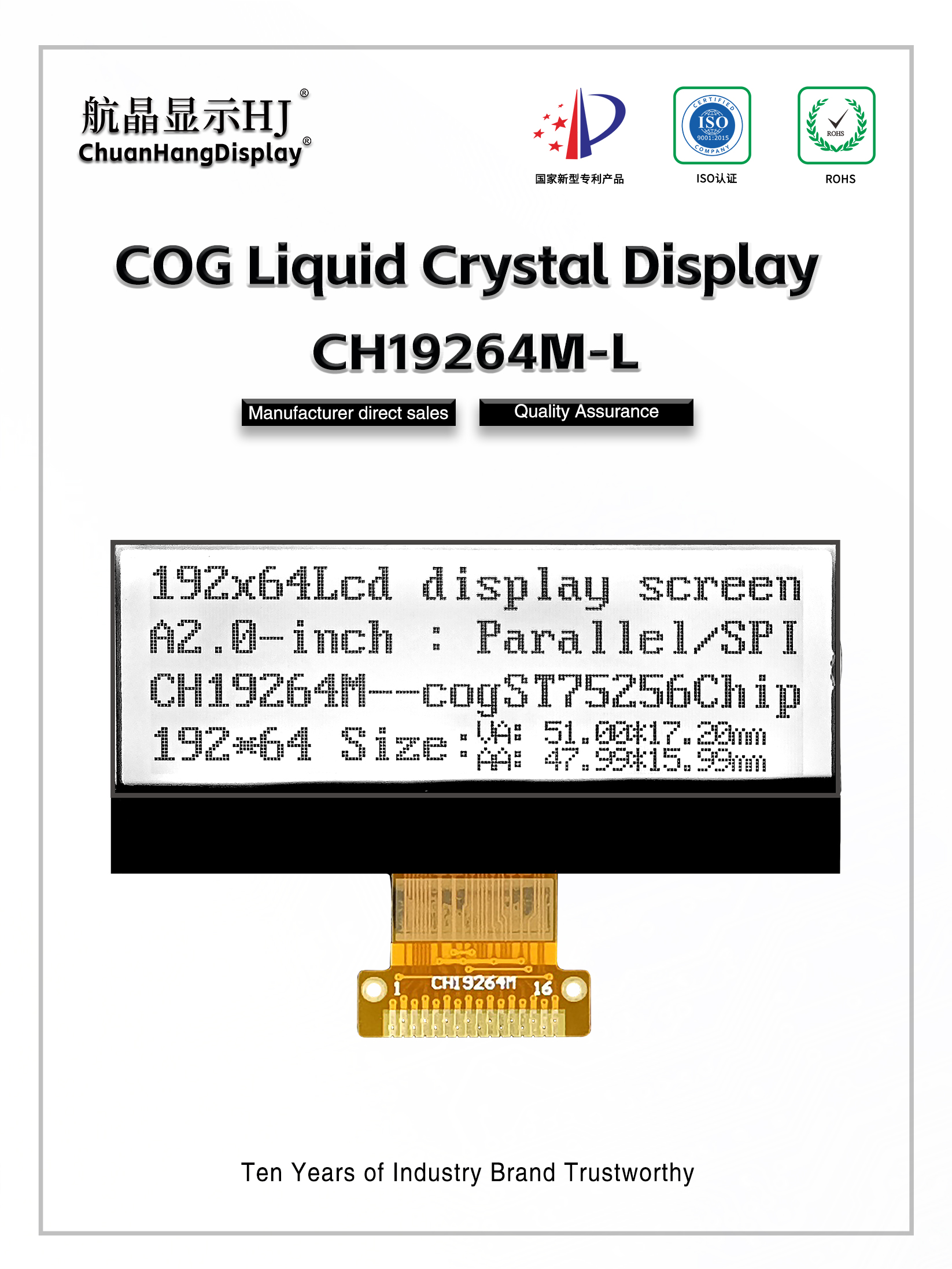

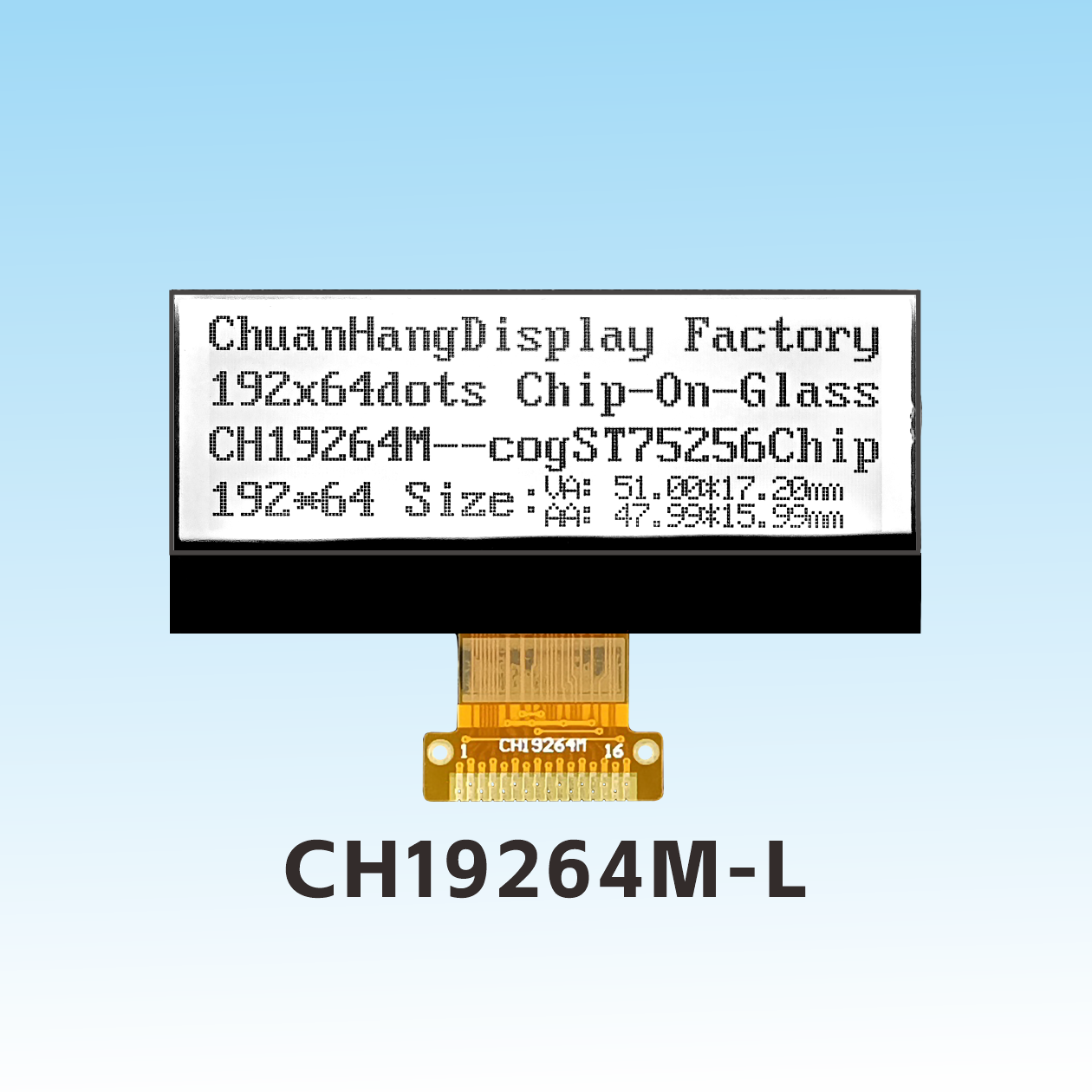

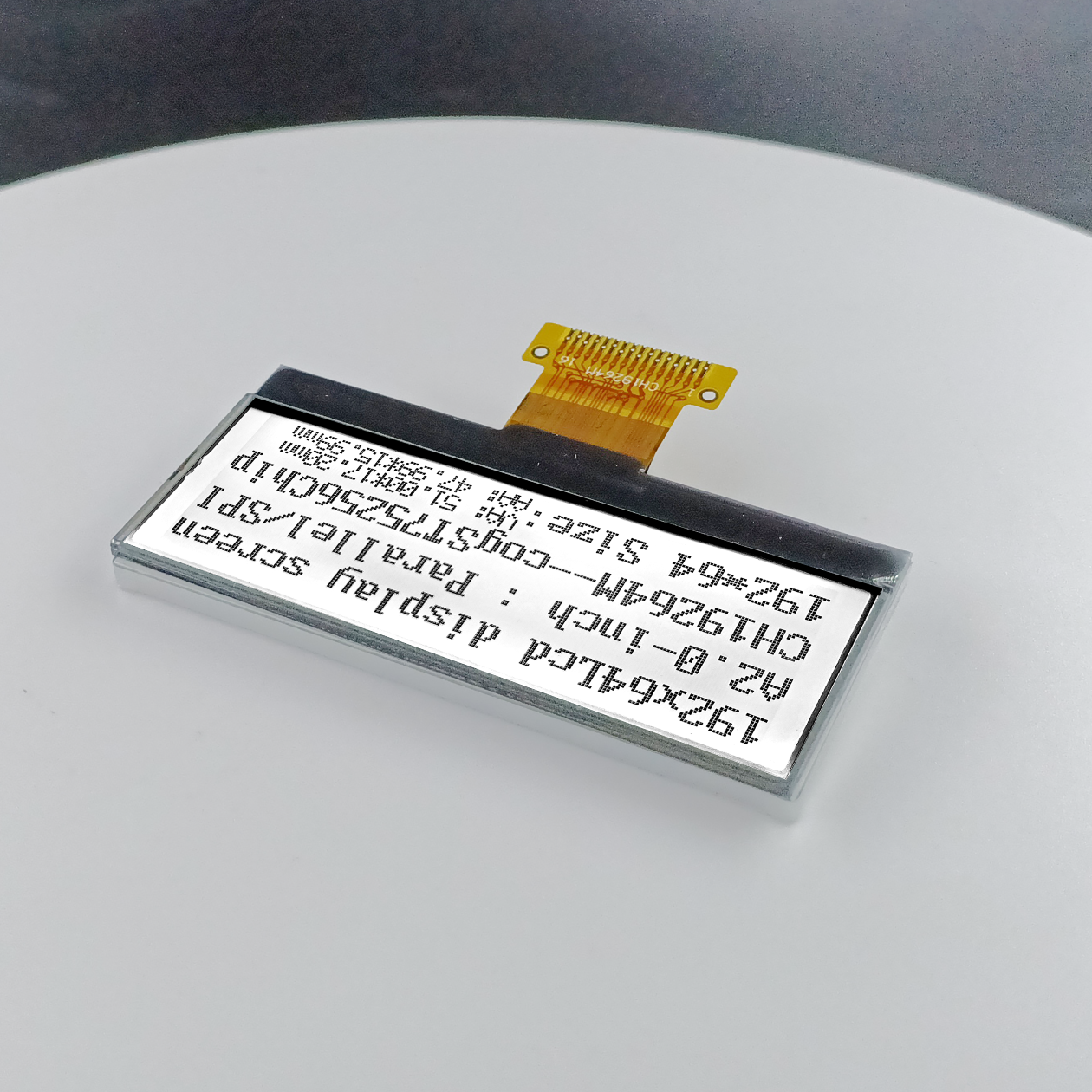

192x64 Liquid Crystal Display CH19264M-L
Product Description

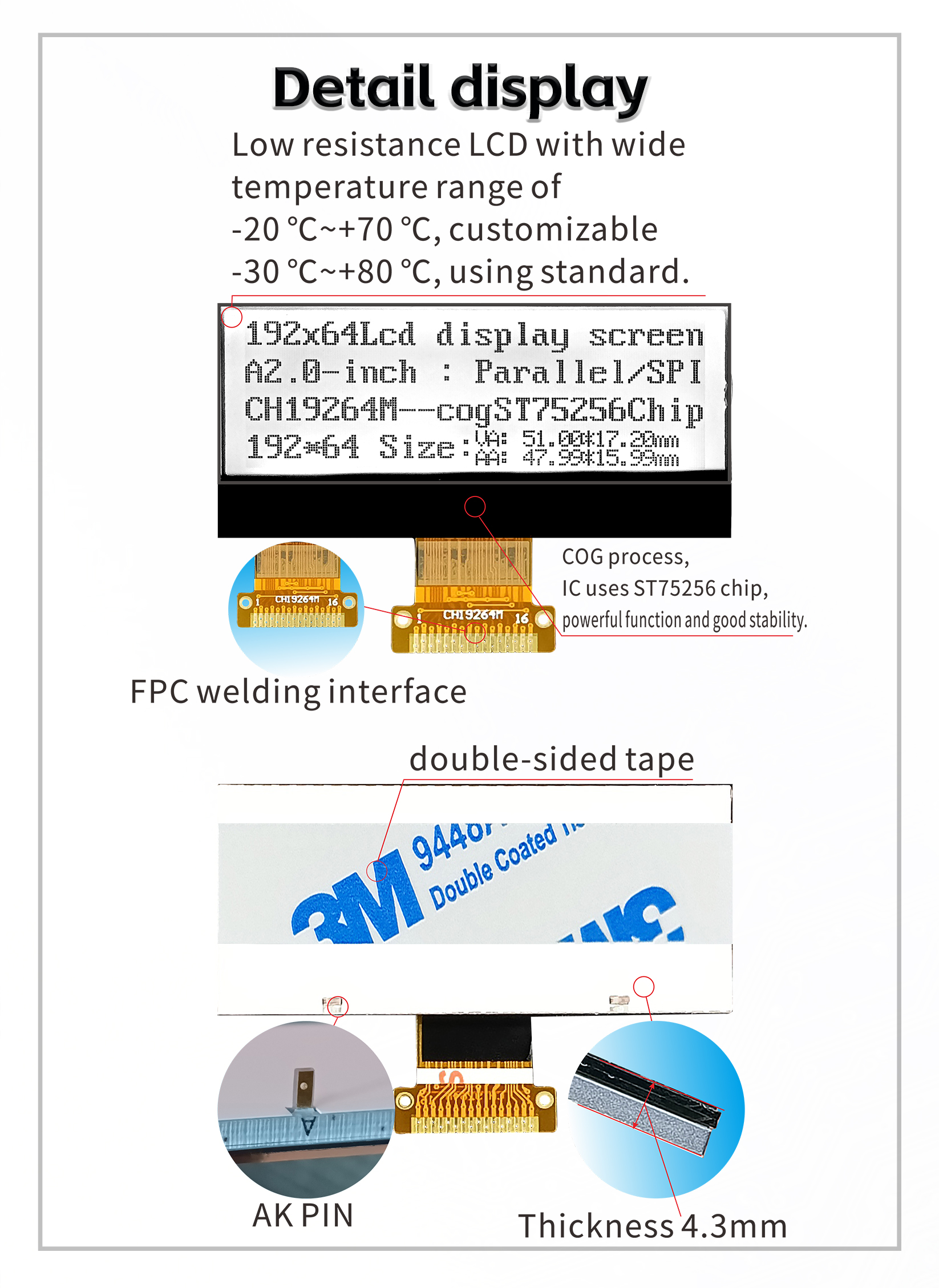

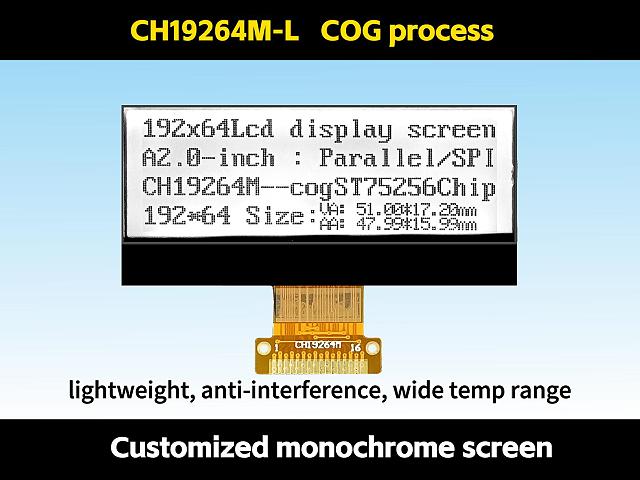

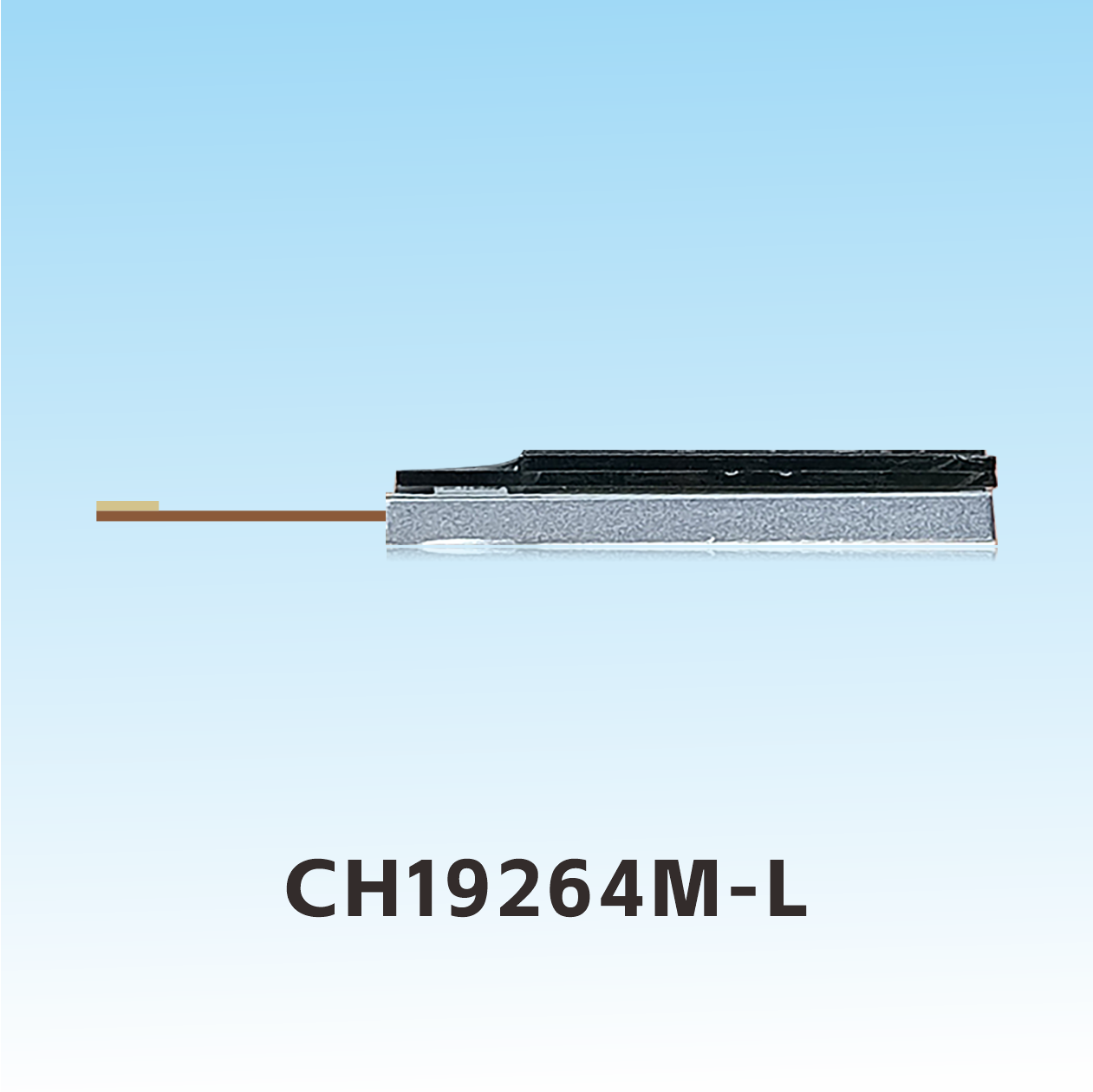

1.1 C0G process, FPC welding, product with backlight, thin thickness, stable structure.
1.2 IC uses st75256, there is no font library in the chip, programmers compile fonts by themselves.
1.3 Low power consumption, only 3.3V power mode, no backlight current within 1mA, backlight current within 80mA.

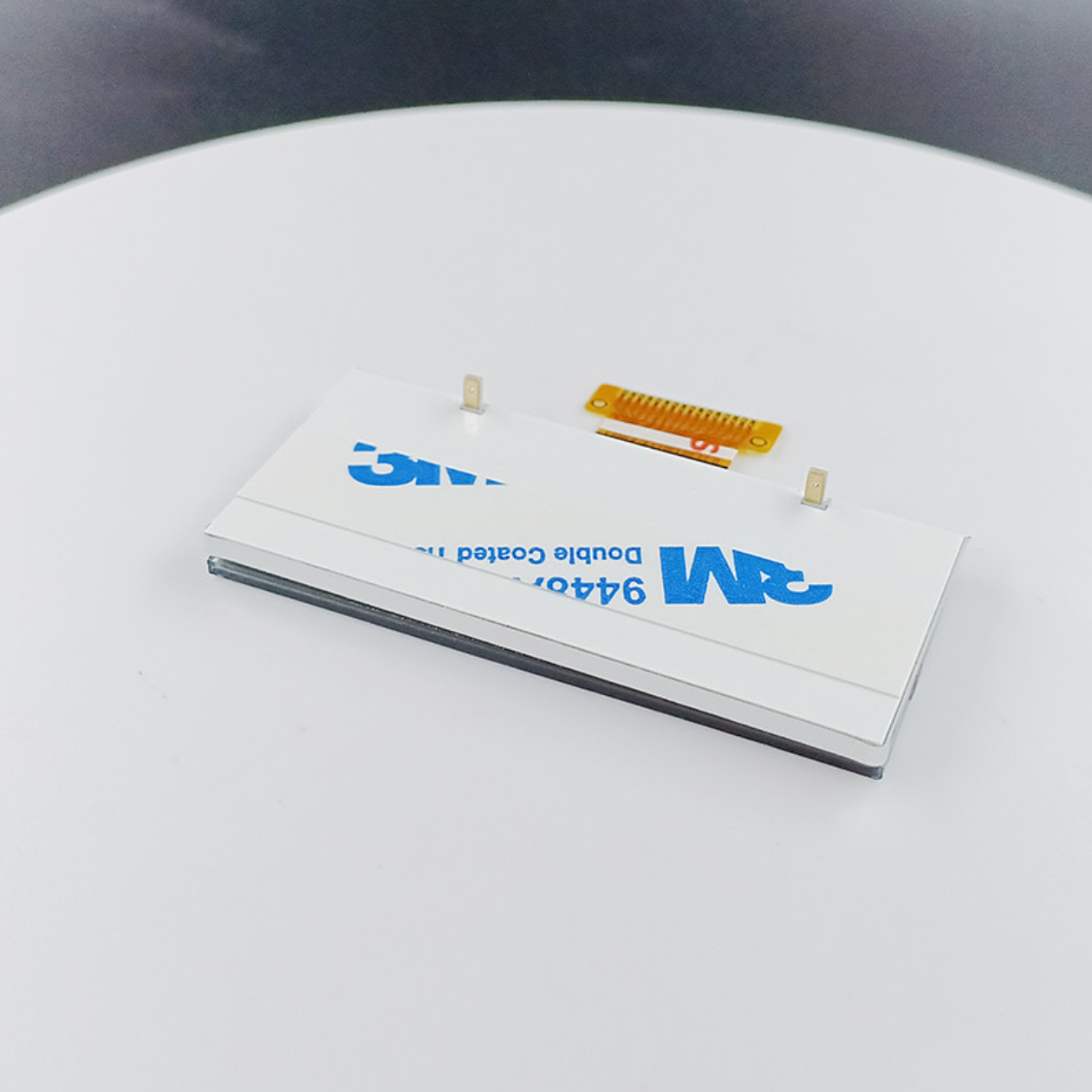

1.4 LED backlight A and K are powered separately for PCB board, need to be soldered on PCB board
1.5 Product features:
Built-in display data RAM is 64x192 bits.
The boost circuit only needs 3 1uf capacitors
The contrast is adjusted by software:
One screen displays 12 characters x 4 lines (16x16 dot matrix).
A single picture ≦192x64 dot matrix.

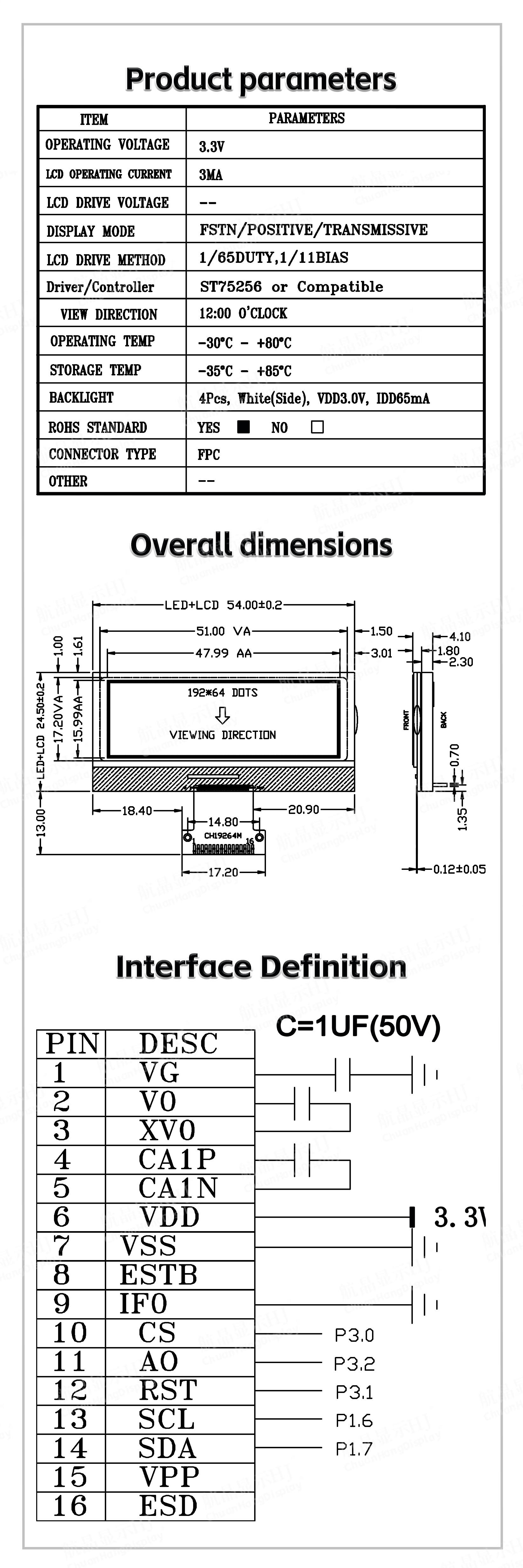

4-wire SPI interface.
Rich functions:
4 grayscale display, interface display on/off, positive display/reverse display, read/modify/write.
