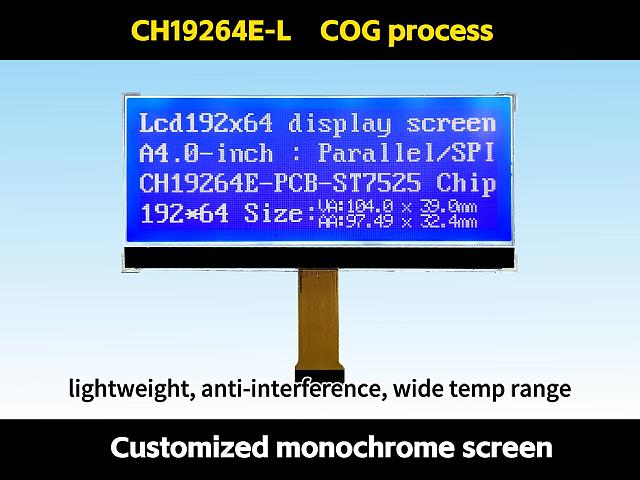

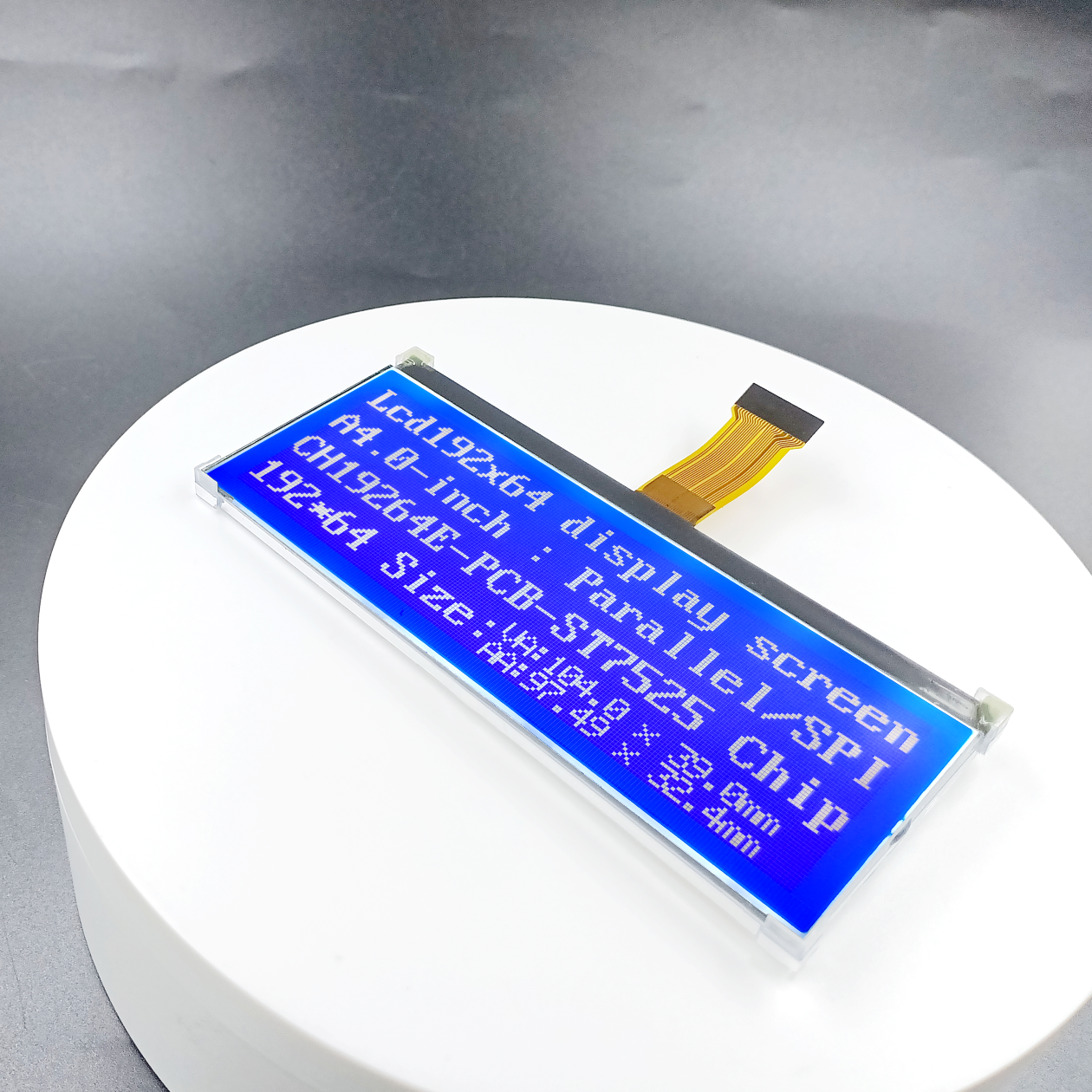

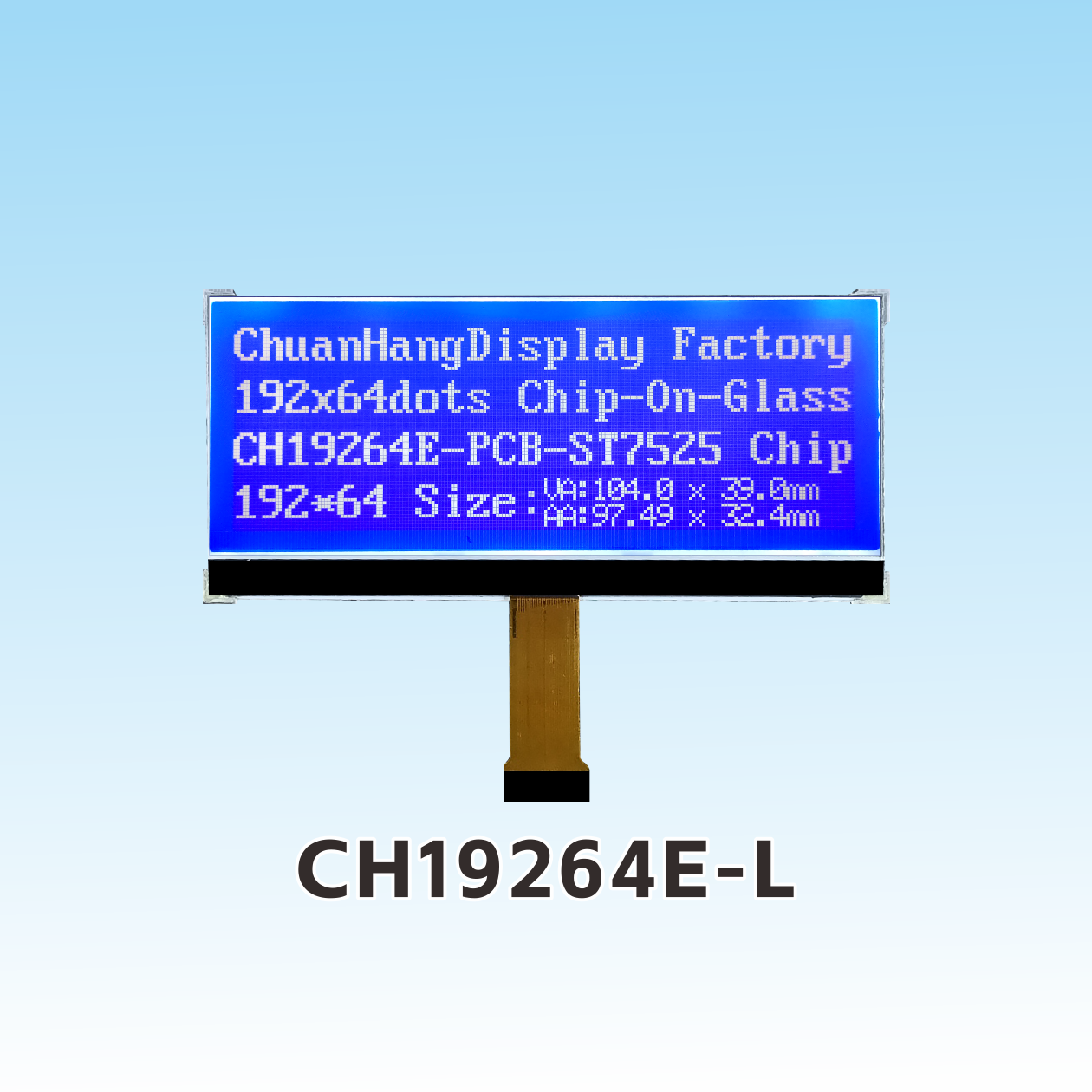

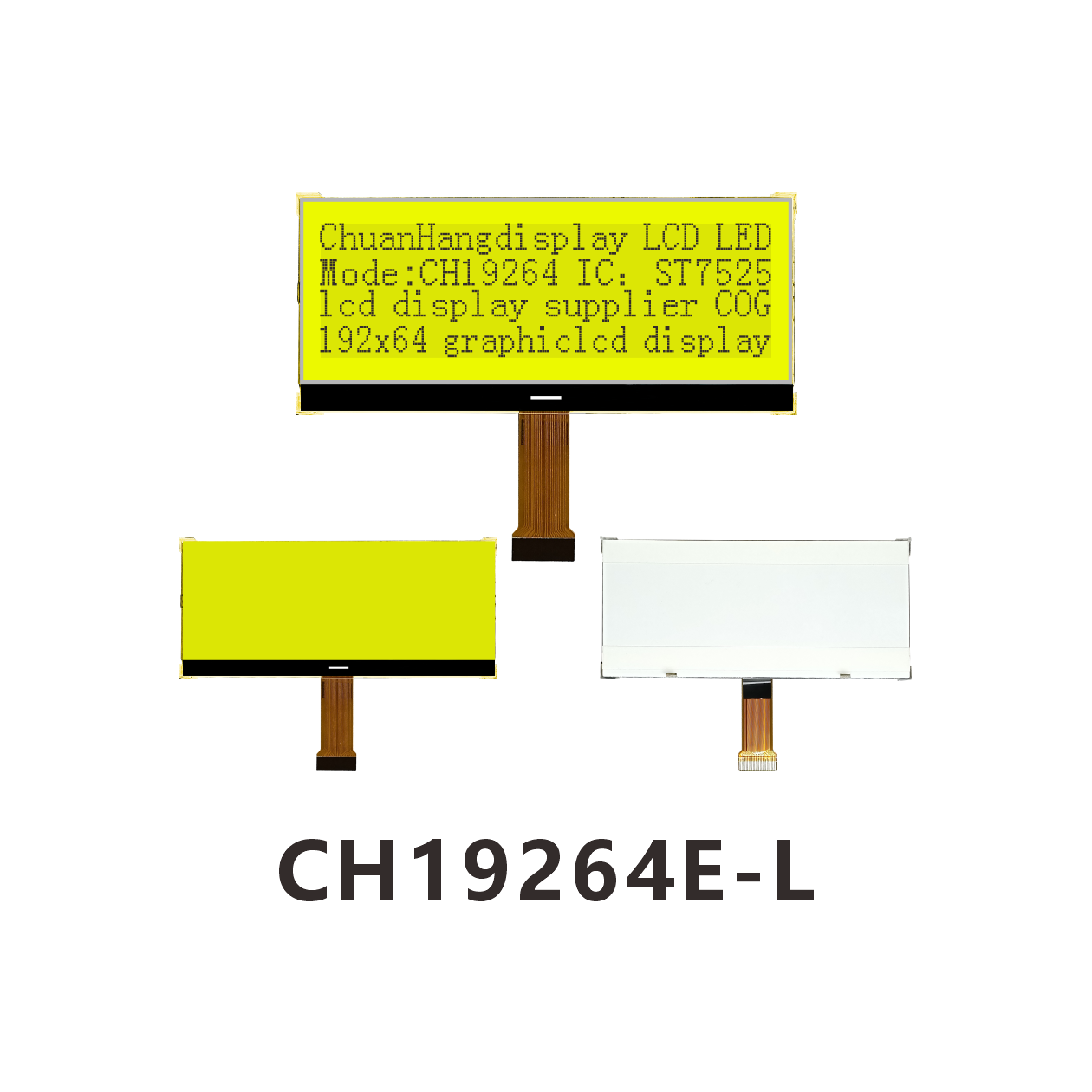

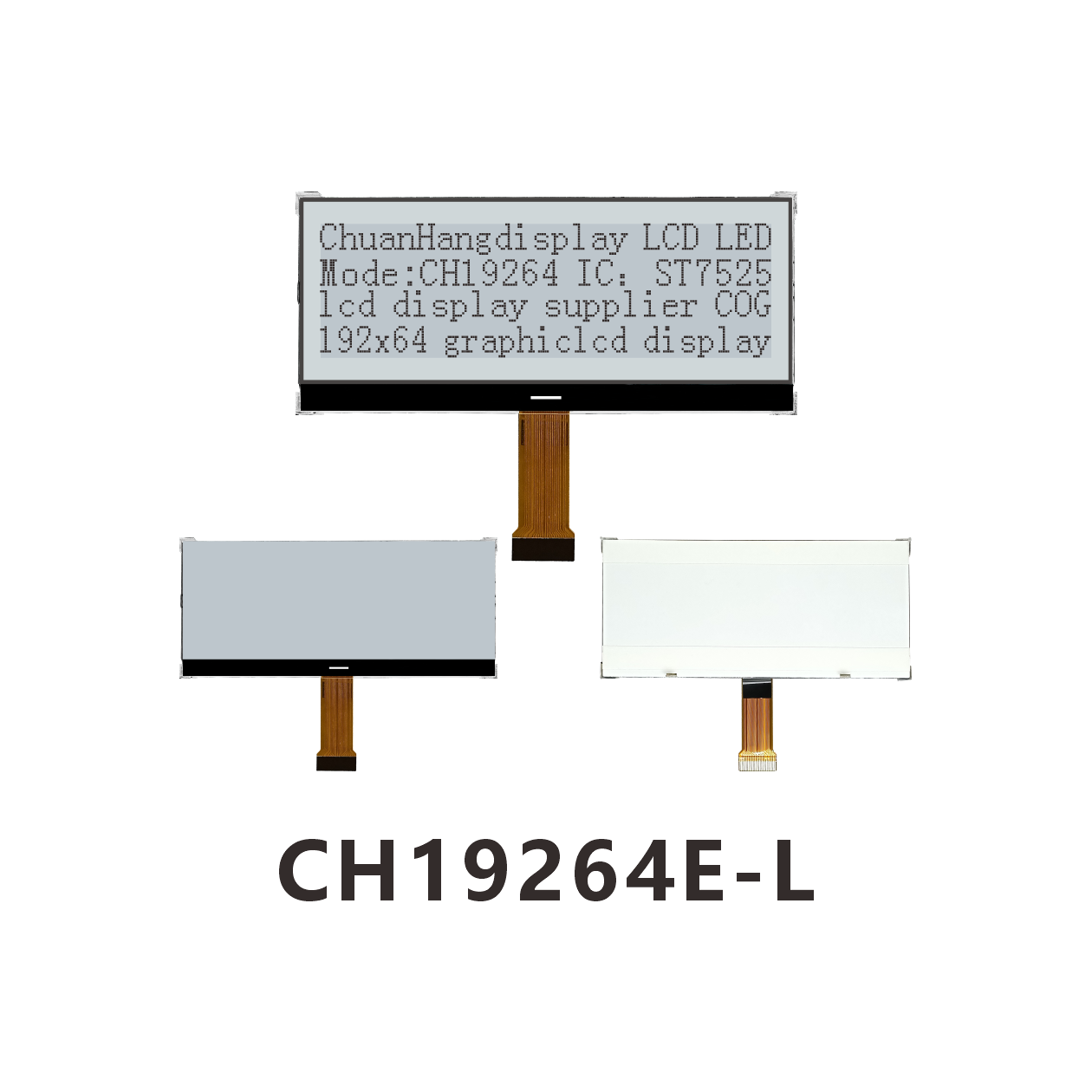

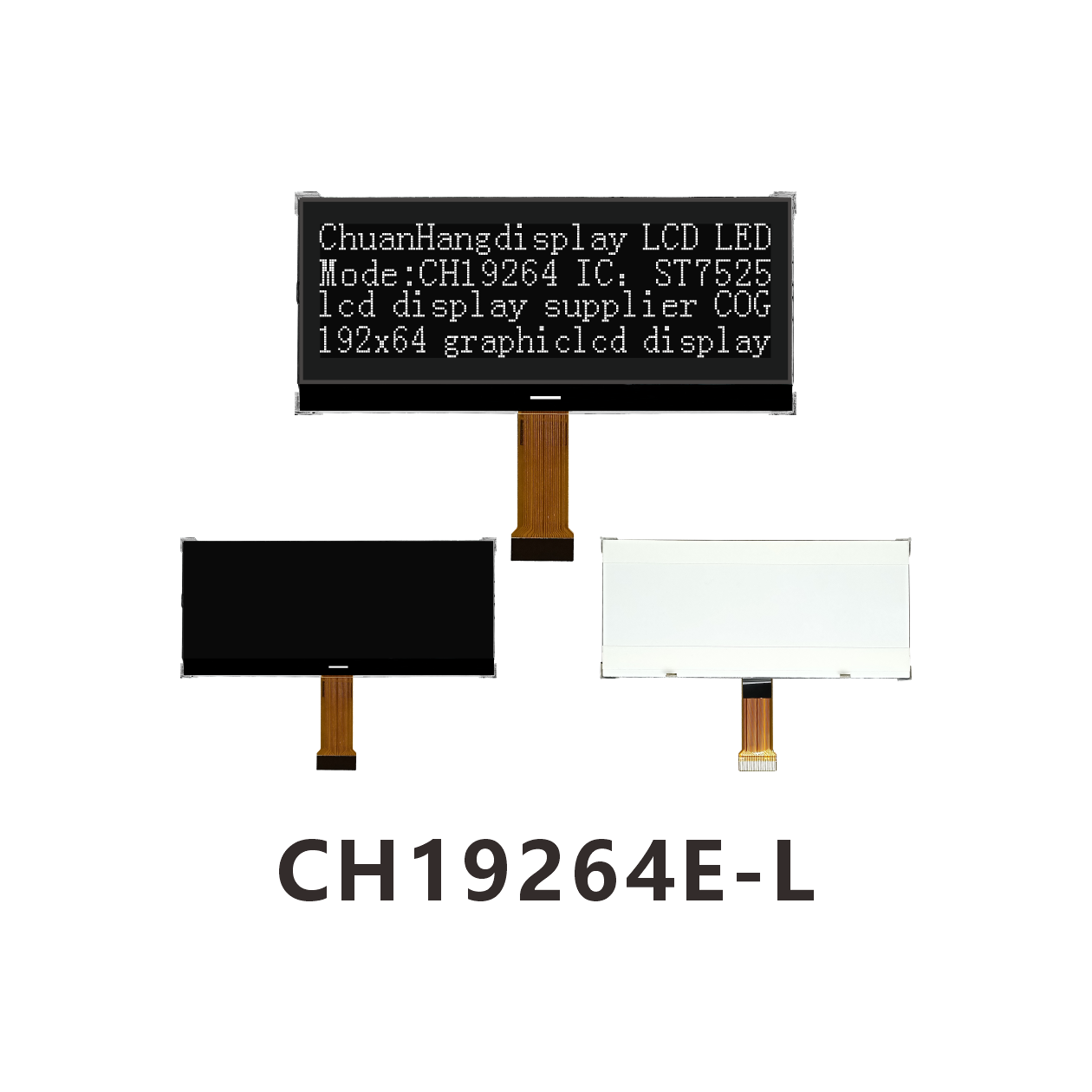

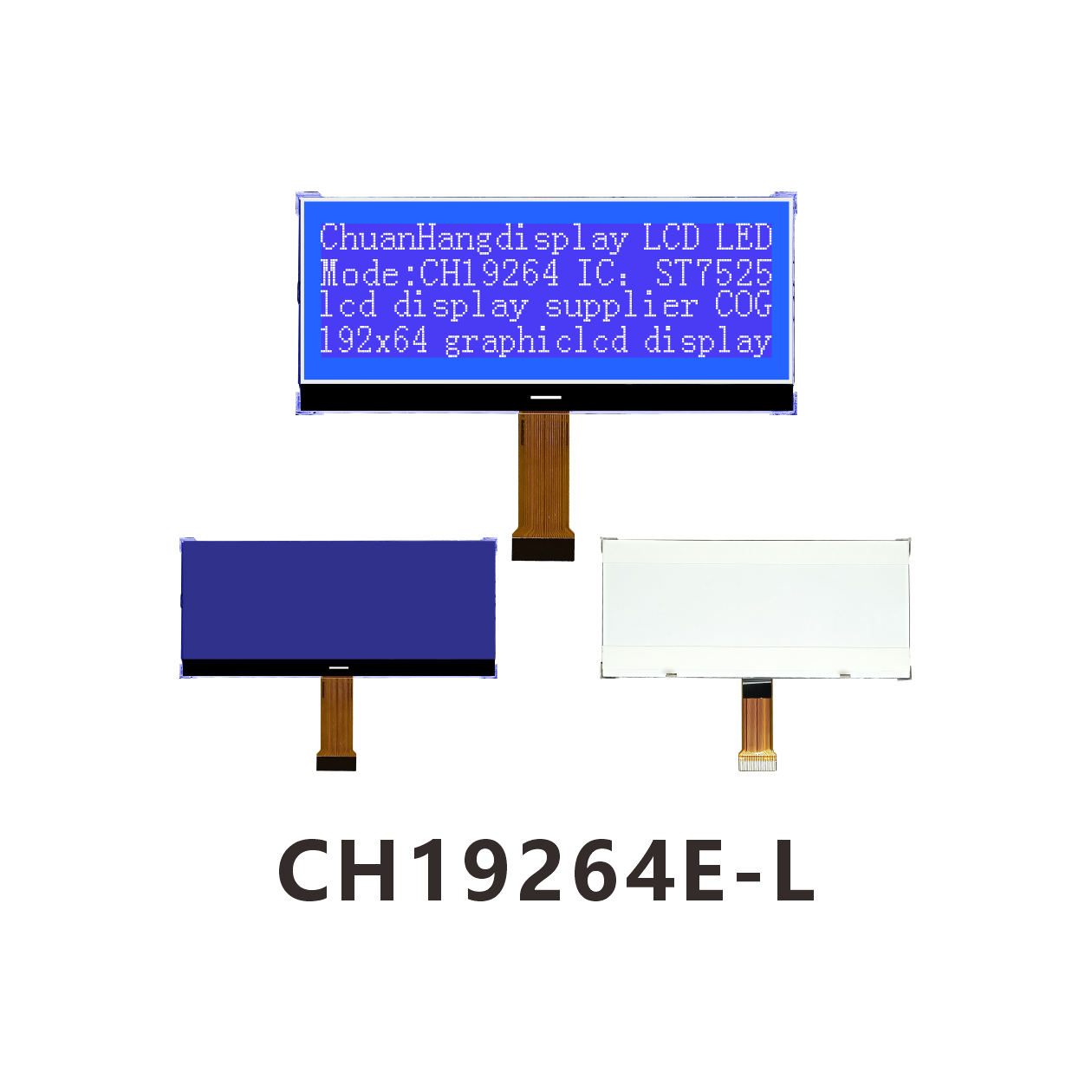

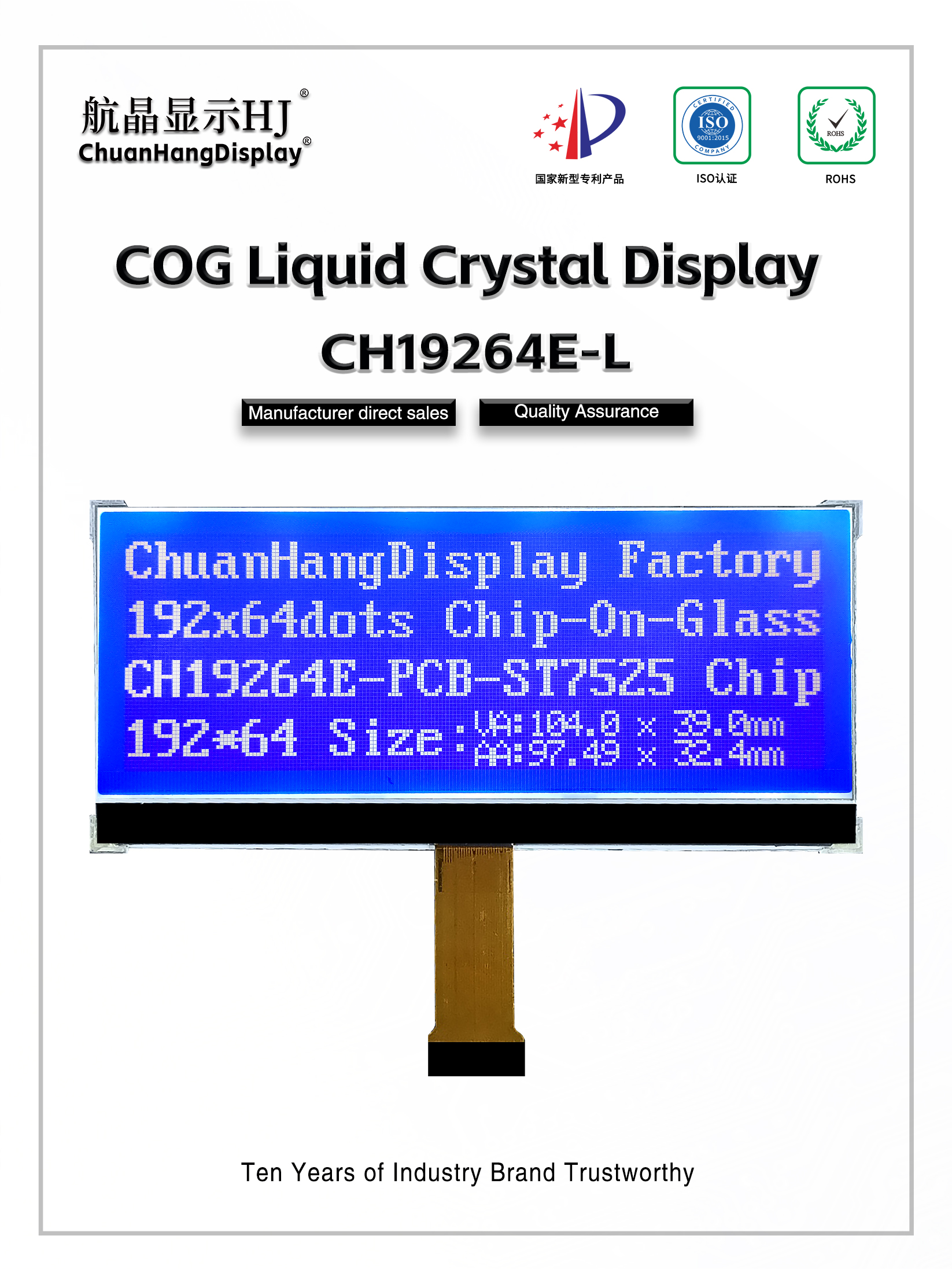

CH19264E-L (Plug-in Ver) Graphic LCD Display

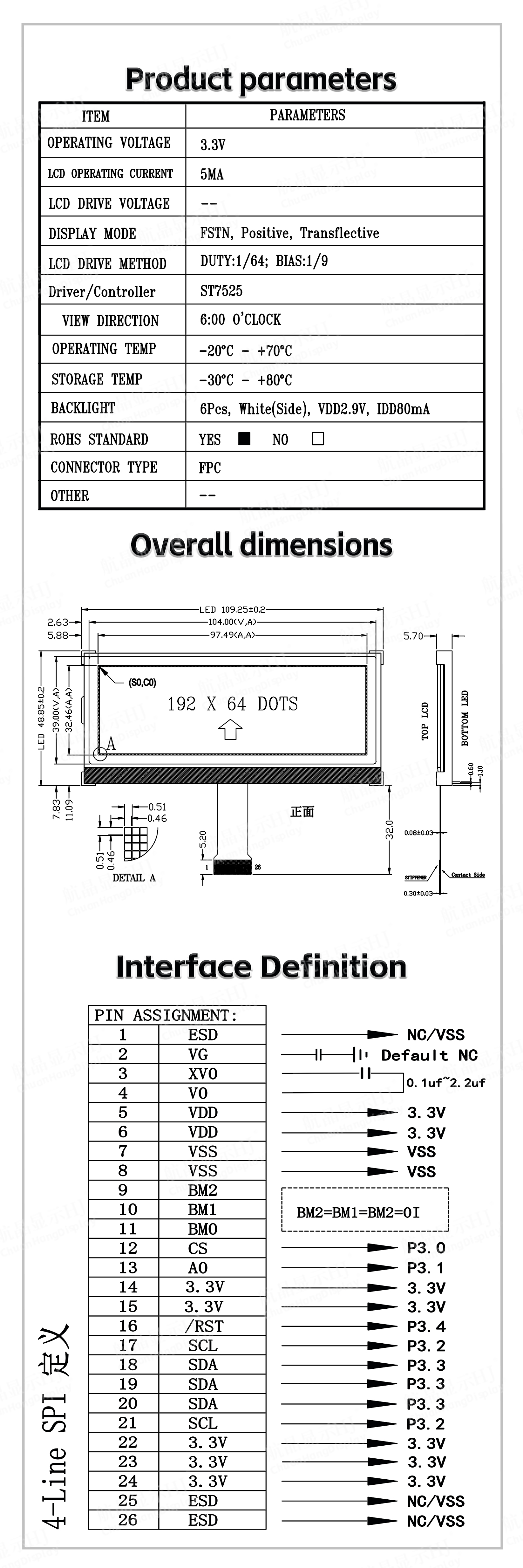

Product Description

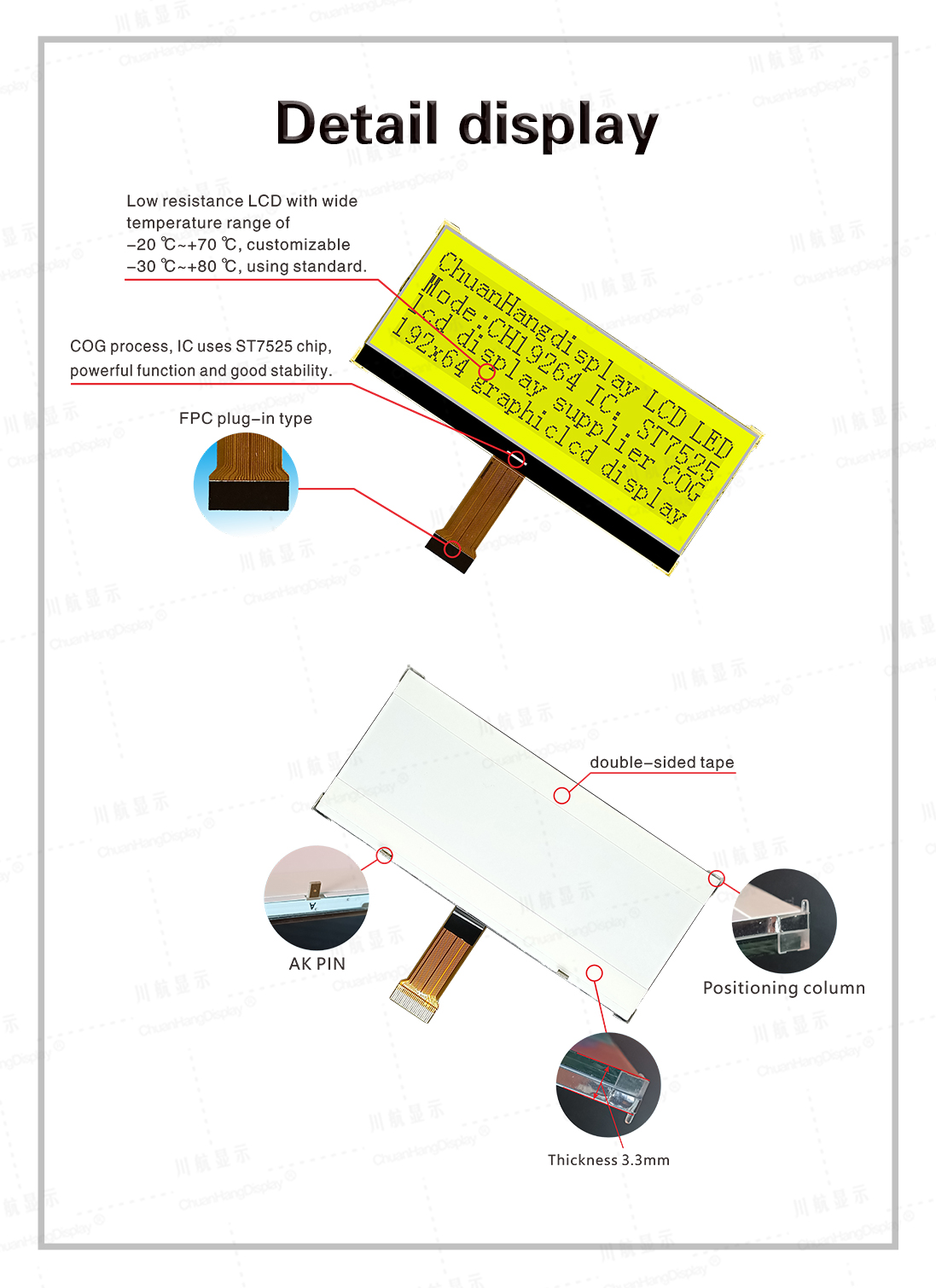

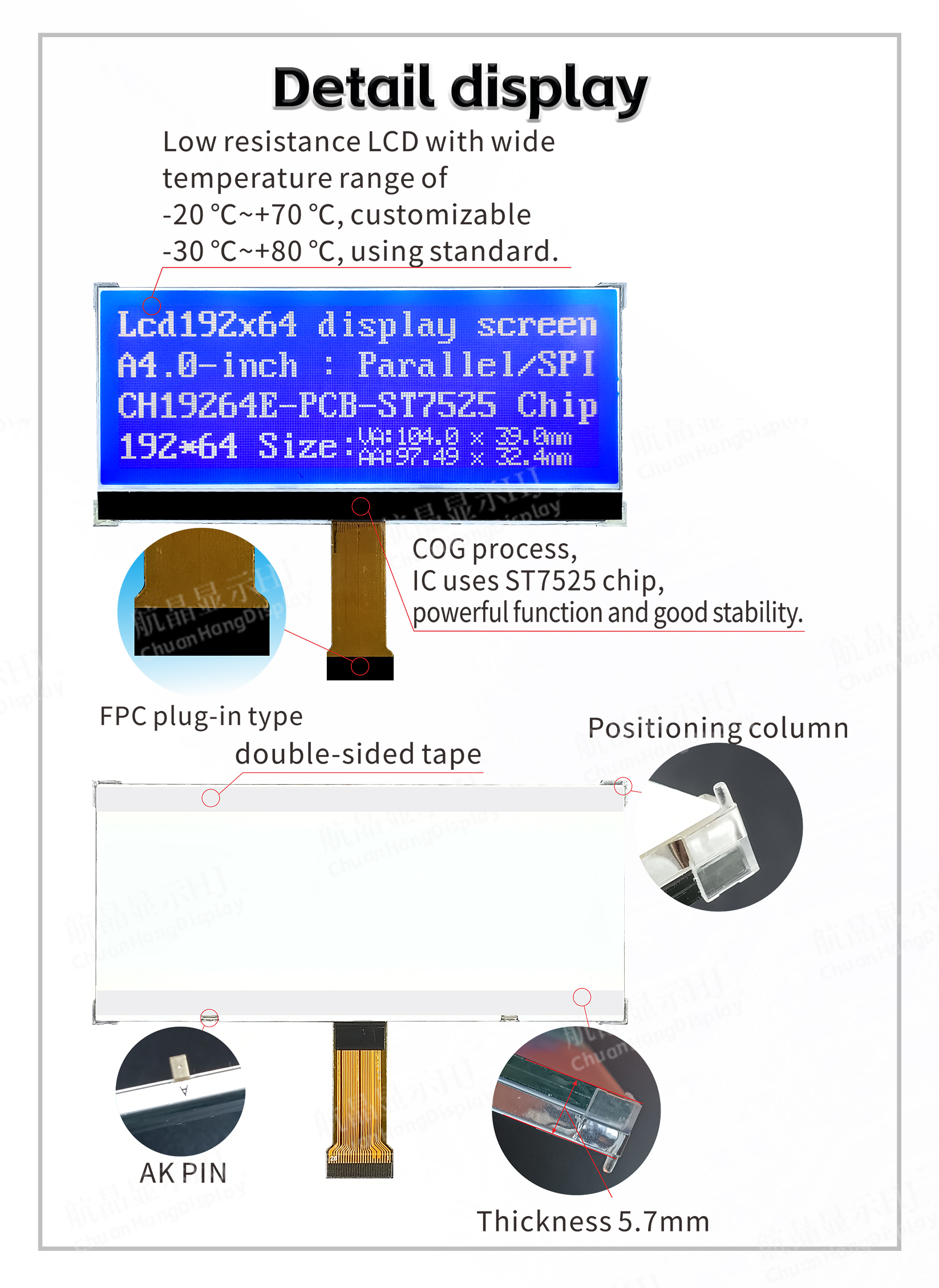

1.1 C0G process, FPC plug-in, product with backlight, thin thickness, stable structure
1.2 IC uses st7525, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, only 3.3V power mode, no backlight current within 1mA, backlight current within 100mA
1.4 LED backlight A and K are powered separately for the PCB board and need to be soldered on the PCB board.
1.5 Product features:
Built-in display data RAM is 64x192 bits
The boost circuit only needs 2 1uf capacitors.
The contrast is adjusted by software,
One screen displays 12 characters x 4 lines (16x16 dot matrix).
Single picture ≦192x64 dot matrix.
Optional 4-wire SPI interface/8-bit parallel port 6800 timing/8080 timing, customizable 12C interface.
Rich functions:
Interface display on/off, positive display/reverse display, read/modify/write
