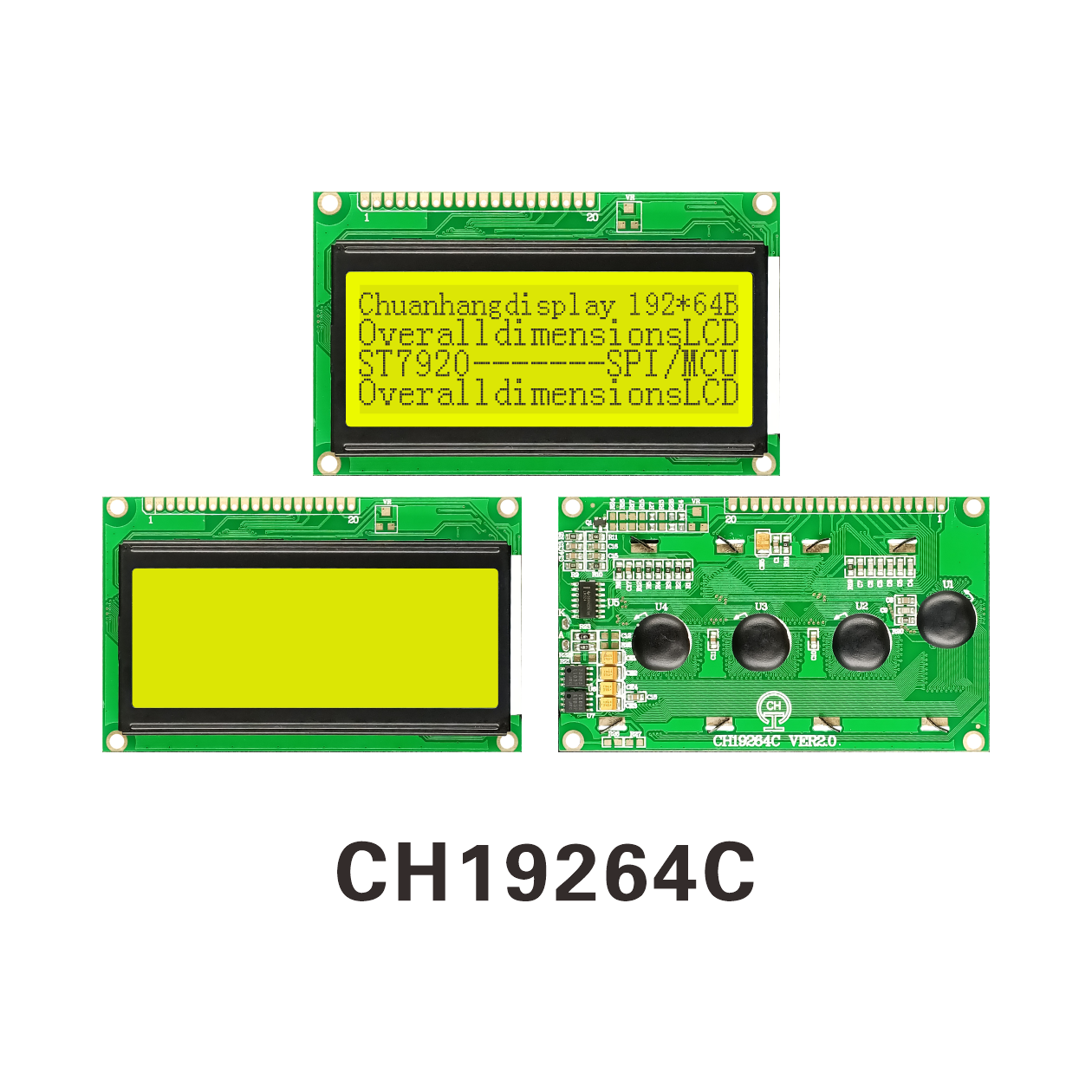

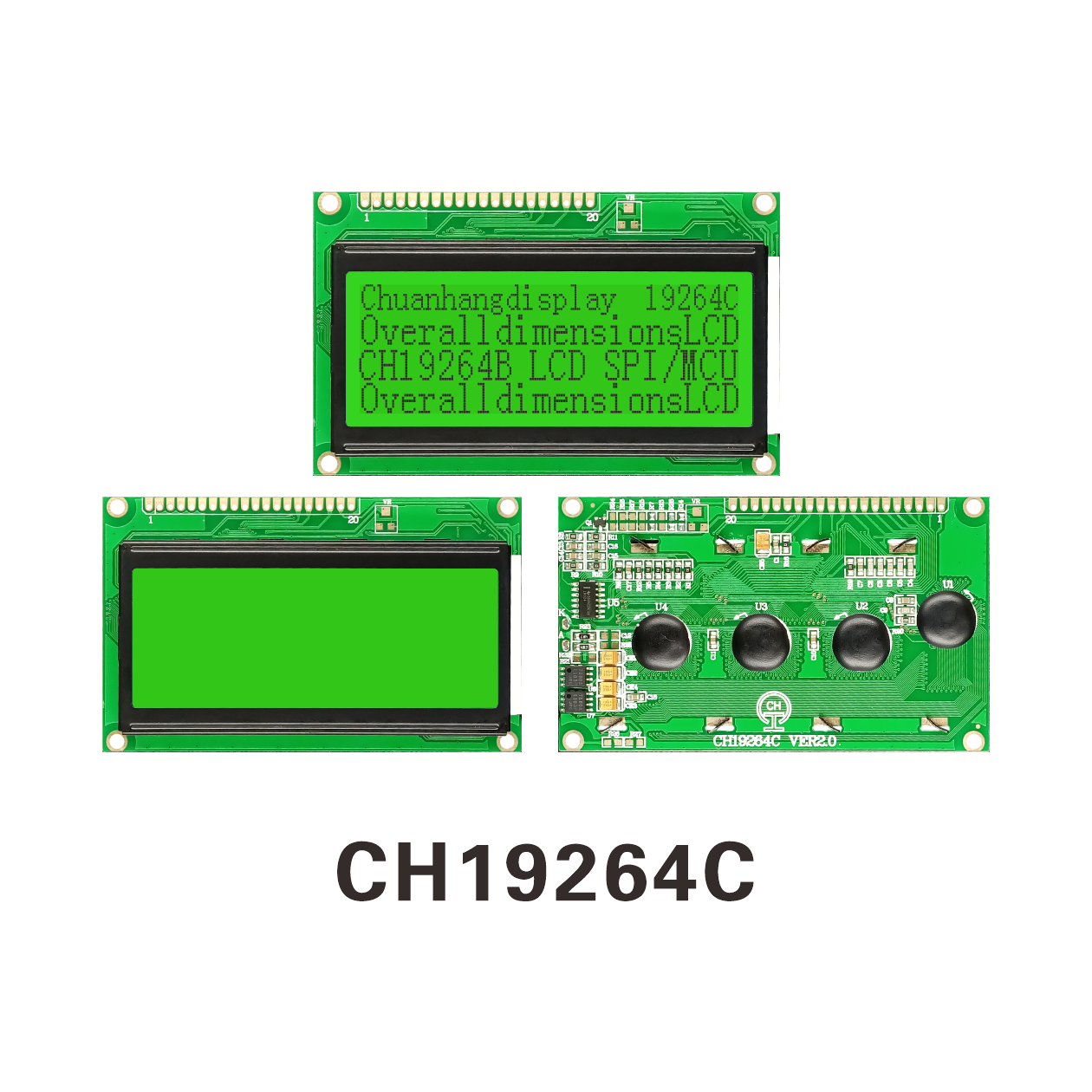

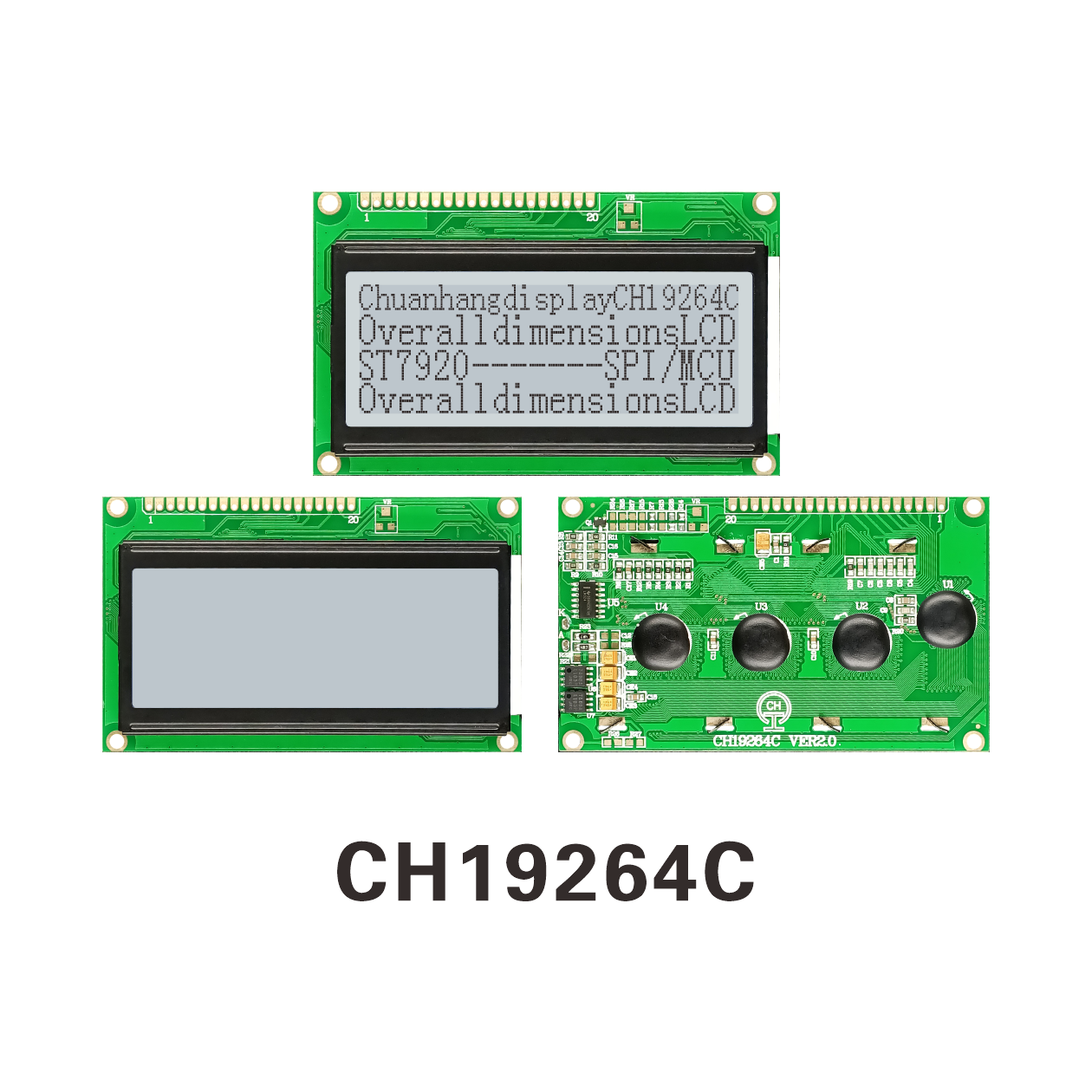

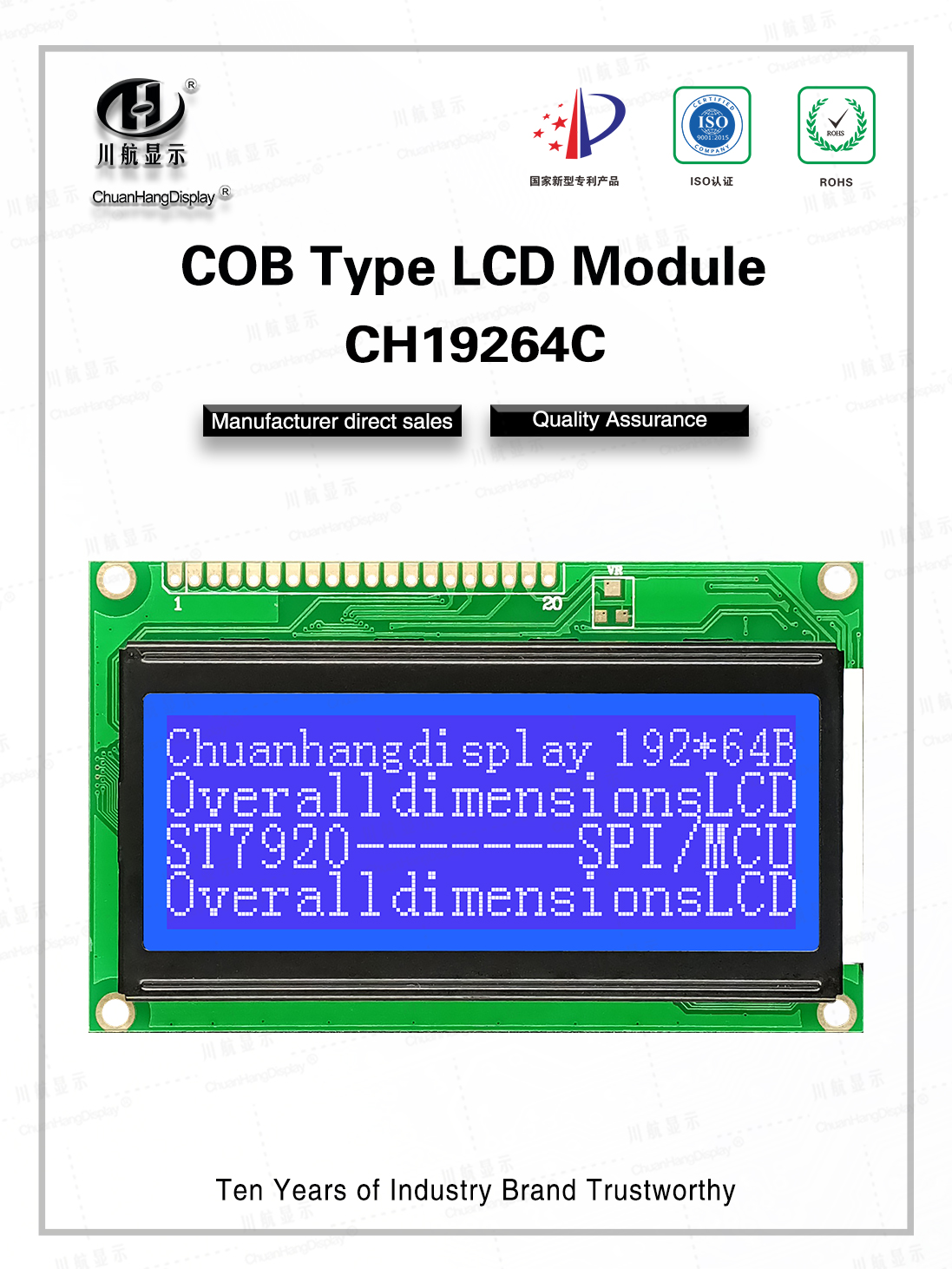

CH19264C 192x64 LCD Graphic Displays
Product Description

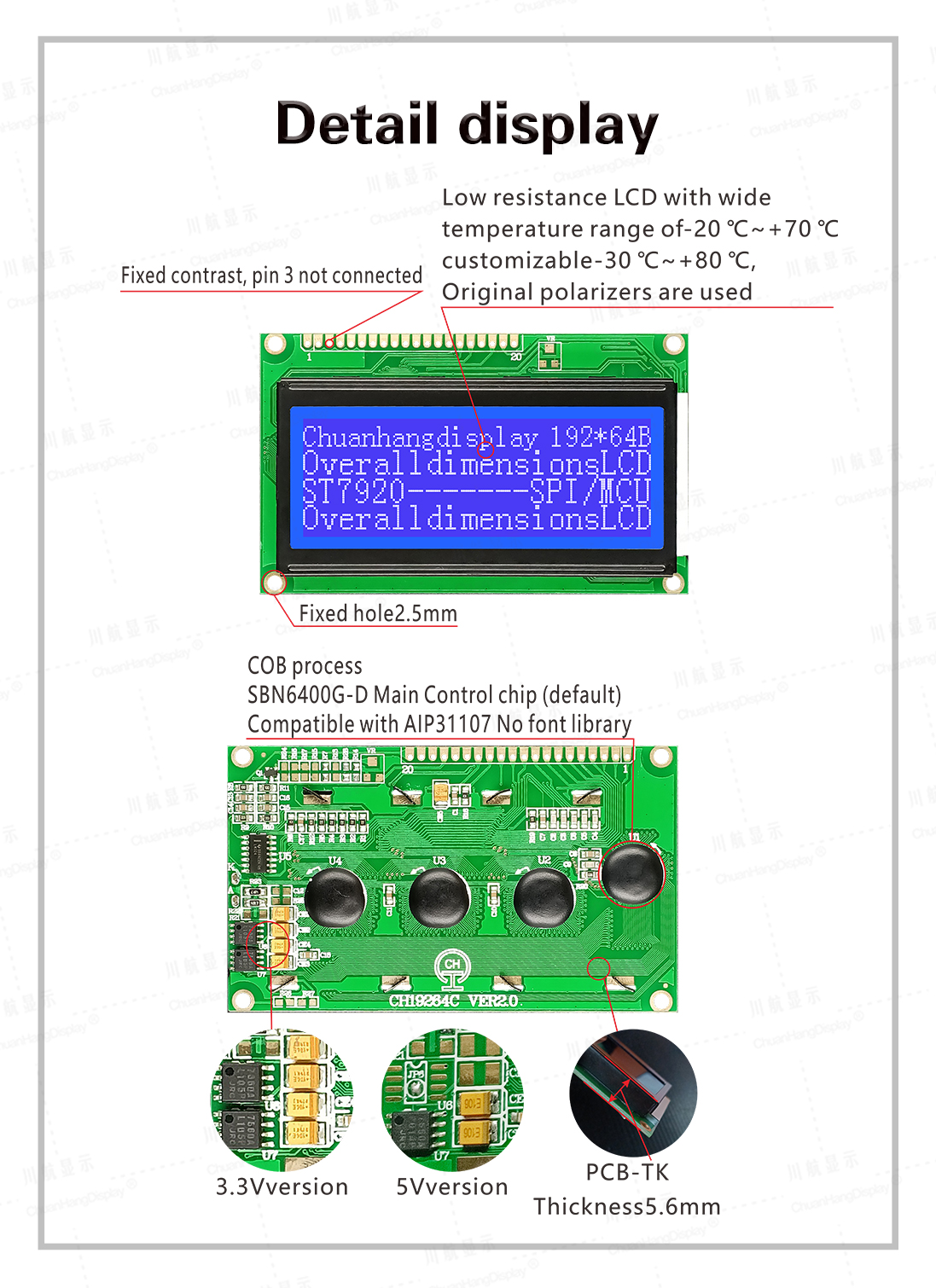

1.1 COB process, the product has backlight, conductive adhesive strip connection, stable structure,
1.2 IC uses SBN6400/AIP31108, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, there are two power supply modes of 5V/3.3V, the current without backlight is within 8mA, and the current with backlight is within 100mA.
1.4 LED can be driven by PIN13, PIN14, PIN19, and PIN20.
1.5 Product features:
Built-in display data RAM is 64x192 bits.
One screen displays 12 characters x 4 lines (16x16 dot matrix).
Single picture ≦192x64 dot matrix.

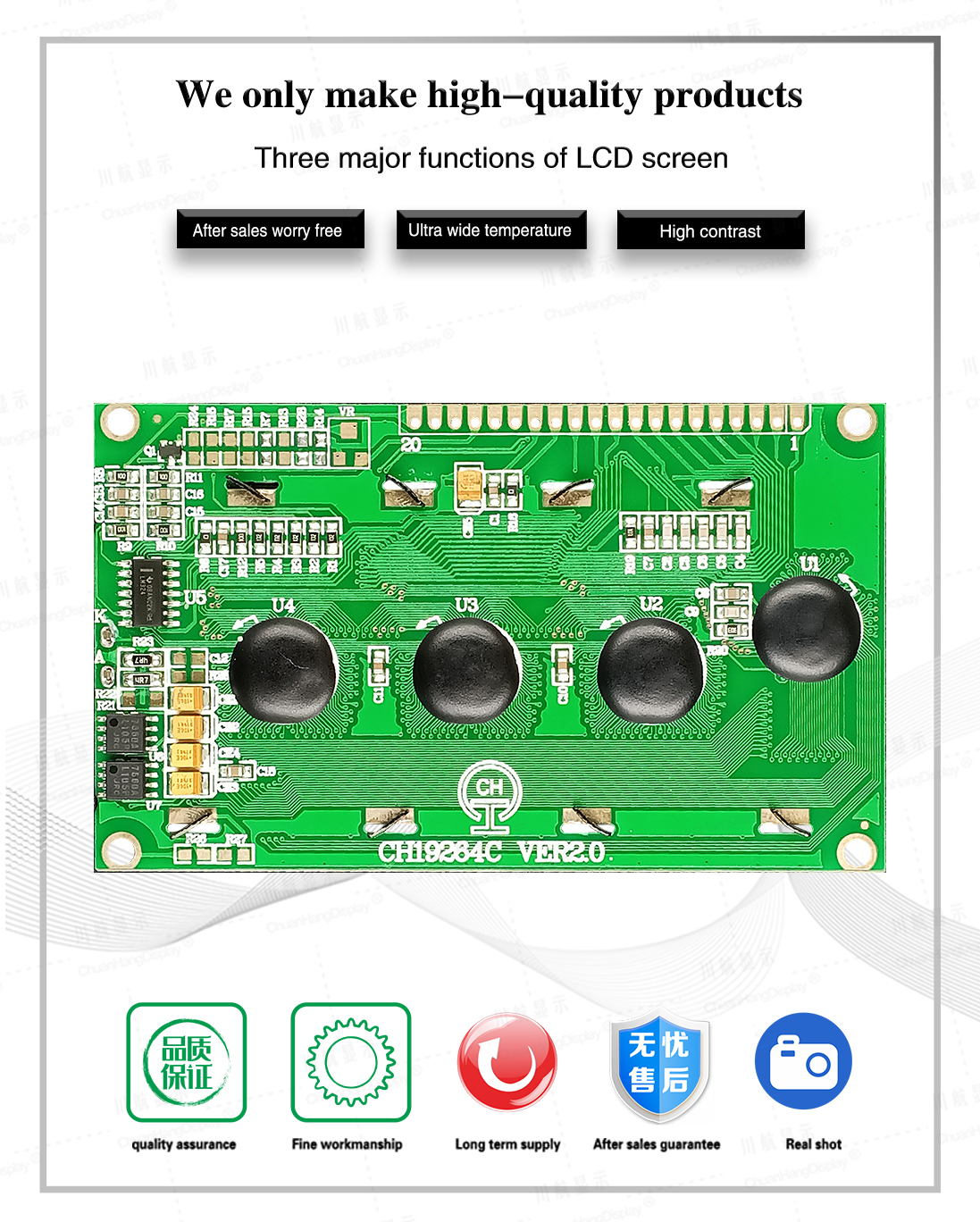

The module has built-in 3PCS chip select chip (left, middle, and right screen).
Built-in negative voltage output (VEE), V0 and VEE are disconnected when the module contrast is fixed.
8-bit parallel port interface, 6800 timing
