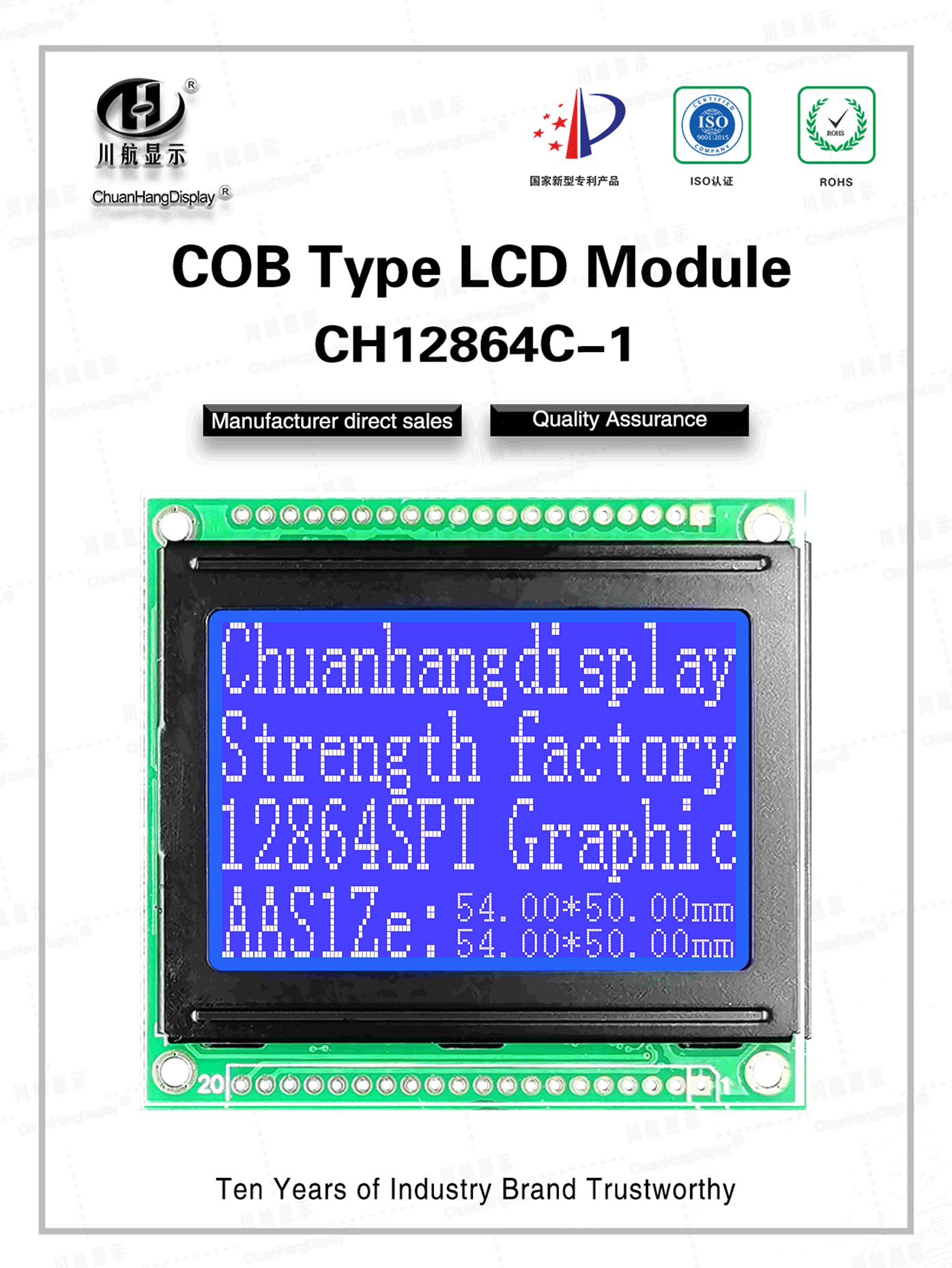

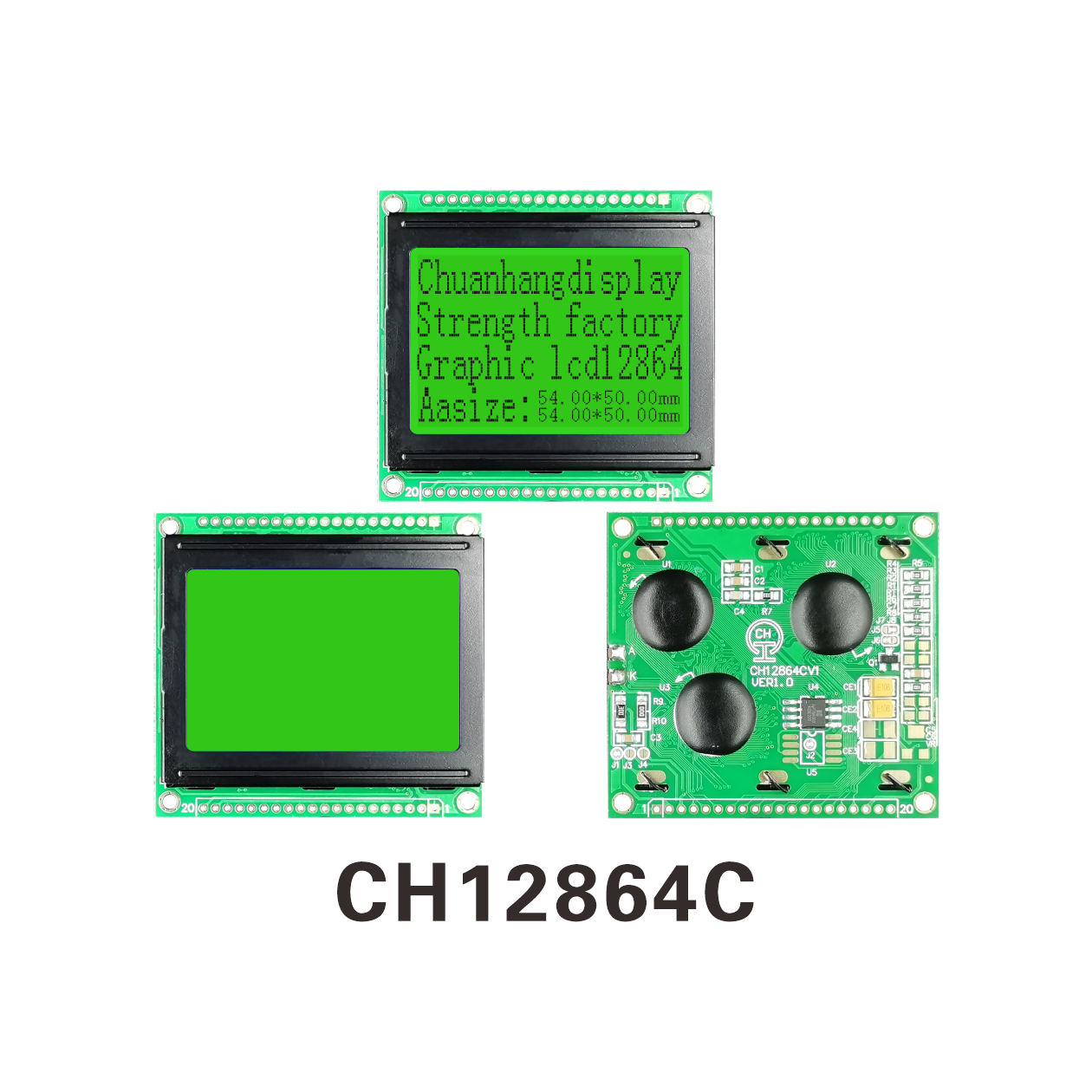

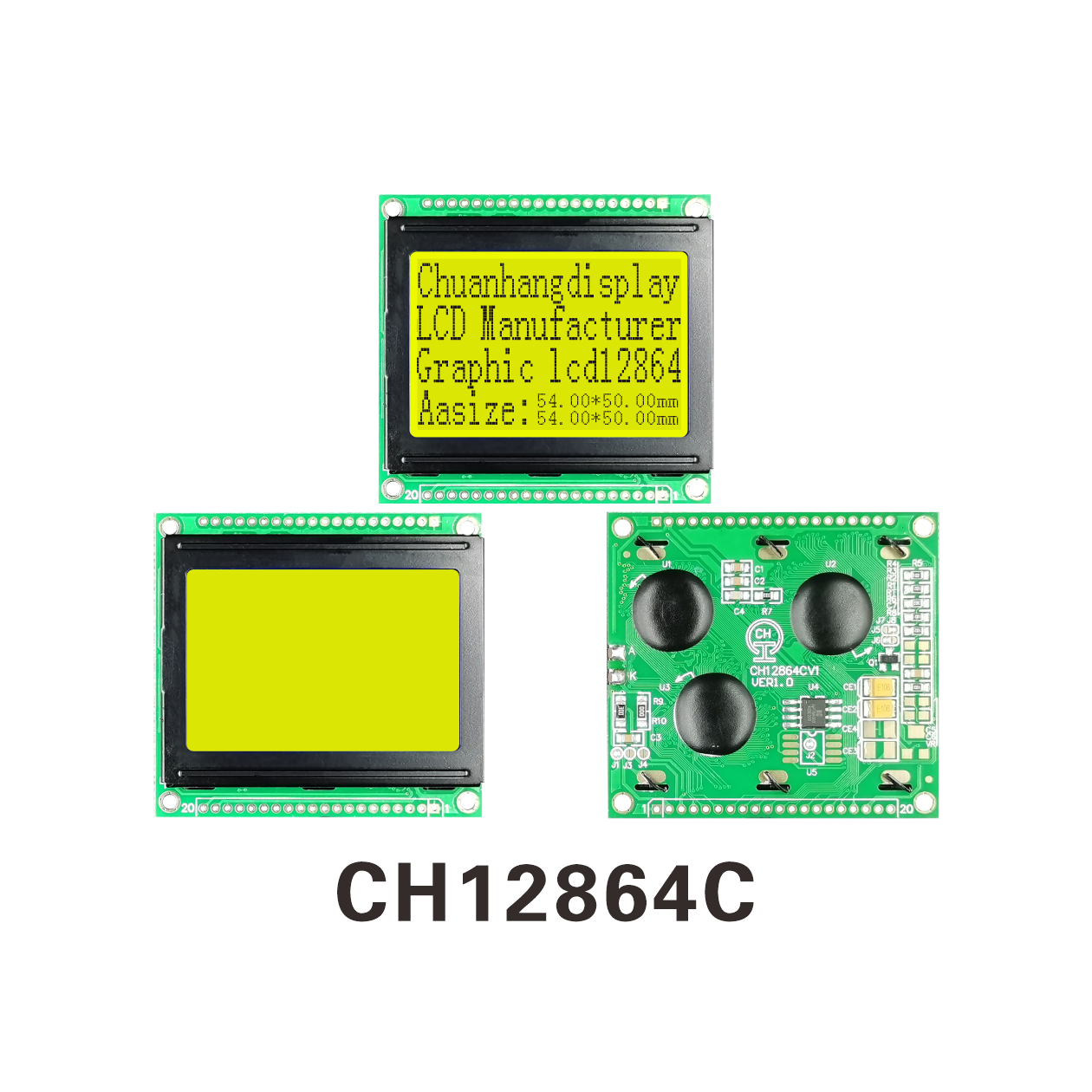

CH12864C Graphic LCD Monochrome 128x64
Product Description

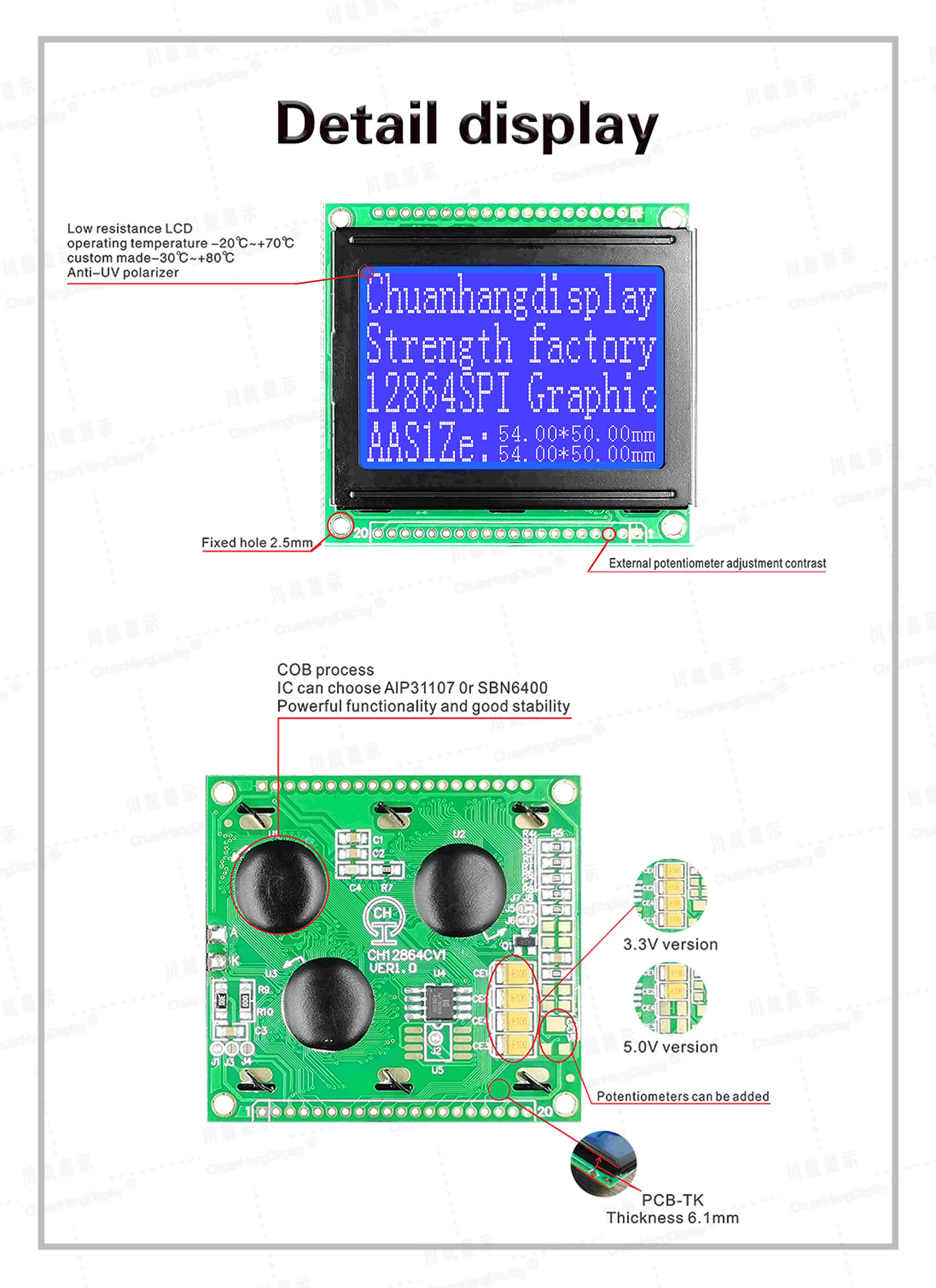

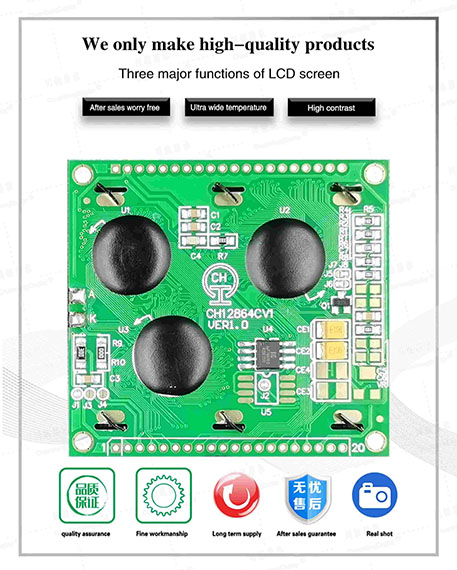

1.1 C0B process, product with backlight, conductive adhesive strip connection, stable structure.
1.2 IC uses SBN6400/AIP31108, there is no font library in the chip, programmers compile font library by themselves.
1.3 Low power consumption, there are two power supply modes of 5V/3.3V, no backlight current within 8mA, backlight current within 80mA.
1.4 LED can be driven by PIN1, PIN2, PIN19, PIN20.
1.5 Product features:
Built-in display data RAM is 2560 bits.
One screen displays 8 characters x 4 lines (16x16 dot matrix).
Single picture ≦128x64 dot matrix:
The module has built-in 2PCS chip select chip.
Built-in negative voltage output (VEE), V0 and VEE are disconnected when the module contrast is fixed
8-bit parallel port interface, 6800 timing.
20Pin pin spacing 2mm.
