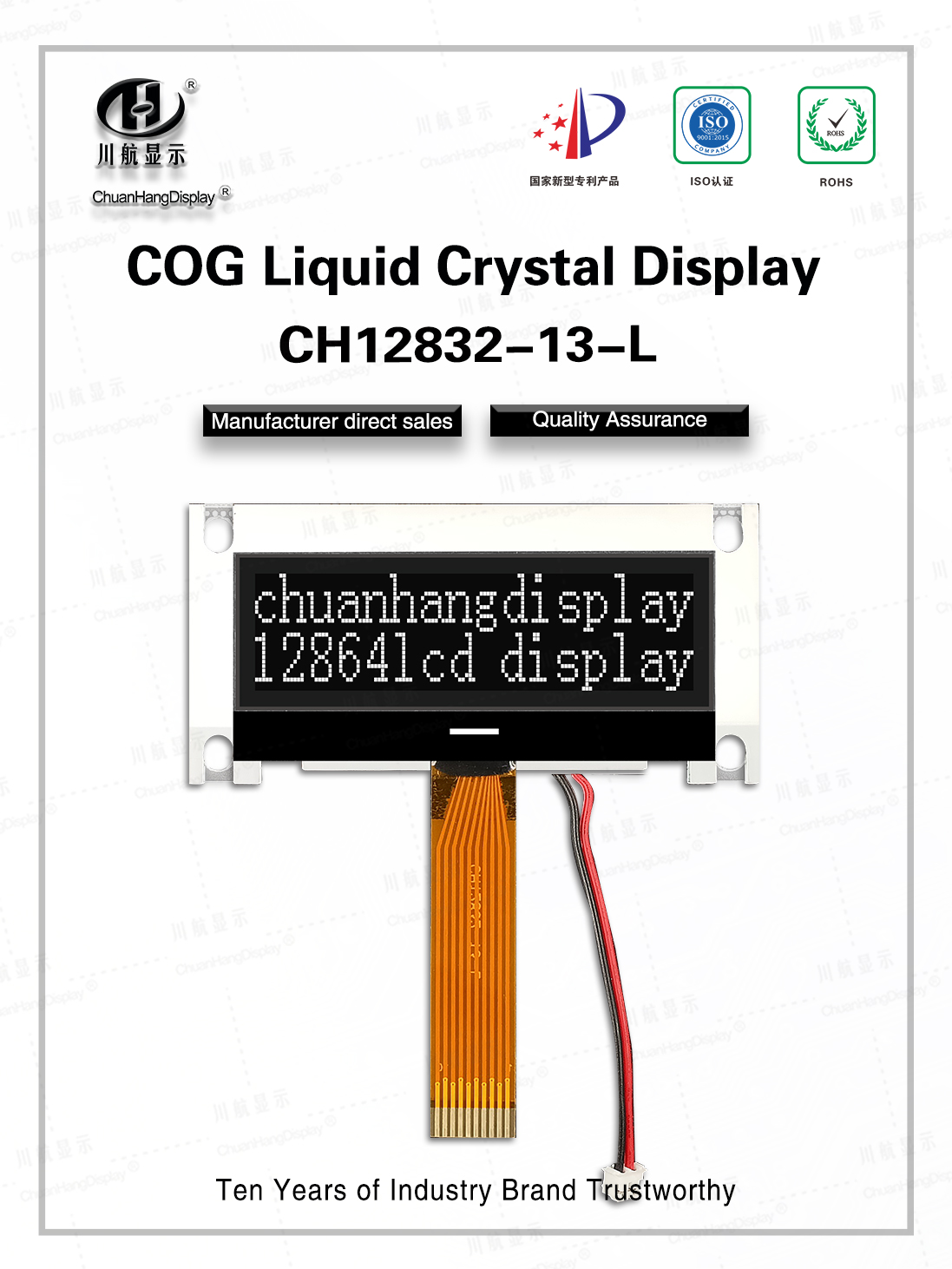

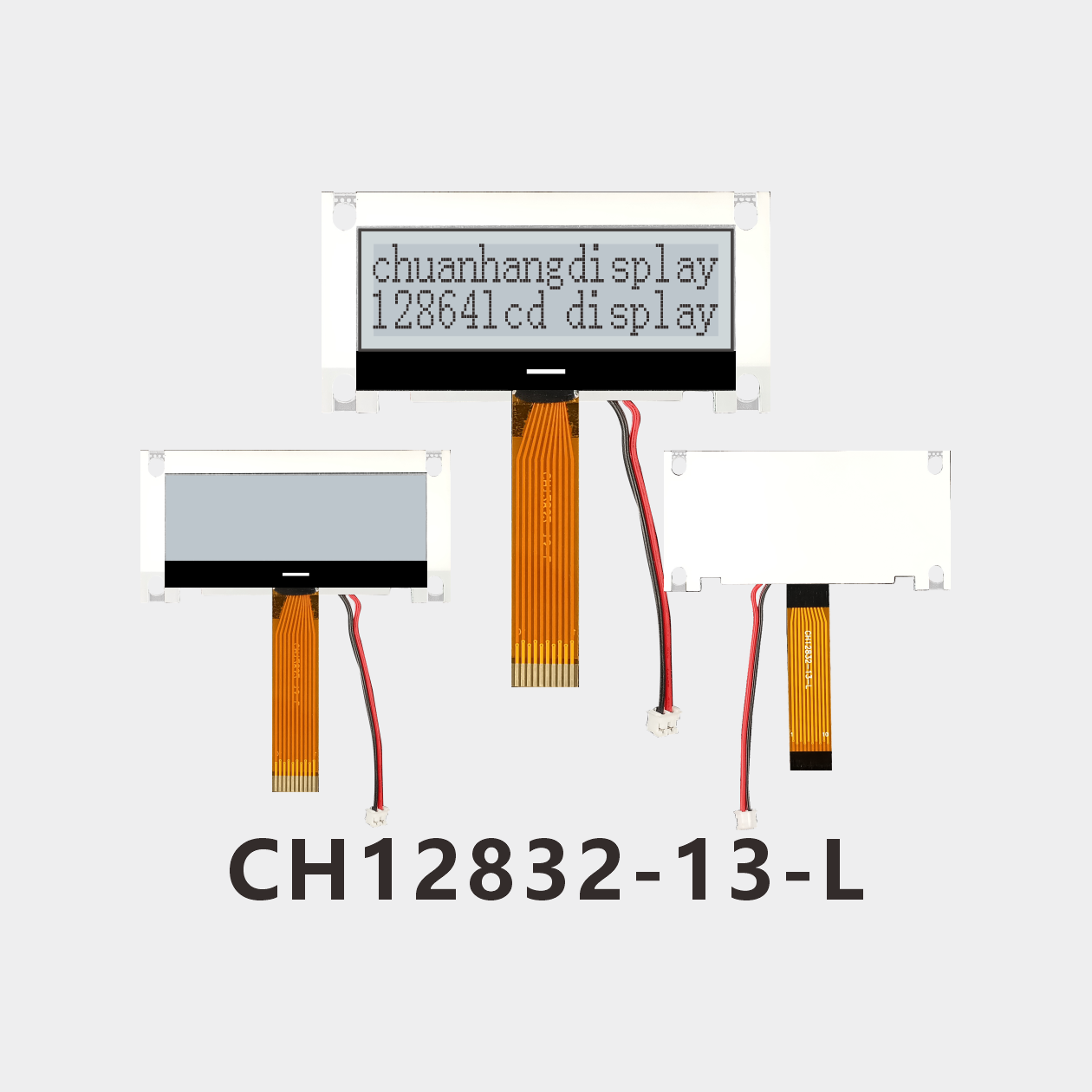

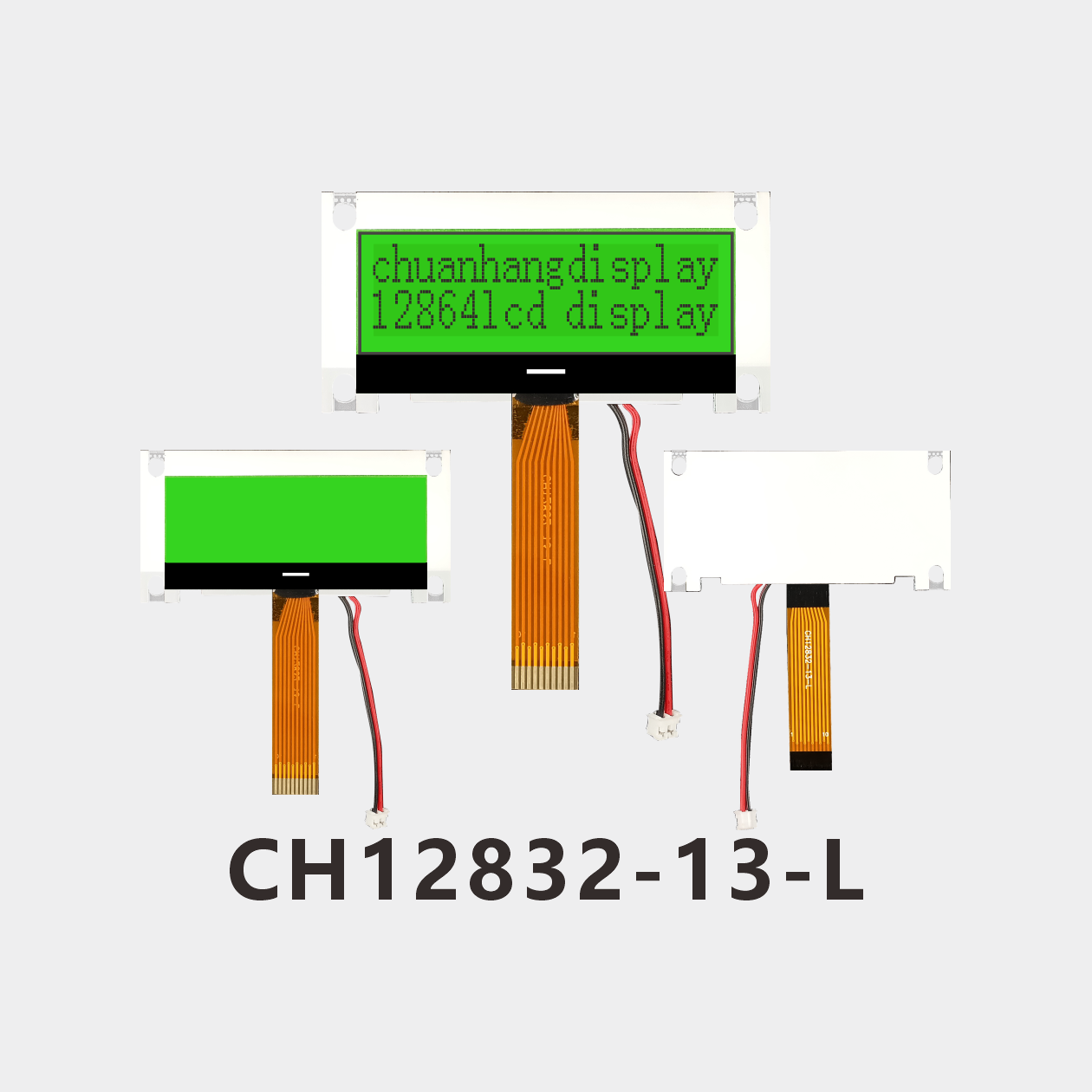

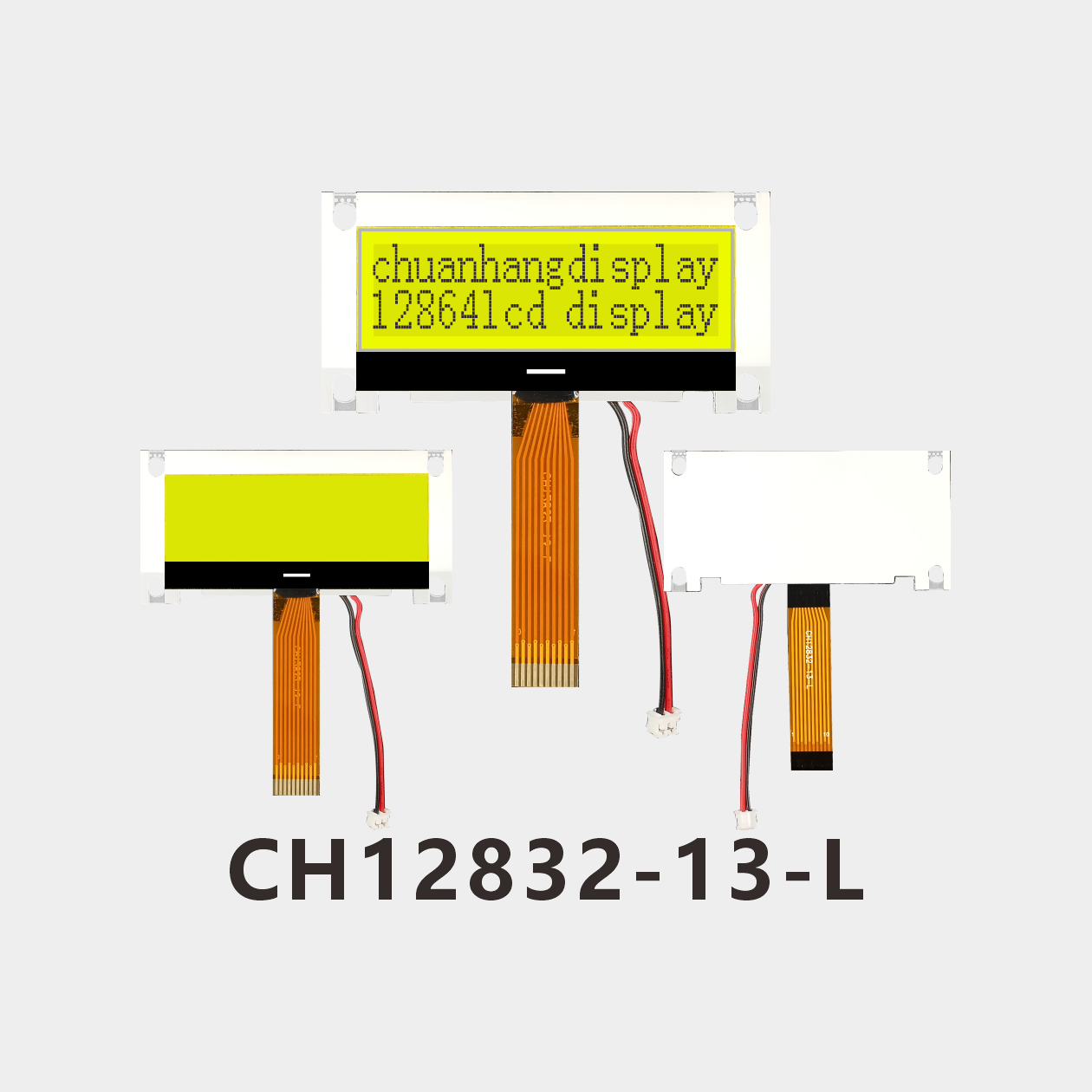

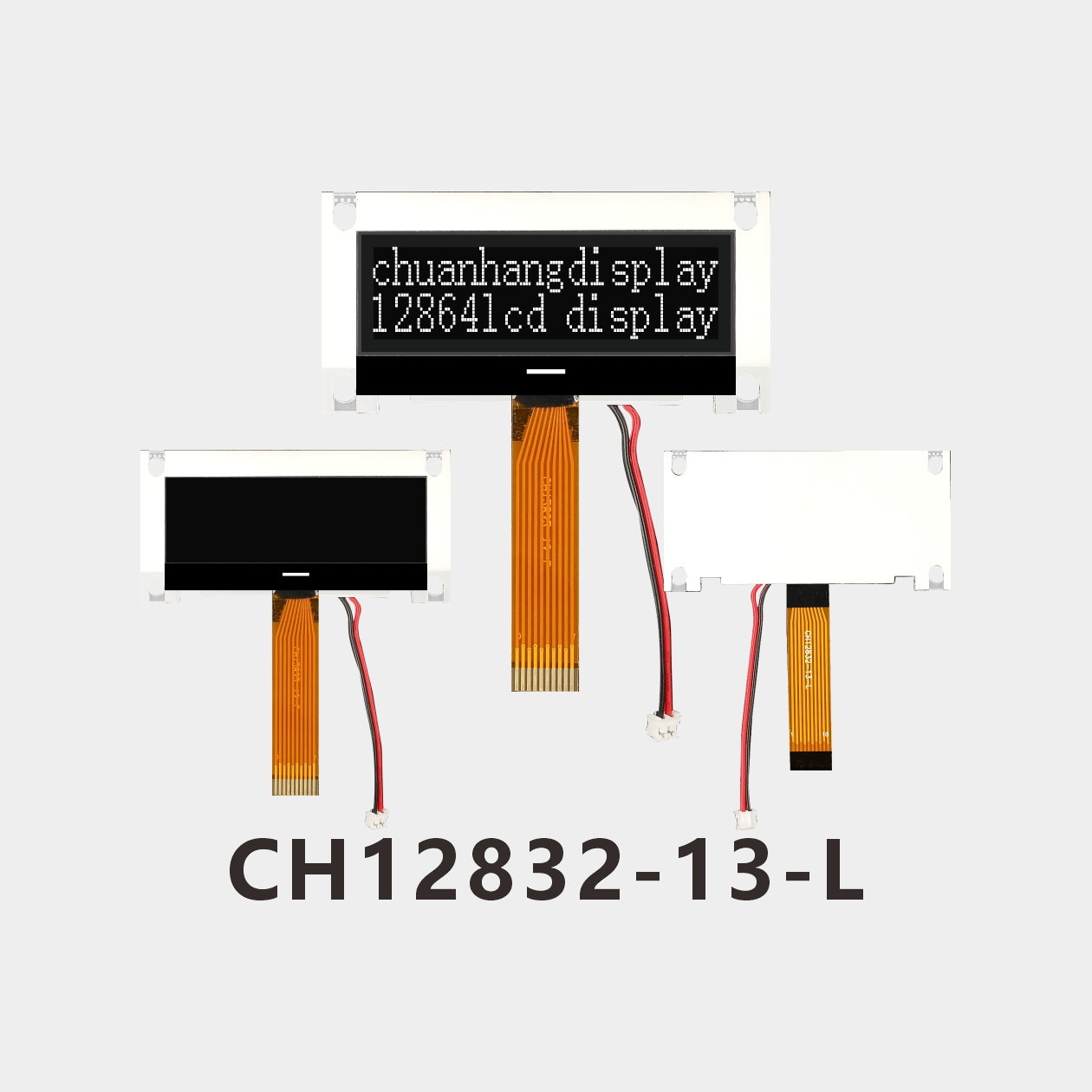

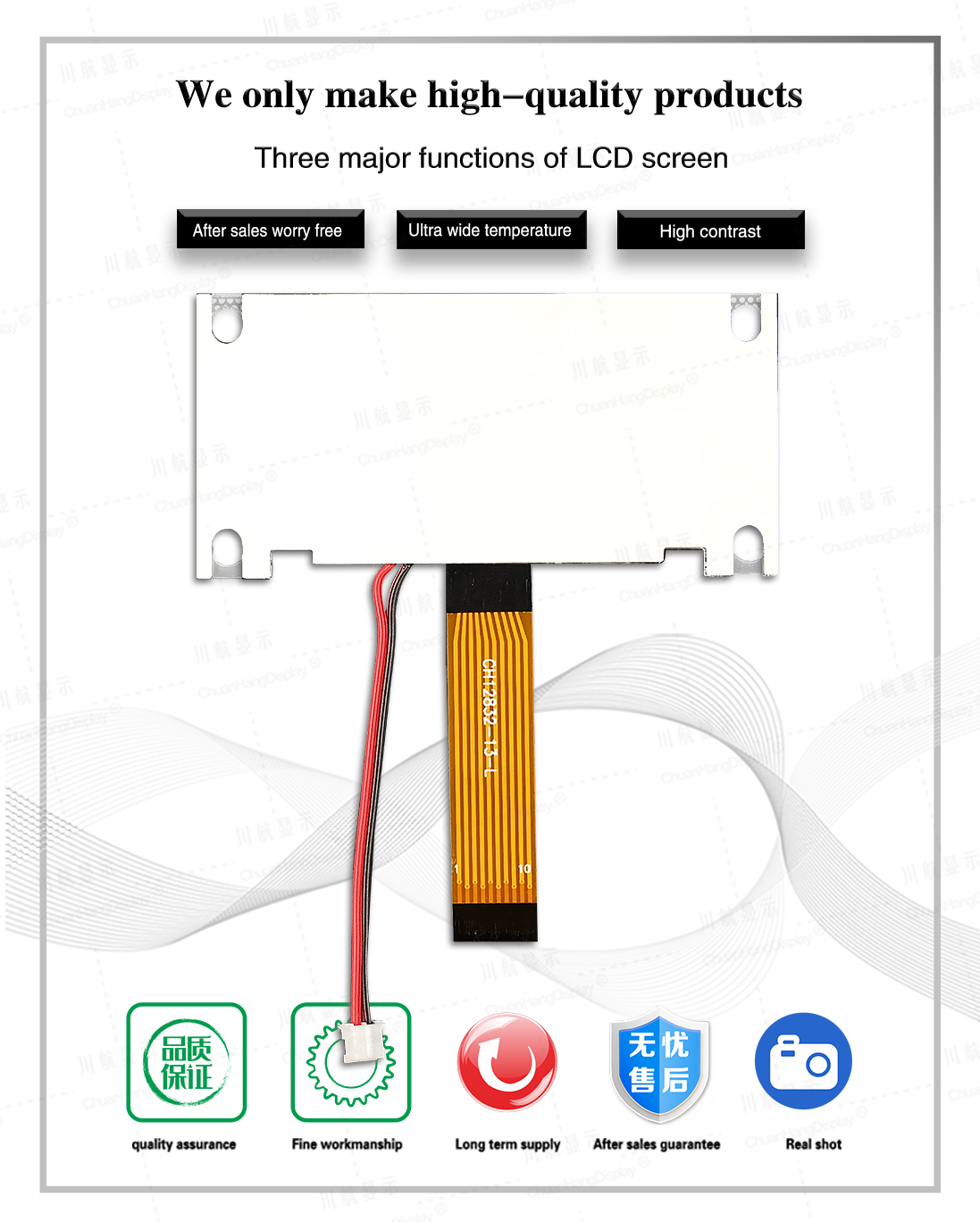

CH12832-13-L 128x 32 dots cog lcd display

Product Description

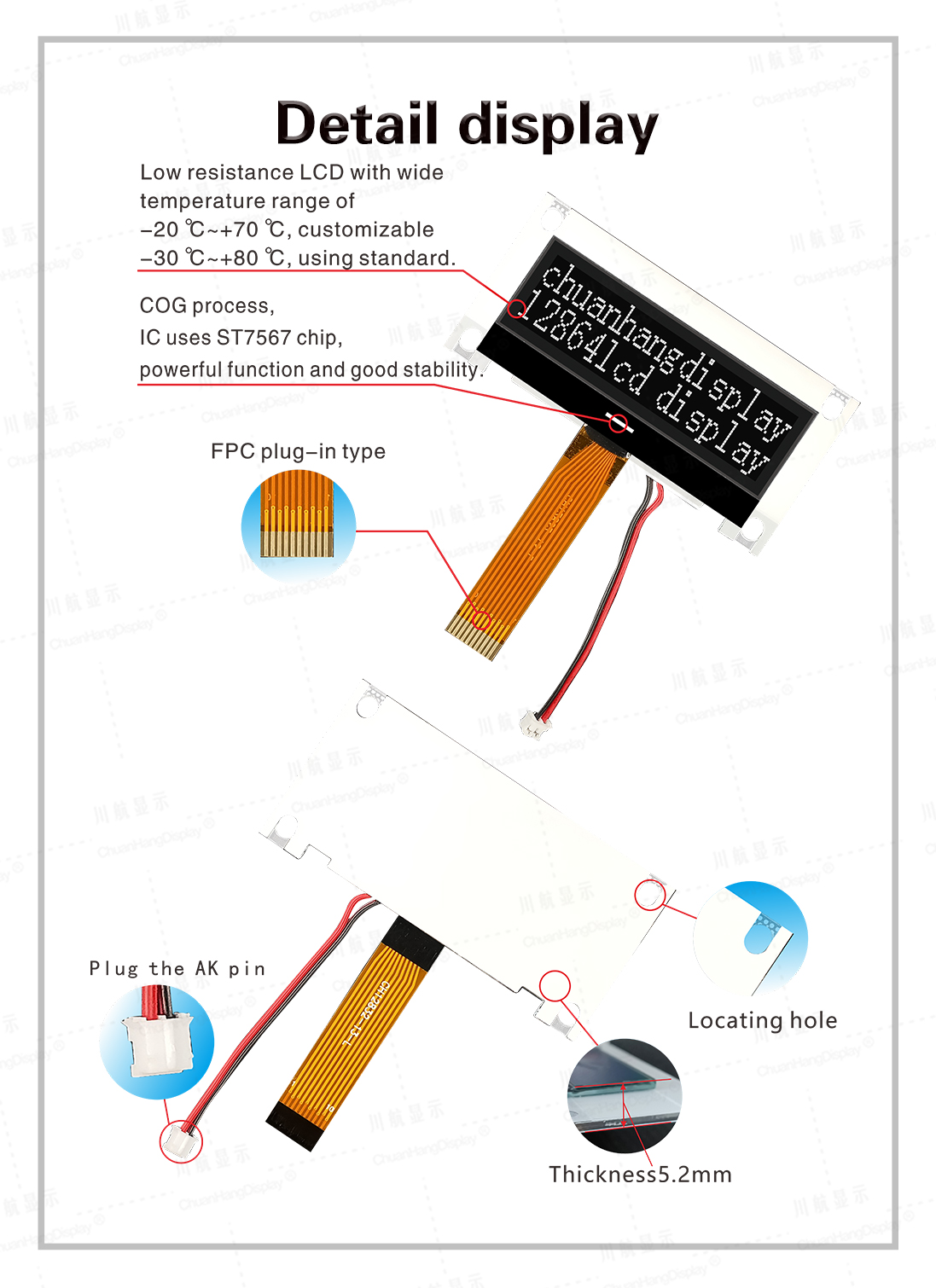

1.1 C0G process, FPC plug-in process, product with backlight, thin thickness, stable structure. 1.21C uses st7567, there is no font library in the chip, programmers compile fonts by themselves. 1.3 Low power consumption, only 3.3V power mode, no backlight current within 1mA, backlight current within 100mA.
1.4 LED backlight A and K are powered by the red line separately.
1.5 Product features:
Built-in display data RAM is 8192 bits
The boost circuit only needs 2 1uf capacitors.
The contrast is adjusted by software.
One screen displays 8 characters x 2 lines (16x16 dot matrix)
A single picture ≦128x32 dot matrix.
4-wire SPI interface.
Rich functions:
Interface display on/off, positive display/reverse display, read/modify/write

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH12832-13-L
Resolution	128x32	screen size
Outline Dimension(LWH)	84.0x41.0x5.2mm	Visible Area(L*W)	60.0x18.5 mm
Active Area(L*W)	56.03x14.53 mm	Character Size(L*W)
Type	COG	Connection Method	FPC
Supply Voltage	DC 5V/3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/16Duty,1/5Bias
Display Type		Driver IC	AIP31066
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	DC 5V/3.3V	production capacity	Self-produced
Character libraries		Whether to bring PCB	NO
