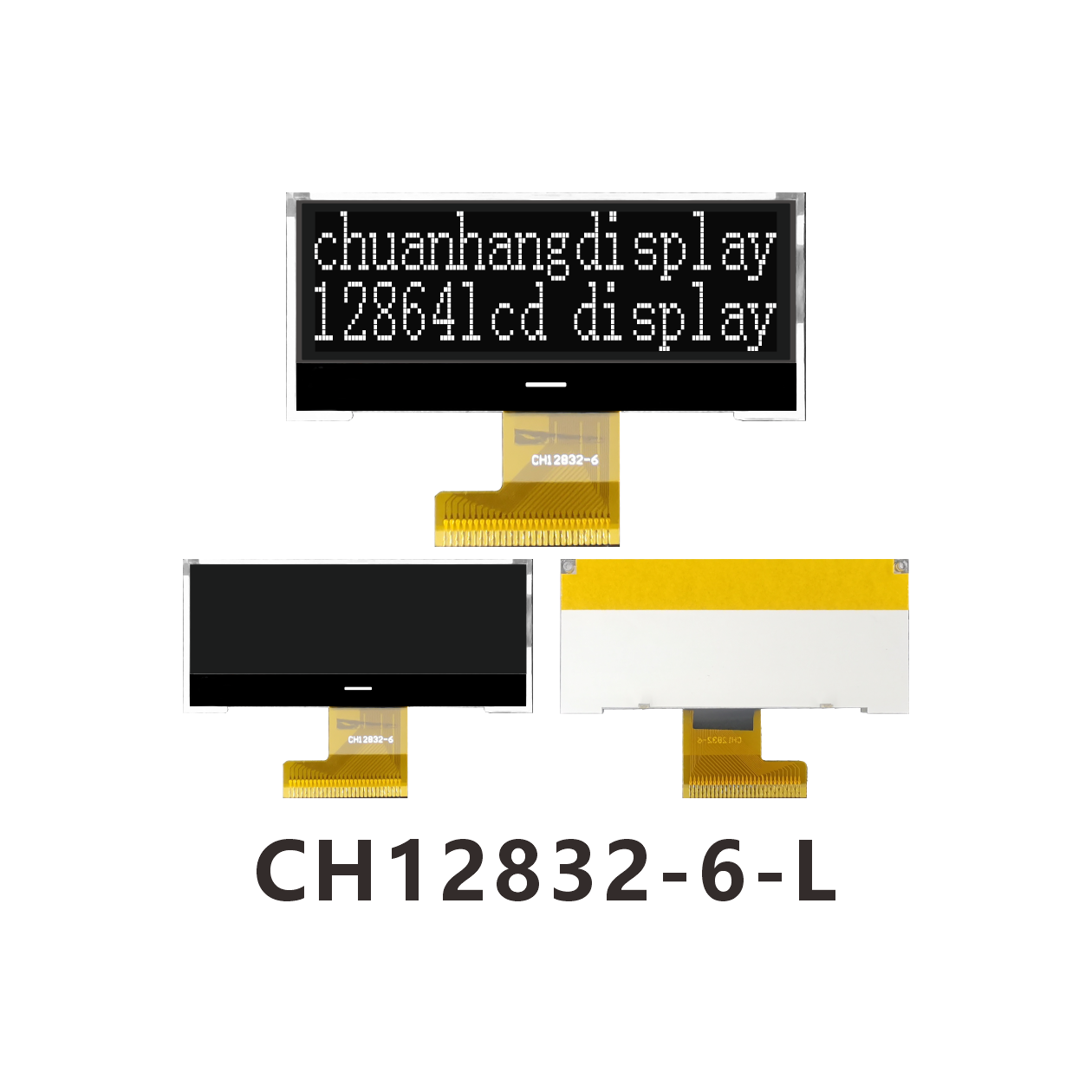

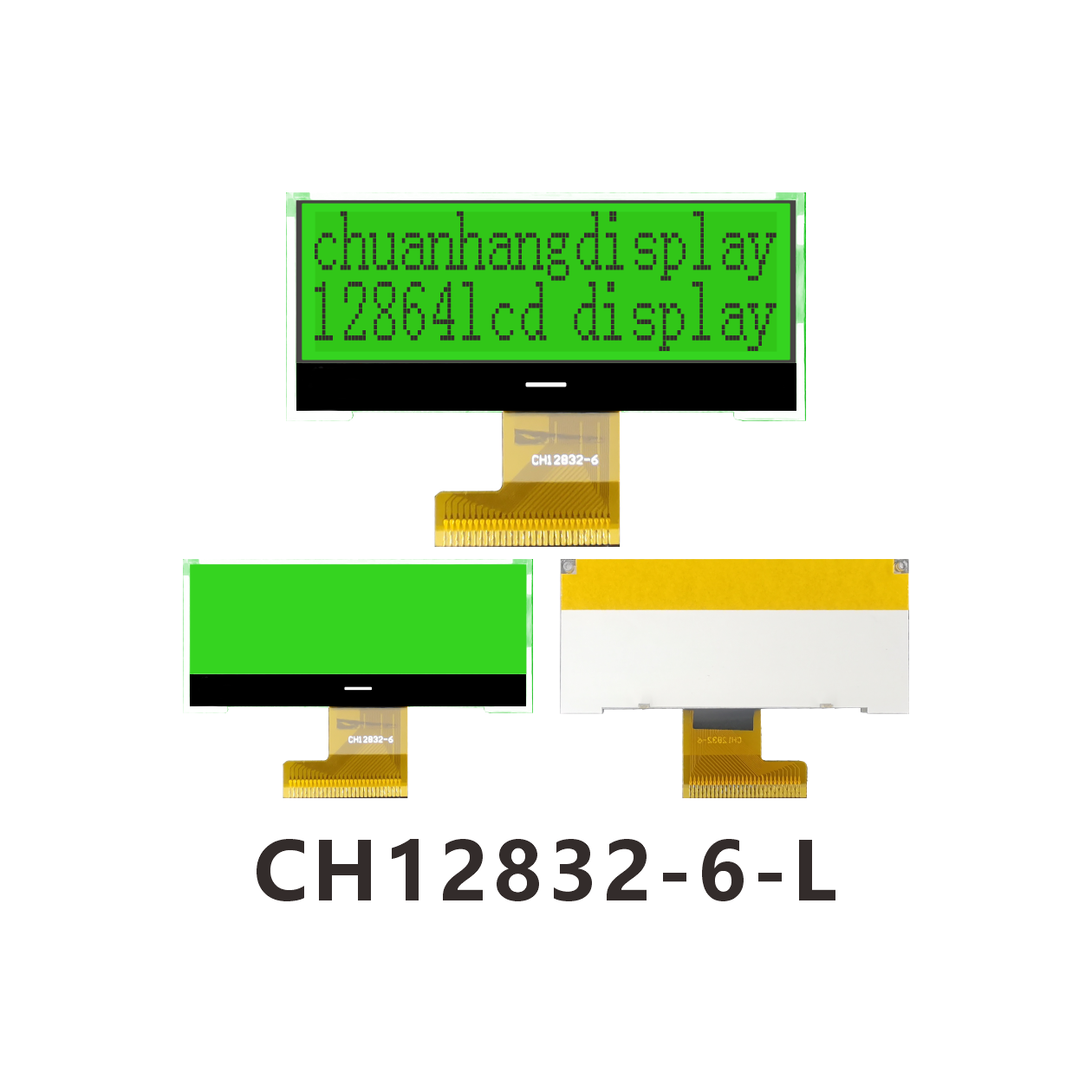

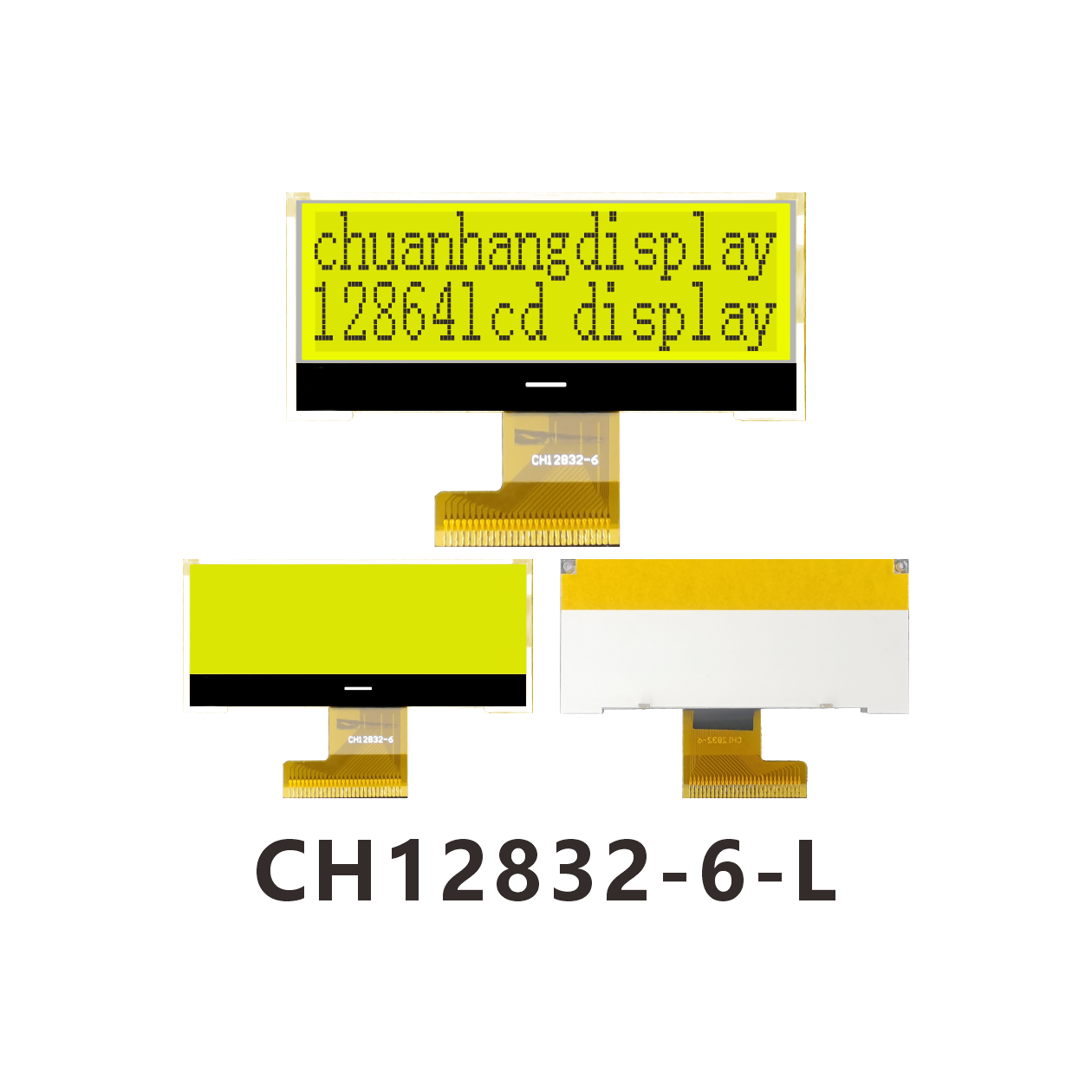

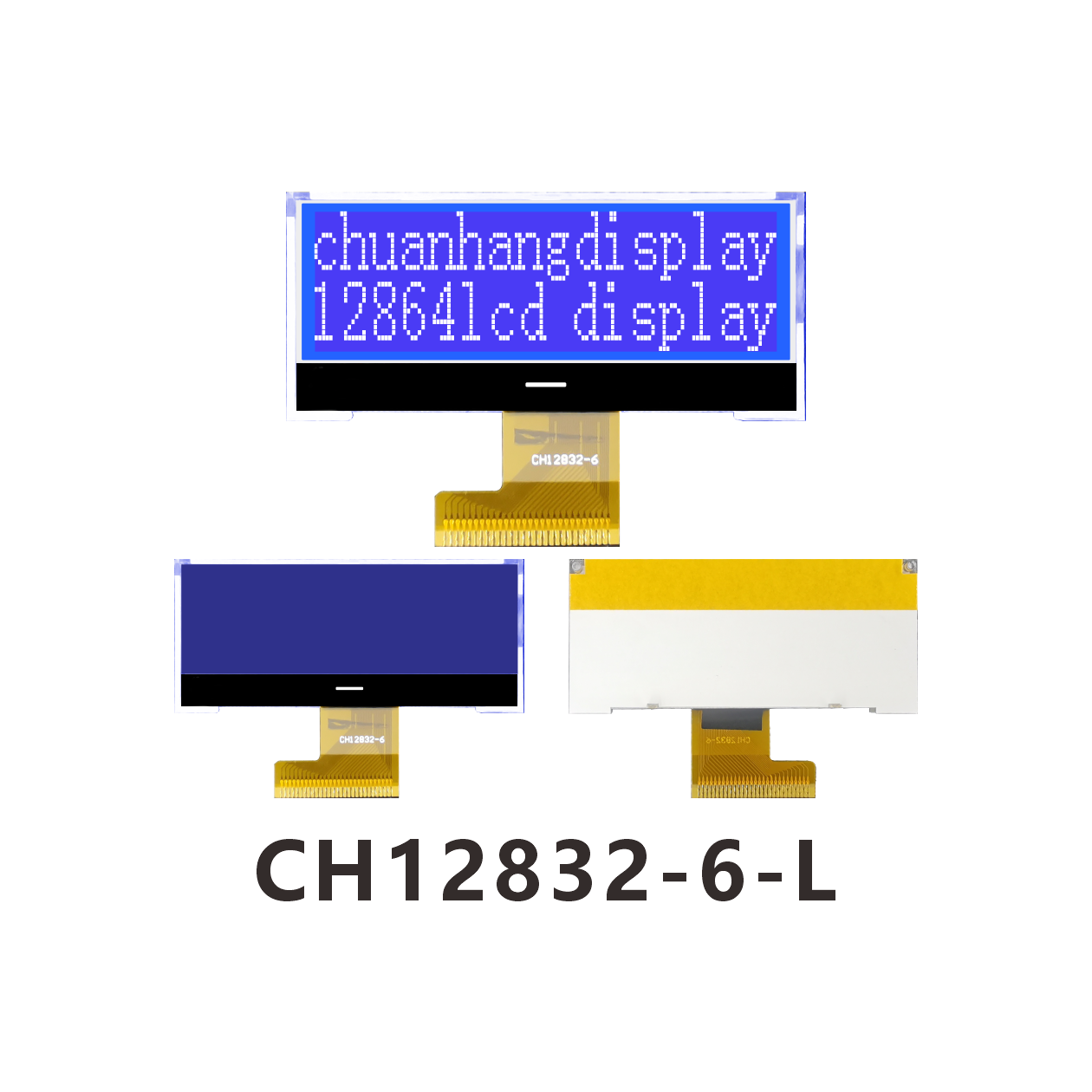

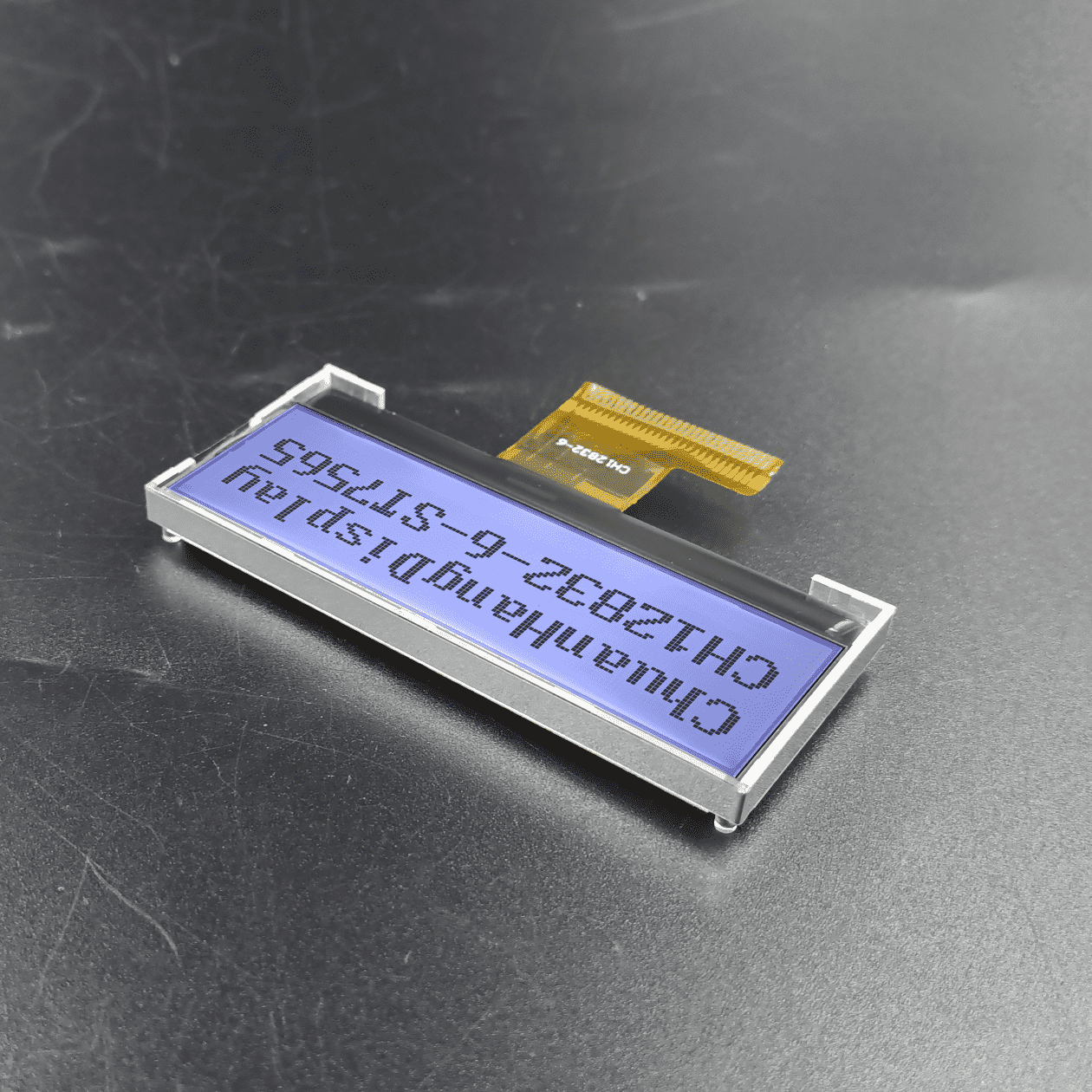

LCD Display Module CH12832-6-L
Product Description

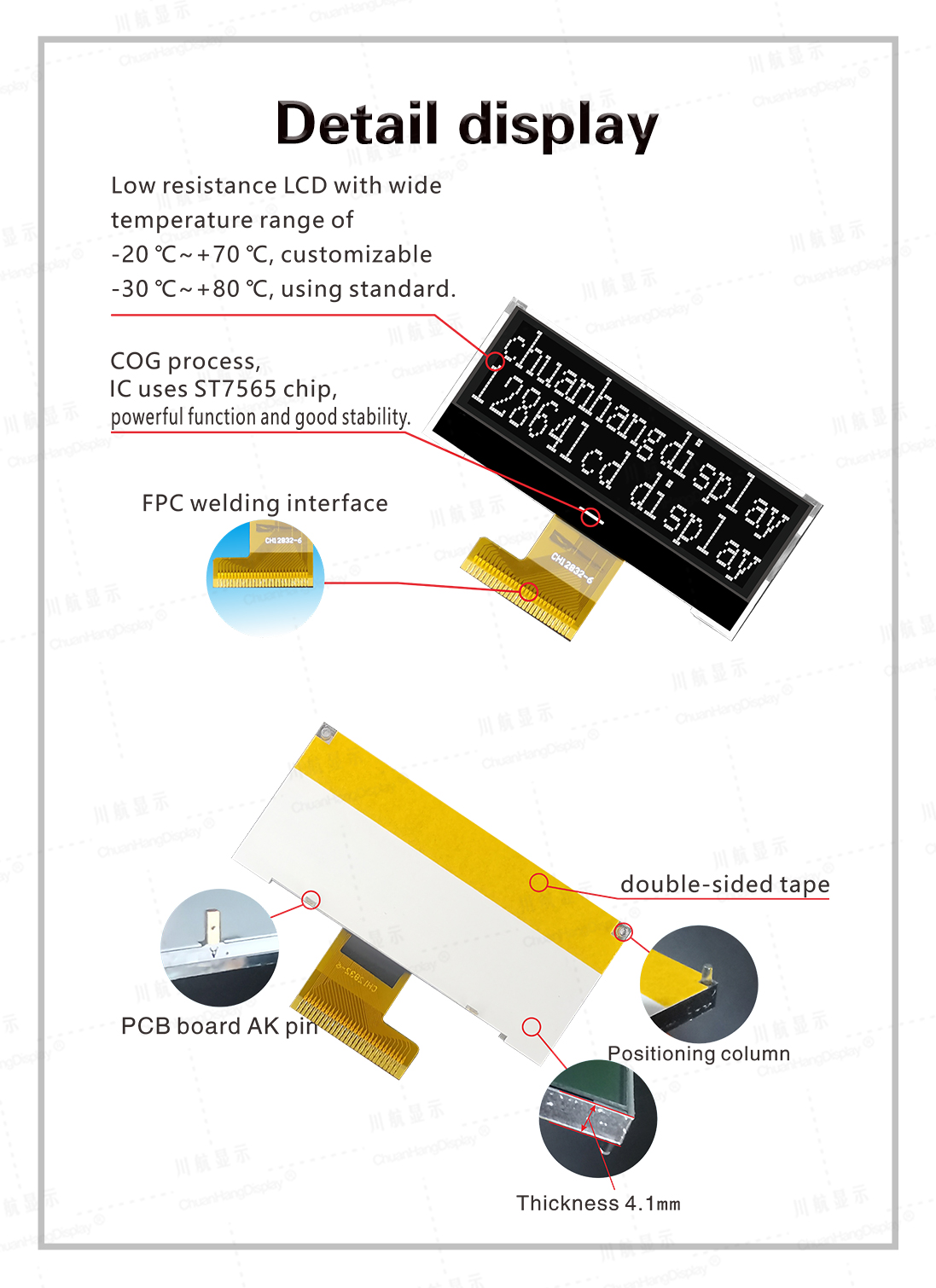

1.1 C0G process, FPC welding process, product with backlight, thin thickness, stable structure, 1.2|C uses ST7565R, there is no font library in the chip, and the programmer compiles the font library by himself.
1.3 Low power consumption, only 3.3V power mode, no backlight current within 2mA, backlight current within 100mA.
1.4 LED backlight A and K are powered separately for PCB board and need to be soldered on PCB board.
1.5 Product features:
Built-in display data RAM is 8192 bits.
Contrast is adjusted by software.
One screen displays 8 characters x 2 lines (16x16 dot matrix)
Single picture ≦ 128x32 dot matrix.
Optional 4-wire SPI interface or 8-bit parallel port 6800 timing or 8080 timing.
Rich functions:
Interface display on/off, positive display/reverse display, read/modify/write
