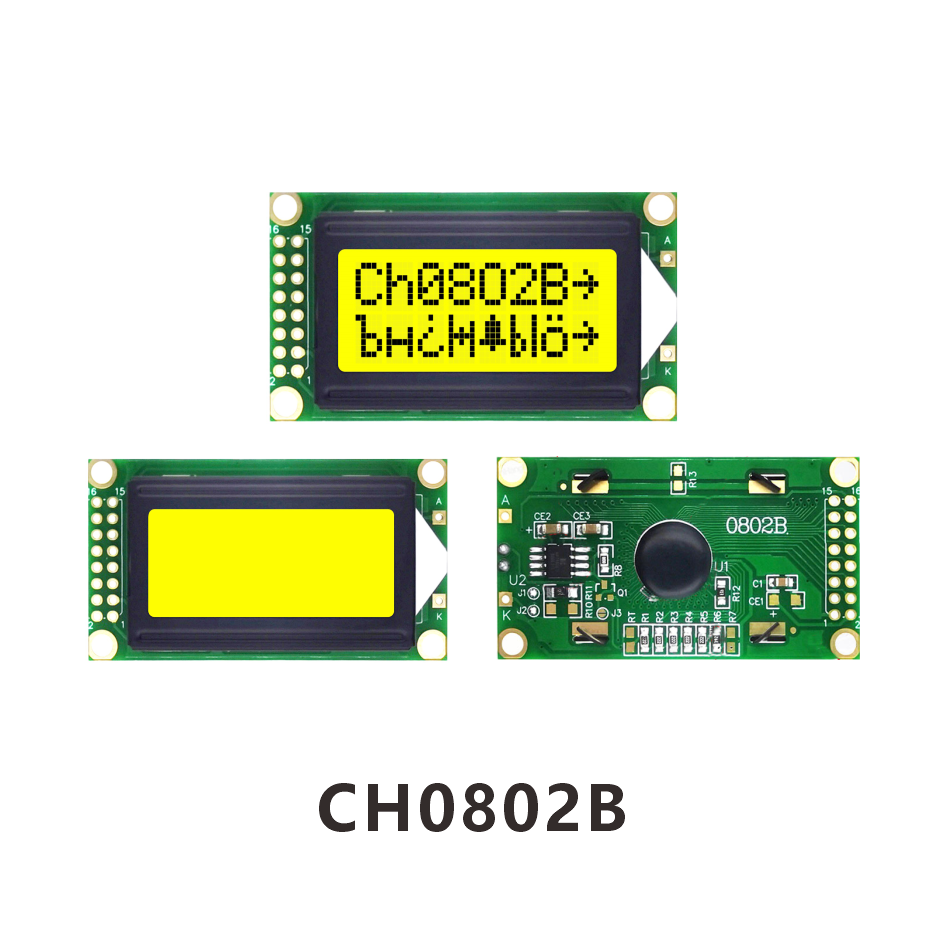

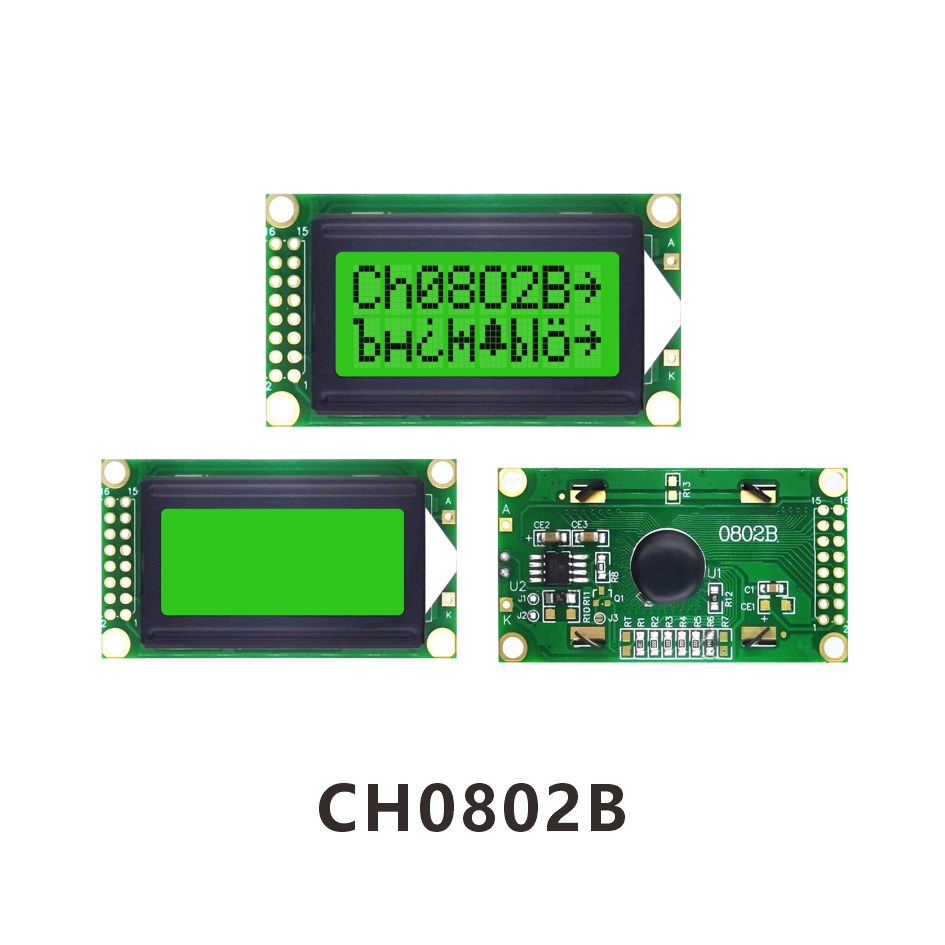

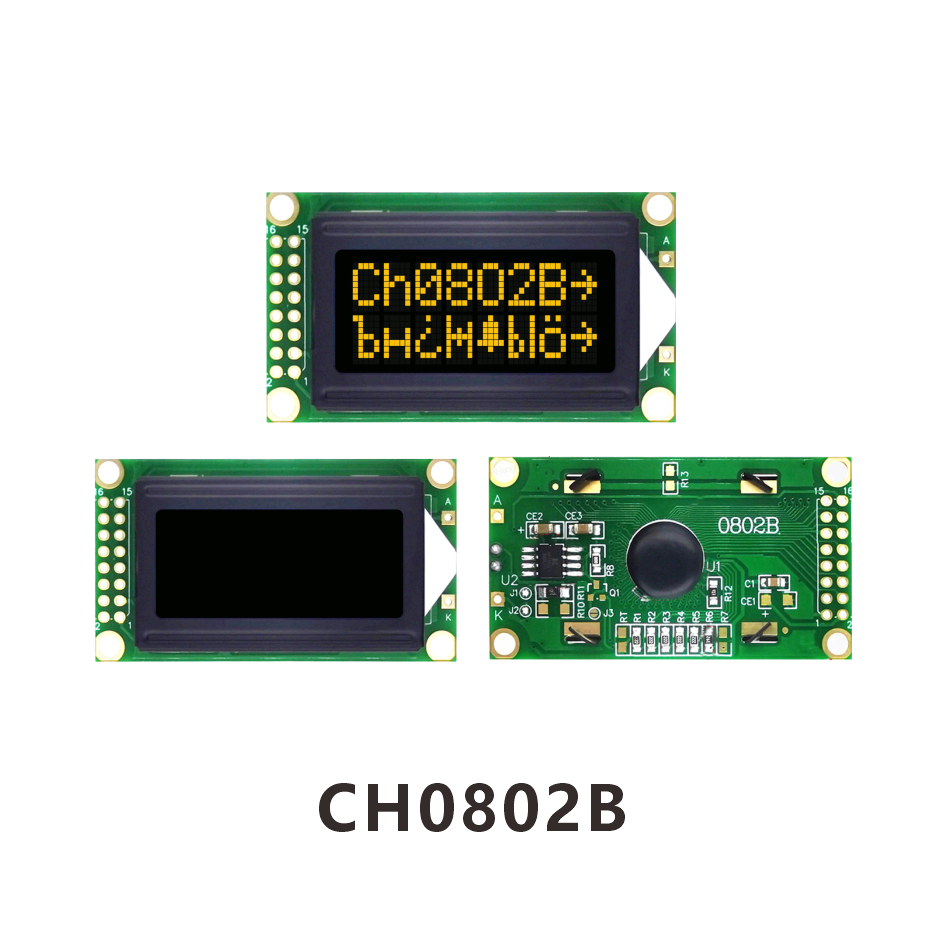

CH0802B 8x2 lcd display

Product Description

1.1 COB process, product with backlight, conductive tape connection, stable structure.
1.2 Font includes English-Japanese, English-European, English-Russian, default is English-Japanese, IC using AIP31066L. When using RW1063, optional SPI and I2C interface.
1.3 Low power consumption, 5V/3.3V two power modes, no backlight current within 3mA, with backlight current within 20mA.
1.4 LEDs can be driven by PIN1, PIN2, PIN15, PIN16 or A and K
1.5 Features.
● 8 characters x 2 lines.
● Display data RAM of 80 x 8 bits (up to 80 characters).
● Parallel interface, 4-bit or 8-bit MCU communication.
● Abundant functions: Interface display on/off, cursor Interface display on/off, Cursor on/off, Cursor blinking on/off, Display and Cursor moving direction, Cursor moving direction,Cursor moving direction.display and cursor moving direction.
● Automatic power-on reset function

PDF Download Demo code

Video Presentation

Product Parameters

Product Brand	ChuanHangDisplay	Product Model	CH0802B
Resolution	8X2	screen size	1.5 inches
Outline Dimension(LWH)	58.0x32.0x13.5mm	Visible Area(L*W)	37.7x16.0mm
Active Area(L*W)	27.45x11.5mm	Character Size(L*W)	2.95x5.55mm
Type	COB	Connection Method	Conductive strip
Supply Voltage	DC 5V/3.3V	Interface Type	4-bit or 8-bit parallel port
Viewing Direction	6 O'CLOCK	Driving Method	1/16Duty,1/5Bias
Display Type	STN	Driver IC	AIP31066
Operating Temperature	-20℃~+70℃	Storage Temperature	-30℃~+80℃
Backlight parameters	DC 5V/3.3V	production capacity	Self-produced
Character libraries	Default English and Japanese font library	Whether to bring PCB	Yes
